Code: SKU:BF14874

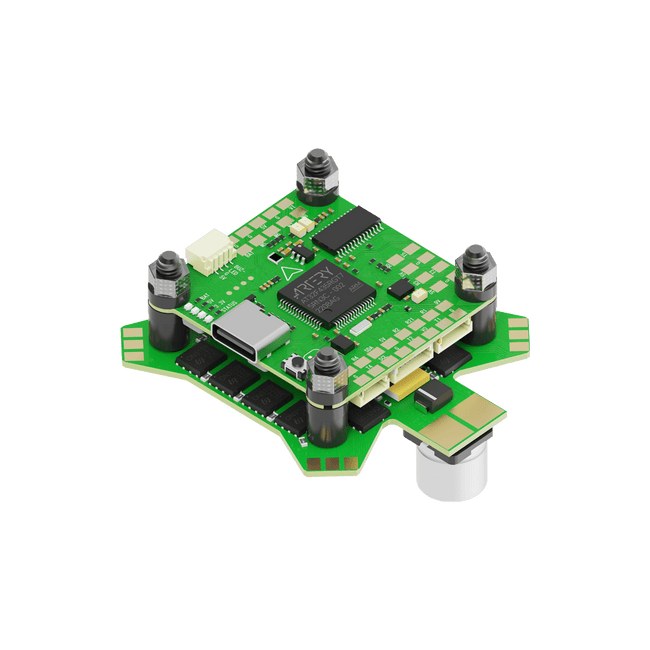

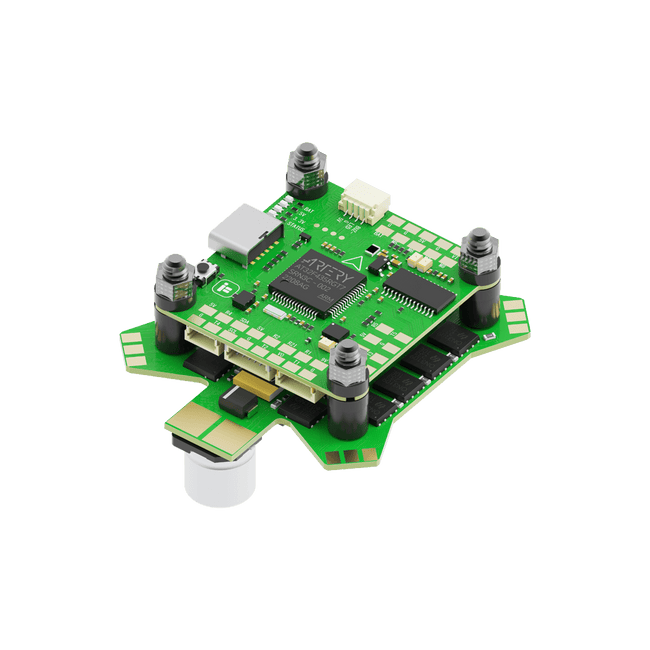

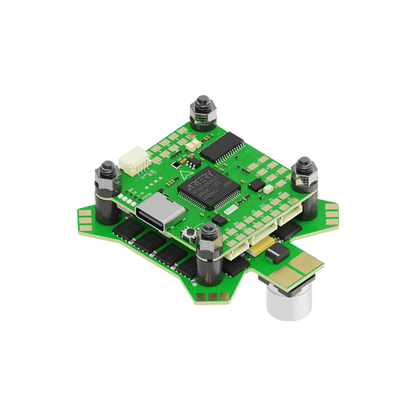

Stack iFlight BLITZ ATF435 (E55S 4-IN-1 ESC)
Stack iFlight BLITZ ATF435 (E55S 4-IN-1 ESC)
Brand: iFlight
Regular price
€78,26
Regular price
€78,26
Sale price
€78,26
Unit price
/
per
Taxes included.
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Stack iFlight BLITZ ATF435 (E55S 4-IN-1 ESC) The latest BLITZ Stack from iFlight. Ultra fast MCU AT32F435, powerful 55A for 2-6S batteries. The 30.5x30.5 mounting pattern ensures a perfect fit for most iFlight frames. Improved circuit design, better components and lower electrical noise! DJI HD VTX connector (Plug-and-Play / No soldering required), FC indicator LEDs for visual tuning, with LC filter. FC Specifications: MCU: AT32F435CGU7 Gyroscope: ICM42688 Barometer: DPS310 OSD chip: AT7456E Flash: 32 MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1.0 connector) I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED driver: Yes Buzzer: Yes Target Firmware: IFLIGHT_BLITZ_ATF435 Mounting pattern: 30.5 * 30.5mm / 4mm PCB hole diameter Dimensions: 36.5*35 mm Weight: 7.8g BEC: 5V 2.5A / 9V 2A ESC Specifications: Mounting holes: 30.5*30.5mm/Φ4mm Weight: 14.7g Supports 2-6S lipo input MCU: BB21 Constant: 55 Amps Discharge: 65 Amps Current sensor: Yes BEC: No Current rate: 200 Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. Target: Q-H-25 16.7 (BlheliS) / Bluejay Q-H-50 (Bluejay)/Q-H-25 - Bluejay, 0.16, 24kHz The package includes: 1x BLITZ ATF435 Flight Controller 1x BLITZ E55S 4-IN-1 2-6S ESC 1x cable harness for ATF435 Flight controller 1x silicone grommets
