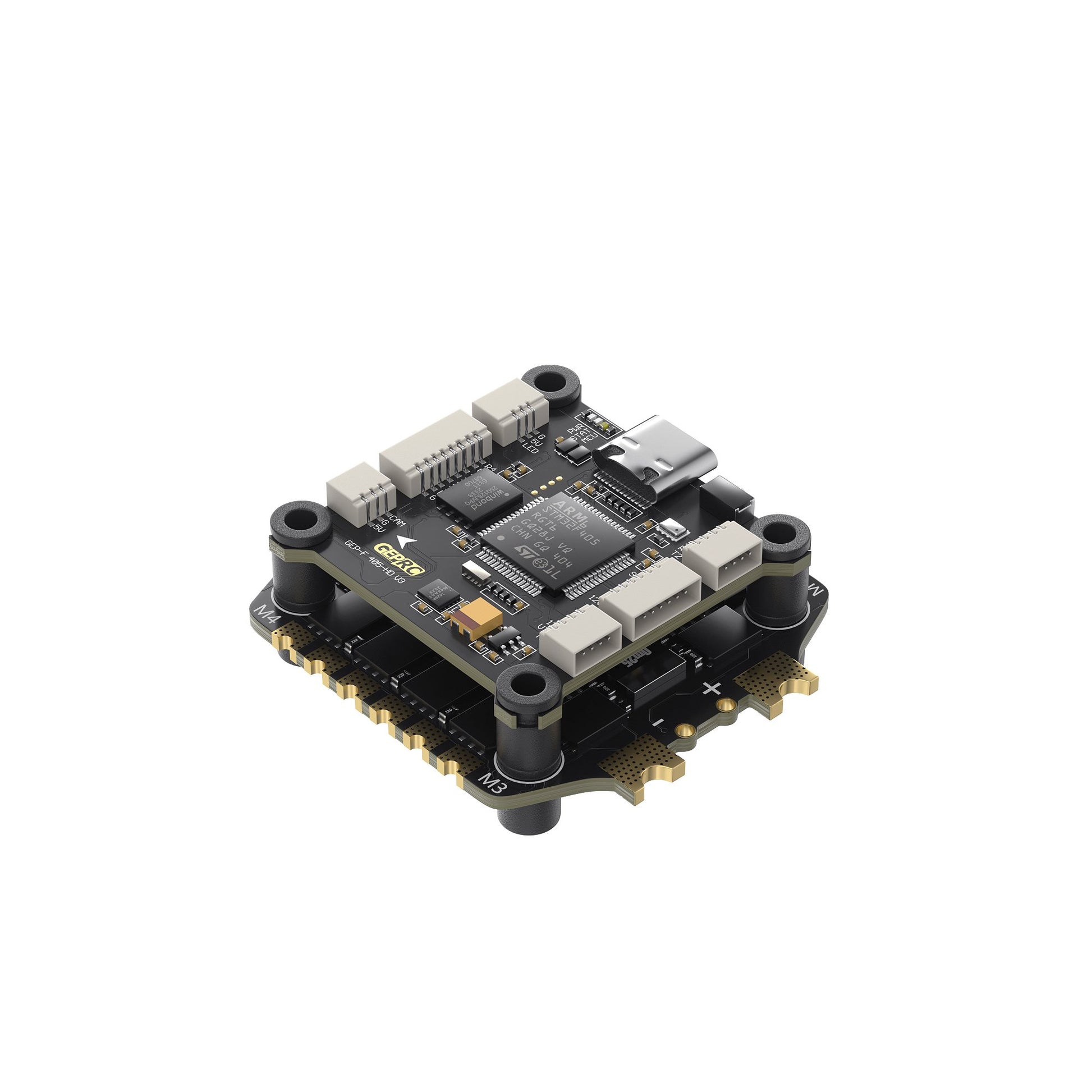

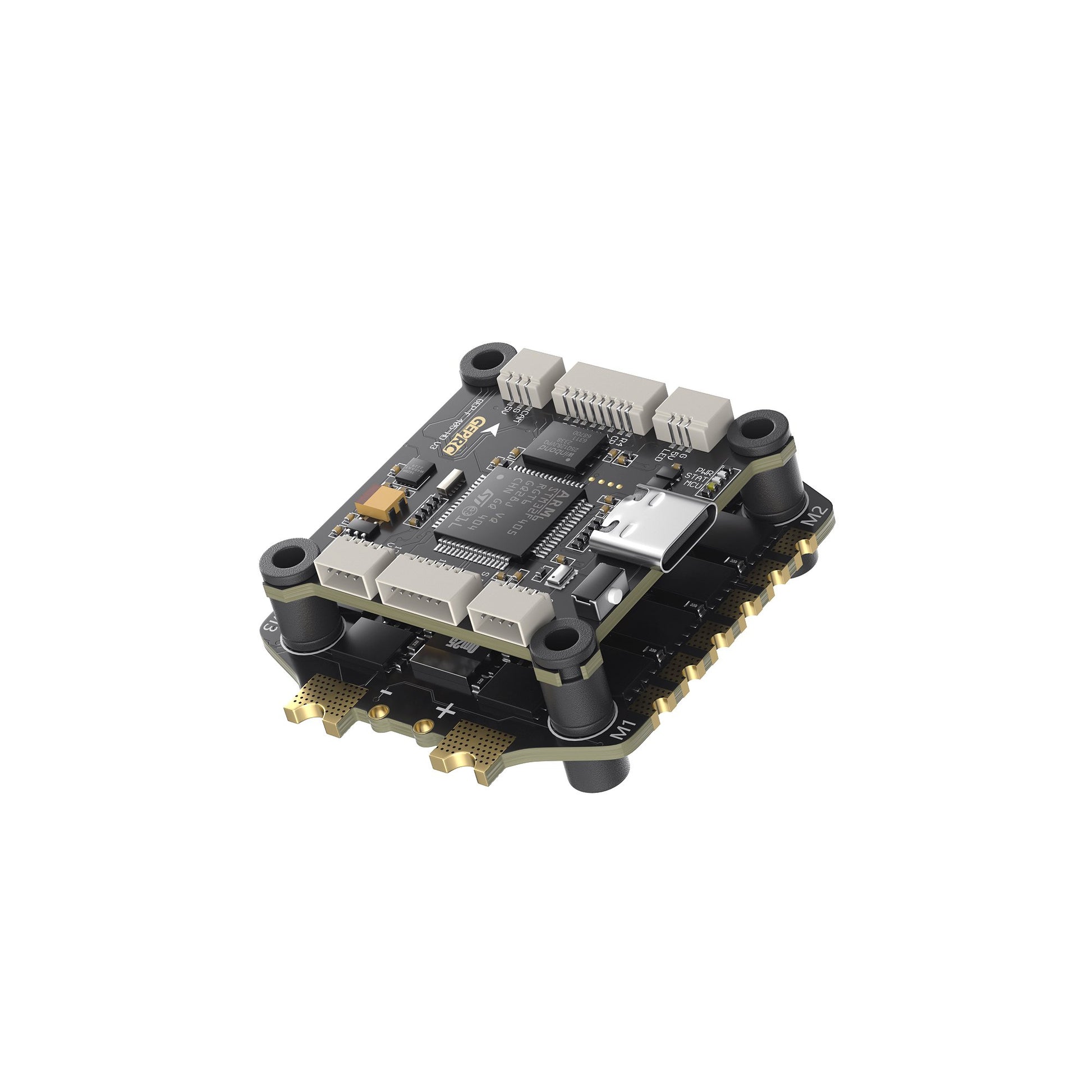

Stack GEPRC TAKER F405 BLS 60A V2

This flight controller and ESC combination is a powerful and versatile system designed for the needs of advanced FPV drones. With cutting-edge technologies such as STM32F405 chip, 42688-P gyroscope and 8S LiPo battery support, this kit provides smooth and reliable flight performance for racing, freestyle and movie drones.

Specifications:

GEP-F405-HD V3 Flight controller
MCU: STM32F405
IMU: ICM42688-P(SPI)
Aerial Unit Connection: Directly connect to the DJI aerial unit
Black box: 16M on board
Barometer: BMP280
Motor outputs: M1-M6
USB interface: Type C
OSD: BetaFlight OSD with AT7456E chip
BEC: 5V@3A,12V@2.5A dual BEC
Target firmware: GEPRCF405
Mounting: 30.5 x 30.5mm, the φ4mm hole becomes φ3mm after using the shock-absorbing silicone ring.
Input voltage: 3-6S LiPo
UART: 6 UART
Power filter: Integrated LC filter
Weight: 7.3 g

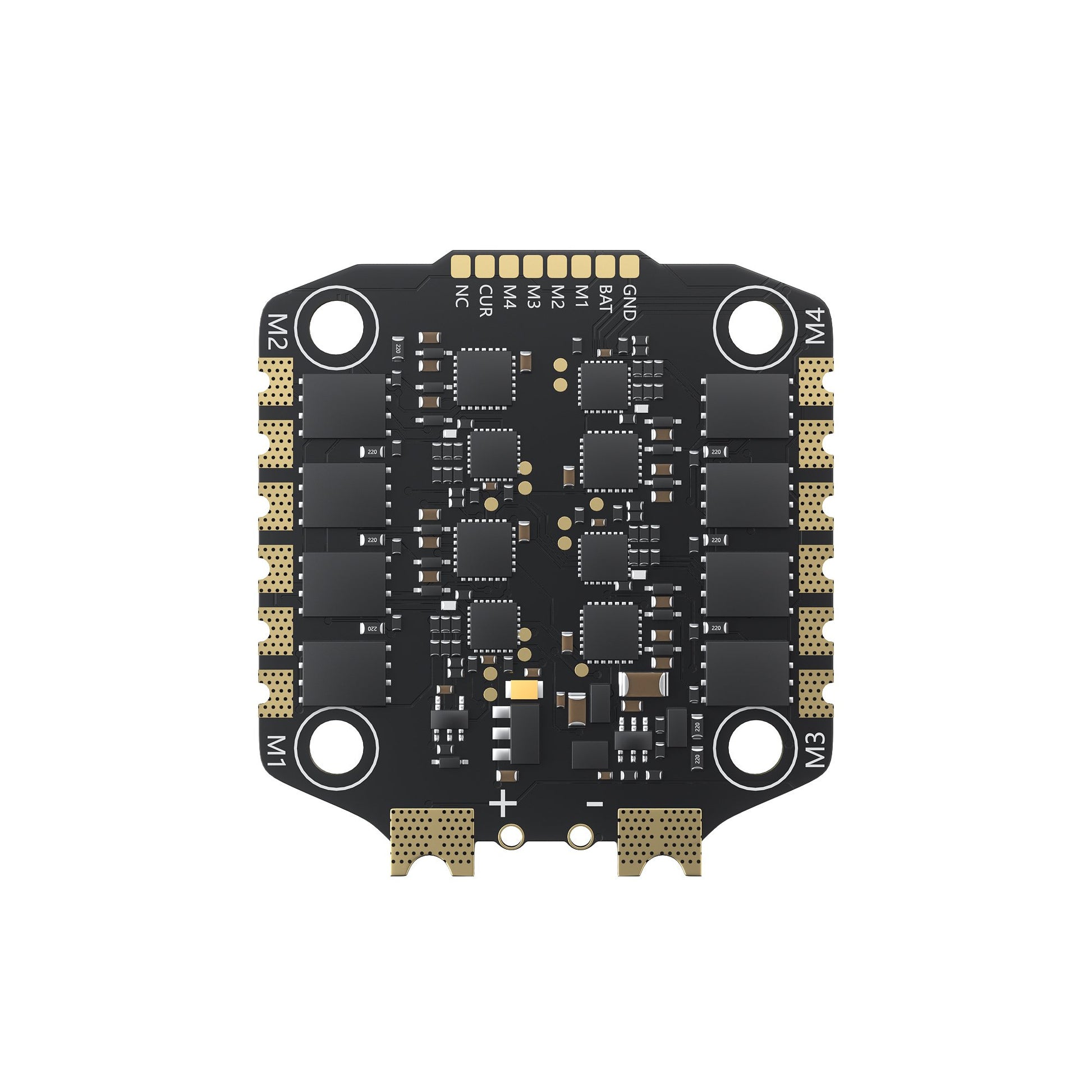

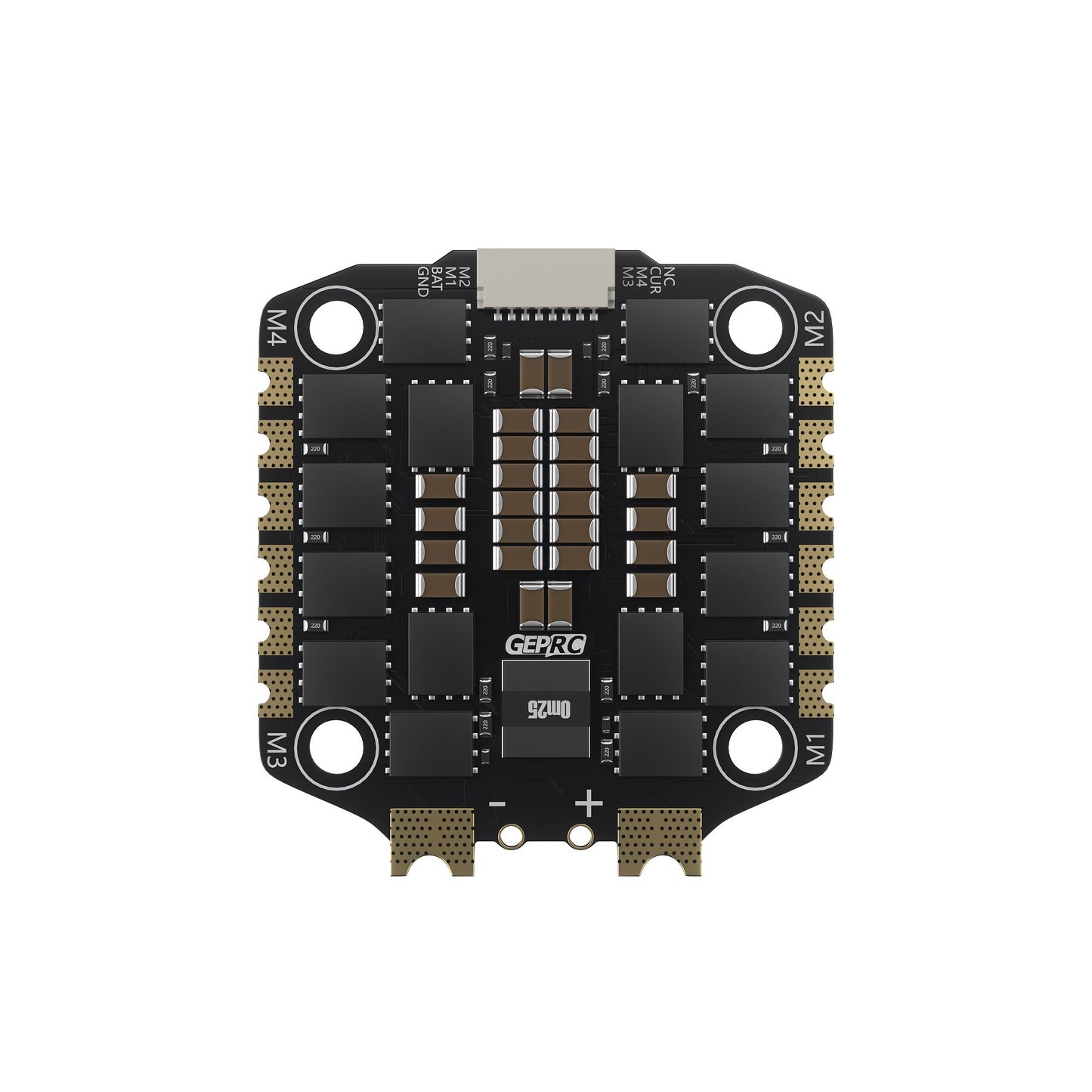

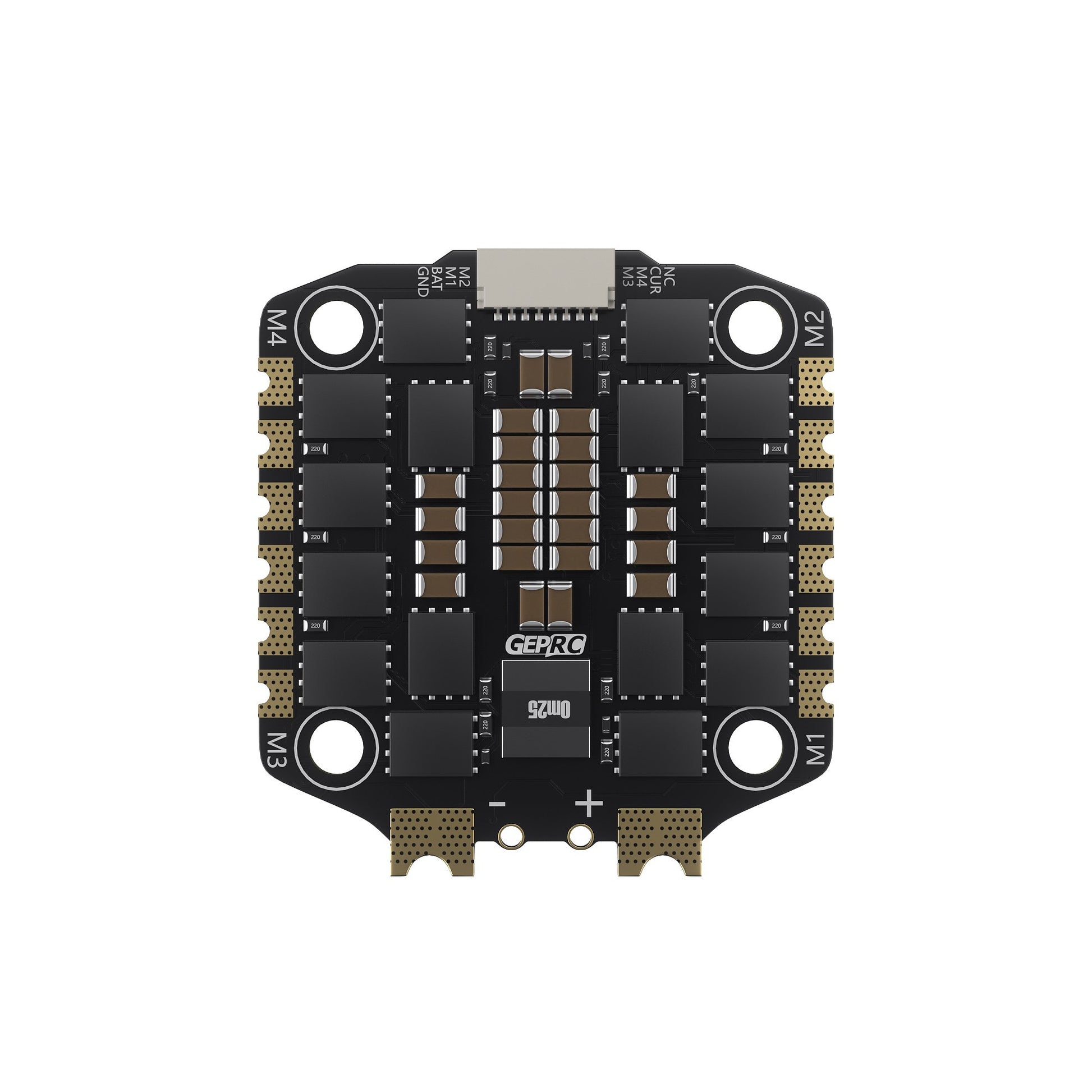

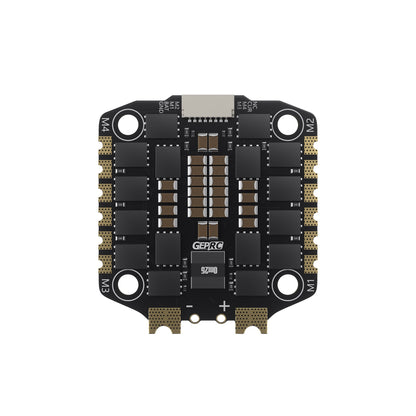

TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Ammeter: Support
Continuous current: 60A
Burst current: 65A (5 seconds)
Protocol support: Dshot 150/300/600
Size: 42 x 45.7mm, hole 30.5 x 30.5mm, after using silicone shock absorbing ring, φ4mm hole becomes φ3mm.
Weight: 14.9 g
Target: B_X_30

The package contains:

- Contains: 1x flight controller (GEP-F405-HD V3).
- 1x 4IN1 ESC (TAKER H60_BLS 60A)
- 1x capacitor
- 1x adapter cable for DJI aerial unit
- 1x Flight control unit adapter cable
- 1x XT60 power cable
- 4x screws M3×30
- 4x screws M3×25
- 8x nylon nuts
- 8x silicone grommets
- 2x 4-pole SH1.0 silicone cables
- 1x cable for connecting the camera
