STACK GEPRC SPAN F722-BT-HD V2
STACK GEPRC SPAN F722-BT-HD V2
Brand: GEPRC
Regular price
€149,55
Regular price
€149,55
Sale price
€149,55
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

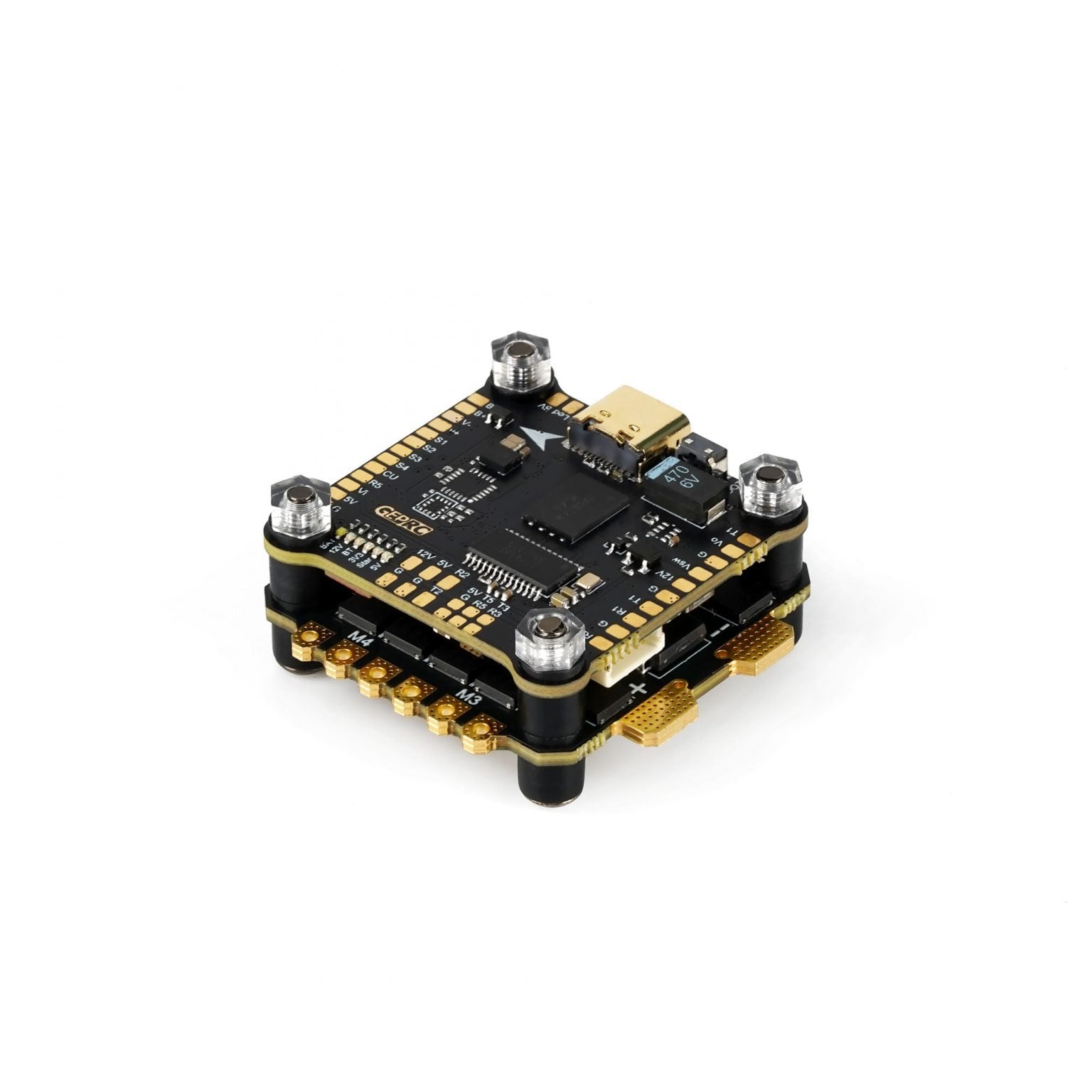

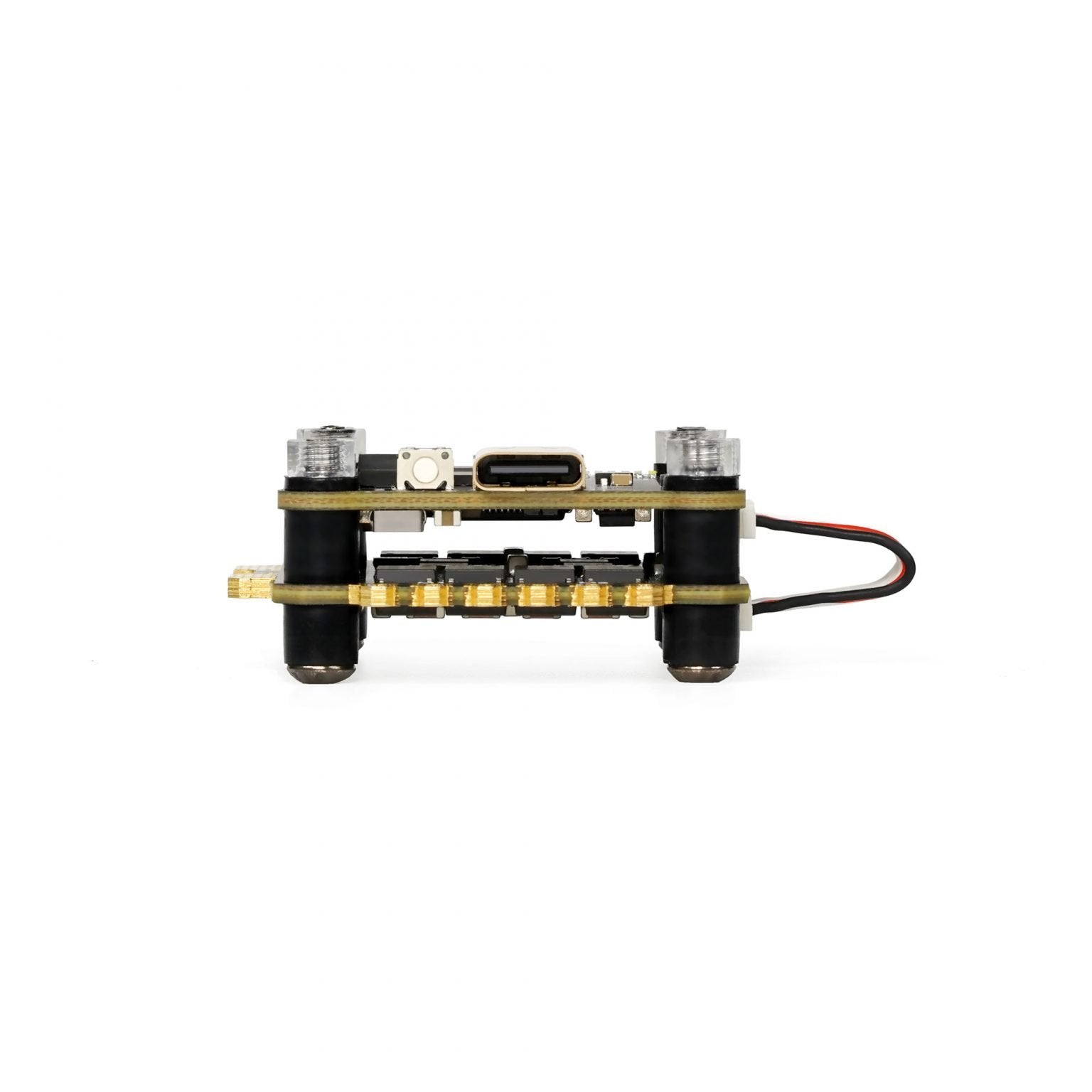

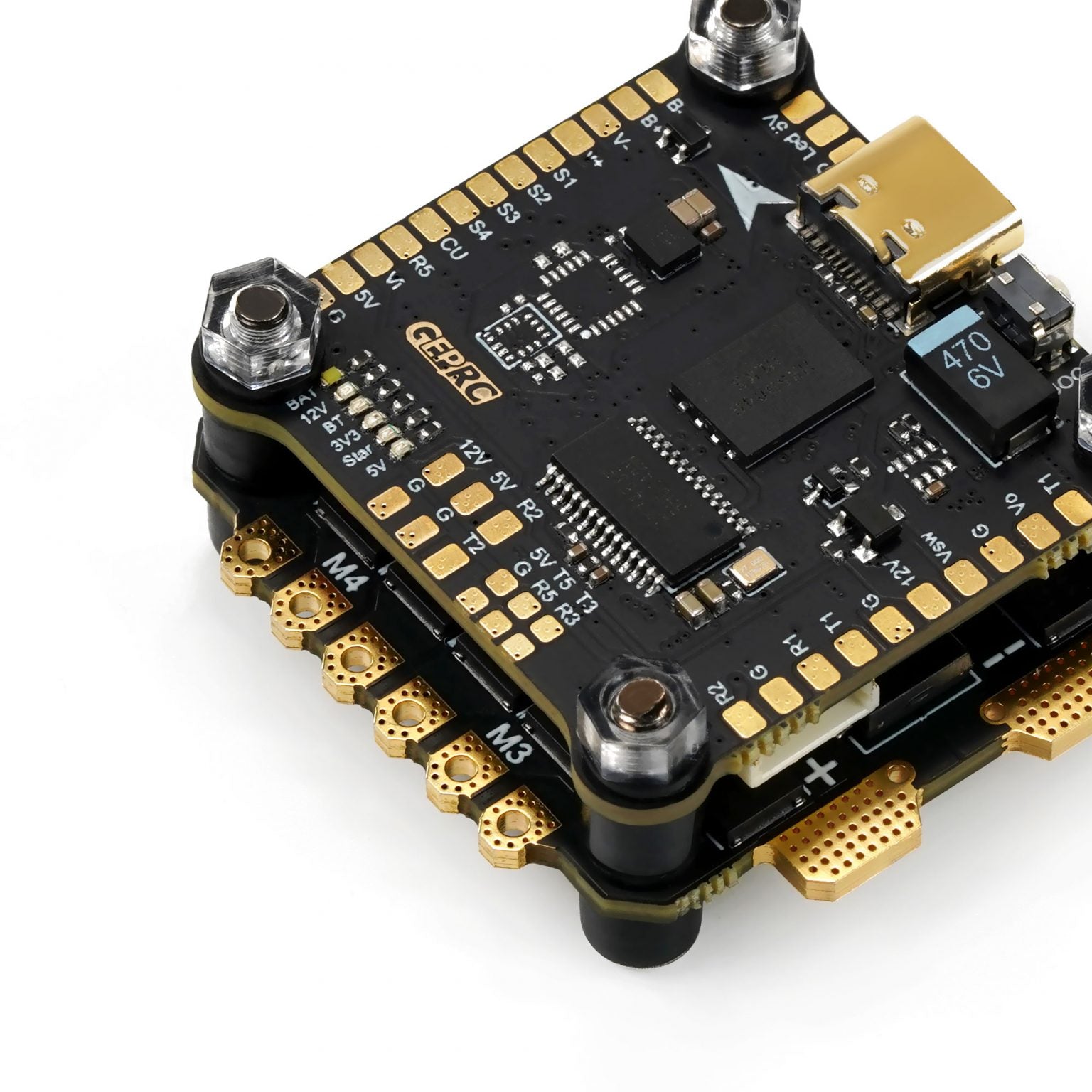

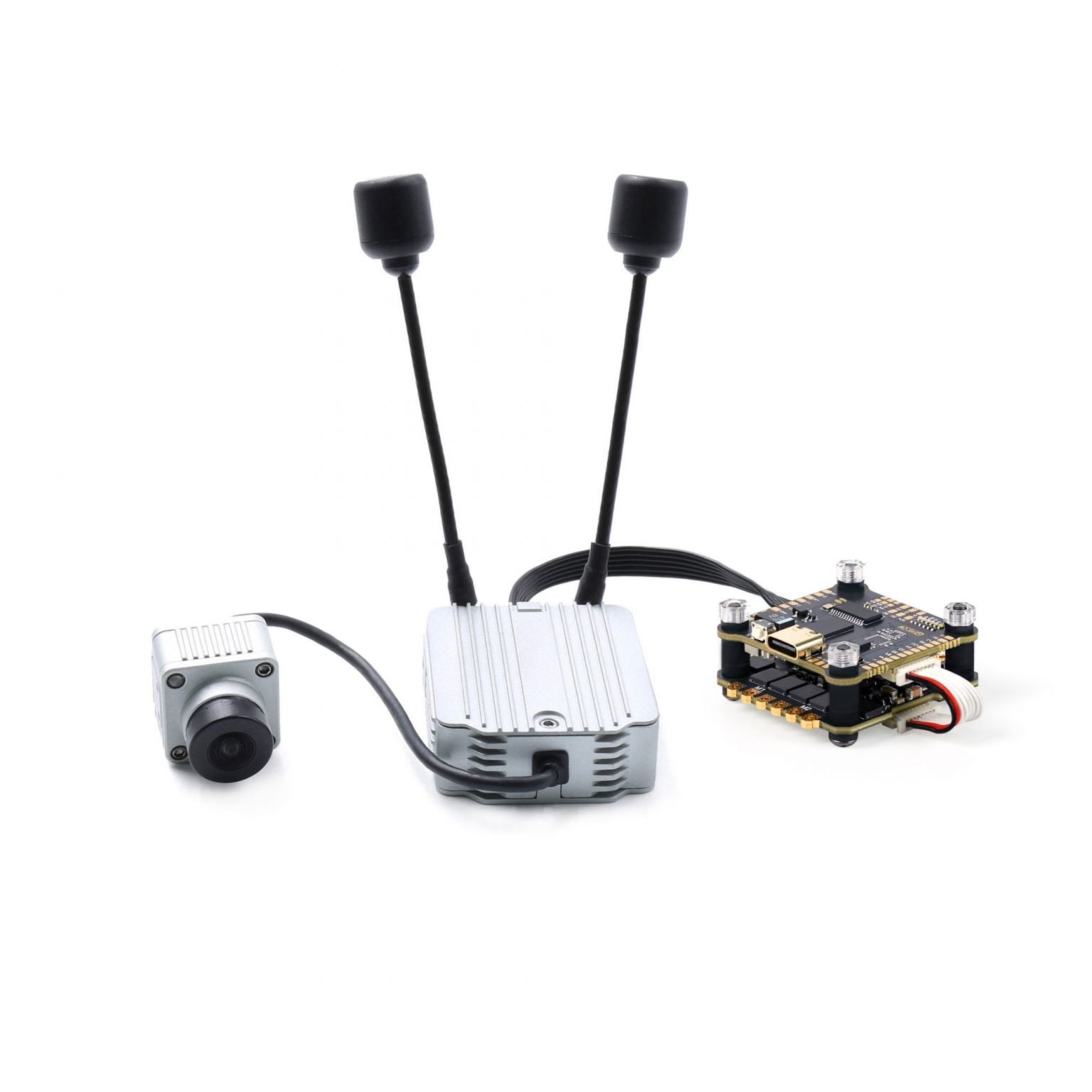

Stack SPAN F722-BT-HD V2 Stack SPAN F722-BT-HD v2 is a specialized flight controller and ESC system designed for DJI air unit. It is a plug-and-play flight tower with F722 chip flight controller and BLheli_32 50A 4-in-1 32-bit ESC with 96K capabilities. The system includes a 42688-P gyroscope, an integrated 512 MB built-in SD card and integrated Bluetooth parameter tuning for a refined flying experience. Key Features: 1. It uses STM32F722RET6 main control chip. 2. Equipped with the latest 42688-P gyroscope for better stability. 3. Supports Bluetooth parameter tuning for convenient setting. 4. Includes an integrated 512MB built-in SD card for data storage. 5. Integrated LC filter for clean power supply. 6. Features an improved USB Type-C connector for better durability. 7. Supports direct plug-in compatibility with DJI air unit, eliminating the need for soldering. 8. Seamlessly combines with BLHeli_32 50A 96K 4-in-1 ESC for a smooth flight experience. 9. It offers a simple installation process and the shock absorption ring increases the stability of the gyroscope. 10. Compatible with various receivers, including Sbus, PPM, CRSF, DSMX and iBus. Specifications for SPAN F722-BT-HD v2 Flight Controller: MCU: STM32F722RET6 IMU: 42688-P (SPI) On-board SD card: 512 MB USB connector: Type-C OSD: BetaFlight OSD with AT7456E chip BEC Output: 5V 3A / 12V 3A Integrated LC filtration Firmware: GEPRCF722-BT-HD Size: 36x36mm, the 4mm hole will change to 3mm after using silicone grommets Input voltage: LiPo 3-6S UART: 5 Specifications for BL32 50A 96K 4IN1 ESC: MCU: SMT32G071 (32bit 96KHz) Continuous current: 50A Peak current: 55A (5 seconds) Galvanometer: Supported Telemetry: Supported Supported protocols: DSHOT600, PWM, Multishot, OneShot Firmware: GEPRC_G071_4IN1_96K Input Voltage: 3-6S Lipo
