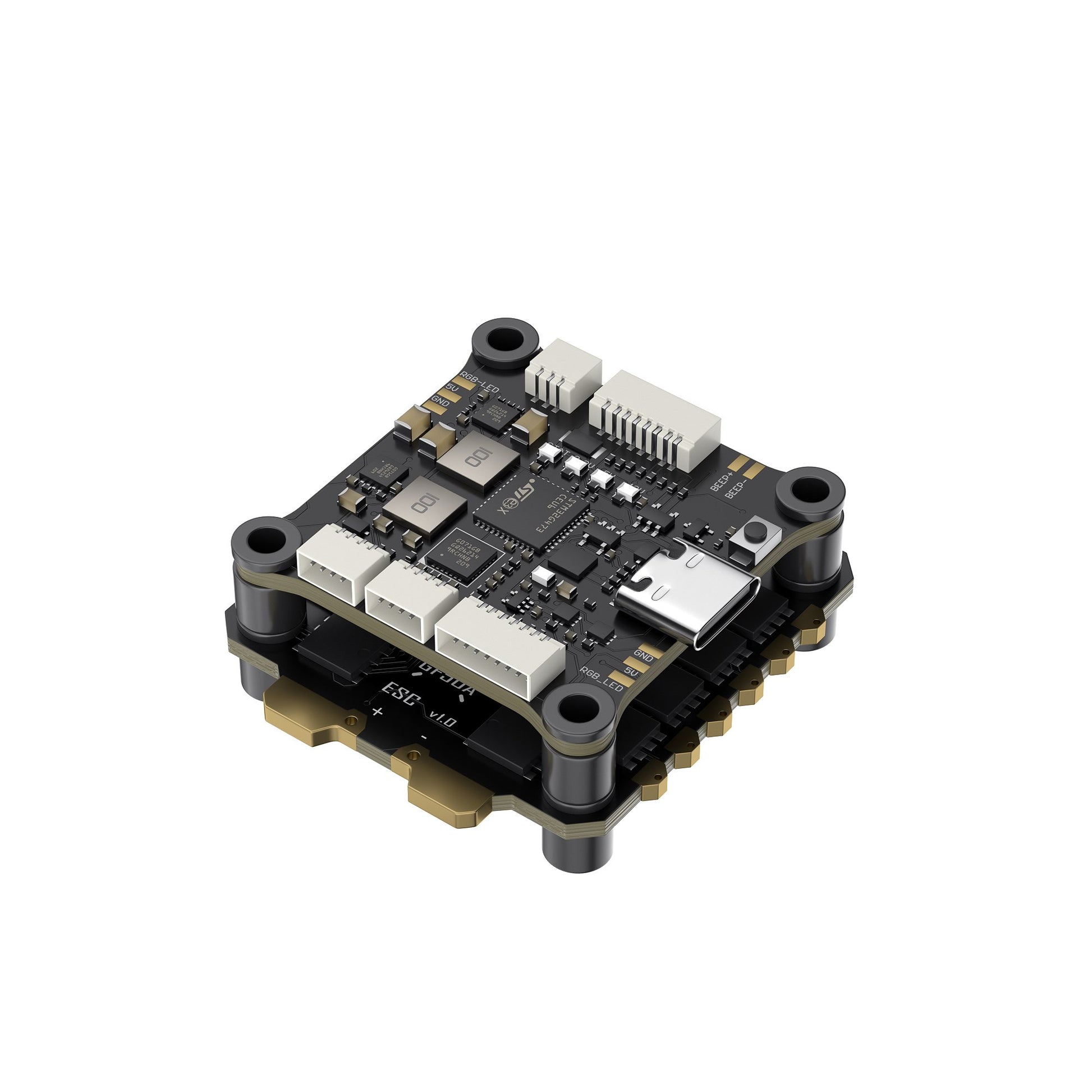

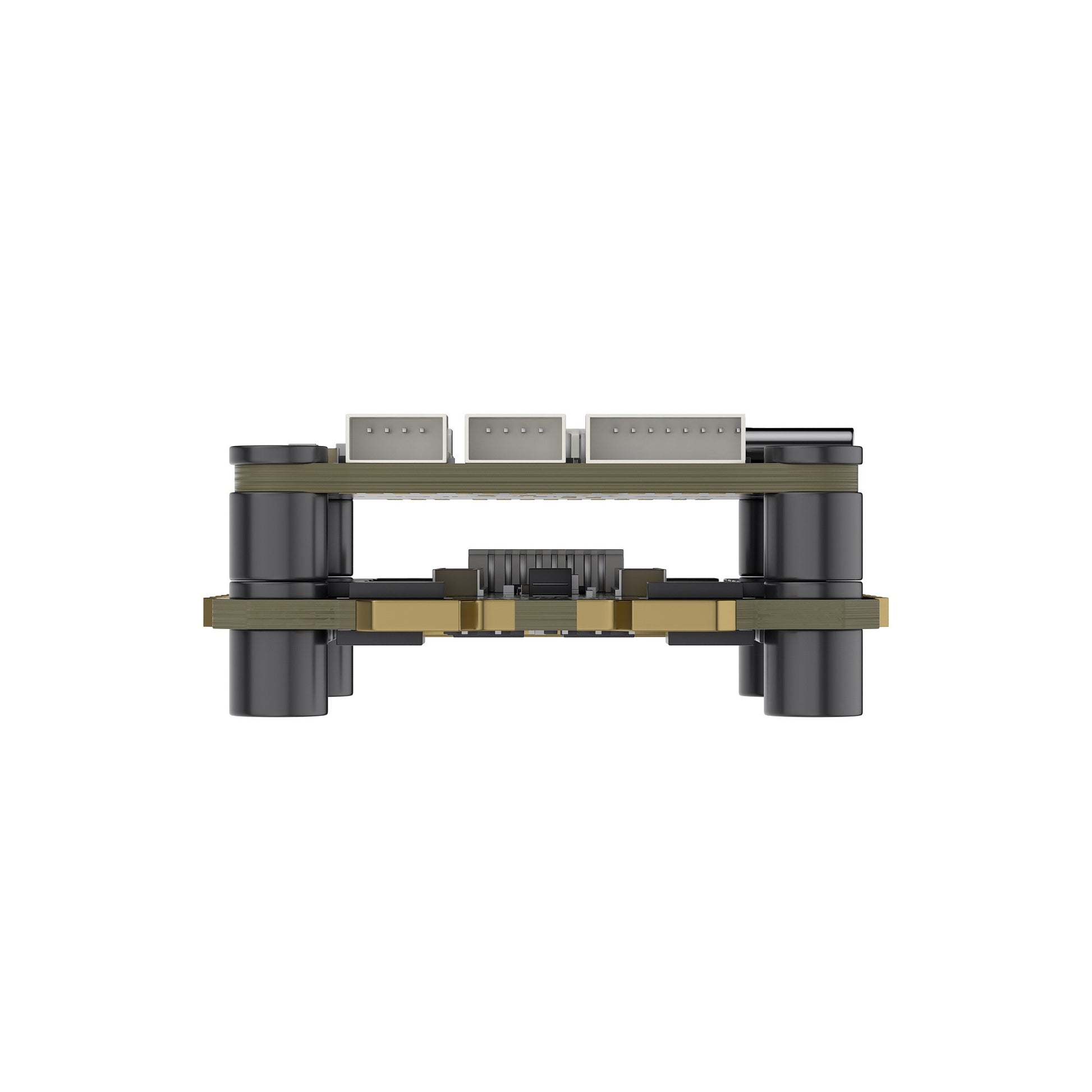

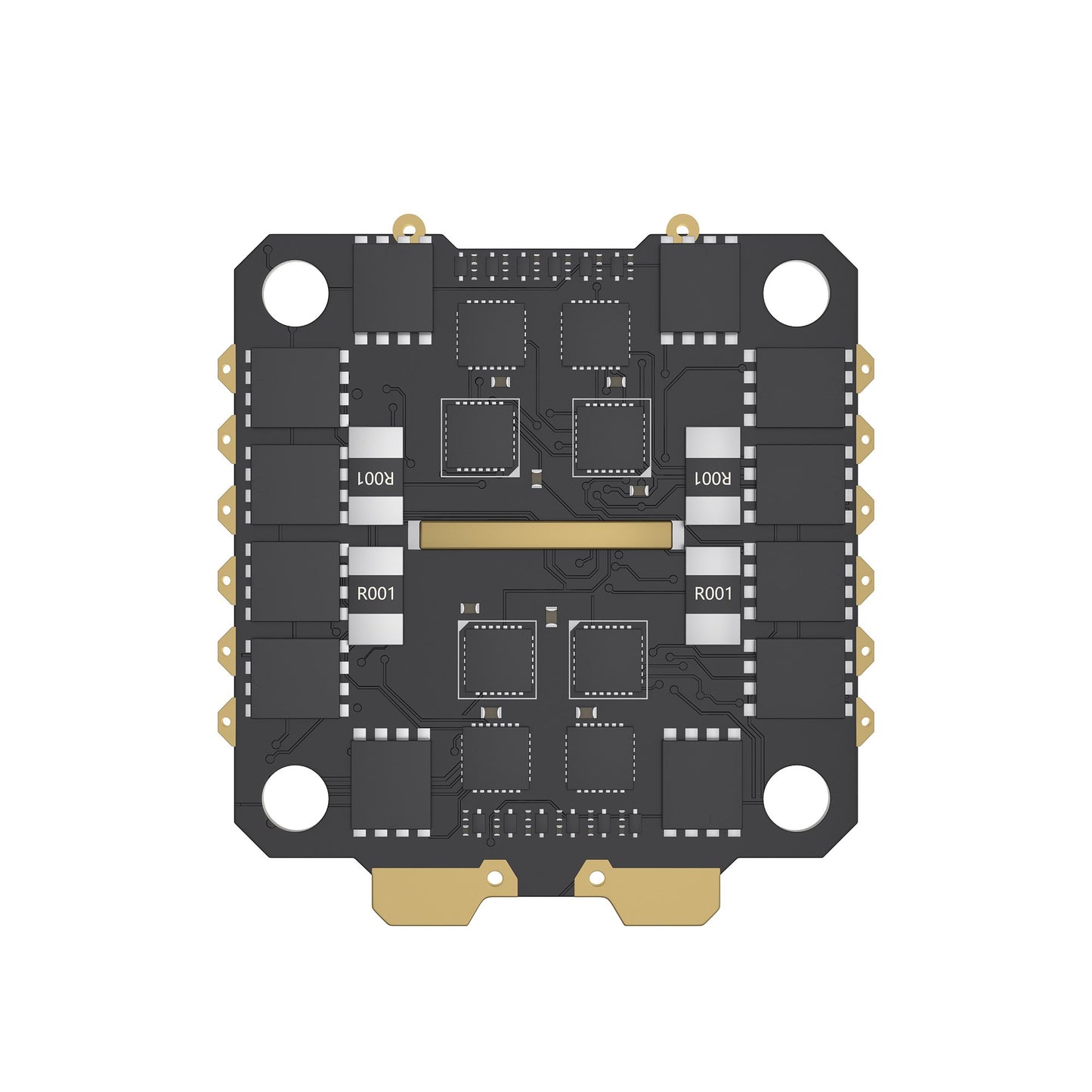

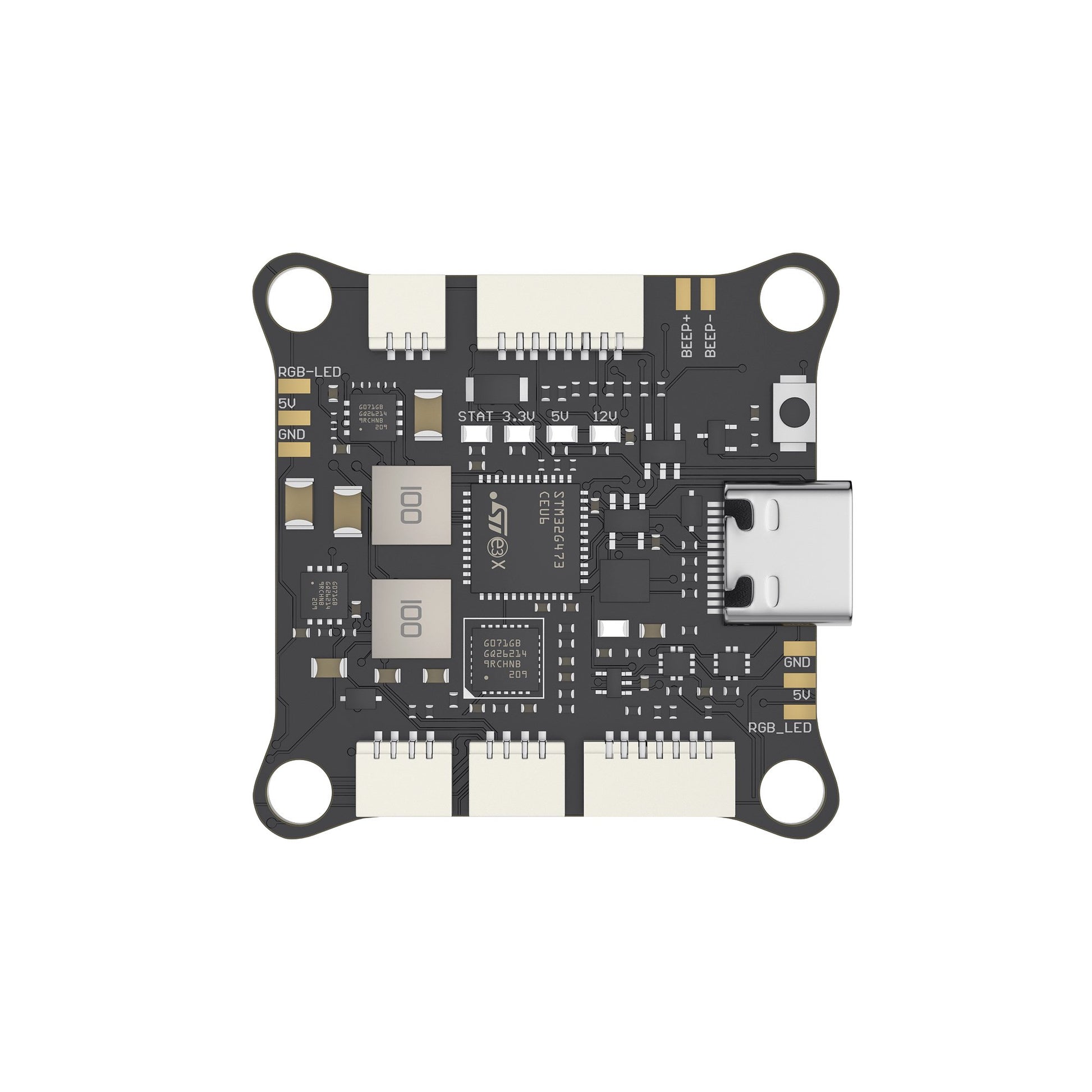

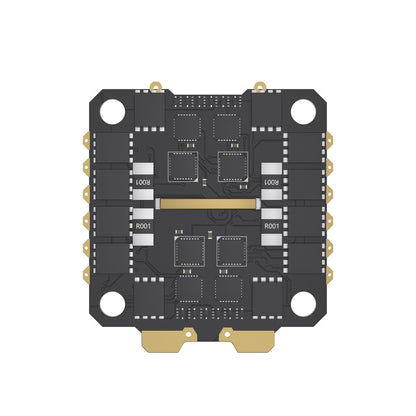

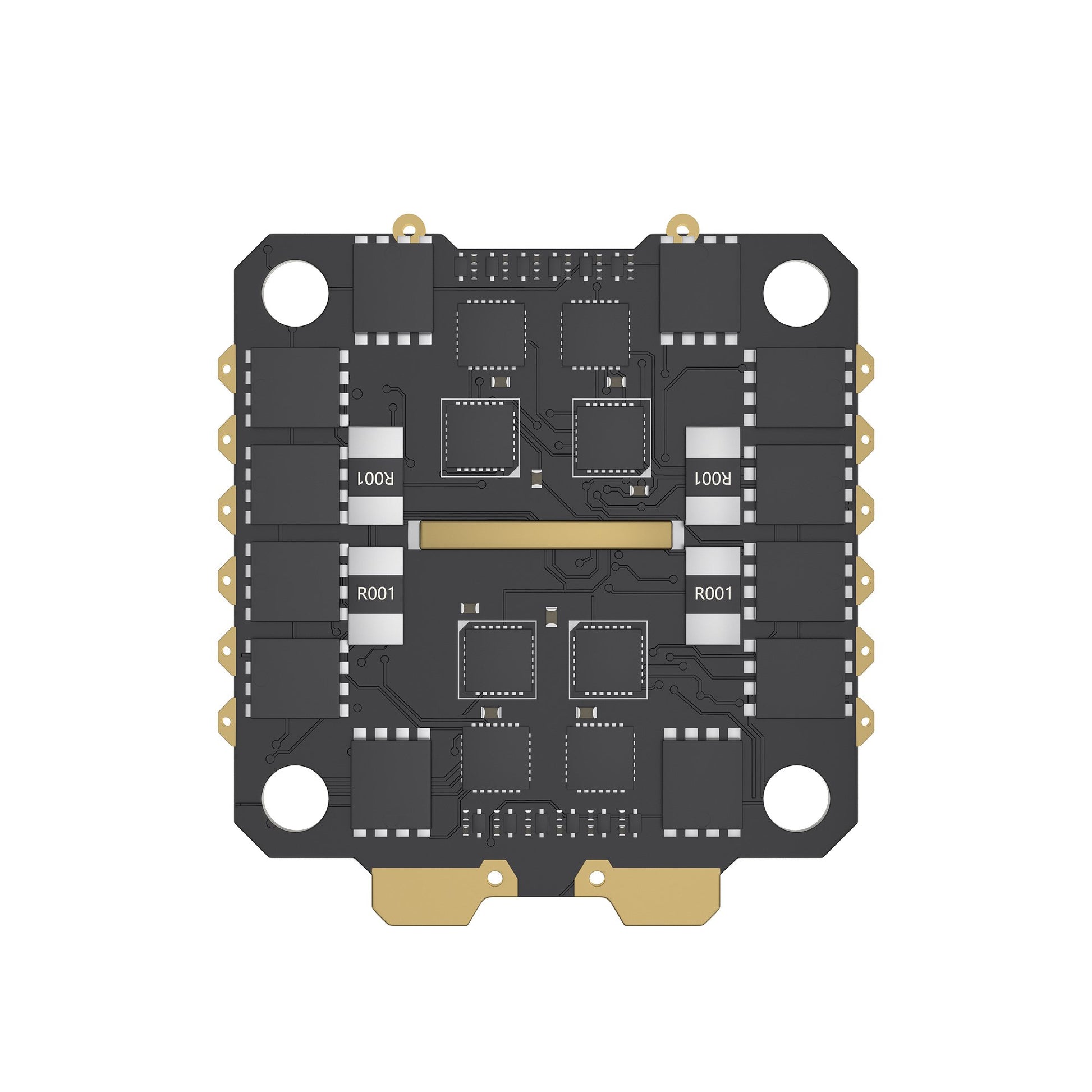

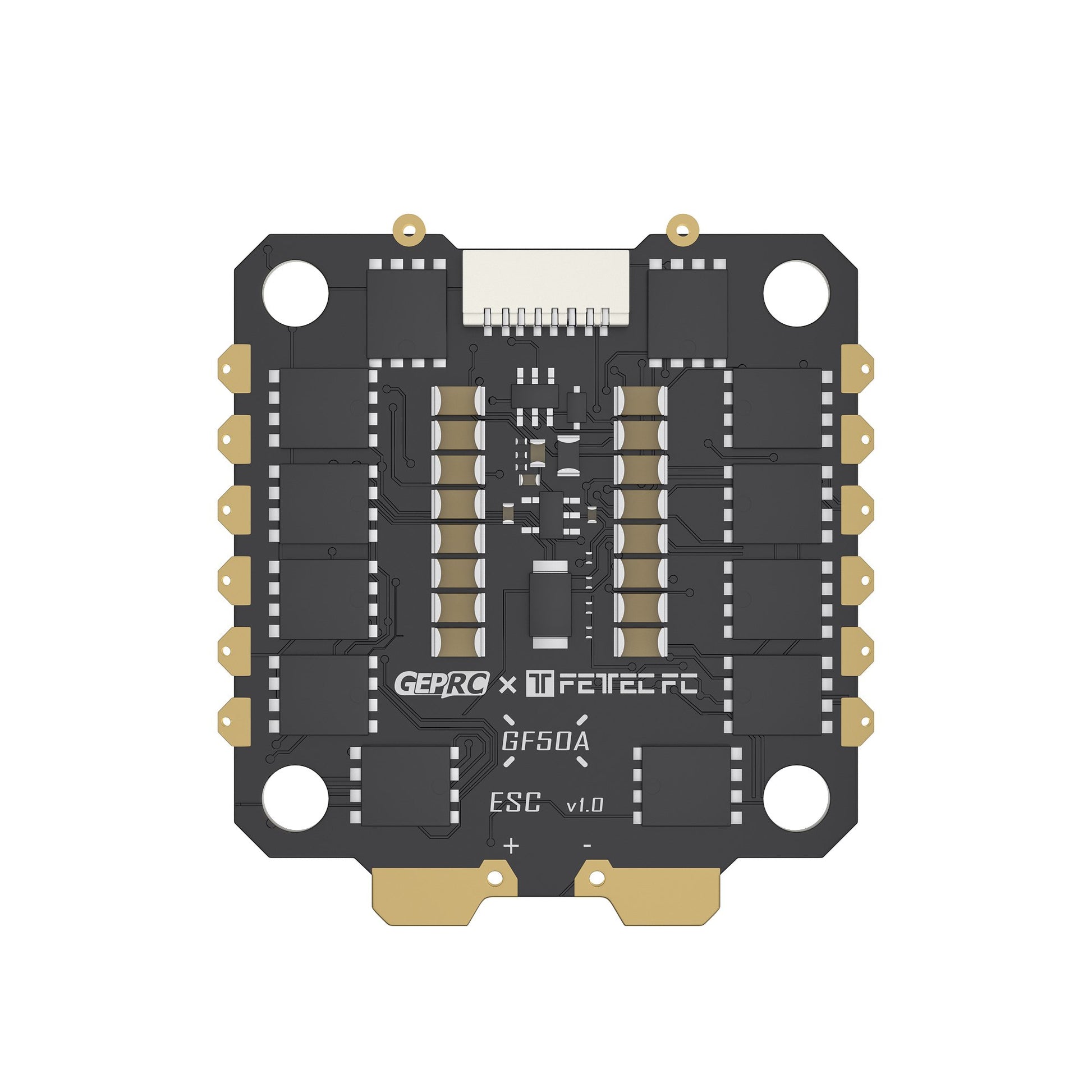

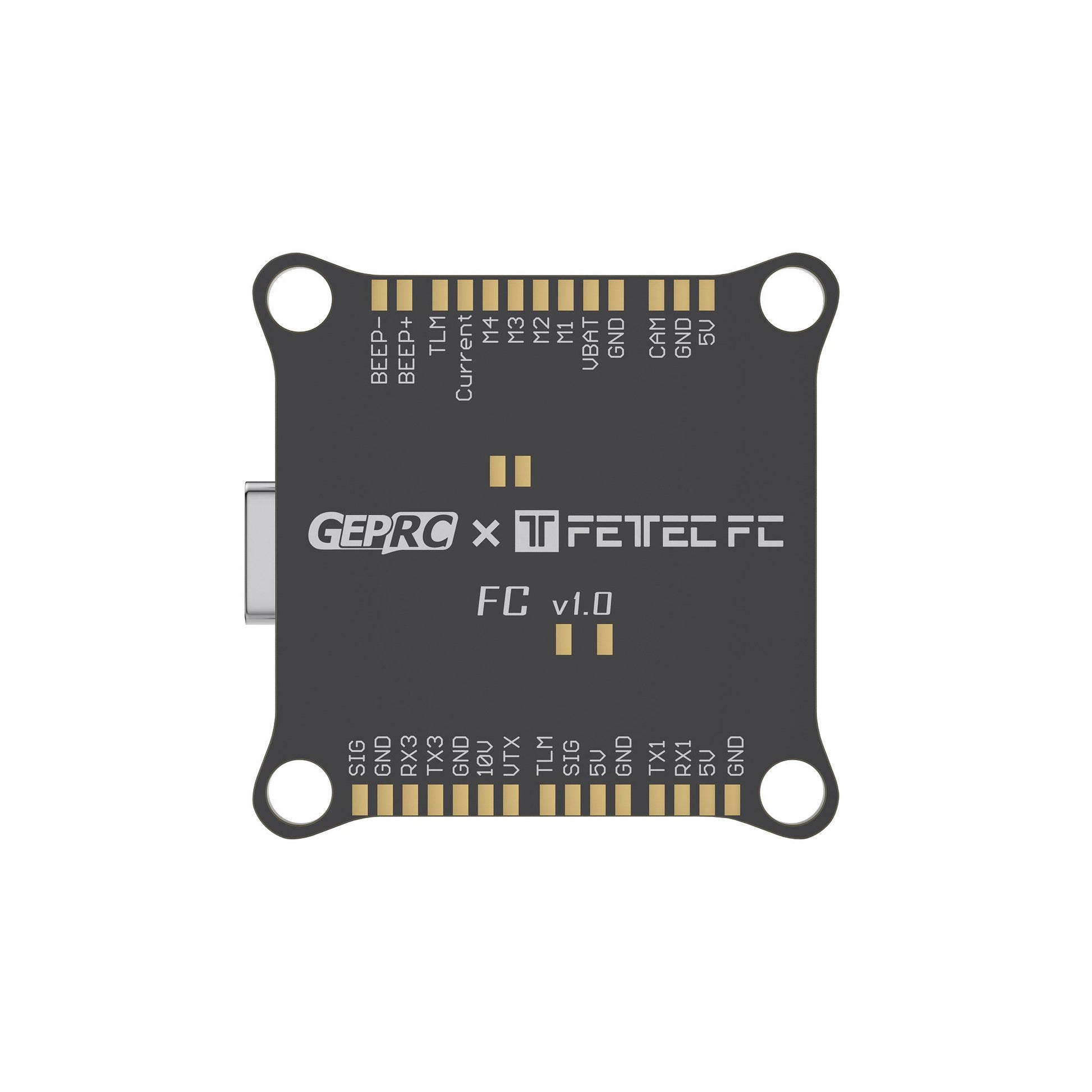

GEPRC Fettec G4 Alpha GF50A stack Co-branded GEPRC Fettec G4 Alpha GF50A by GEPRC and FETTEC. The FC features a G473 main controller, built-in FETTEC Alpha firmware and high-speed S2M or Dshot2400 protocol with GF50A ESC to achieve exceptional stability and lightning-fast response. In addition, FETTEC's powerful closed-source firmware and feature-rich software will elevate your FPV flight experience to a new level. Function: - The flight controller uses FETTEC Alpah firmware, the ESC uses FETTEC firmware and supports high-speed protocols such as S2M and Dshot2400. - All flight control function interfaces support SH1.0 cable connection, making it easy to assemble without soldering wires. - Two-in-one high-definition analog socket that supports DJI digital image transmission and analog image transmission. - FC features high robustness to handle challenging situations such as bent propellers caused by a crash, in harsh flight conditions. Specifications: Model: GEPRC Fettec G4 Alpha MCU: STM32G473CEU6 IMU: llM 42602 Firmware: FETTEC ALPHA OSD: FETTEC OSD External buzzer: YES External LED: YES USB interface: TYPE-C BEC Output: 9V@2A MAX 2.5A 5V@2A MAX 2.5A Weight: 6.6g Model: GEPRC Fettec GF50A 4IN1 DShot2400 ESC MCU: STM32G071 Continuous current: 50A Peak current: 55A Input: 2-6S (LIPO battery) Protocol: S2M+OW, S2M, Dshot300-2400 Galvanometer: YES Firmware: FETTEC Plate size: 32 x 32 mm Installation hole location: 30.5mm x 30.5mm M4 Weight: 13g The package includes: 1 x GEPRC Fettec GF50A 4V1 DShot2400 ESC 1 x GEPRC Fettec G4 Alpha FC 2 x SH1.0-4Pin 100mm silicone wire 1 x SH1.0-6P to SH1.0-7Pin silicone cable 60mm 1 x SH1.0 8Pin 30mm Silicone Cable 1 x Silicone cable SH1.0 7pin to 6pin 80MM 1 x XT60 power cable 110MM 1x capacitor 35V 1000uf 4 x M3*24 hexagon socket head screw 4 x M3 transparent nylon nut 10 x M3*8 damping balls 1 x Product manual
