Code: SKU:FW19003949
Stack FLYWOO GOKU GN405 Nano HD 35A V3 ELRS
Stack FLYWOO GOKU GN405 Nano HD 35A V3 ELRS
Brand: FLYWOO
Regular price
€58,03
Regular price
€58,03
Sale price
€58,03
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

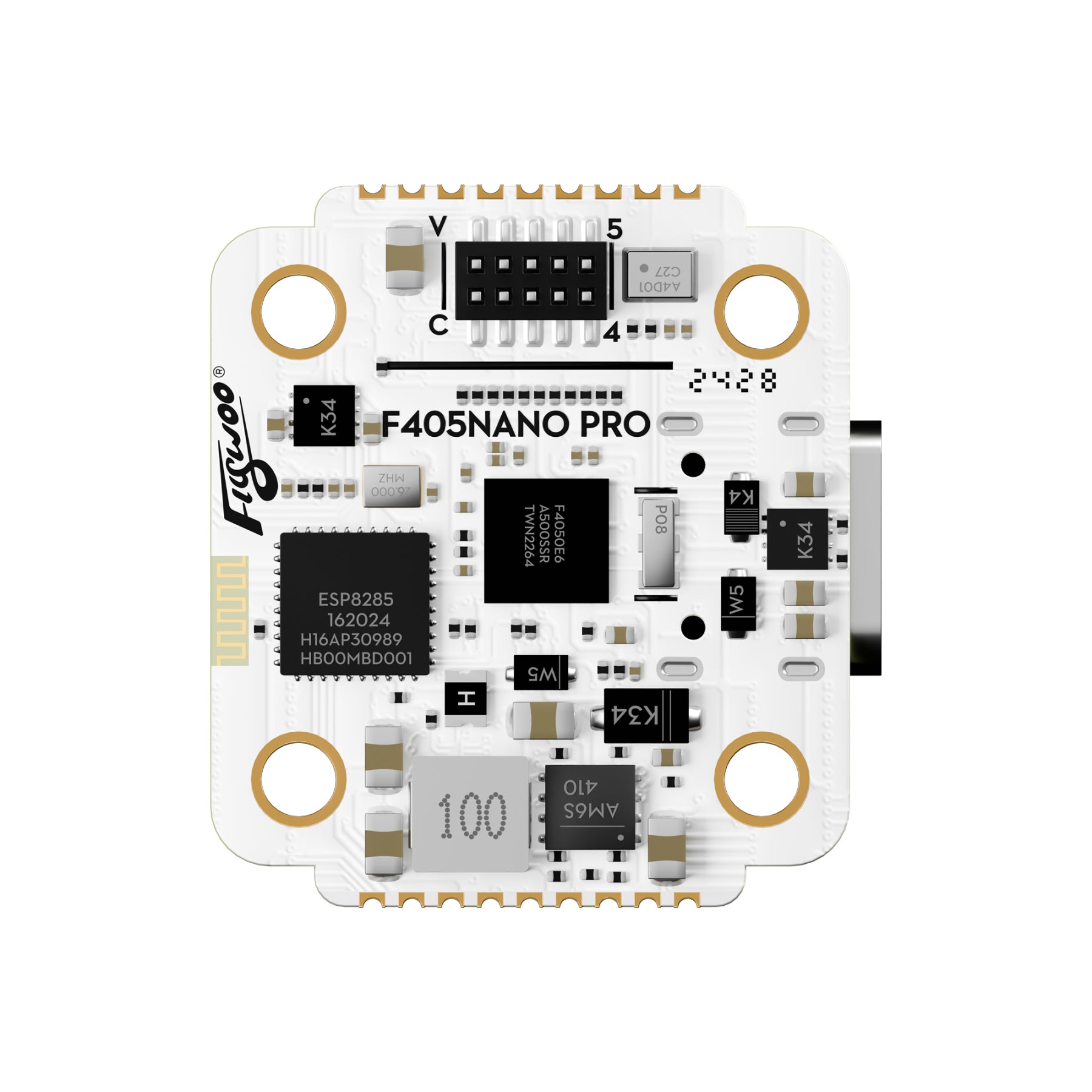

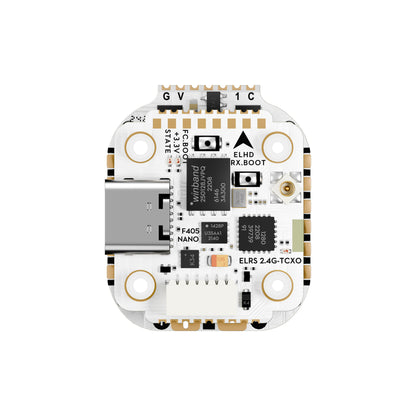

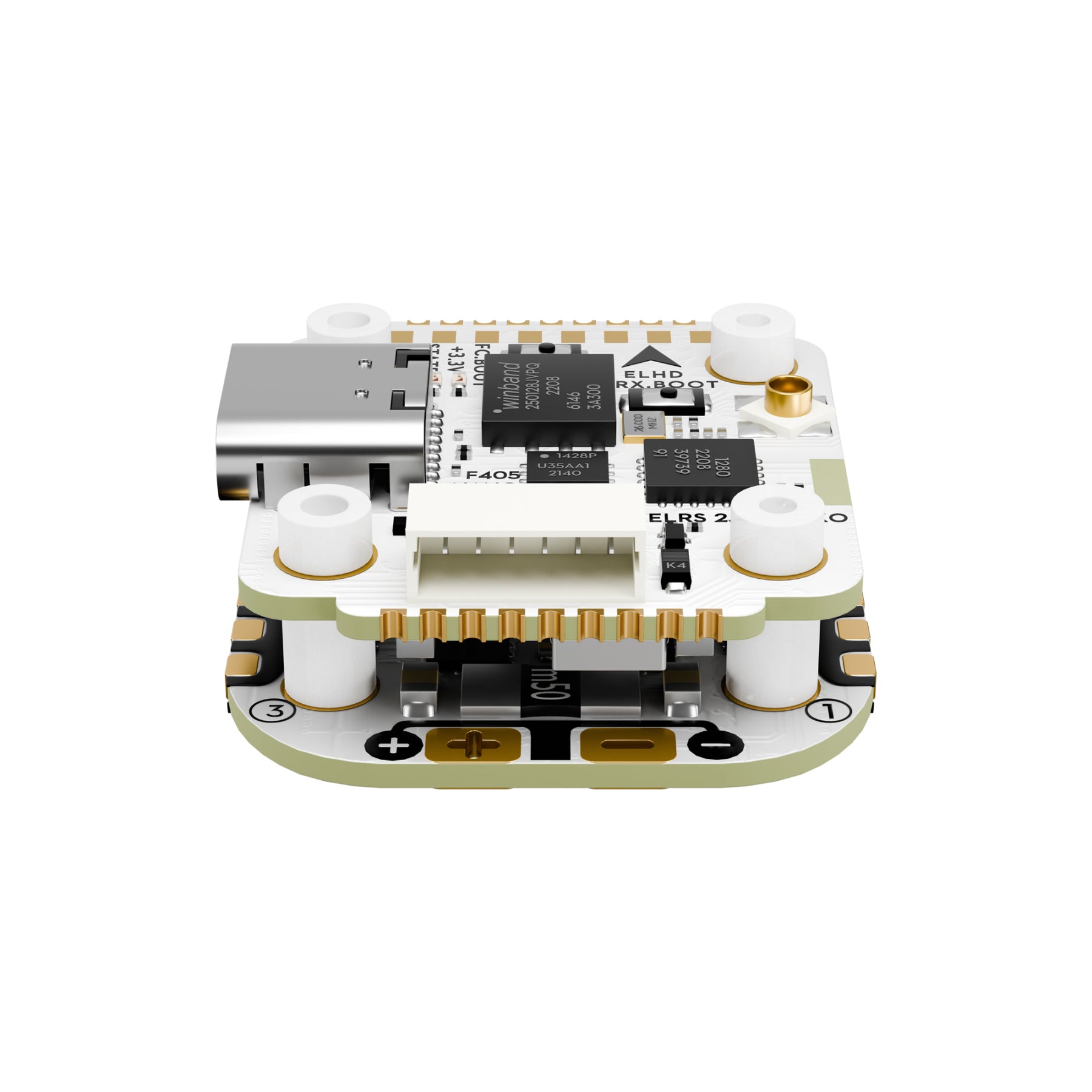

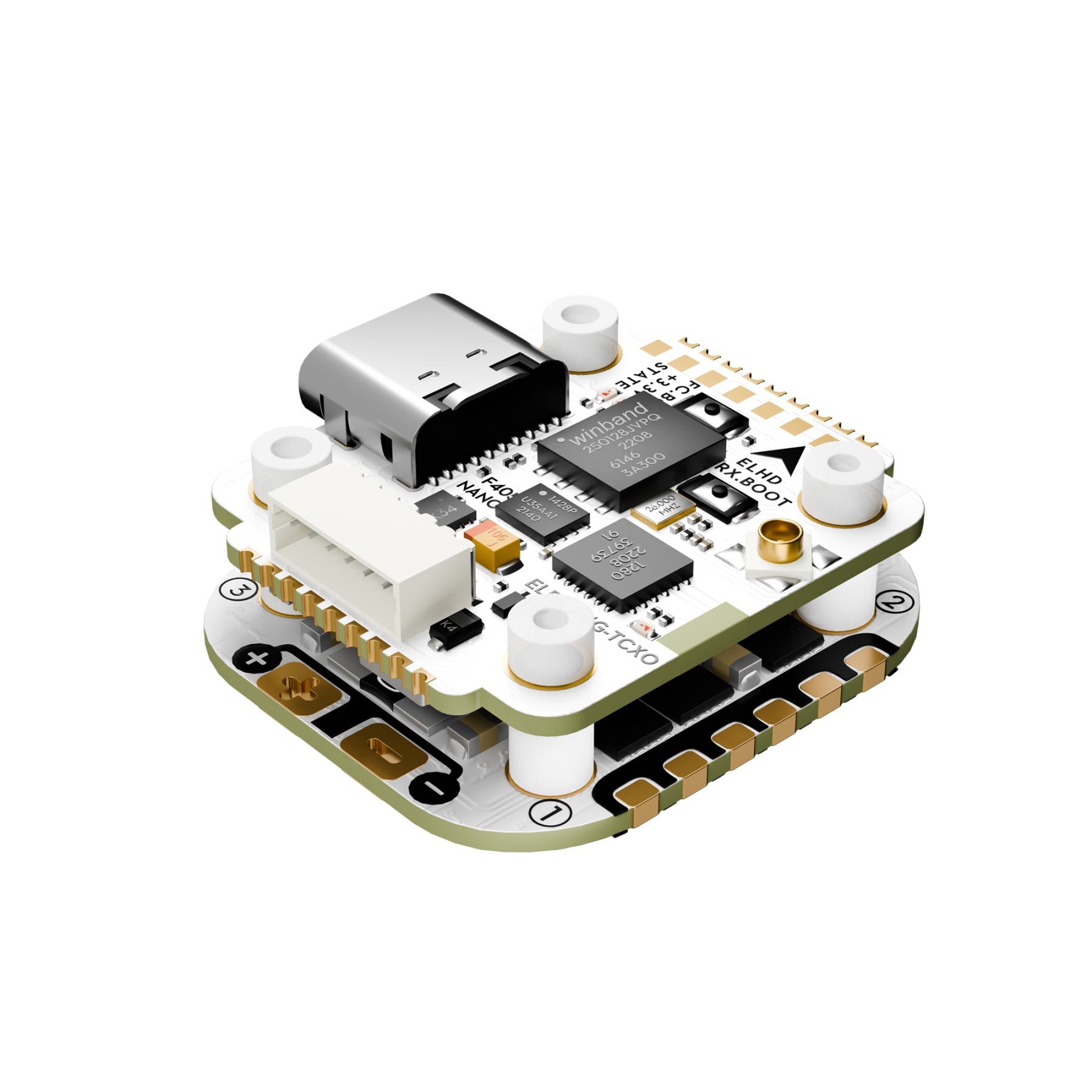

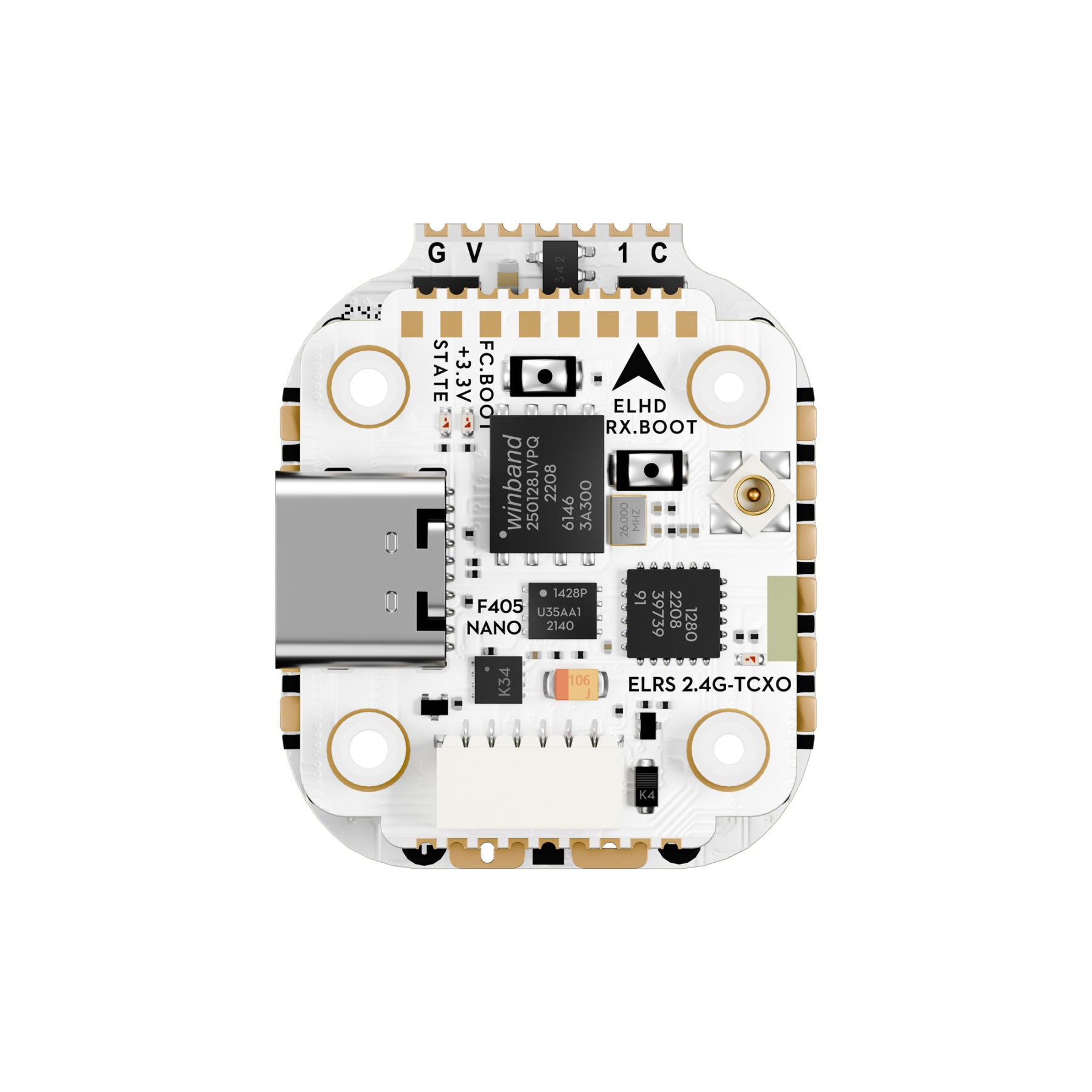

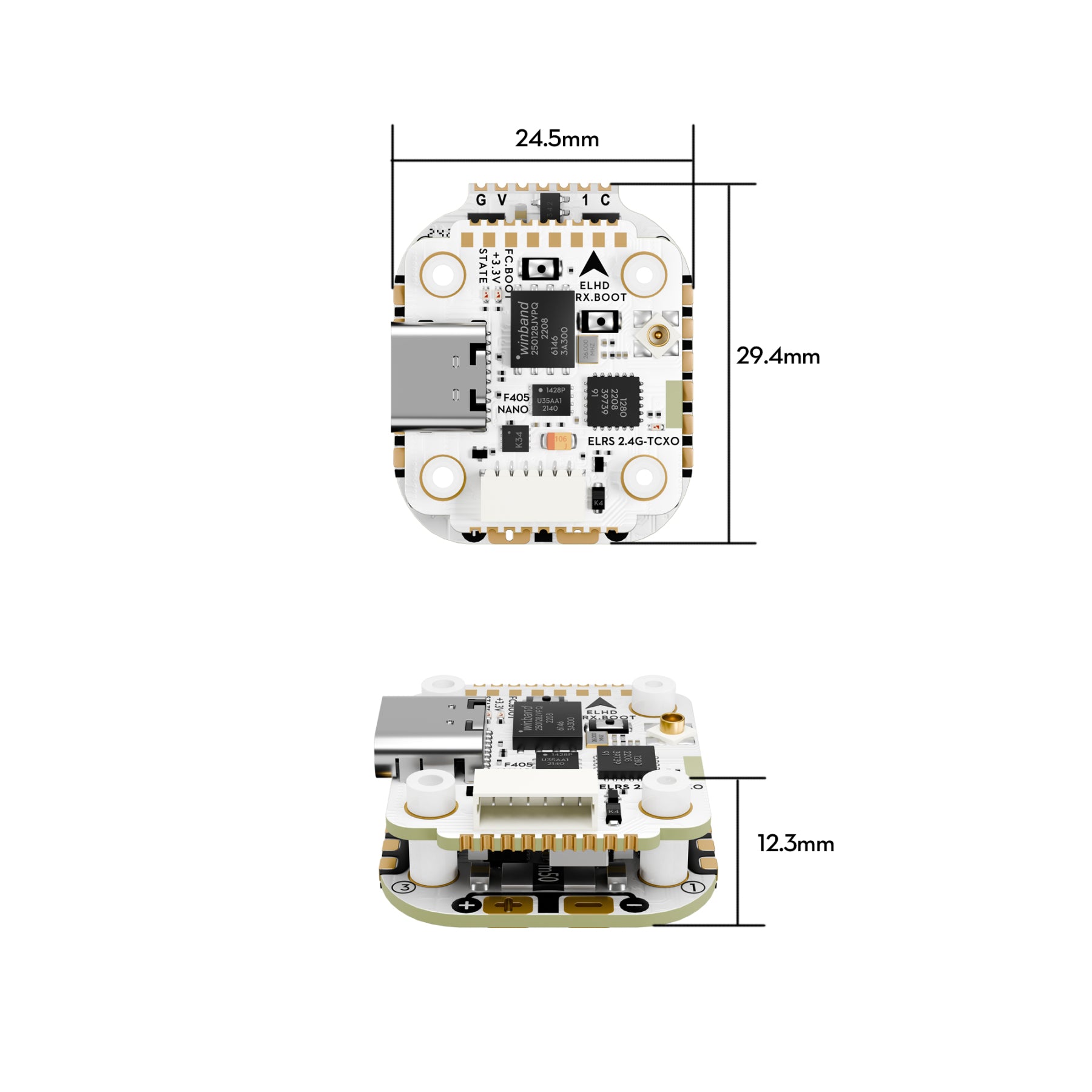

Stack Flywoo GOKU GN405 Nano HD 35A Stack V3 with ELRS The Flywoo GOKU GN405 Nano HD 35A Stack V3 is a high-performance, ultra-compact solution designed for powerful micro FPV drones. It integrates a feature-packed STM32F405-based flight controller with a 2.4GHz ELRS receiver and a rugged 35A 4-in-1 ESC that offers exceptional control and responsiveness. Equipped with an advanced ICM-42688P gyroscope, built-in black box and 6 full UARTs, this stack is ideal for 2-6S LiPo builds that require high current and stable flight. With convenient plug-and-play, durable components and a compact 16x16 mm format, it is the ideal choice for demanding pilots looking for reliability and performance in a small package. Flight controller: MCU: STM32F405 BGA Gyroscope: ICM-42688P (SPI) Barometer: DP310 OSD: No Black box: 16 MB USB: Type C UART: 1 / 2 / 3 / 4 / 5 / 6 BEC: 5V 2A / 3.3V 0.5A Input Voltage: 7.4V-24V (2-6S LiPo) Dimensions: 25 x 23 x 8 mm Mounting: M2 16 x 16 mm Weight: ~3 g ESC: ESC MCU: BB21F16G Continuous current: 35 A Input voltage: 2-4S LiPo Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600 LED power indicator: No Dimensions: 27 x 33 mm Mounting: M3 16x16 mm Weight: ~3.6g The package contains: 1 × Stack Flywoo GOKU GN405 Nano HD 35A Stack V3 with ELRS
