Stack FLYWOO GOKU GN405 Nano HD 20A V3 ELRS
Stack FLYWOO GOKU GN405 Nano HD 20A V3 ELRS
Brand: FLYWOO
Regular price
€53,56
Regular price
€53,56
Sale price
€53,56
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

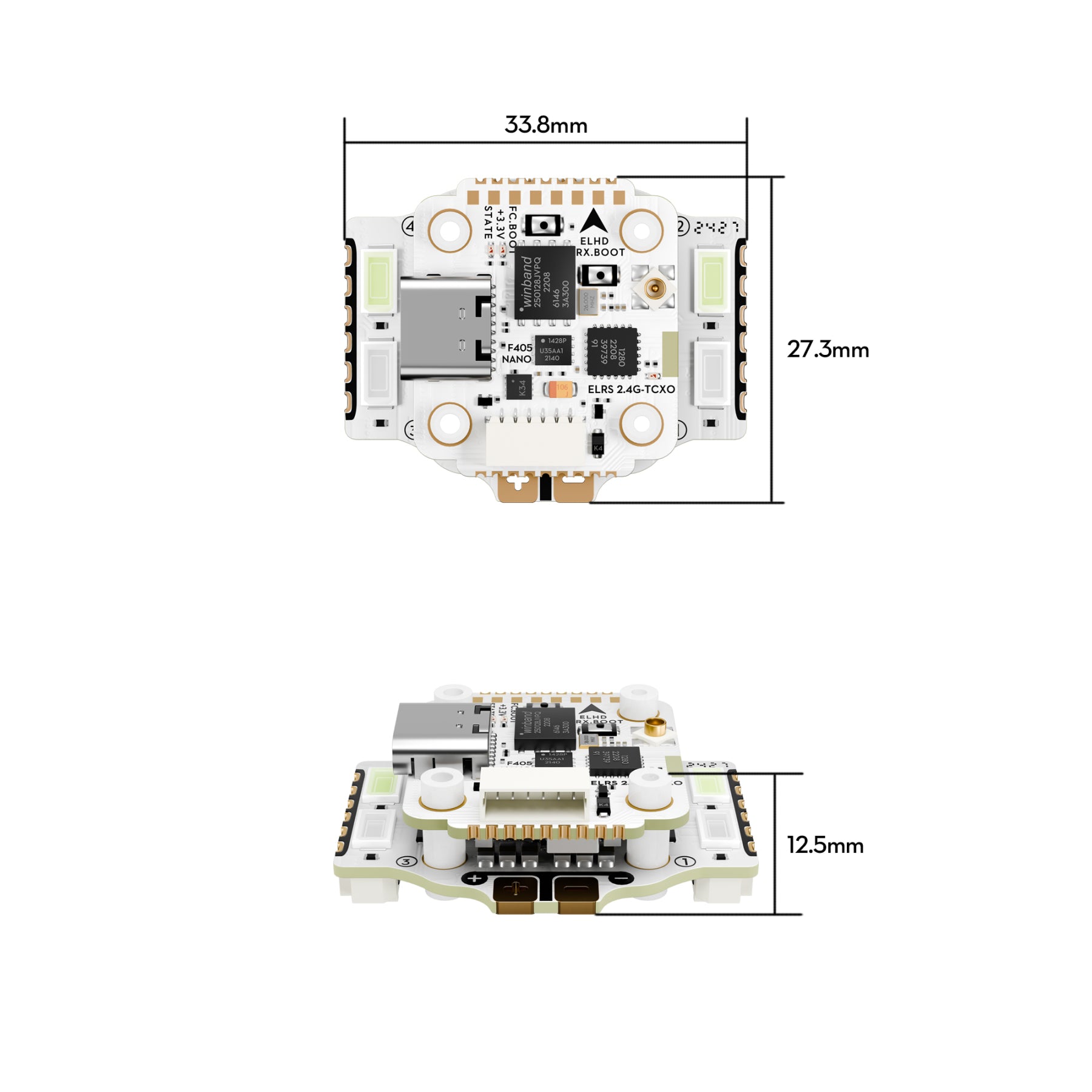

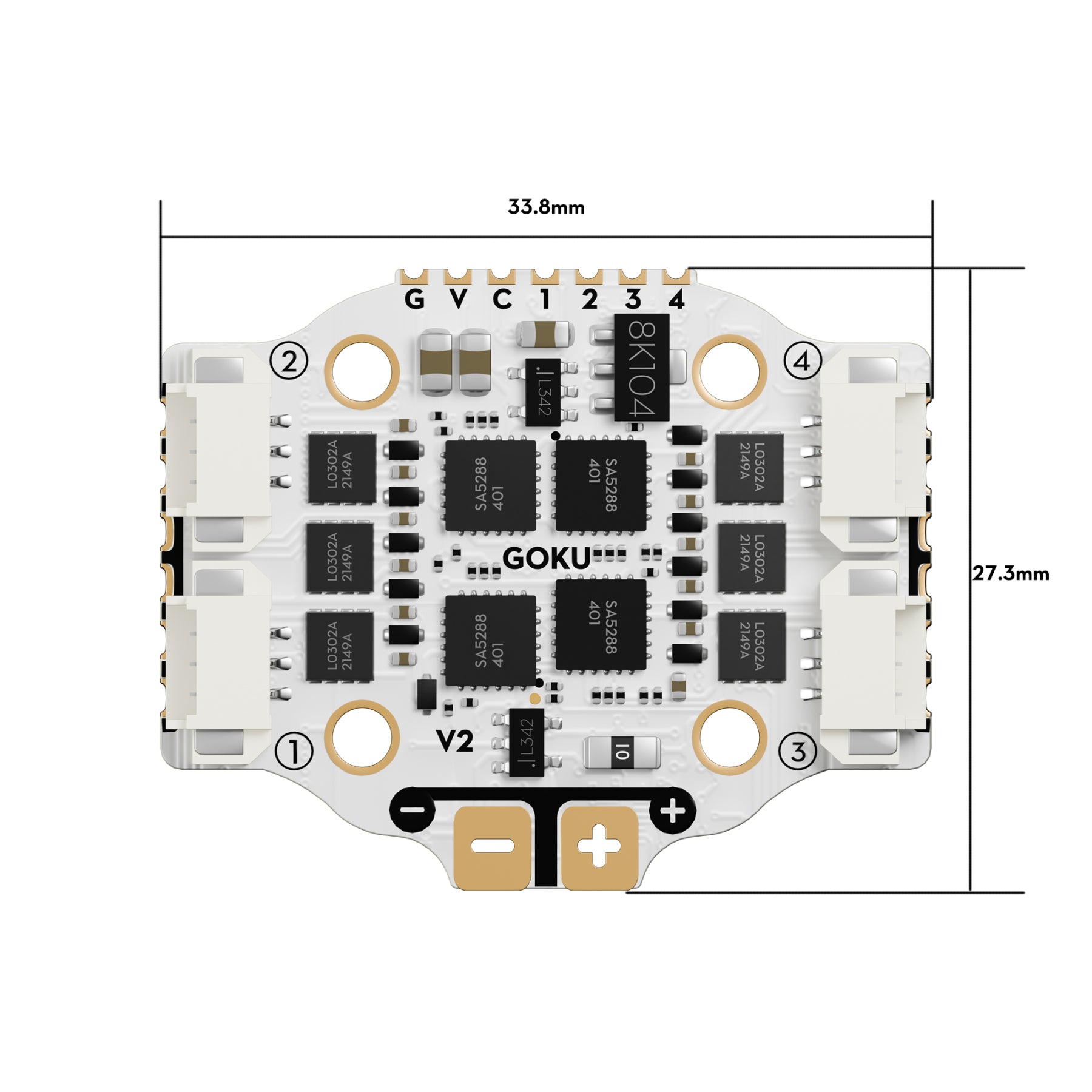

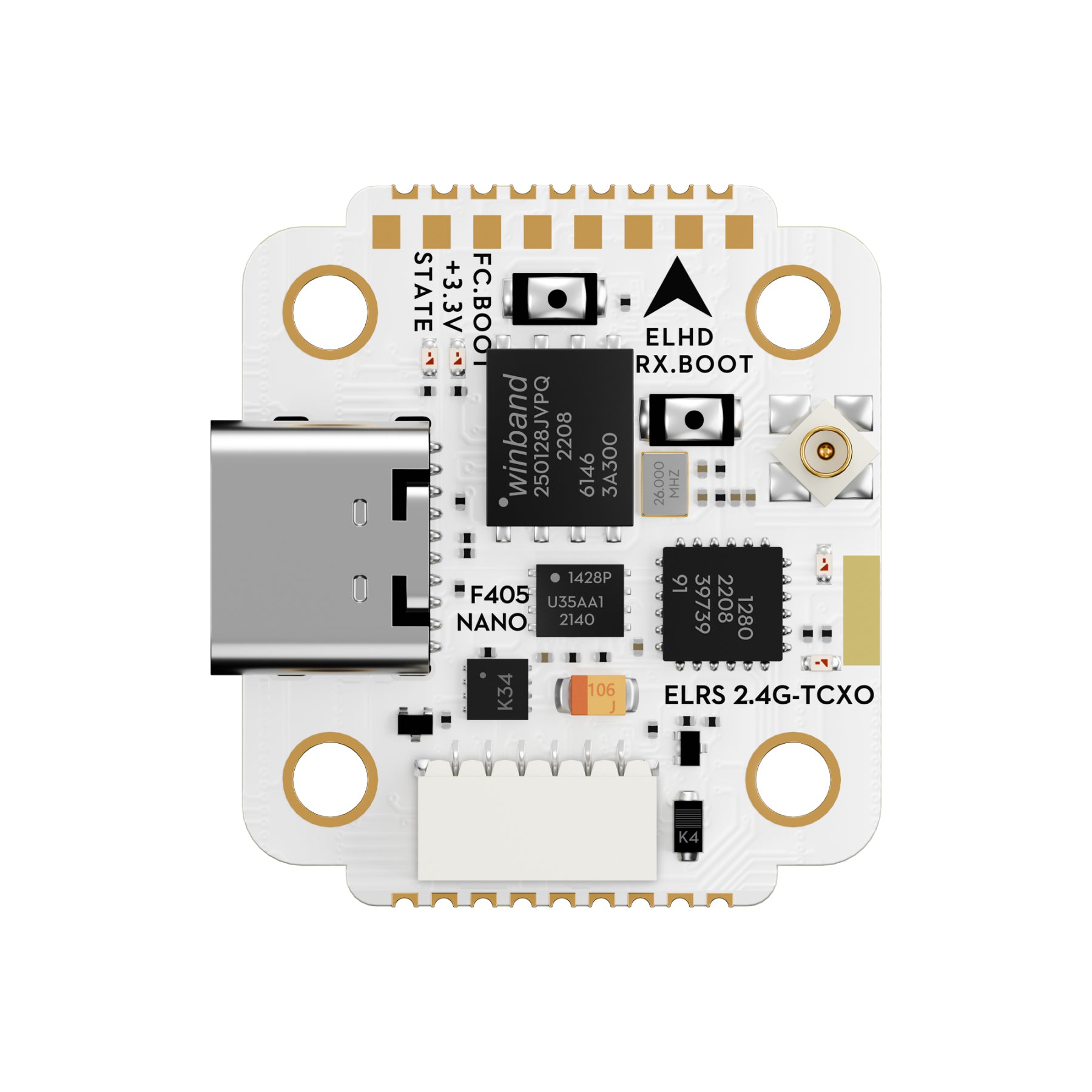

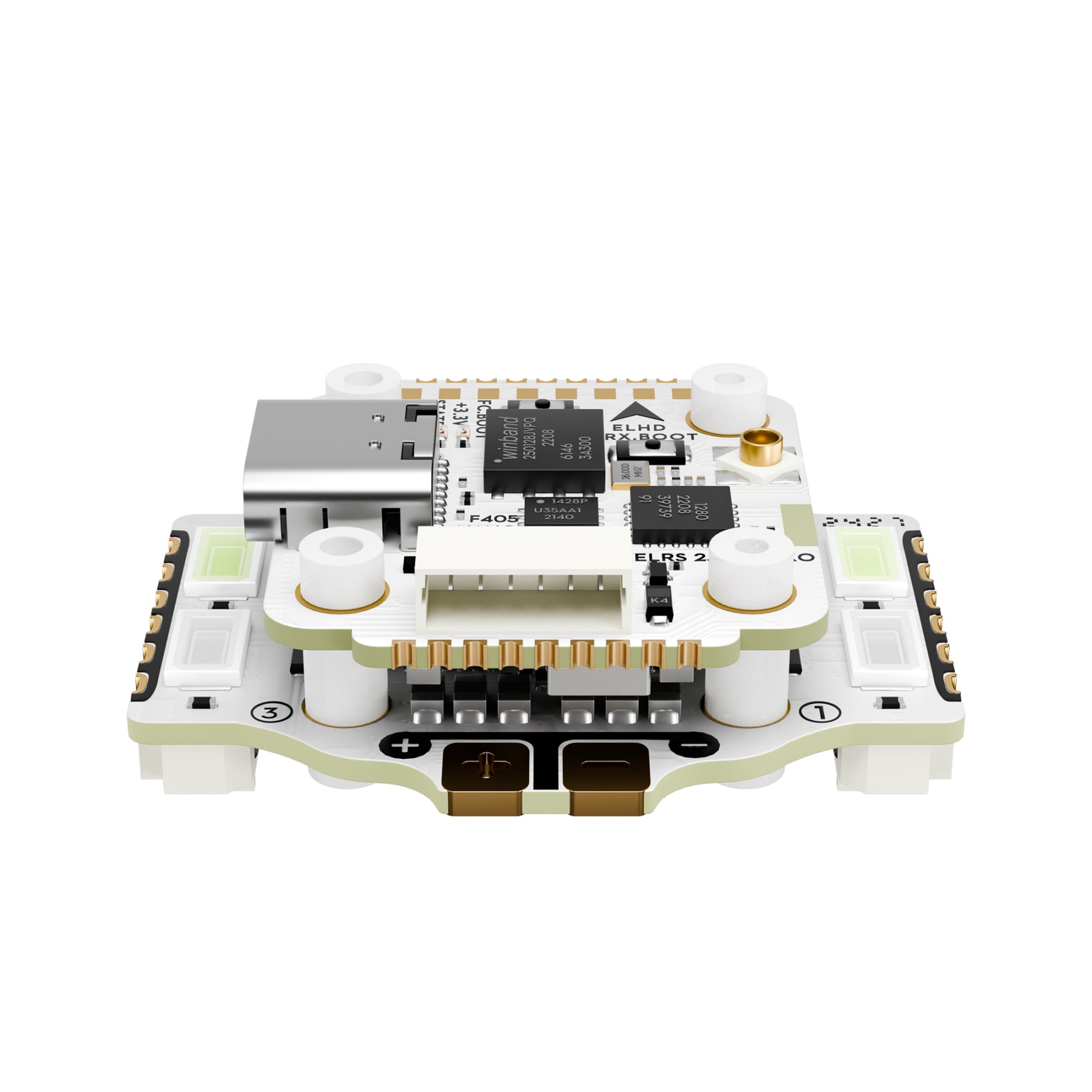

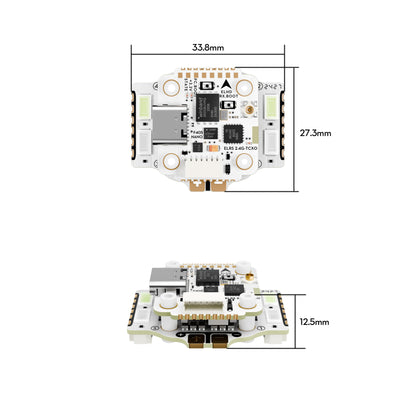

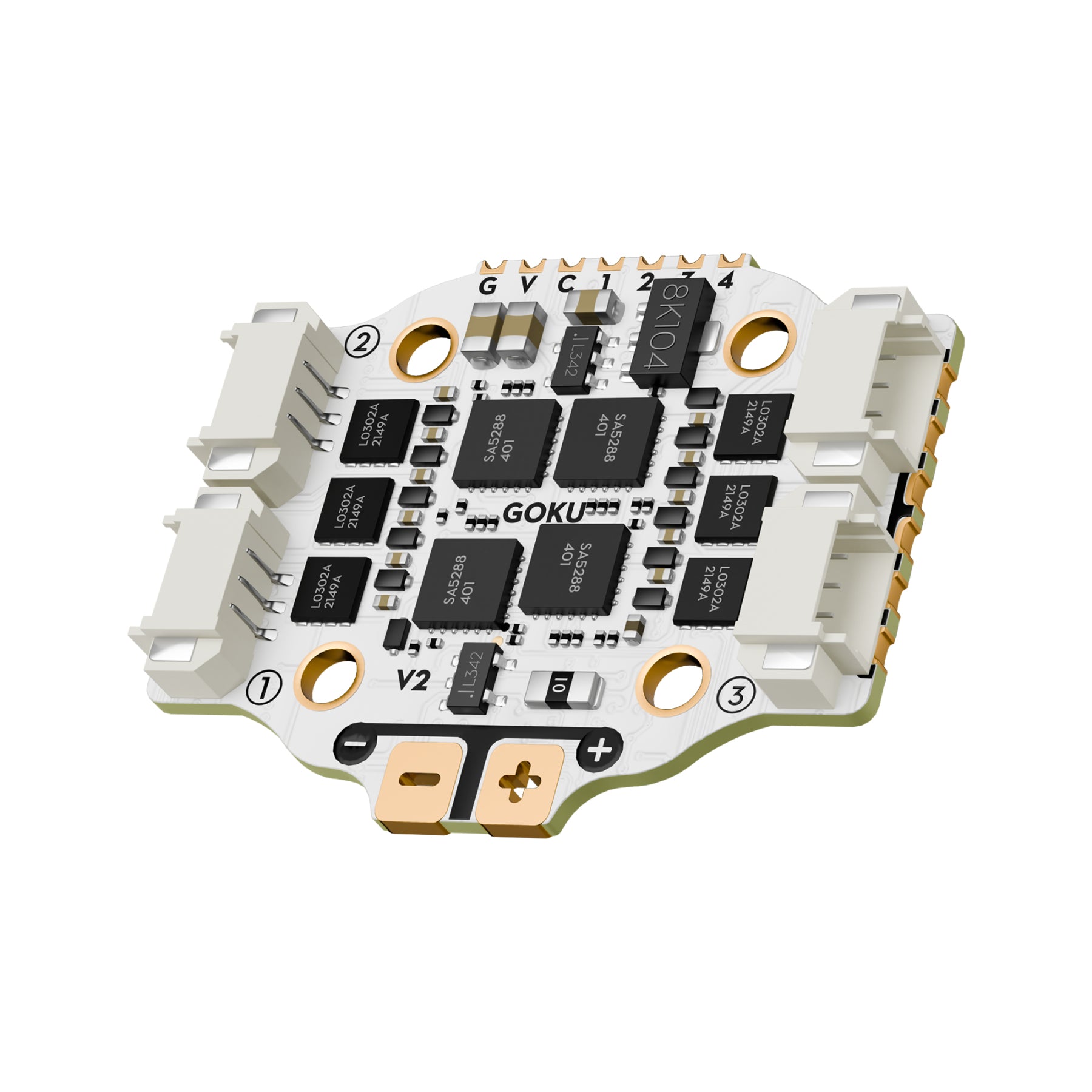

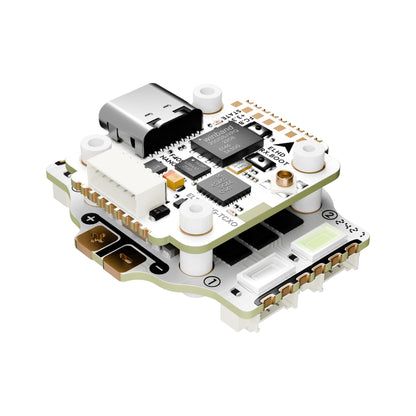

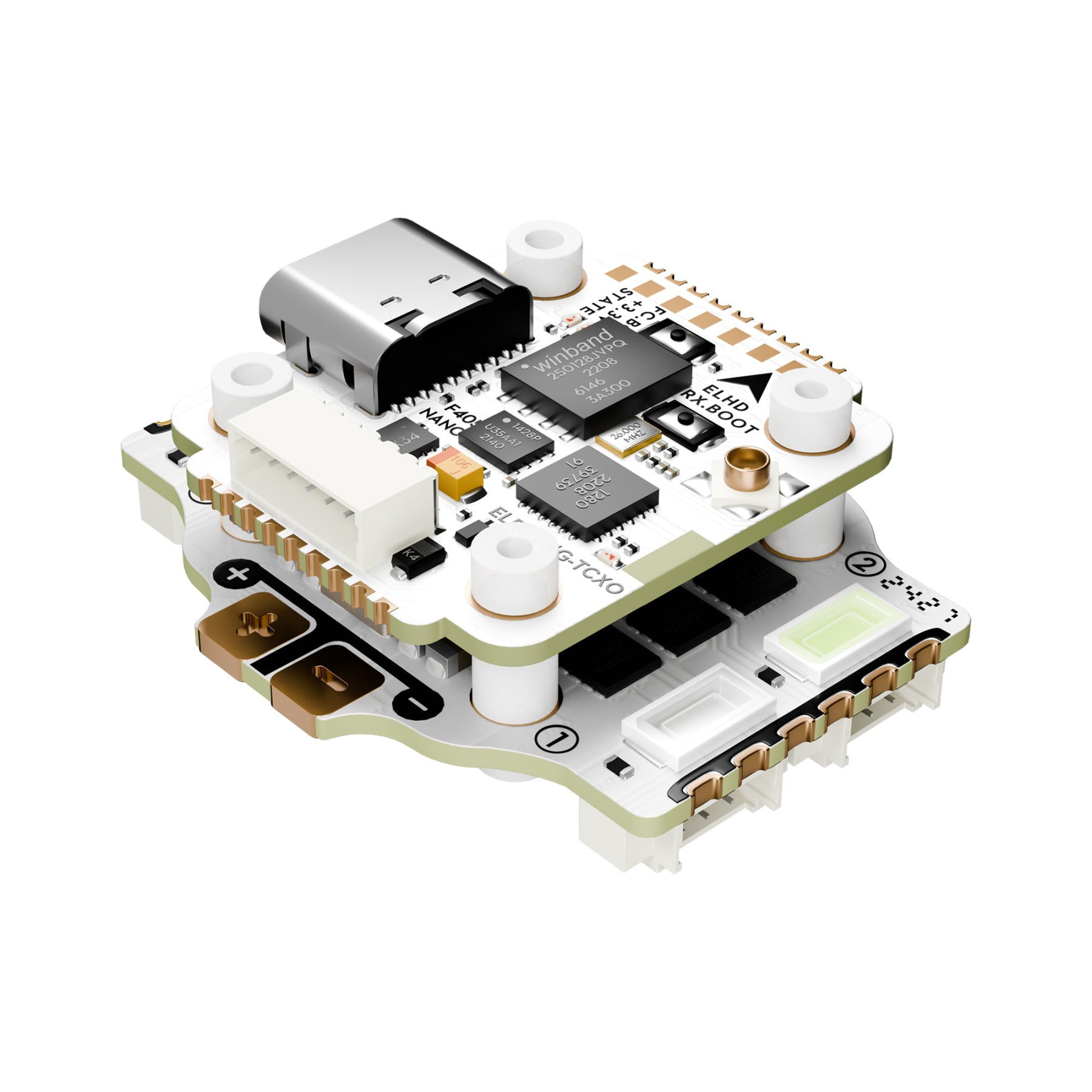

Stack Flywoo GOKU GN405 Nano HD 20A Stack V3 with ELRS The Flywoo GOKU GN405 Nano HD 20A Stack V3 combines a high-performance F4 flight controller with a reliable 20A 4-in-1 ESC in a compact 16x16mm stack that is ideal for micro FPV setups. The FC is powered by an STM32F405 BGA chip and equipped with an ICM-42688P gyroscope for smooth flight performance, as well as a 2.4GHz ELRS for sensitive long-range control. Combined with a 20A ESC supporting multiple DShot and PWM protocols, this stack provides reliable performance for 2-6S LiPo batteries. It's the perfect solution for pilots looking for lightweight construction without sacrificing performance or functionality. Flight controller: MCU: STM32F405 BGA Gyroscope: ICM-42688P (SPI) Barometer: DP310 OSD: No Black box: 16 MB USB: Type C UART: 1 / 2 / 3 / 4 / 5 / 6 BEC: 5V 2A / 3.3V 0.5A Input Voltage: 7.4V-24V (2-6S LiPo) Dimensions: 25 x 23 x 8 mm Mounting: M2 16 x 16 mm Weight: ~3 g ESC: ESC MCU: BB21F16G Continuous current: 20 A Input: 2-4S LiPo Supported protocols: PWM, Oneshot125, Oneshot42, Multishot, DShot150, DShot300, DShot600 Dimensions: 27 x 33 mm Mounting: M2 16x16 mm Weight: 4.5 g Power LED: Yes The package contains: 1 × GOKU GN405 Nano HD Flight Controller 1 x GOKU BS 20A ESC V3
