    Code: X4-FW060006-C2F7-K01

    Stack Flycolor X-Tower 2 60A F7

    Stack Flycolor X-Tower 2 60A F7

    Brand: Flycolor

    €109,00
    €109,00 €109,00
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

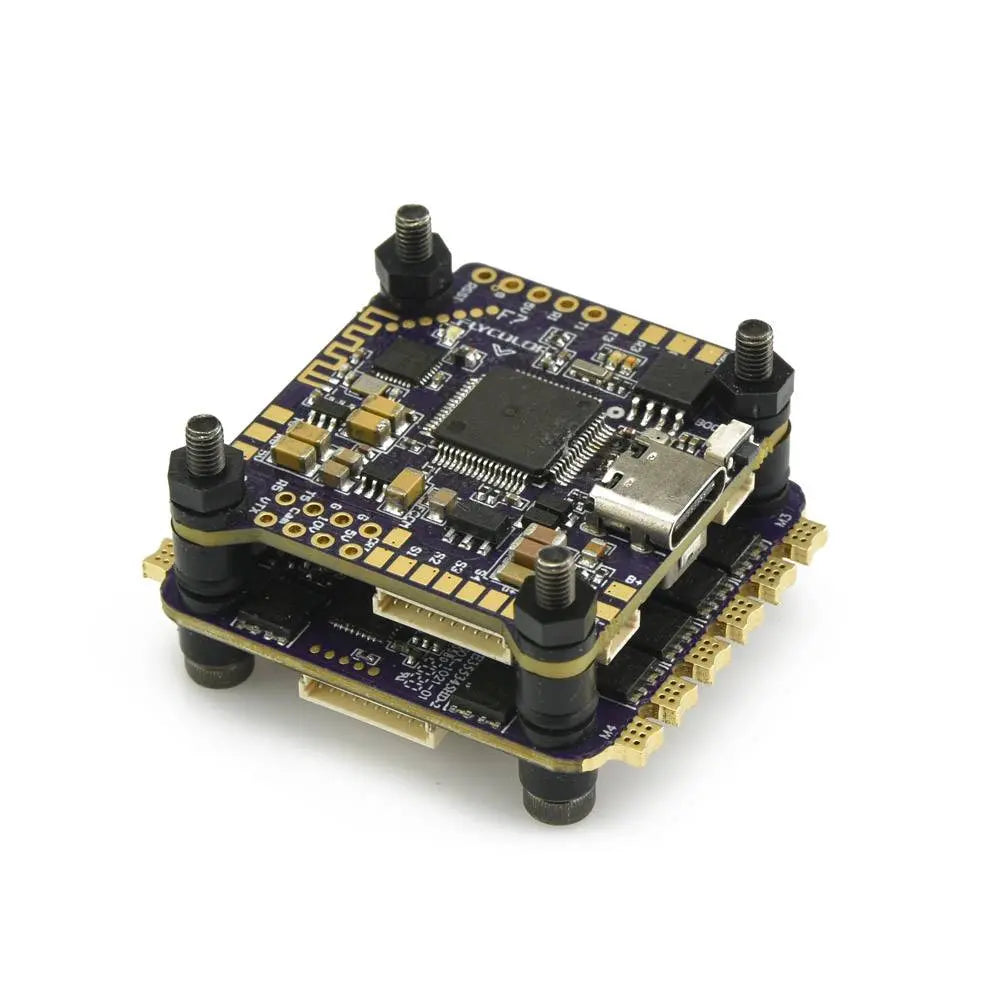

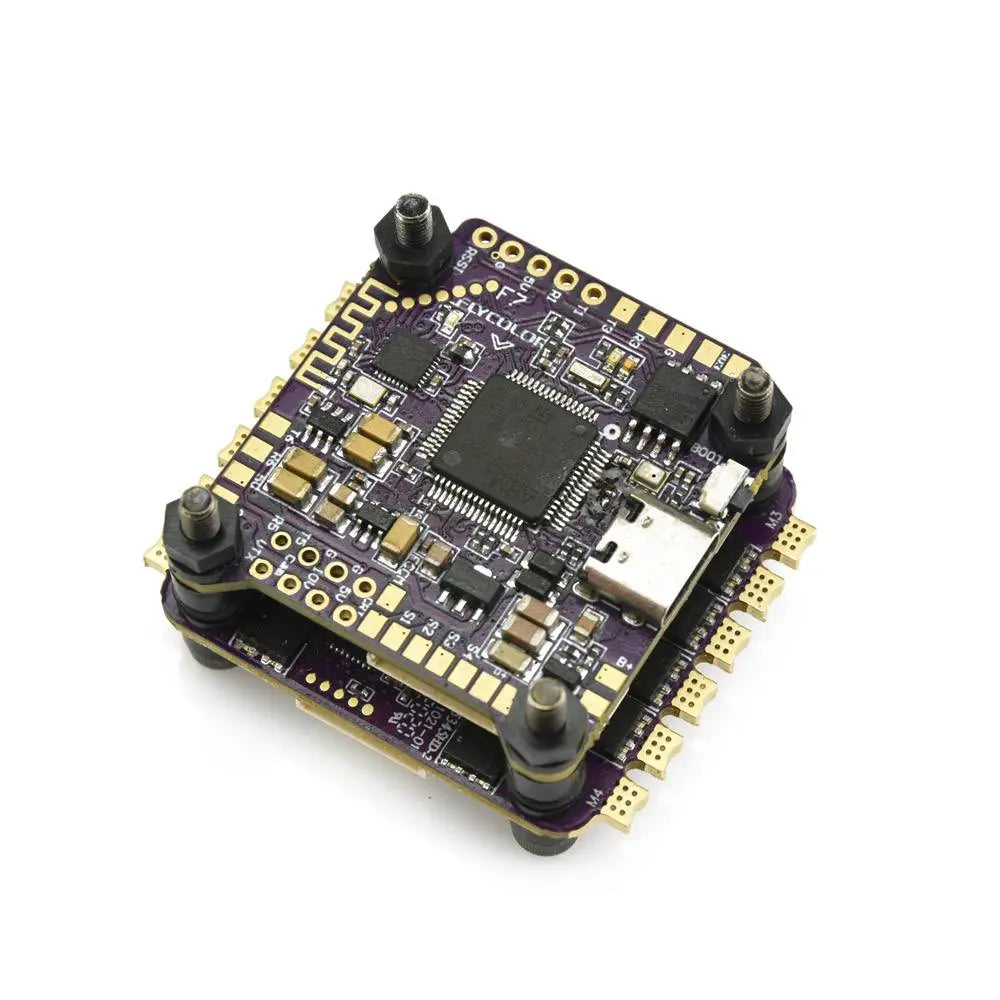

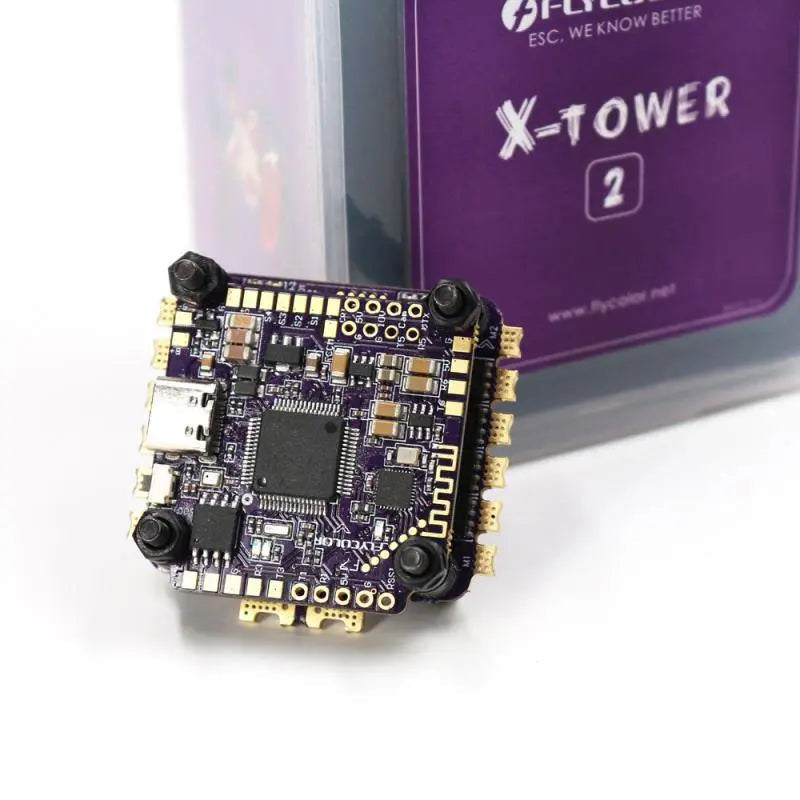

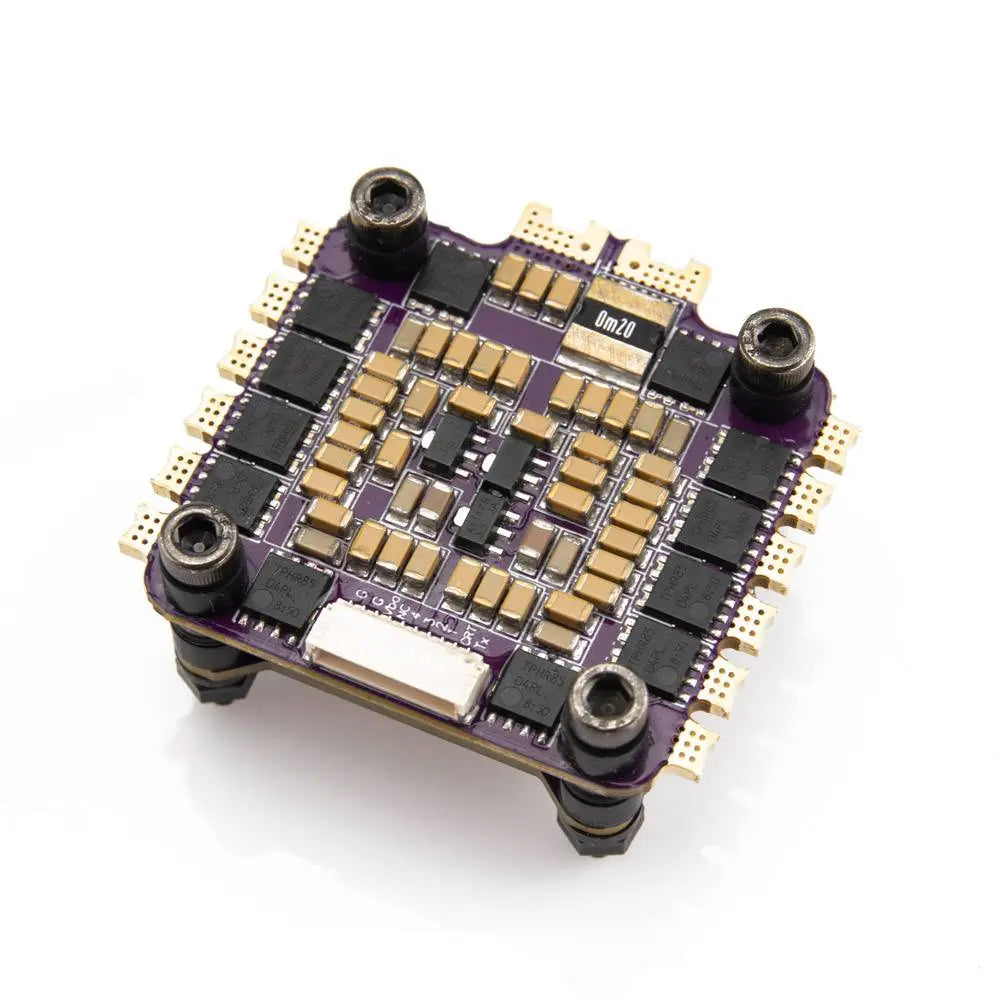

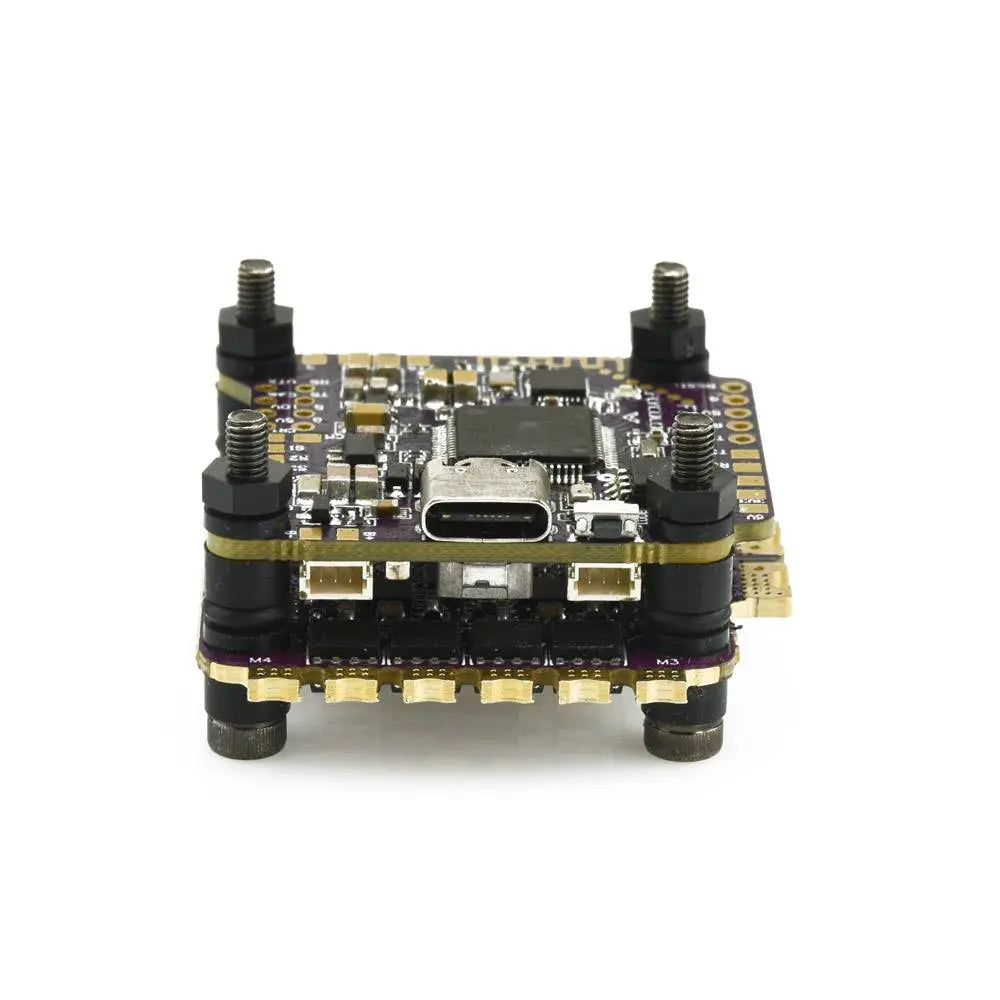

    Stack Flycolor X-Tower 2 60A F7

Function:

- High Performance MOSFETs: This assembly features MOSFETs that have low Rds, can handle large currents efficiently, making it ideal for fast flight conditions.
- Double-layer tower structure: 4-in-1 ESC and FC are connected by cable in a double-layer tower structure, supported by silicone vibration dampers. This design minimizes the impact of vibration on flight control.
- Dimmed Light with Regenerative Braking: The ESC uses Dimmed Light Regenerative Braking technology, which allows very fast engine deceleration and includes active idling.
- Universal signal support: The system supports various input pulse widths, including common 1-2ms, Oneshot125, Oneshot42 and Multishot. Additionally, it supports all Dshot and Proshot signals.
- Wide receiver compatibility: Compatible with SBUS, SPEKTRUM1024/2048 and other remote control/receive modes.
- Integrated power outputs: The flight controller includes integrated 3.3V, 5V and 12V outputs for powering the receiver, VTX, camera, buzzer, LED and other peripherals.
- LED port and safe power supply: It has a 4-way LED port with independent 5V BEC power supply, which ensures safer and more reliable power distribution.
- Customizable LED colors: LED colors can be adjusted using the Betaflight Configurator.

Designed for high performance and versatility, this stack is suitable for demanding flight conditions and supports a wide range of configurations and peripherals.

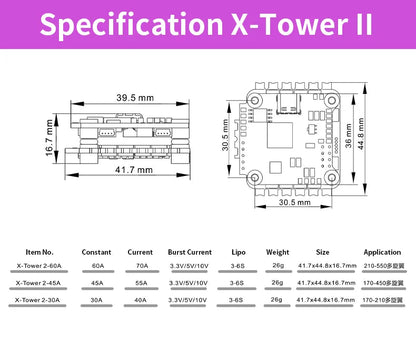

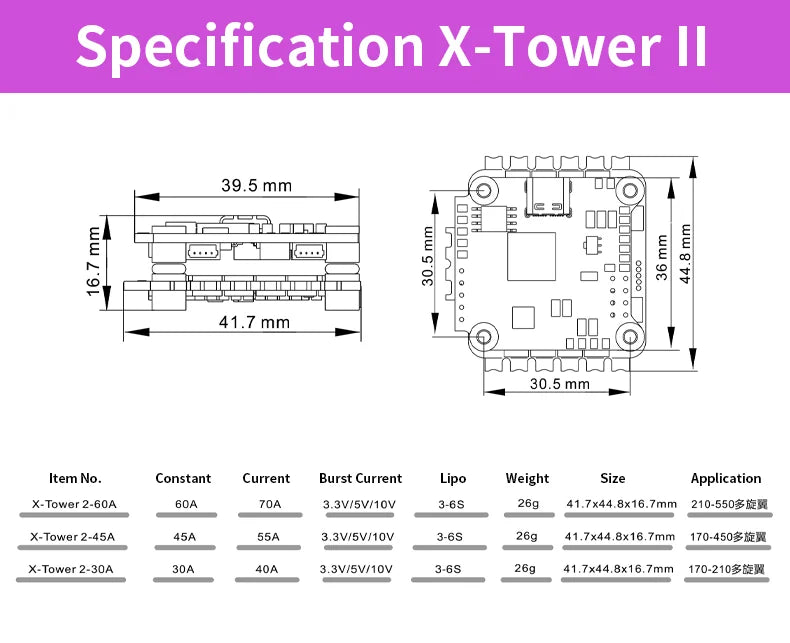

Specifications:
Model: X-Tower 2 60A
Support voltage: 3-6S Lipo
Con. Current: 60A
Explosive current: 70A
Construction: Tower
FC voltage: 3.3V/5V/10V
MCU F7: STM32F722
F7 Firmware: STM32F7X2 (Configuration: FLYCOLORF7)
ESC firmware: Flycolor_X_Cross_BL_32
Bluetooth: FC_Bluetooth.
USB: Type C
Installation hole: 30.5×30.5 mm, M3
Size: 41.7×44.8×16.7mm
Weight: 26g

The package includes:
1x Stack Flycolor X-Tower 2 60A F7
