Code: SKU:3083

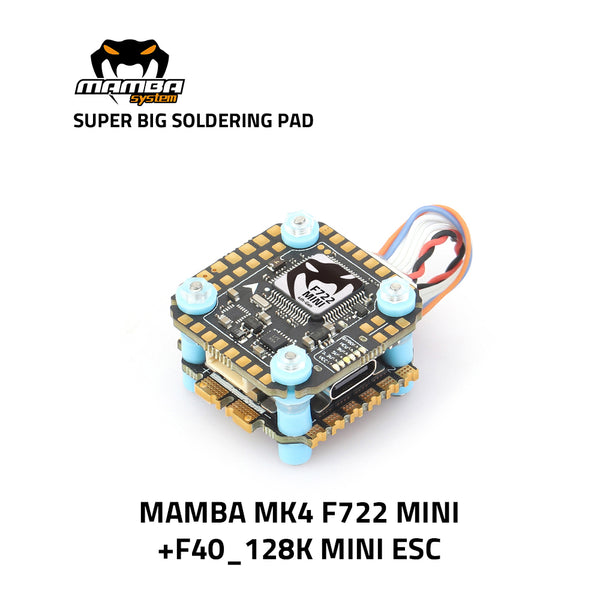

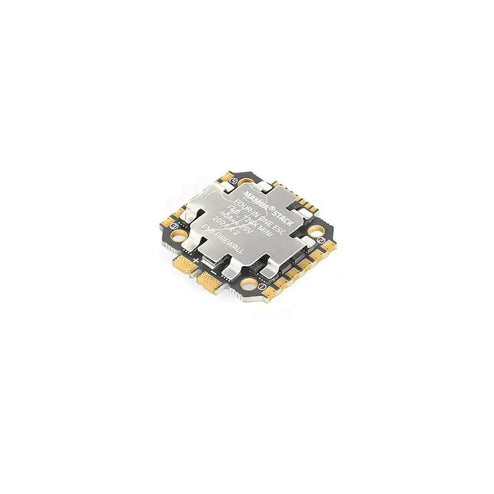

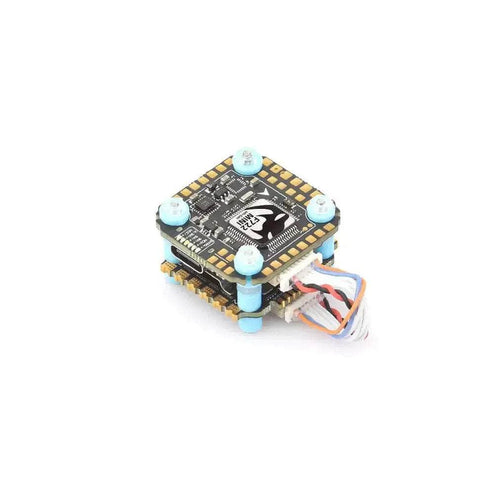

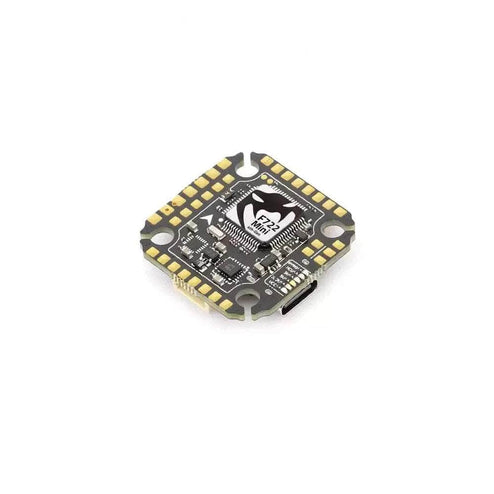

Stack Diatone MAMBA MK4 F722MINI F40_128K MINI
Stack Diatone MAMBA MK4 F722MINI F40_128K MINI
Brand: DIATONE
Regular price
€85,99
Regular price
€85,99
Sale price
€85,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
MAMBA MK4 F722MINI F40_128K MINI Diatone has released its 4th generation F722 mini stack. The MK4 F722 mini 20x20 stack boasts larger pads, wider pad spacing, more UARTs, l2C and is configurable via the Speedy Bee app via built-in Wi-Fi. Function - Pad area increased by 30% - Pad spacing increased by 100% - MP9943 synchronous rectifier BEC - Upgrade MINI DJI interface series and 5V 15W/9V 18W 2 BEC set - USB Type C - 6 Set UART and I2C - 4 Set power protection - 32Bit ESCs all support 128K - Mini FC series uses 2mm and 3mm mounting holes, with a special - damping ring - Upgrade twisted pair cable anti-interference and reinforcement process Specifications: Model: Mamba Mini F722 MK4 Input: 6S MCU: ICM42688P Barometer: Yes OSD: Yes Blacbox: 16M Flash memory Uarts: 6 hundred Protocol: Dshot300/600/1200 ESC Telemetry: Yes Power LED: Yes LED driver: BF LED F.Port: Yes Buzz: Yes TVS Protection: Yes BEC: 3.3V 0.5A & 5V 2.5A Mounting pattern: 20x20 M3/M2 Model: Mamba F40 128k Mini ESC Input Voltage: 6S Lipo Maximum continuous current: 40A Maximum burst current: 45A Target: BLHeli_32 MAMBA F40_128K_MINI Protocol: Dshot300/600/1200 PWM Range: 24-128K Mounting pattern: 20x20 M2/M3 The package includes: 1x Diatone Mamba MK4 F722 Mini F40_128k 2-6S 20x20 Stack/Combo 5x M2 silicone grommets 5x M3 silicone grommets 5x M2 ESC isolation posts 5x M3 ESC insulating posts 1x 8-pin single-ended flight controller cable 2x 8-pin cable 1x 6-pin air unit cable 1 x XT60 1x capacitor
