    Stack Diatone MAMBA MK4 F722APP 55A 6S 32bit 128K

    Stack Diatone MAMBA MK4 F722APP 55A 6S 32bit 128K

    Brand: Diatone Mamba System

    €124,00
    €124,00 €124,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

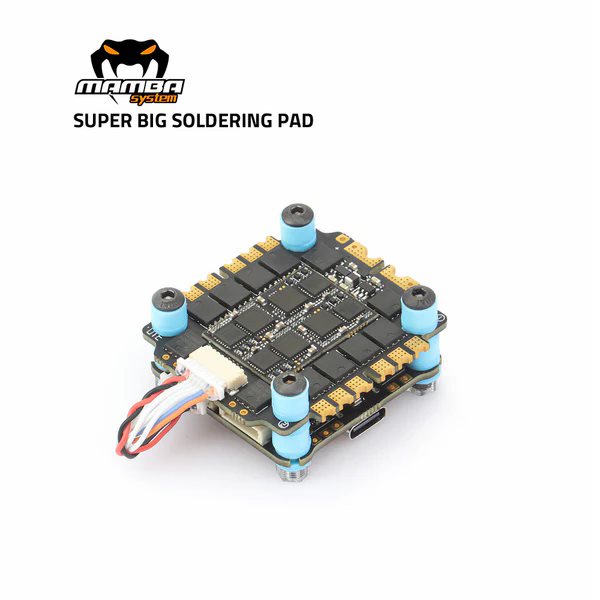

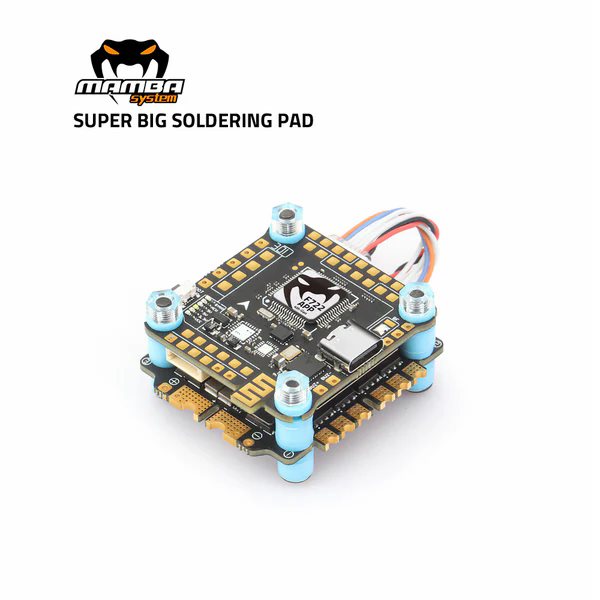

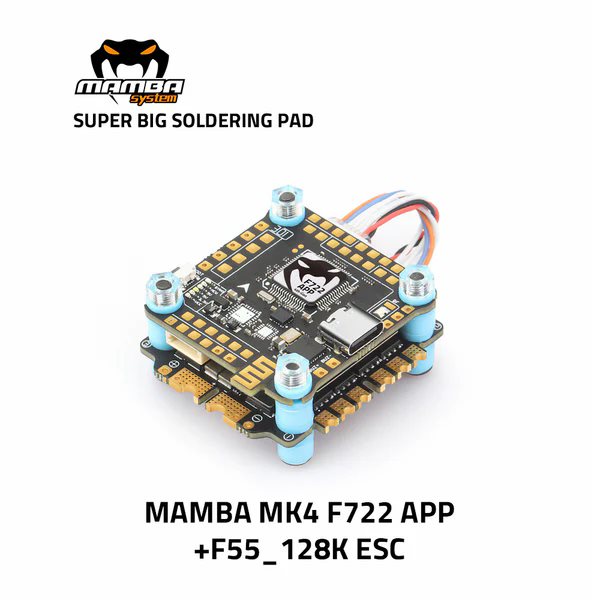

    MAMBA Stack MK4 F722APP 55A 6S 32bit 128K

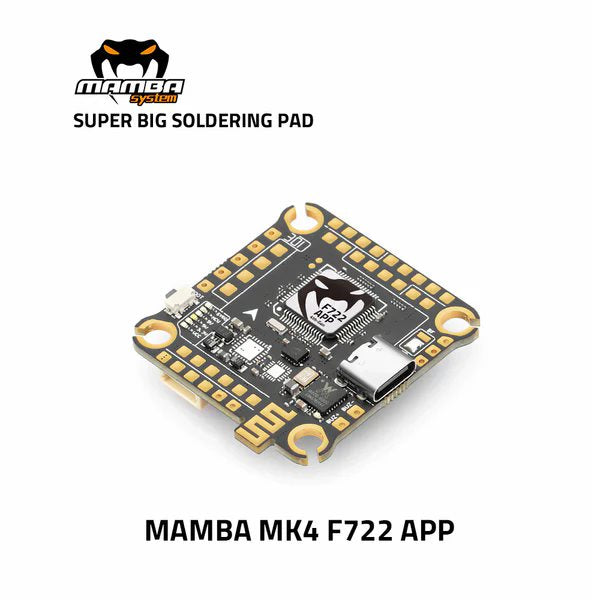

FC specification
MCU: 216MHz STM32F722
GYRO: MPU6000
Target: MAMBA F722_2022A
OSD: Yes
Blacbox: 16M Flash memory
Barometer: SPL06
Uarts: 6 hundred
I2C: Yes
F.Port: Yes
RSSI: No
Buzzer: Yes
CURR Pad: Yes
ESC signal: 8 Set
ESC Soft: Dshot300/600/1200
ESC Telemetry: Yes
Power LED: Yes
LED driver: BF LED/MB LED
AIR UNIT Port: Yes
WIFI: SpeedyBee APP
VTX Switch: Yes
Receiver protection: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A & 5V 3A & 9V 3A
Input: 3~6S Lipo (12.6~25.2V)
Mounting dimension: 30.5mm/M3

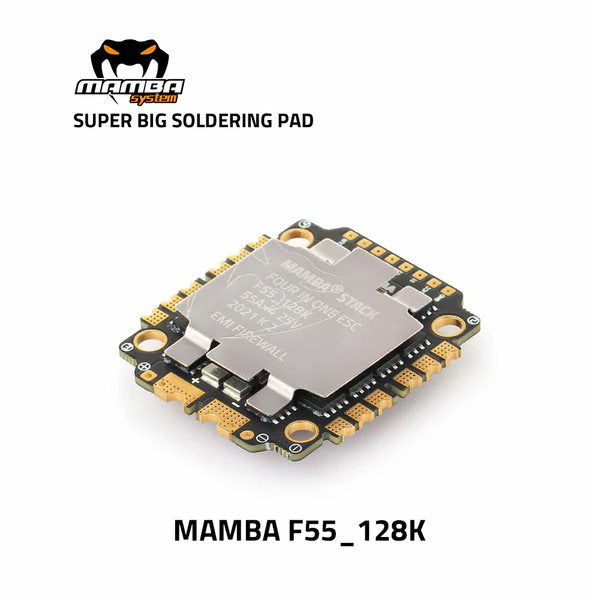

ESC specification
MAMBA F55_128K
Input voltage: 3~6S Lipo (12.6V~25.2V)
Continue current: 55A×4
Explosive current: 65A (10S)
BEC: No
Target: BLHeli_32 MAMBA F55_128K
SOFT: Dshot300/600/1200
PWM: 24~128K
TVS Protection: Yes
Mounting dimension: 30.5mm/M3

DELIVERIES ONLY:
High frequency 1000uF/35V ×1
8pin sh1.0×2
AIR UNIT sh1.0 ×1
12AWG 100mm x 2
AMASS Original XT60×1
