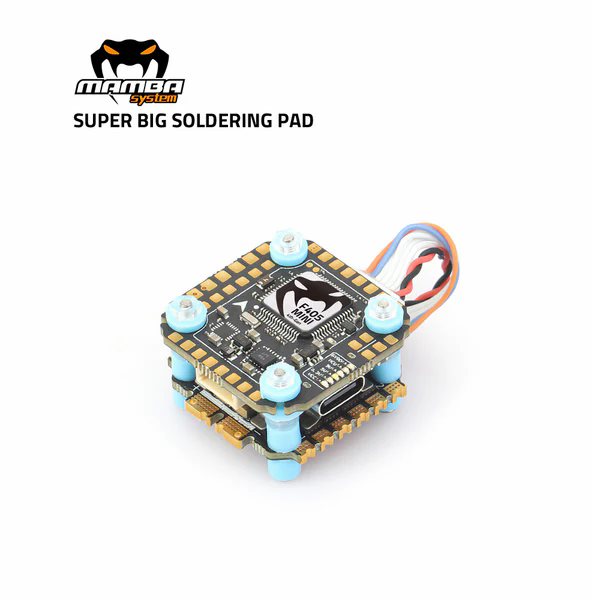

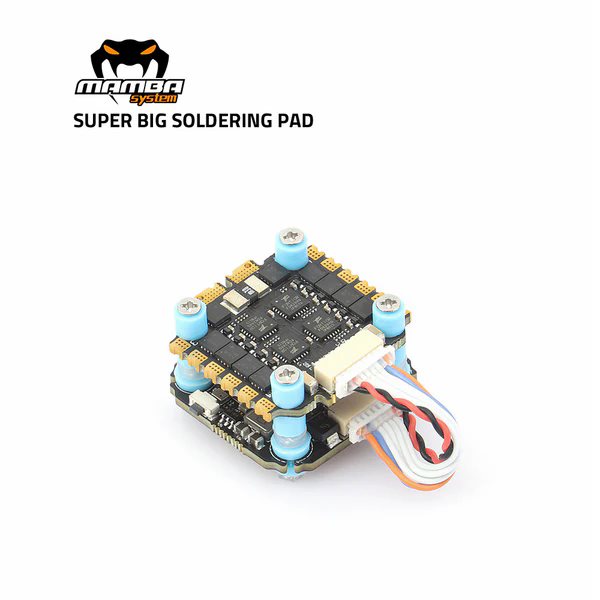

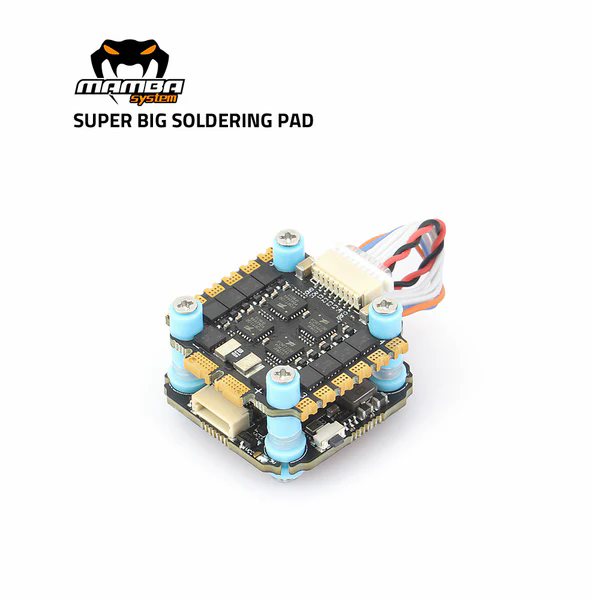

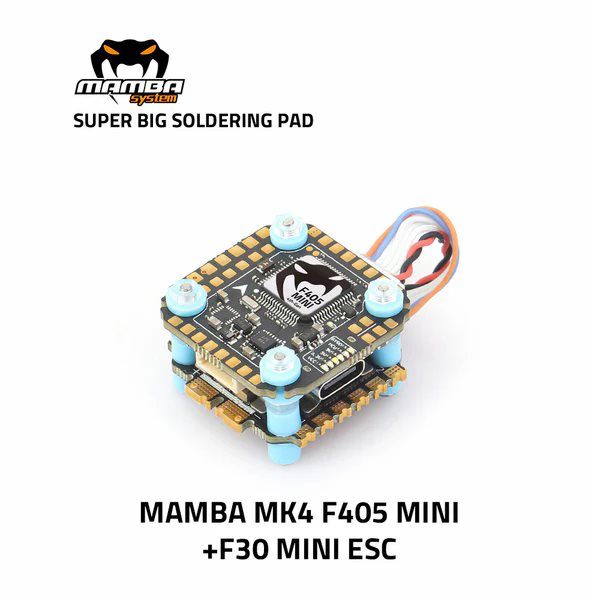

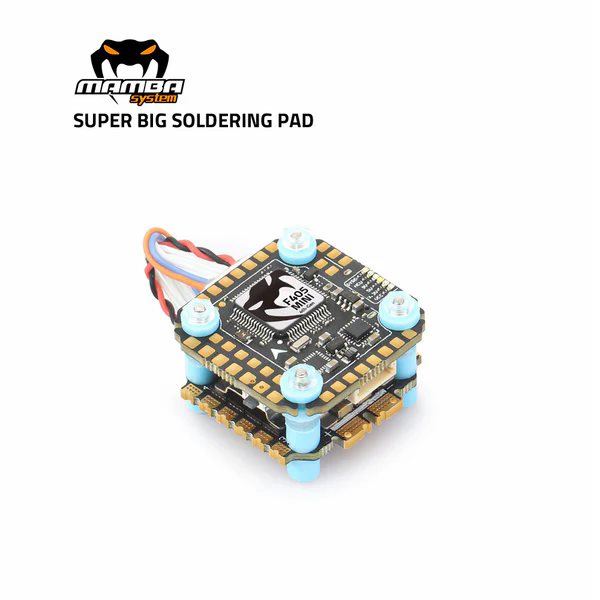

Stack Diatone MAMBA MK4 F405MINI 30A 3-5S 8bit
Stack Diatone MAMBA MK4 F405MINI 30A 3-5S 8bit
Brand: Diatone Mamba System
Regular price
€95,00
Regular price
€95,00
Sale price
€95,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
MAMBA Stack MK4 F405MINI 30A 3-5S 8bit FC specification MCU: 168MHz STM32F405 GYRO: MPU6000 Target: MAMBA F405_2022A OSD: Yes Blacbox: 16M Flash memory Barometer: SPL06 Uarts: 6 hundred I2C: Yes F.Port: Yes RSSI: No Buzzer: Yes CURR Pad: Yes ESC signal: 6 Set ESC Soft: Dshot300/600 ESC Telemetry: Yes Power LED: Yes LED driver: BF LED AIR UNIT Port: Yes WIFI: No VTX Switch: Yes Receiver protection: Yes TVS Protection: Yes BEC: 3.3V 0.5A & 5V 2.5A & 9V 2A Input: 3~6S Lipo (12.6~25.2V) Mounting dimension: 20mm, M2/M3 ESC specification MAMBA F30 MINI Input voltage: 3~5S Lipo (12.6V~21V) Continuous current: 30A×4 Switching current: 40A (10S) BEC: No Target: BLHeli_S CH40 SOFT: Dshot300/600 TVS Protection: Yes Mounting dimension: 20mm, M2 DELIVERIES ONLY: High frequency 470uF/35V ×1 8pin sh1.0×2 AIR UNIT sh1.0 × 2 18AWG 60mm x 2 AMASS Original XT30
