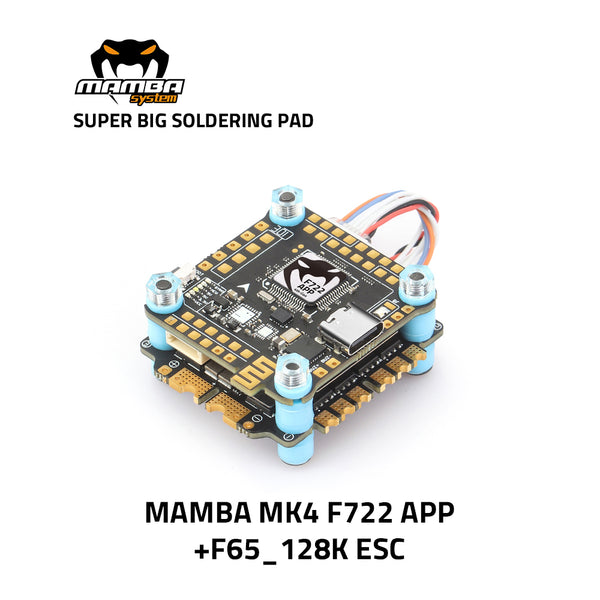

    MAMBA F722 APP FC _F65_128K

FC SPECIFICATIONS
MCU: 216MHz STM32F722
GYRO: ICM42688P
OSD: AT 7456E
Blackbox: 16M Flash memory
Uarts: 6 hundred
Receiver: TBS/SBUS/IBUS/DSM
I2C: Yes
F.Port: Yes
Buzzer: Yes
CURR Pad: Yes
ESC signal: 8 set
BEC 3.3V: 0.5V
BEC 5V: 3A
BEC 9V: 3A
MB LED: Yes
BF LED: Yes
Air Unit Port: Yes
WIFI: SpeedyBee APP
VTX Switch: Yes
BEC protection: Yes
Receiver protection: Yes
TVS Protection: Yes
Input: 6S Lipo
Software: Betaflight
Mounting: 30.5x30.5mm/M3
Dimensions: 38 x 40.5 x 8 mm
Weight: 10g

ESC SPECIFICATIONS
Input Voltage: 3-6S Lipo
Continuous current: 65A
Discharge: 75A
BLHeli_32
Target: F65-128k
Soft: Dshot300/600/1200
Mounting: 30.5mm/M3
PWM: 24-128k

The package includes:
1x FC MK4 F722 APP
1x F65_128k ESC
5x silicone silencer M3
5x insulating column M3 ESC
1x 8-pin single-sided cable for FC
2x 8pin cable
1x 6pin cable for air unit
