Stack DIATONE MAMBA F722 +65 BLS (42688)

Name: Stack DIATONE MAMBA F722 +65 BLS (42688)
Brand: Baltic Drones
SKU: JH61851
Price: 124.58 EUR
Availability: OutOfStock

Stack DIATONE MAMBA F722 +65 BLS (42688)

Brand: DIATONE

€124,58

~~€124,58~~ €124,58

-0% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

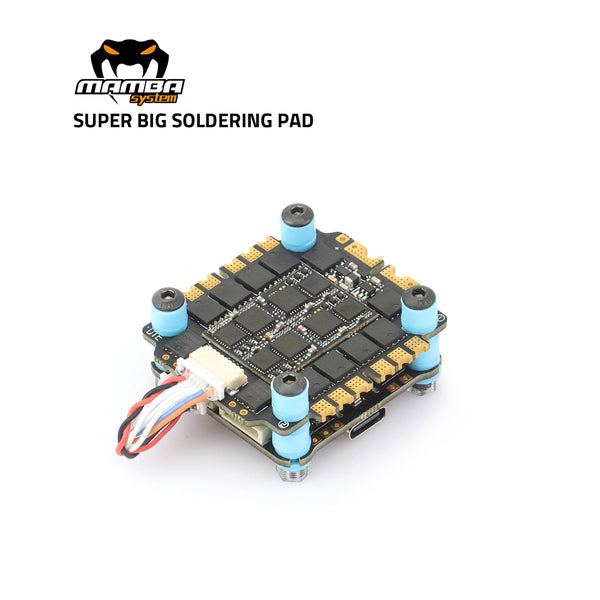

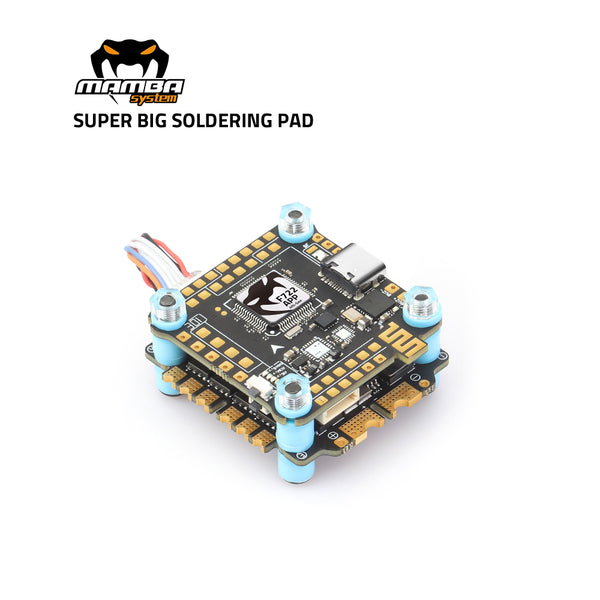

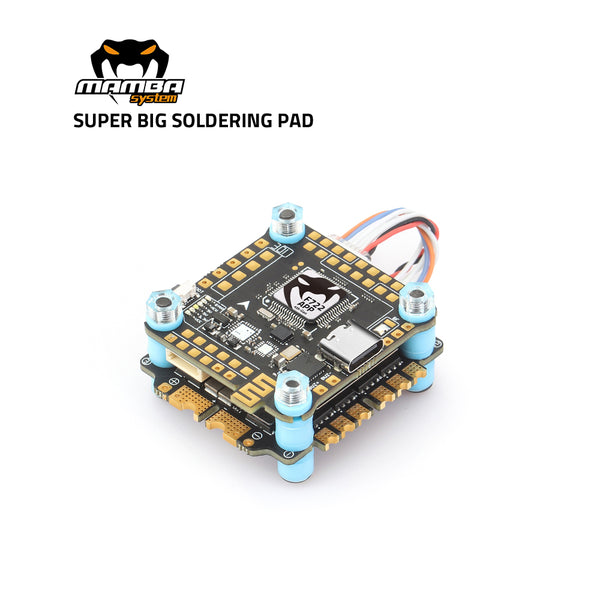

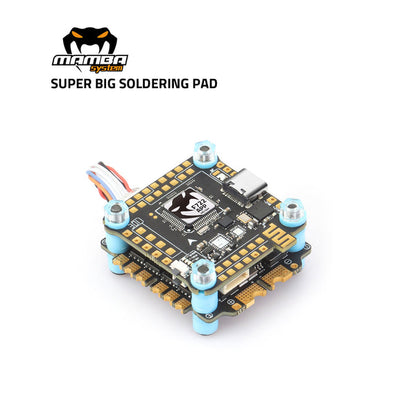

Stack DIATONE MAMBA F722 +65 BLS (42688)

DIATONE MAMBA F722 +65 BLS (42688) is a high-performance flight controller and ESC stack designed for FPV racing drones. The F722 flight controller is equipped with a powerful STM32F722 MCU, which provides fast processing and better flight performance. Coupled with the 65A 4-in-1 BLHeli_S ESC, it supports DSHOT300 and DSHOT600 protocols, ensuring smooth and precise control of the motors.

Function:

- The MAMBA MK4 F722 flight controller has an ICM-42688 gyroscope for high control accuracy and stability.
- 65A ESC power provides smooth and efficient speed control.
- Supports 4-6S batteries, allowing use in different configurations and for different types of drones.

Specifications:

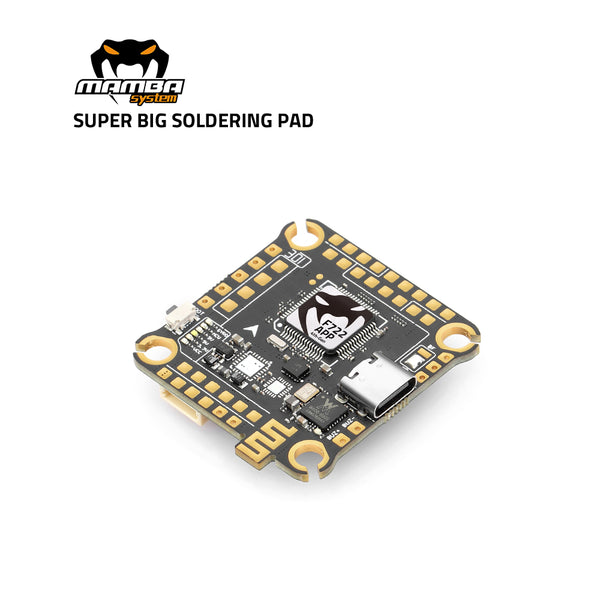

FC MAMBA MK4 F722 APP
MCU: STM32F722
Frequency: 216 MHz
Gyro: DUAL ICM-42688-P
OSD: AT7456E
Blackbox: 16M memory
Uarts: 6 sets
Receiver: TBS/SBUS/IBUS/DSM
12C: Yes
F.Port: Yes
Buzzer: Yes
CURR Pad: Yes
ESC signal: 8 Set
BEC 3.3V: 0.5A
BEC 5V: 3A
BEC 9V: 3A
MB LED: Yes
BF LED: Yes
AIR UNIT Port: Yes
WiFi: SpeedyBee APP
VTX Switch: Yes
BEC protection: Yes
Receiver protection: Yes
TVS Protection: Yes
Input: 6S Lipo
Software: Betaflight
Mounting: 30.5x 30.5mm/M3
Dimensions: 36 x 38 x 8 mm
Weight: 10g

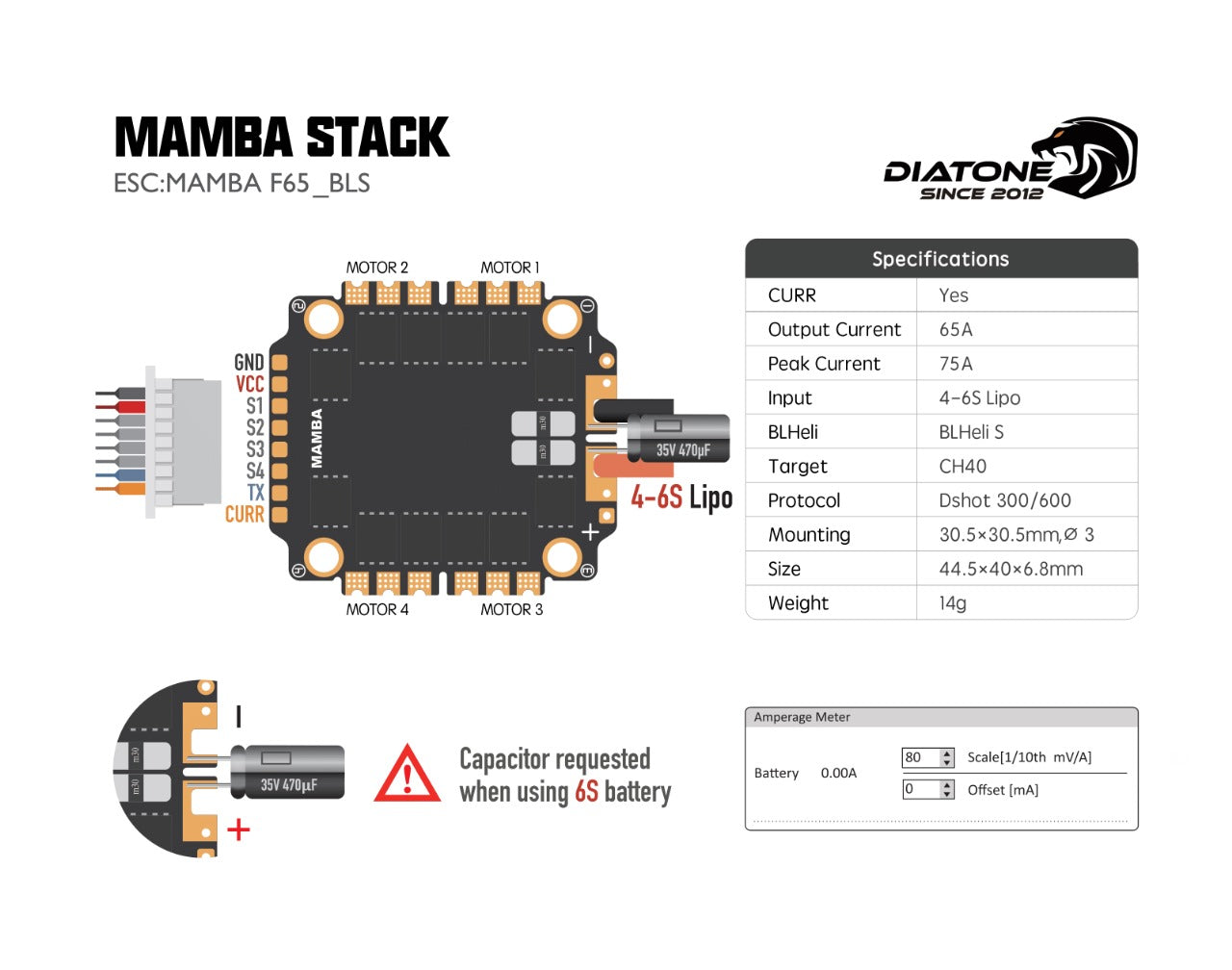

ESC MAMBA F65_BLS
CURR: Yes
Output current: 65A
Peak current: 75A
Input: 4-6S Lipo
BLHeli: BLHeli S
Target: CH40
Protocol: Dshot 300/600
Mounting: 30.5 x 30.5 mm, Ø 3
Dimension: 44.5 x 40 x 6.8 mm
Weight: 14g

The package includes:
1x cartridge DIATONE MAMBA F722 +65 BLS (42688)
