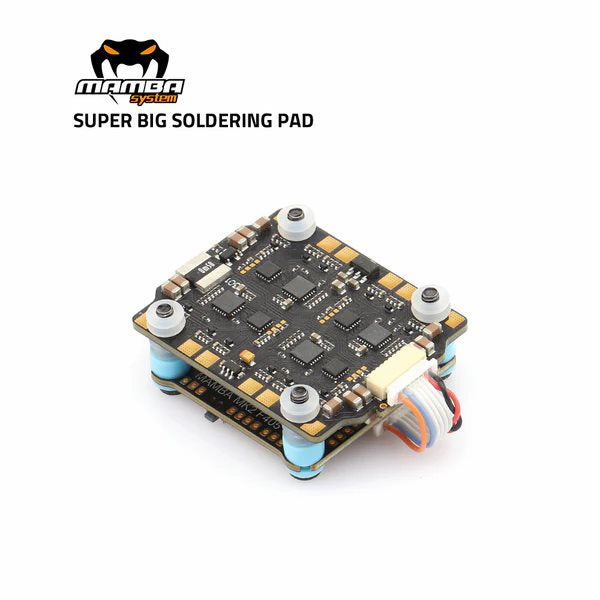

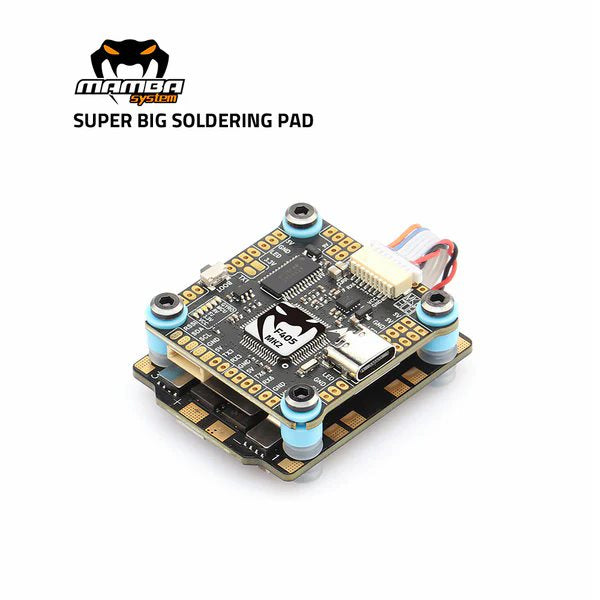

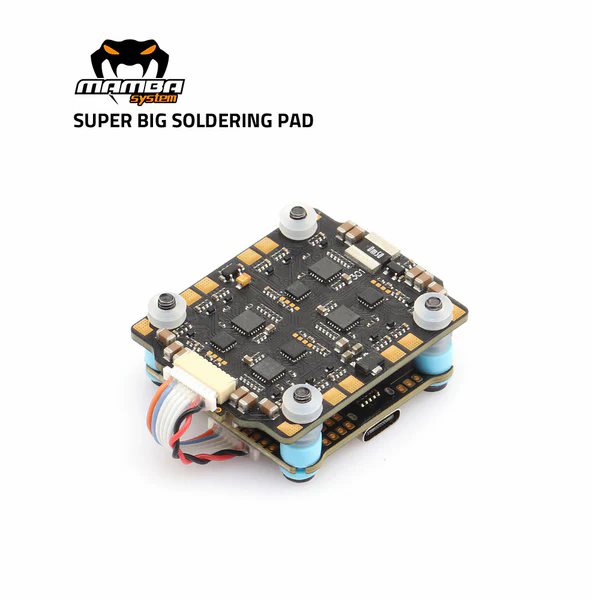

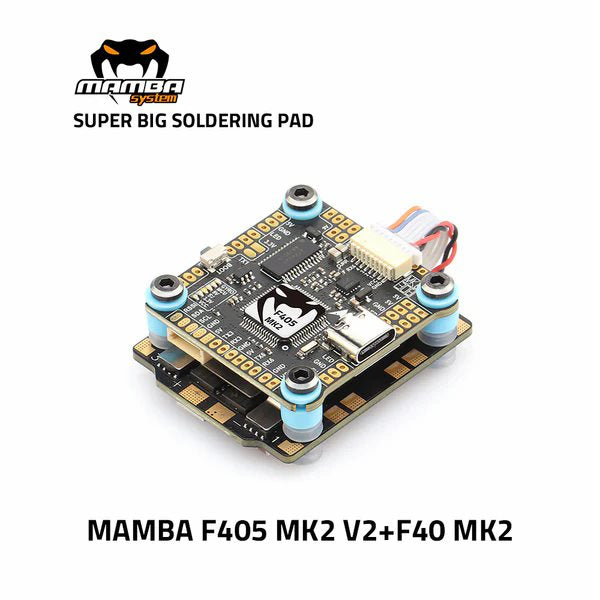

    MAMBA Stack F405MK2V2 40A 6S 8bit

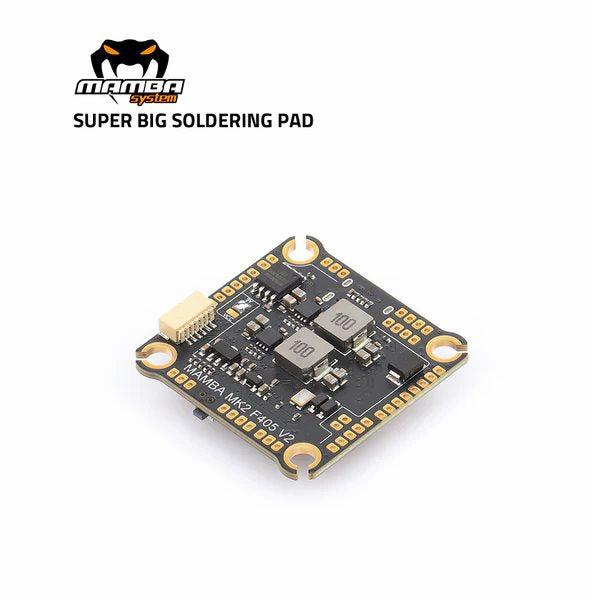

FC specification
MCU: 168MHz STM32F405
GYRO: MPU6000
Target: FURYF4OSD
OSD: Yes
Blacbox: 16M Flash memory
Barometer: No
Uarts: 3 sets
I2C: Yes
F.Port: No
RSSI: Yes
Buzzer: Yes
CURR Pad: Yes
ESC signal: 4 Set
ESC Soft: Dshot300/600
ESC Telemetry: Yes
Power LED: Yes
LED driver: BF LED
AIR UNIT Port: Yes
WIFI: No
VTX Switch: No
Receiver protection: Yes
BEC protection: Yes
TVS Protection: Yes
BEC: 3.3V 0.5A & 5V 2A & 9V 2A
Input: 3~6S Lipo (12.6~25.2V)
Mounting dimension: 30.5mm/M3

ESC specification
MAMBA F40MK2
Input voltage: 3~6S Lipo (12.6V~25.2V)
Continuous current: 40A×4
Switching current 50A (10S)
BEC: No
Target: BLHeli_S CH40
SOFT: Dshot300/600
TVS protection: No
MOUNTING: 30.5mm/M3

DELIVERIES ONLY:
High frequency 1000uF/35V ×1
8pin sh1.0×2
AIR UNIT sh1.0 ×1
12AWG 100mm x 2
AMASS Original XT60×1
