Code: SKU:JH61883
Stack DIATONE MAMBA F405 MK2 +65 BLS (42688)
Stack DIATONE MAMBA F405 MK2 +65 BLS (42688)
Brand: DIATONE
Regular price
€78,00
Regular price
€78,00
Sale price
€78,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

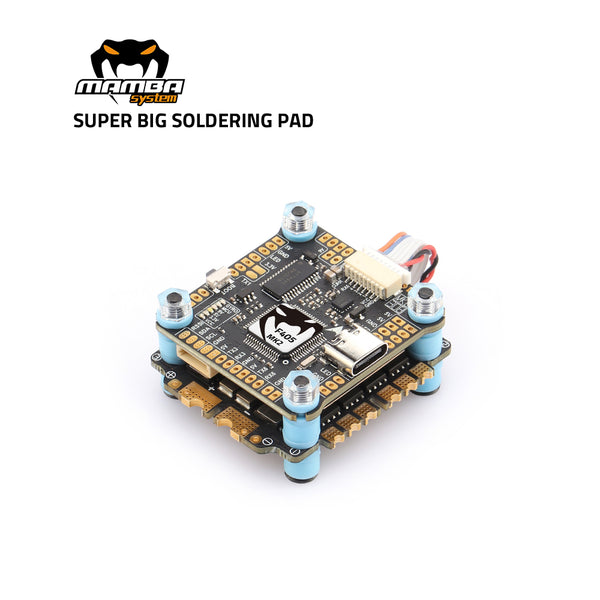

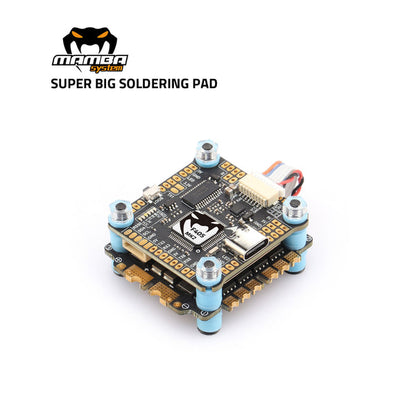

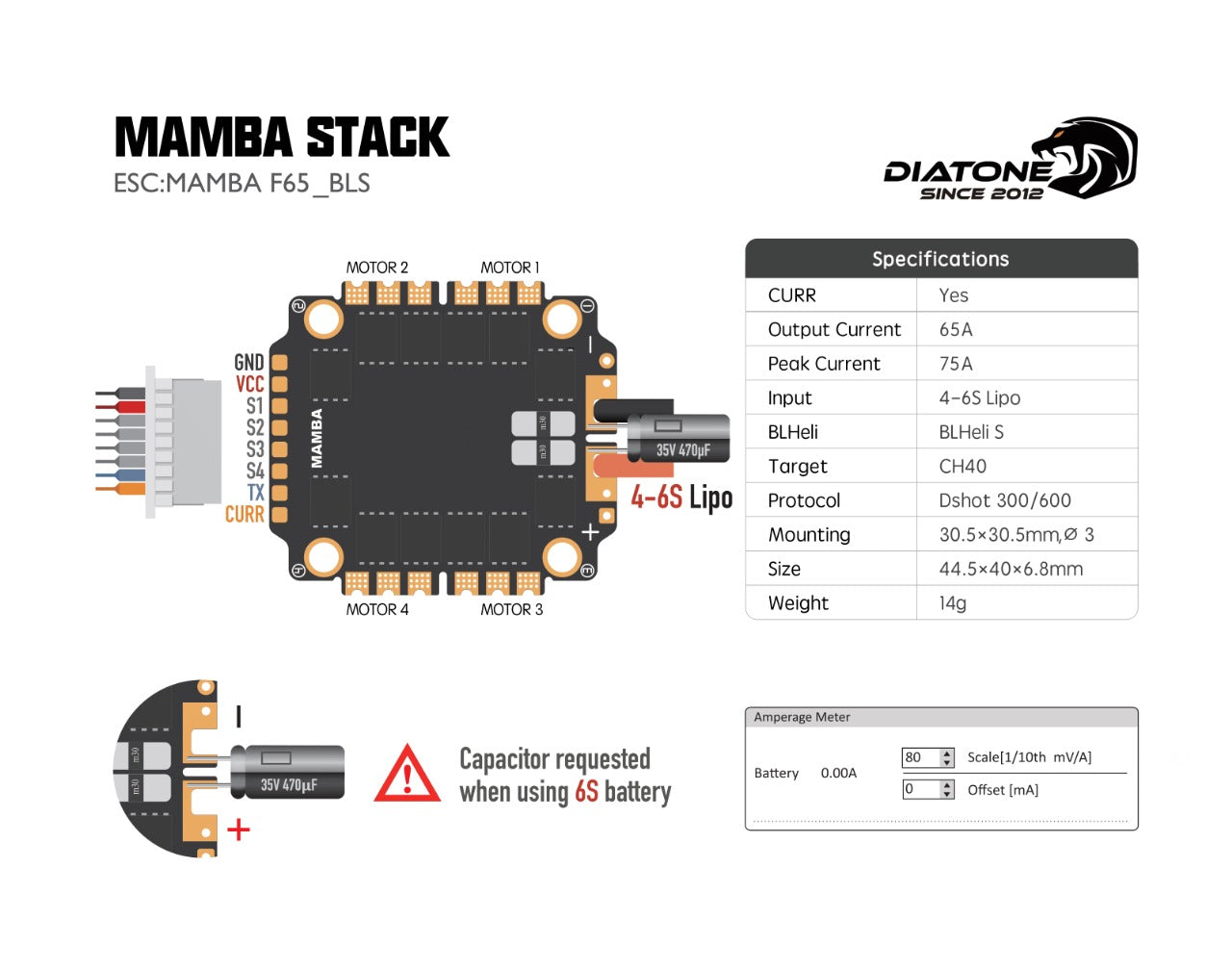

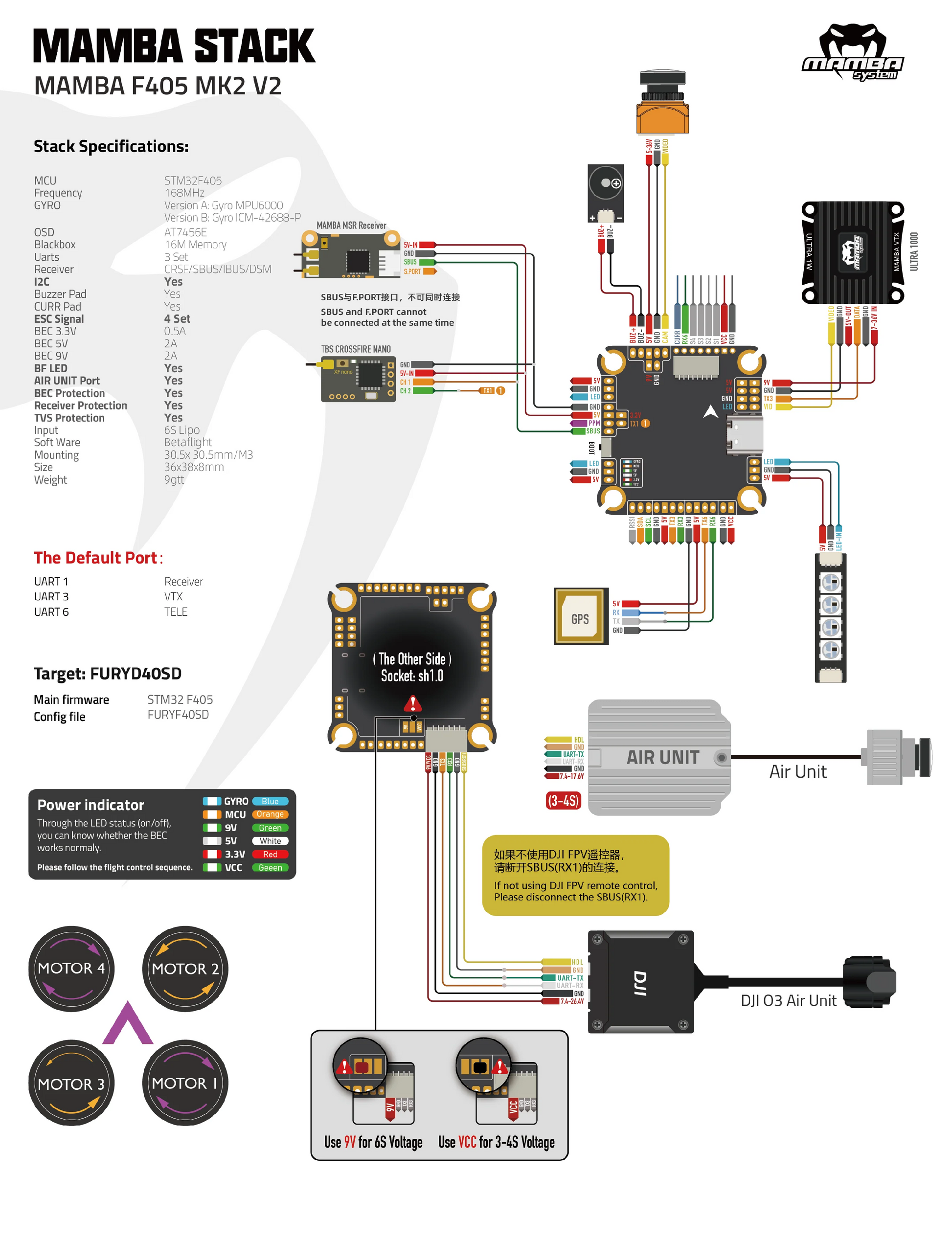

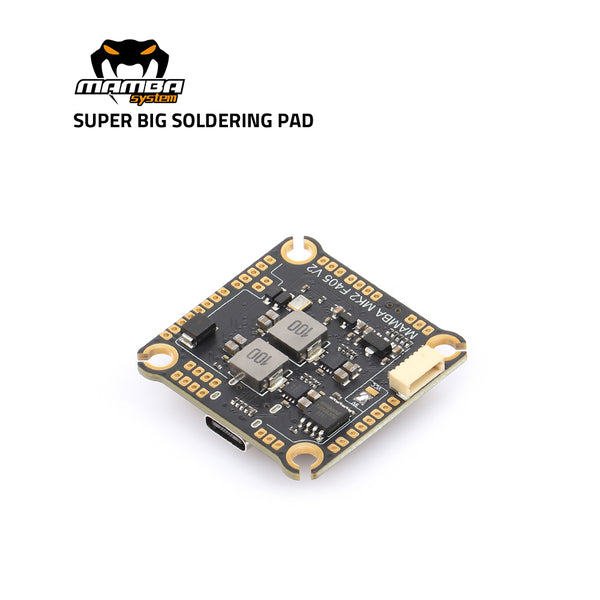

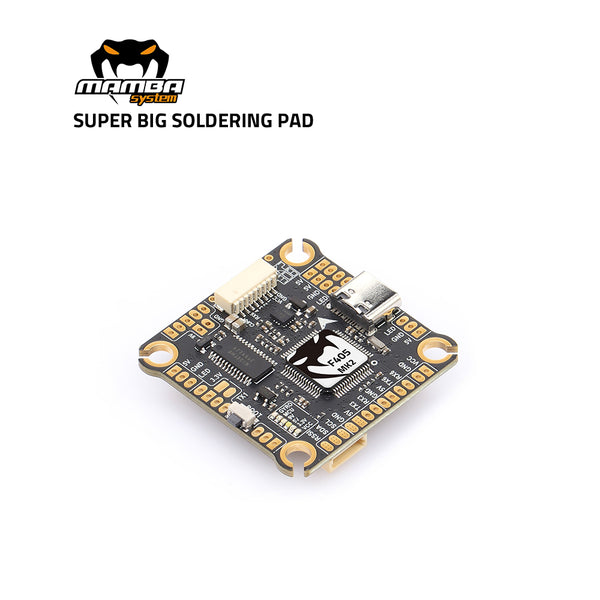

Stack DIATONE MAMBA F405 MK2 +65 BLS (42688) The Mamba F405 MK2 +65 BLS is a high quality cartridge designed by DIATONE for FPV drones. This kit includes the F405 MK2 flight controller and the 65A electronic speed controller. It is a reliable and efficient solution for building a powerful and stable UAV. Function: - The F405 MK2 FC flight controller has a built-in ICM-42688 gyroscope for high control precision and stability. - 65A ESC power provides smooth and efficient speed control. - Supports 4-6S batteries, allowing use in different configurations and for different types of drones. Specifications: FC MAMBA F405 MK2 V2 MCU: STM32F405 Frequency: 168 MHz Gyroscope: ICM-42688-P OSD: AT7456E Blackbox: 16M memory Uarts: 3 sets Receiver: CRSF/SBUS/IBUS/DSM 12C: Yes Buzzer: Yes CURR Pad: Yes ESC signal: 4 Set BEC 3.3V: 0.5A BEC 5V: 2A BEC 9V: 2A BF LED: Yes AIR UNIT Port: Yes BEC protection: Yes Receiver protection: Yes TVS Protection: Yes Input: 6S Lipo Software: Betaflight Mounting: 30.5x 30.5mm/M3 Dimensions: 36 x 38 x 8 mm ESC MAMBA F65_BLS CURR: Yes Output current: 65A Peak current: 75A Input: 4-6S Lipo BLHeli: BLHeli S Target: CH40 Protocol: Dshot 300/600 Mounting: 30.5 x 30.5 mm, Ø 3 Dimension: 44.5 x 40 x 6.8 mm Weight: 14g The package includes: 1x magazine MAMBA F405 MK2 +65 BLS (42688)
