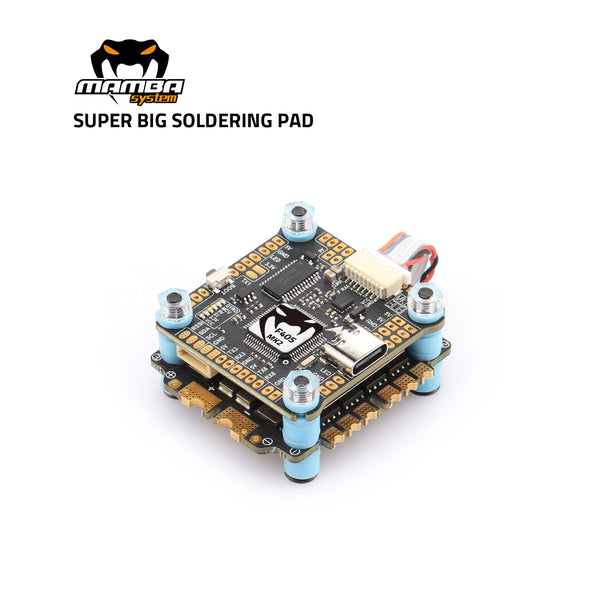

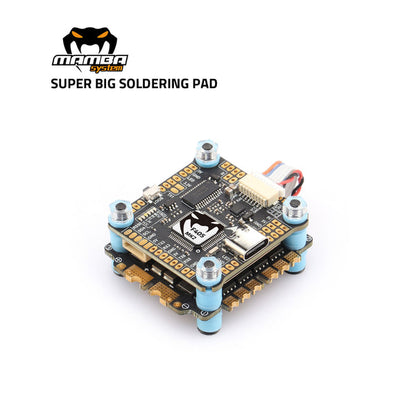

Stack DIATONE MAMBA F405 MK2 +55 BLS (42688)

The Mamba F405 MK2 +55 BLS is a high quality cartridge designed by DIATONE for FPV drones. This kit includes the F405 MK2 flight controller and the 55A electronic speed controller. It is a reliable and efficient solution for building a powerful and stable UAV.

Function:

- The F405 MK2 FC flight controller has a built-in ICM-42688 gyroscope for high control precision and stability.
- 55A ESC power provides smooth and efficient speed control.
- Supports power from 3S to 6S batteries, allowing for use in different configurations and for different types of drones.

Specifications:

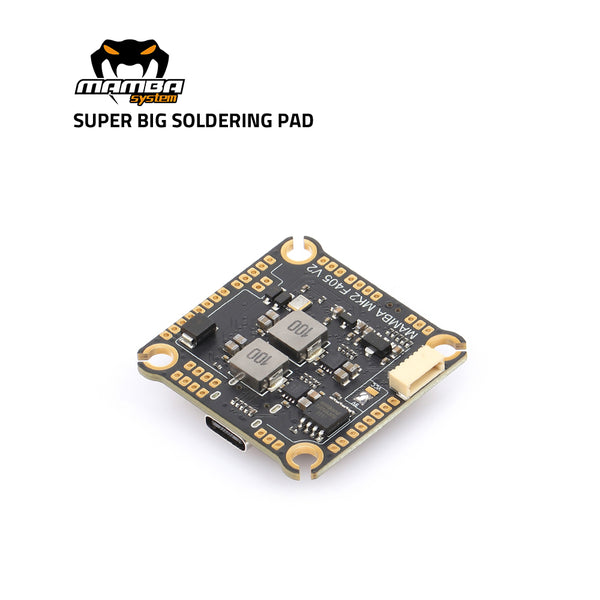

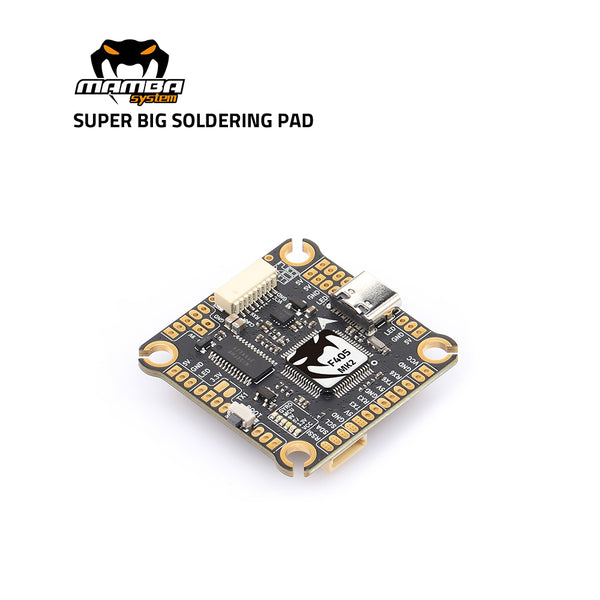

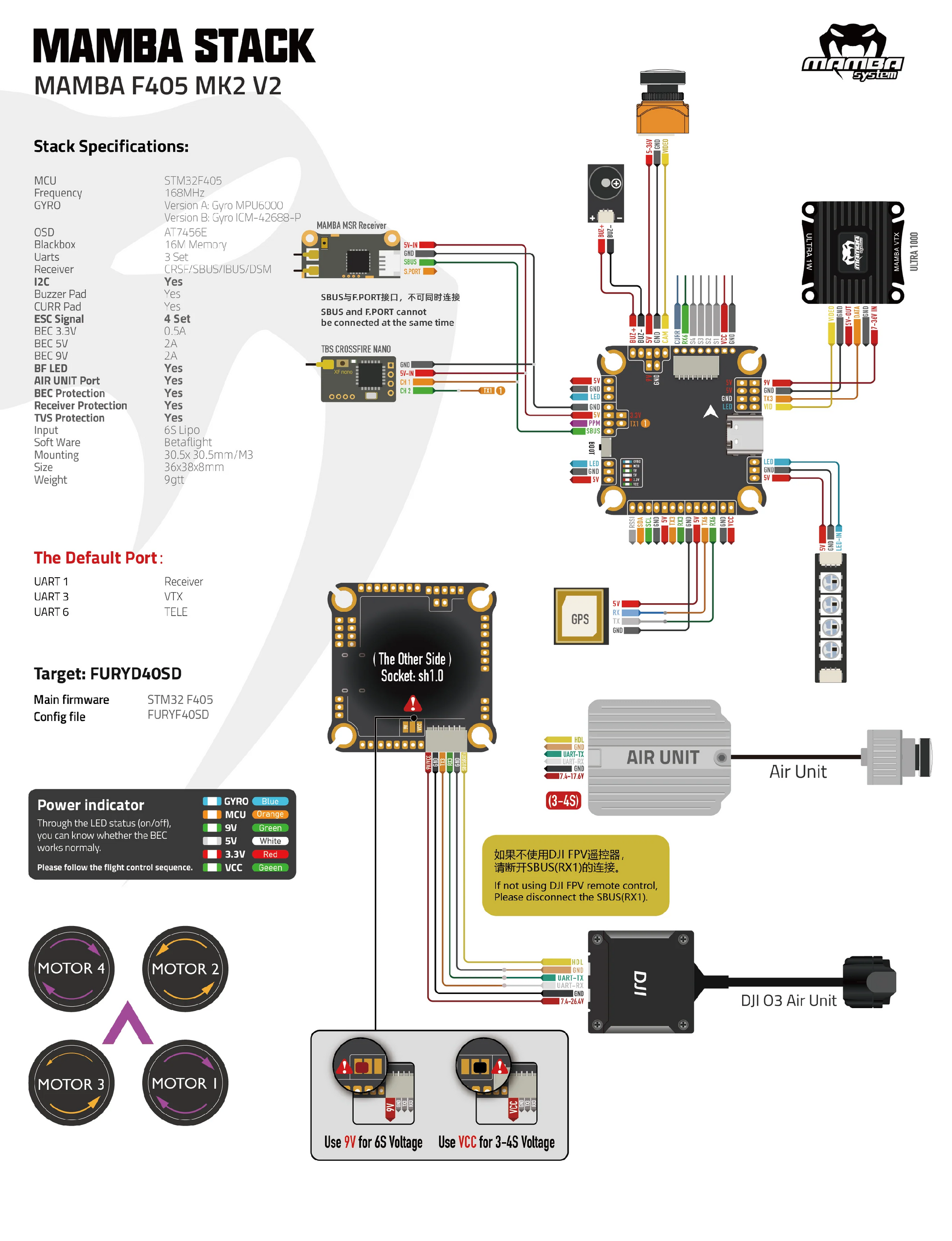

FC MAMBA F405 MK2 V2
MCU: STM32F405
Frequency: 168 MHz
Gyroscope: ICM-42688-P
OSD: AT7456E
Blackbox: 16M memory
Uarts: 3 sets
Receiver: CRSF/SBUS/IBUS/DSM
12C: Yes
Buzzer: Yes
CURR Pad: Yes
ESC signal: 4 Set
BEC 3.3V: 0.5A
BEC 5V: 2A
BEC 9V: 2A
BF LED: Yes
AIR UNIT Port: Yes
BEC protection: Yes
Receiver protection: Yes
TVS Protection: Yes
Input: 6S Lipo
Software: Betaflight
Mounting: 30.5x 30.5mm/M3
Dimensions: 36 x 38 x 8 mm

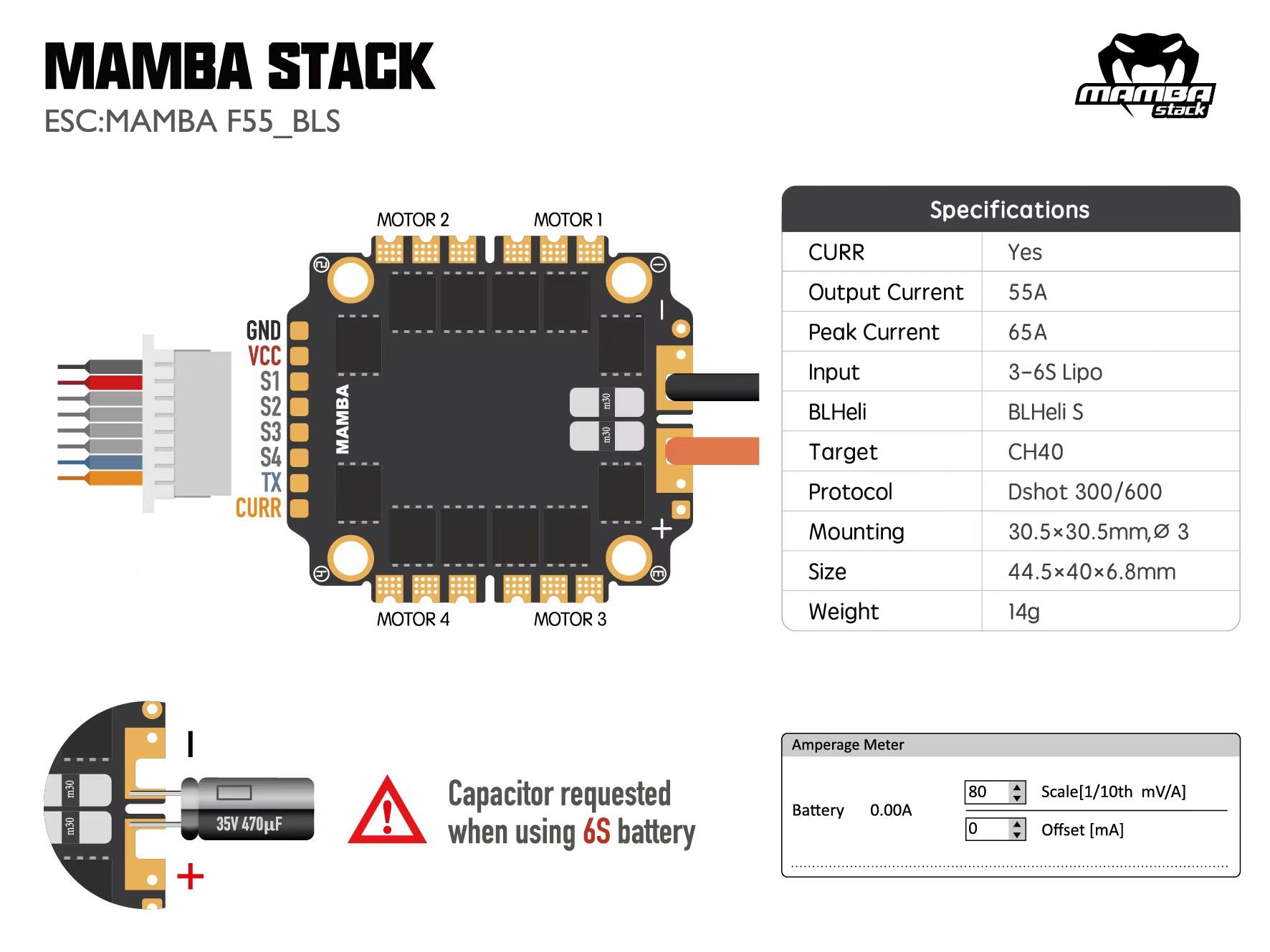

ESC MAMBA F55_BLS
CURR: Yes
Output current: 55A
Peak current: 65A
Input: 3-6S Lipo
BLHeli: BLHeli S
Target: CH40
Protocol: Dshot 300/600
Mounting: 30.5 x 30.5 mm, Ø 3
Dimension: 44.5 x 40 x 6.8 mm
Weight: 14g

The package includes:
1x magazine MAMBA F405 MK2 +55 BLS (42688)
