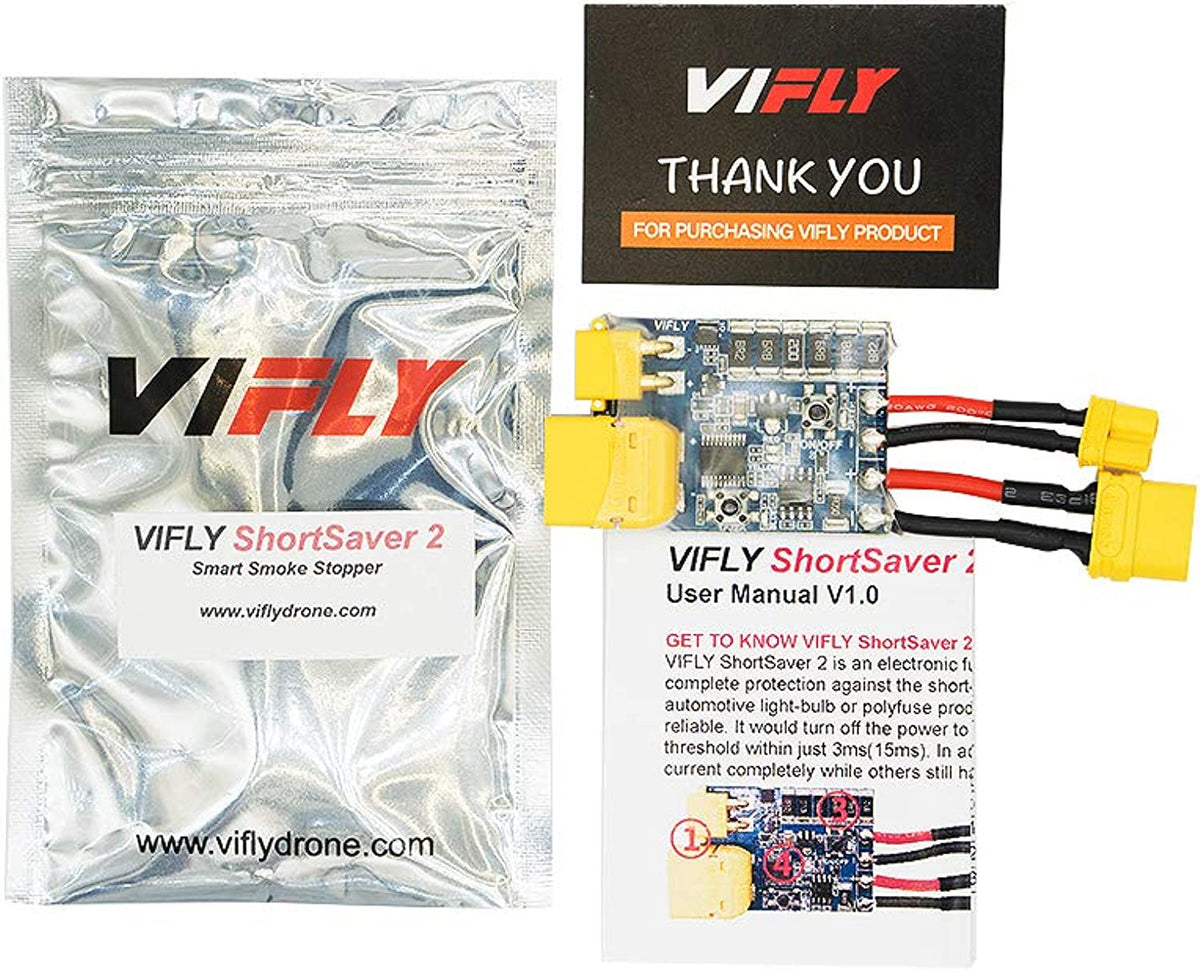

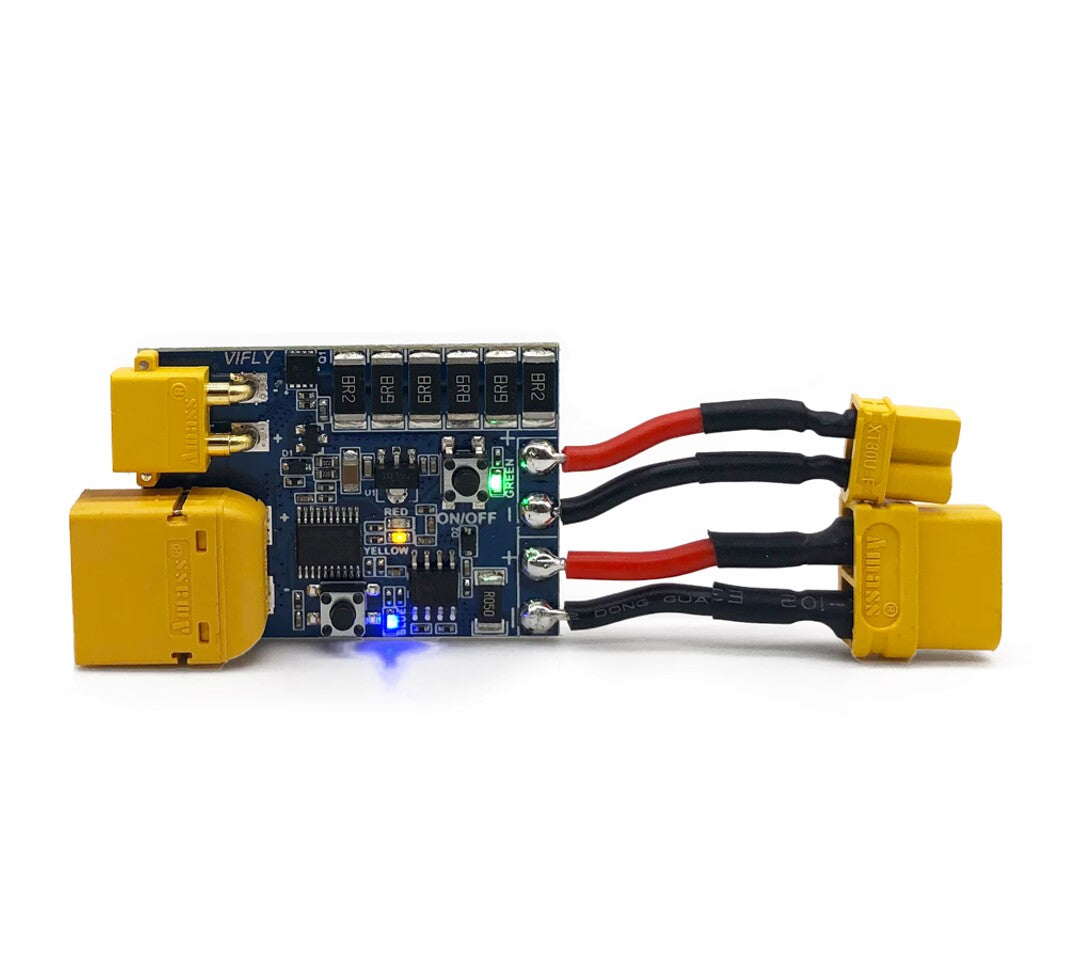

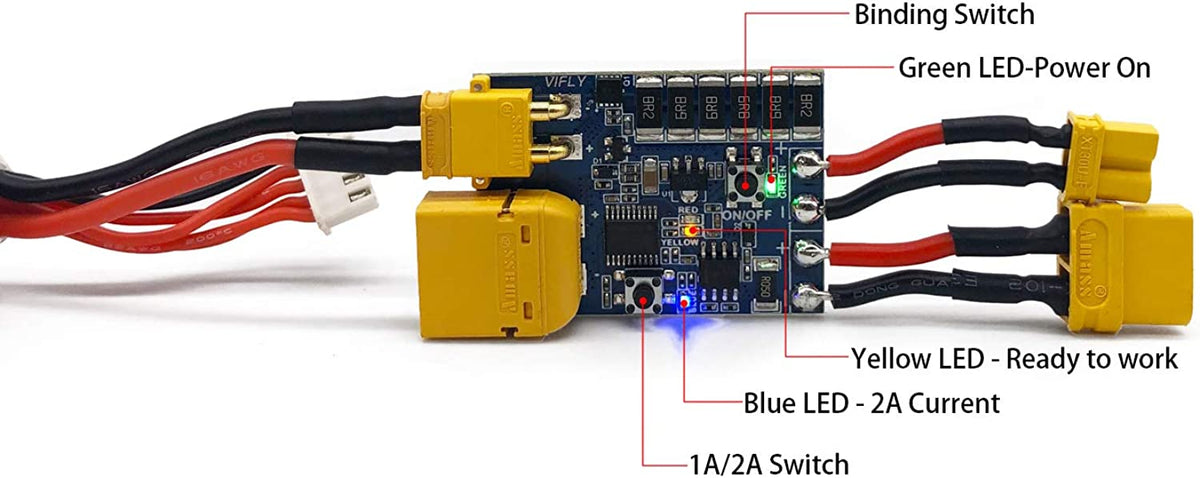

VIFLY ShortSaver V2 - Smart plug against smoke Features: 1. It completely interrupts the current flow and prevents "magic smoke". With other smoke plugs, such as a car light bulb or a resettable fuse, they only restrict, not stop, the flow of current, leaking current can still damage your components. The VIFLY ShortSaver is another smoke plug that uses an electronic fuse to completely cut off power to your RC build if a short or wiring error is detected. 2. Super fast reaction/protection time The VIFLY ShortSaver would turn off power to a device that was drawing more than a switchable threshold of 1A or 2A in just 3ms. It's much more efficient than the old way of using a light bulb or resetting a fuse. The shorter the protection time, the safer your build is because something will break by the time the fuse goes off. 3. Power switch for easier binding of the receiver Holding down the binding button and applying power can sometimes be difficult. The new version of VIFLY ShortSaver has added an on/off switch, which can make your receiver binding much more convenient. 4. Threshold selector 1 A and 2 A VIFLY ShortSaver 2 is so smart that it has a 1 Amp or 2 Amp threshold selector for your different needs. For small assemblies with more sensitive electronic components you can choose the 1 Amp option, for large assemblies the 2 Amp option is the choice. 5. Amass XT60 and XT30 output connectors VIFLY ShortSaver 2 comes with both Amass XT30 and XT60 connectors, more convenient for your different batteries. Specifications: Dimensions (L x W x H): 42 x 30 x 10 mm Connector: XT30 and XT60 (input and output) Switchable current threshold: 1A/2A Trip time: 3 ms (short circuit) / 10 ms (overcurrent) Input voltage: 7-25V (2-6S) The package contains: 1x smoke plug
