DUO II 2.4/5.8G + Accessories for DJI drones

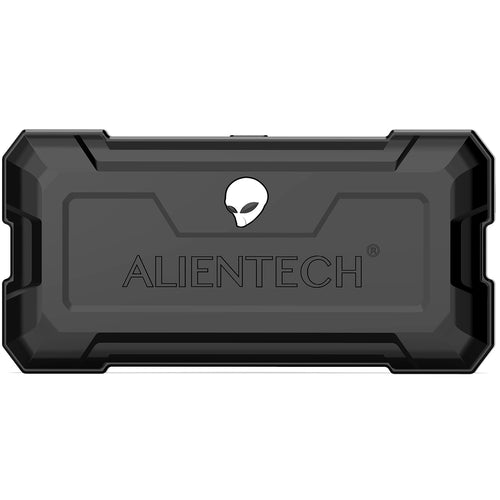

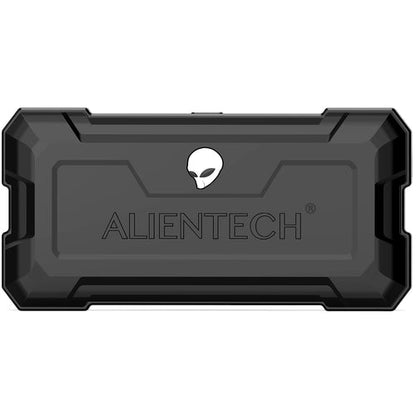

The ALIENTECH DUO II signal amplifier is a fantastic, active directional antenna with two power amplifiers to extend the range, usable in the frequency band 2.4 GHz-2.4835 GHz and 5.725 GHz-5.850 GHz. With significant transmission gain of 28-30dBi and significant receiving gain of 23-25dB, it can increase wireless signal strength, extend transmission distance and stabilize signal reception, and supports wifi and OcuSync protocol.

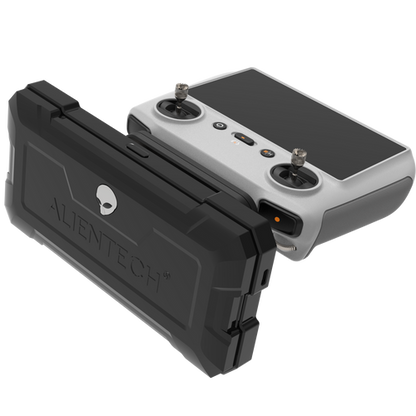

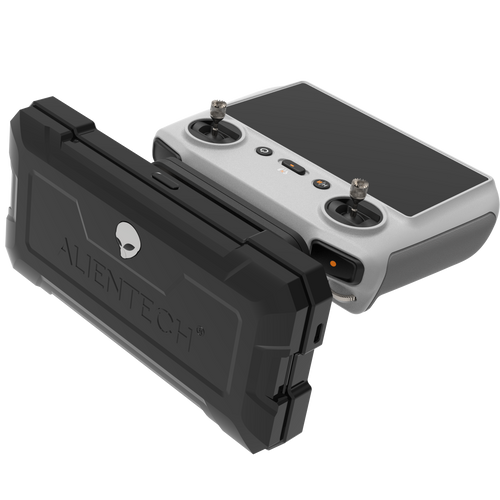

This ALIENTECH DUO II signal amplifier is compatible with DJI RC, MAVIC Mini 3 Pro and Mavic 3 Classic. The Quick Release function saves maximum time preparing for take-off. Inside the booster are two rechargeable 18650@2500 mAh lithium batteries, which can be used continuously for more than 300 minutes each time.
This product is specially developed for the 2.4 GHz and 5.8 GHz frequency bands. 2.4G is IEEE 802.11B/G/N compliant and 5.8 is a bi-directional power amplifier that complies with IEEE 802.11A/N. The product conforms to frequency spreading techniques such as direct sequence (DSSS) and orthogonal frequency division multiplexing (OFDM). The use of TIME DIVISION DUPLEX (TDD) fast microwave detection technology and linear power amplifier technology greatly extends the wireless high-frequency communication distance while keeping the transmission speed of 802.11B/G/N wireless devices unchanged.
Specifications
Product model: DUO-2458SSB
Compatibility: DJI RC, MAVIC Mini 3 Pro, Mavic 3 Classic.
Dual band, work with 2.4G and 5.8G
Operating frequency band: 2400-24835 GHz / 5.725-5.850 GHz
Working voltage: 6-9V
Antenna gain: 2.4G>13 dBi±1 / 5.8G>15dBi±1
Receive gain: 10 dB±1
Transmission gain: 15 dB±1
Input power range: 10-20 dBm
EVM: 3% @ 28 dBm 802.11G 54 Mbps OFDM 64QAM BW 20 MHz
Electric current: 435 mA@POUT 28 dBm 9V
Noise coefficient: ≤ 2.5 dB
Transmission delay: ≤ 1 μs
Temperature: -40°C~80°C
Battery voltage and capacity: 3.7V 2800 mAh
The package includes:
1x DUO II 2.4/5.8G + Accessories for DJI drones
