Product description:
- Compatible with C245 series soldering iron tips, temperature setting range 50℃-500℃/122℉-932℉.

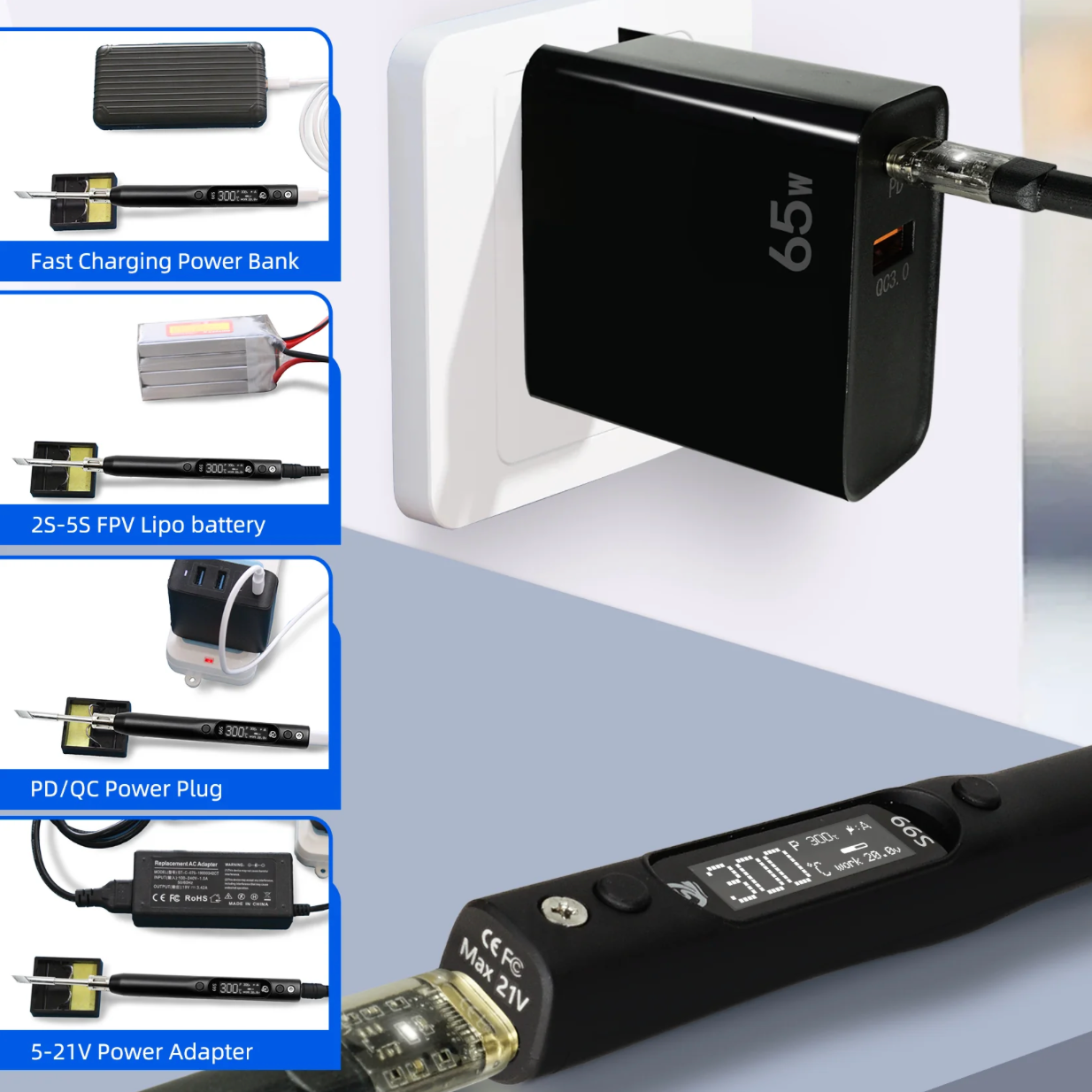

- Working power supply: support PD2.0/3.0, QC2.0/3.0, PPS, DC Max 21V.

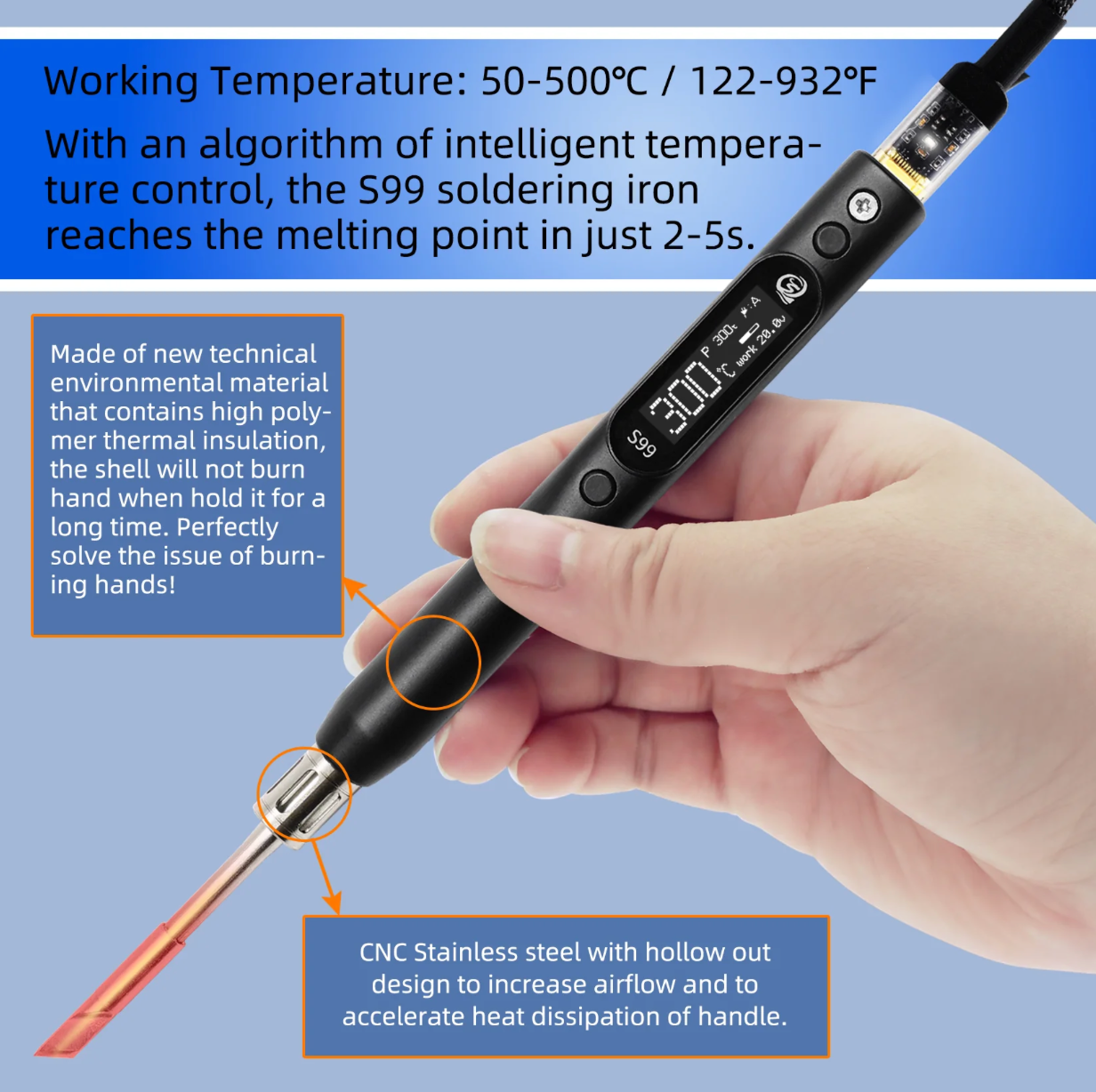

– Intelligent temperature control algorithm, supports temperature compensation and temperature auto-calibration.
- The shell is made of industrial special materials that are extremely resistant to high temperatures and have an effective antistatic treatment.
- 128*32 OLED display, built-in buzzer for work reminder.
- Sensitivity can be adjusted to eliminate interference caused by environmental factors.

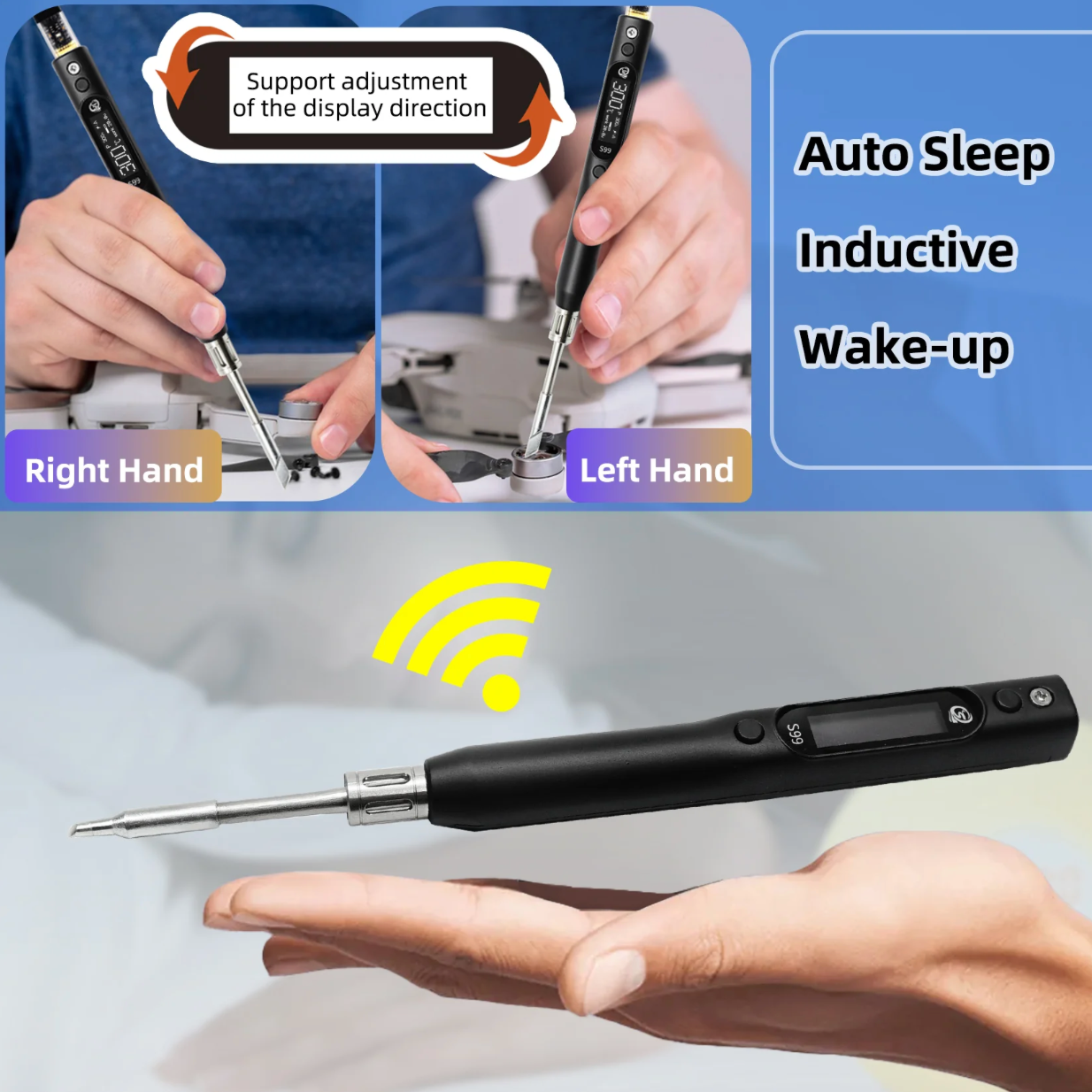

- Support ℃/℉ switch, screen flip left and right, firmware update.
-Available in three languages: Chinese, English and Russian
The resistance of the supplied soldering iron tip is approximately: 5.5 Ω
S20/S60/S60P/S99 parameter comparison
Model
S20
S60
S60P
S99
Maximum Voltage
9V
12V
21 V
21 V
Maximum performance
20 W
60 W
60 W
150W（2.5Ω））75W（5.5Ω）
The fastest melting time of tin
3s
2 s
2 s
2s（2.5Ω）),5s（5.5Ω）
Working temperature
50-500℃
50-500℃
50-500℃
50-500℃
Screen size
128*32 OLED
128*32 OLED
128*32 OLED
128*32 OLED
Type of interface
Type-C
Type-C
Type-C
Type-C
Power
PD，QC，DC
PD，QC，DC
PD，QC，DC，PPS
PD，QC，DC，PPS
Protocol Selection
not supported
not supported
support
support
Host size
116*13*15mm
118*13*15mm
118*13*15mm
124*13*15mm
Host weight
22g
22g
22g
22g
Soldering iron tip length
45mm
80mm
80mm
99mm
Soldering iron tip weight
1 g
2g
2g
5 g
Host and soldering iron tip size
135*13*15mm
145*13*15mm
145*13*15mm
165*13*15mm

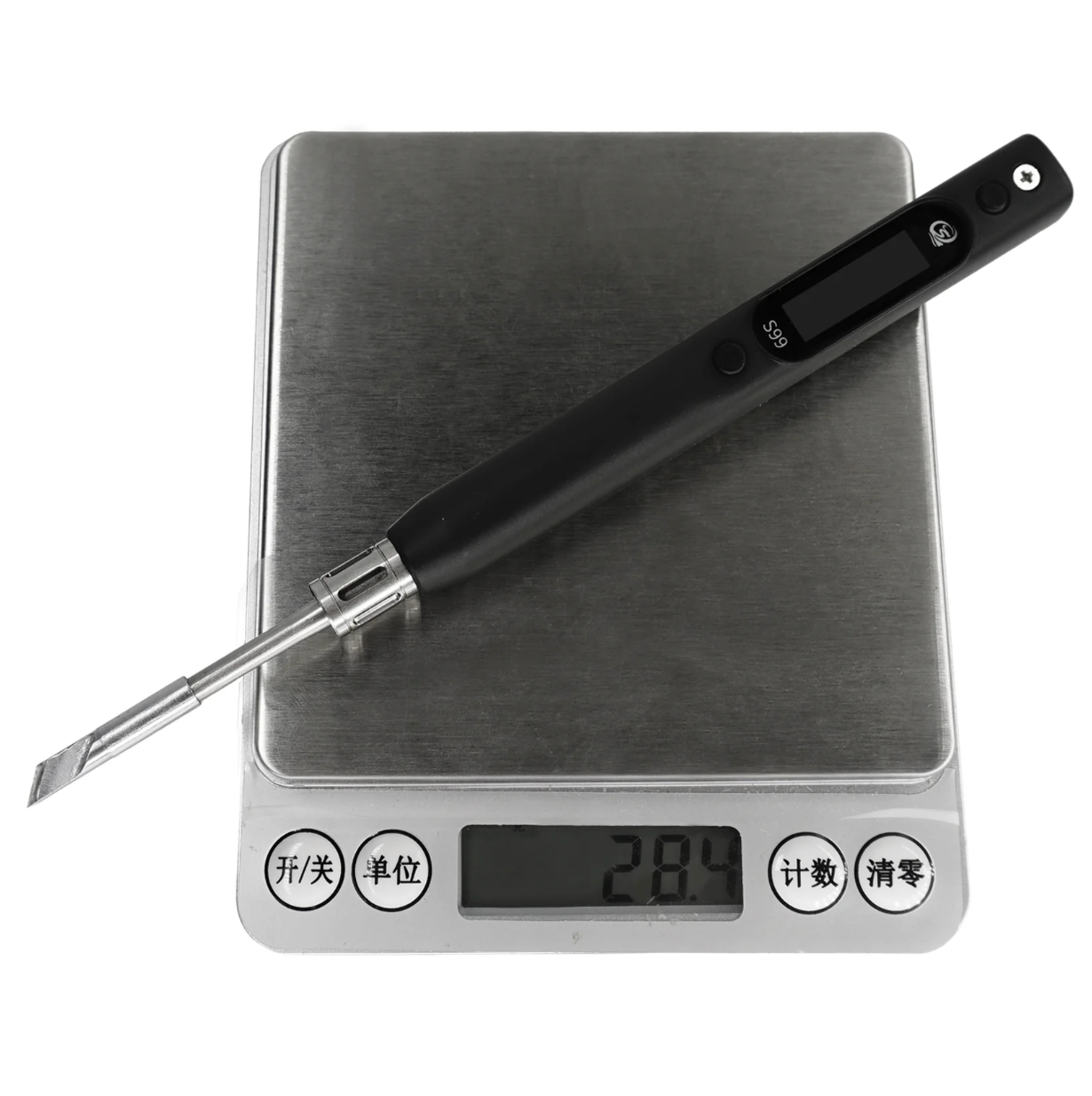

Weight of host tip and soldering iron
23g
24g
24g
28g
Applications
Nano welding, chip flying lead
Mobile computer repair
Mobile computer repair
Drone, welding RC models

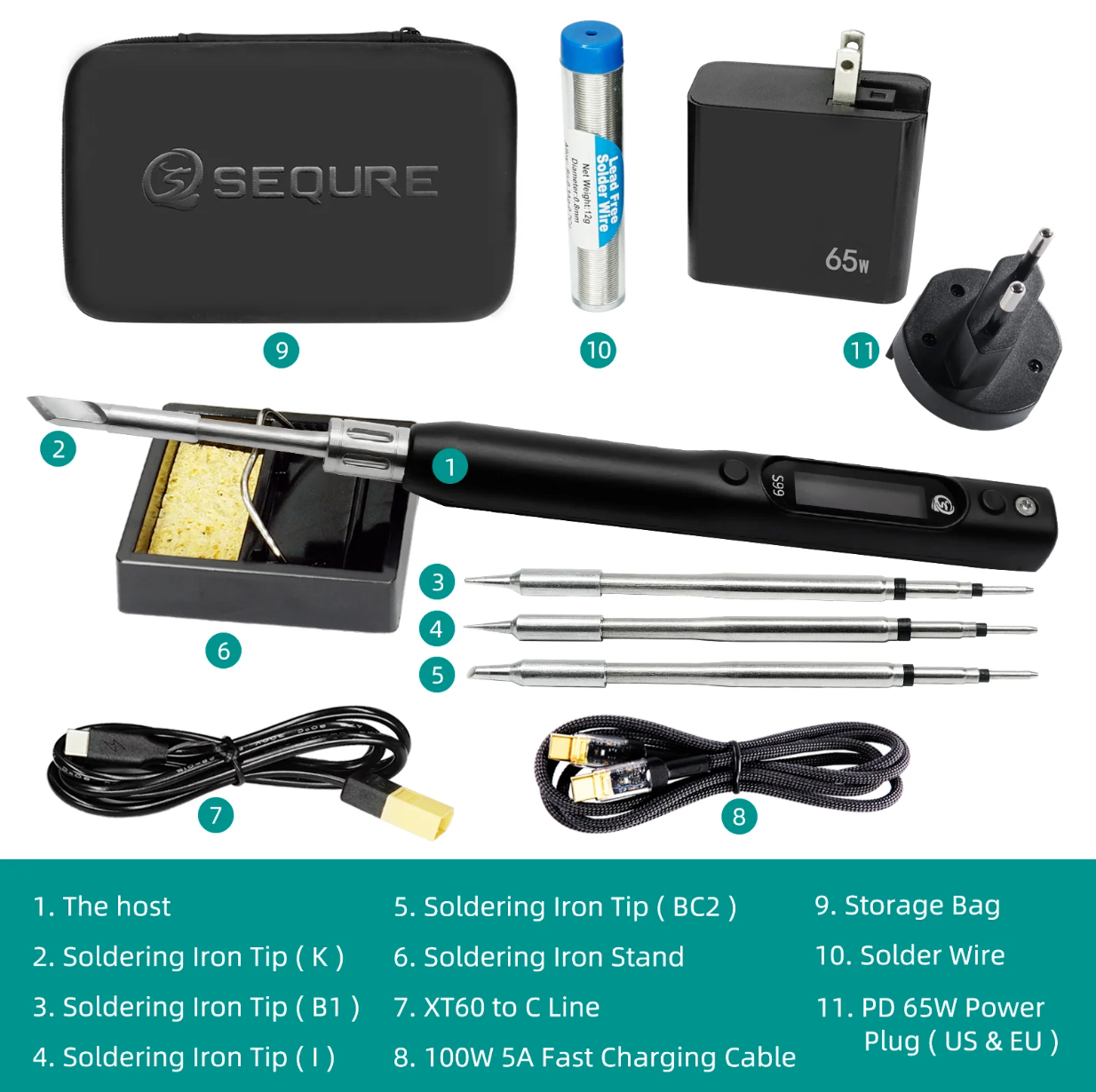

Package contents:
-
Host × 1
-
Soldering iron tip × 1
Overall dimension:

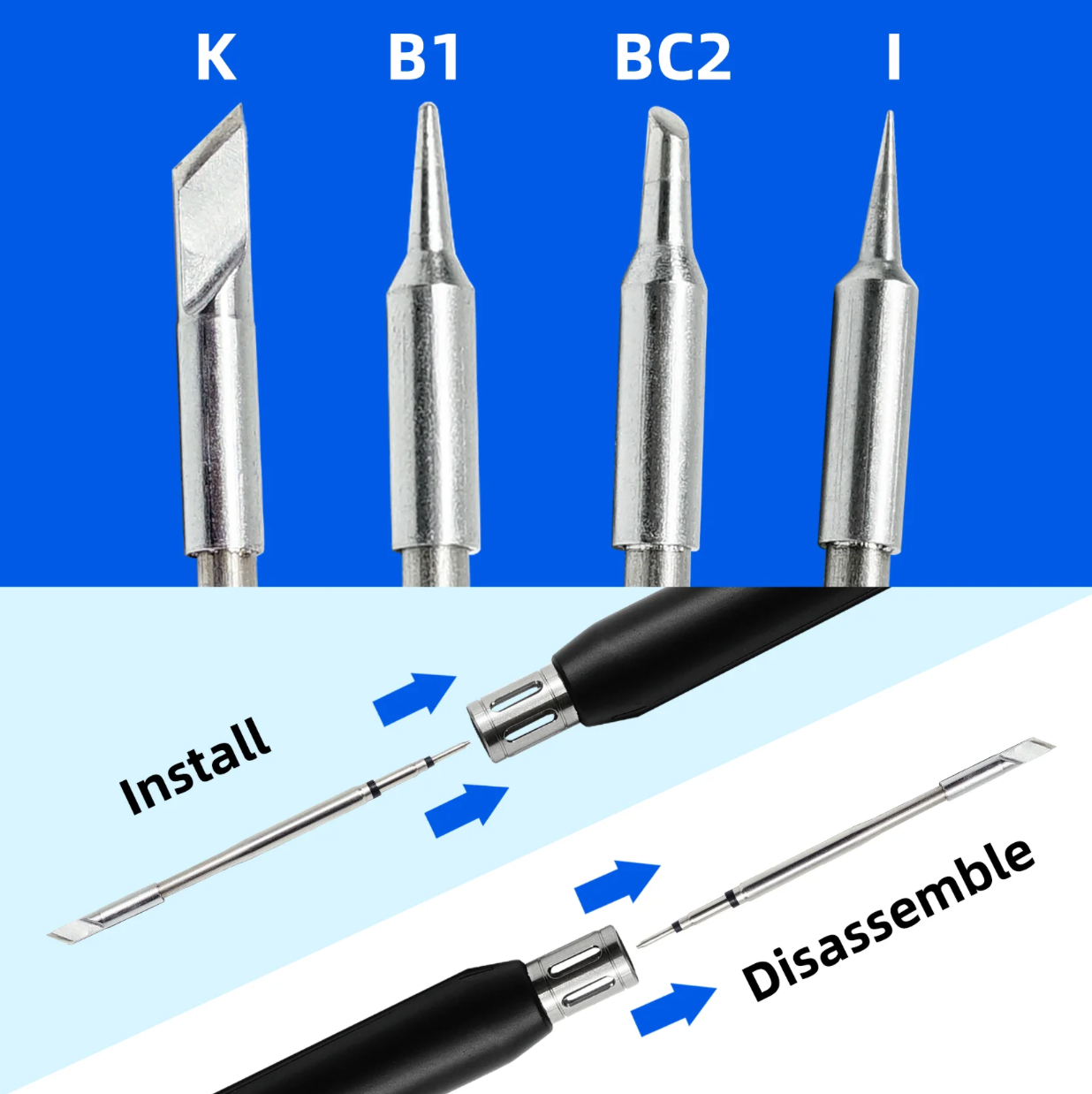

S99（K/I/B1/BC2）
- Product size: 124*13*15mm
Product net weight: 22 g
- Package size: 125*35*23mm
Package weight: 44 g
- Package size (including outer carton)：205*115*40mm
Package weight (including outer carton)：85g
S99（K+I+B1+BC2）
- Product size: 124*13*15mm
Product net weight: 22 g
- Package size: 125*50*25mm
Package weight: 76 g
- Package size (including outer carton)：205*115*40mm
Package weight (including outer carton)：117g
S99 Kit（K/I/B1/BC2）-（USA+EU）/（USA+AU ）/（US+UK）
- Product size: 124*13*15mm
Product net weight: 22 g
- Package size: 190*125*60mm
Package weight: 358 g
- Package size (including outer carton)：235*130*110mm
Package weight (including outer carton)：470g
Set S99（K+I+B1+BC2）-（USA+EU）/（USA+AU ）/（US+UK）
- Product size: 124*13*15mm
Product net weight: 22 g
- Package size: 190*125*60mm
Package weight: 390 g
- Package size (including outer carton)：235*130*110mm
Package weight (including outer carton)：500g
