Receiver RadioMaster XR1 Nano Multi-Frequency ExpressLRS 868/915MHz

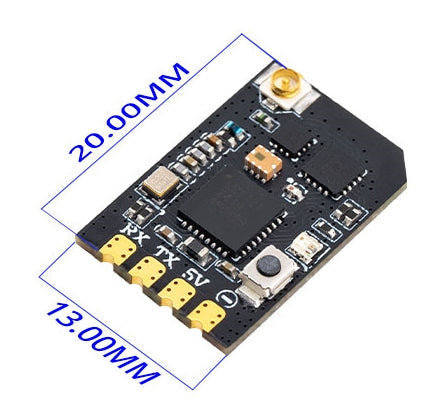

The XR1 Receiver is a versatile, ultra-compact ExpressLRS receiver, measuring just 20x13mm. Powered by the advanced third-generation Semtech LR1121 transceiver, the XR1 operates seamlessly Sub-G 868/915MHz bands. XR1 delivers exceptional range and sensitivity in a small, lightweight package — perfect for any build. With the reliability of ExpressLRS, you can focus on flying without worrying about link quality.
Designed for convenience, the XR1 features built-in Wi-Fi for effortless configuration and firmware updates. Access and manage settings through an intuitive WebUI on your PC or mobile device with ease.

Features
- Telemetry RF power: 100mW
- ExpressLRS Sub-G 868/915MHz
- ESP32C3 high-performance MCU
- Semtech LR1121 Sub-G 868/915MHz Transceiver
- Secondary UART port
- Castled pads for easy soldering

Specification:
Item: XR1 Nano Multi-Frequency  ExpressLRS Receiver
Type: ISM2.4 or FCC915
MCU: ESP32C3
RF chip: Semtech LR1121
RF connector: IPEX-1
Antenna: 1x T-Antenna 868/915MHz
Frequency Range: Sub-G 868/915MHz
Telemetry Power: 100mW
Maximum Packet rate: DK500Hz / K1000Hz
Minimum Packet refresh rate: 50Hz
Working voltage: 5V
Weight: 1.0g (without antenna)
Dimension: 20x13x3mm
Firmware Version: ExpressLRS v3.5.1 pre-installed
FW Target:  RadioMaster XR1 868/915 RX
Bus interface 1: CRSF
Bus interface 2: UART

Package Include:
1x XR1 Nano Multi-Frequency ExpressLRS Receiver

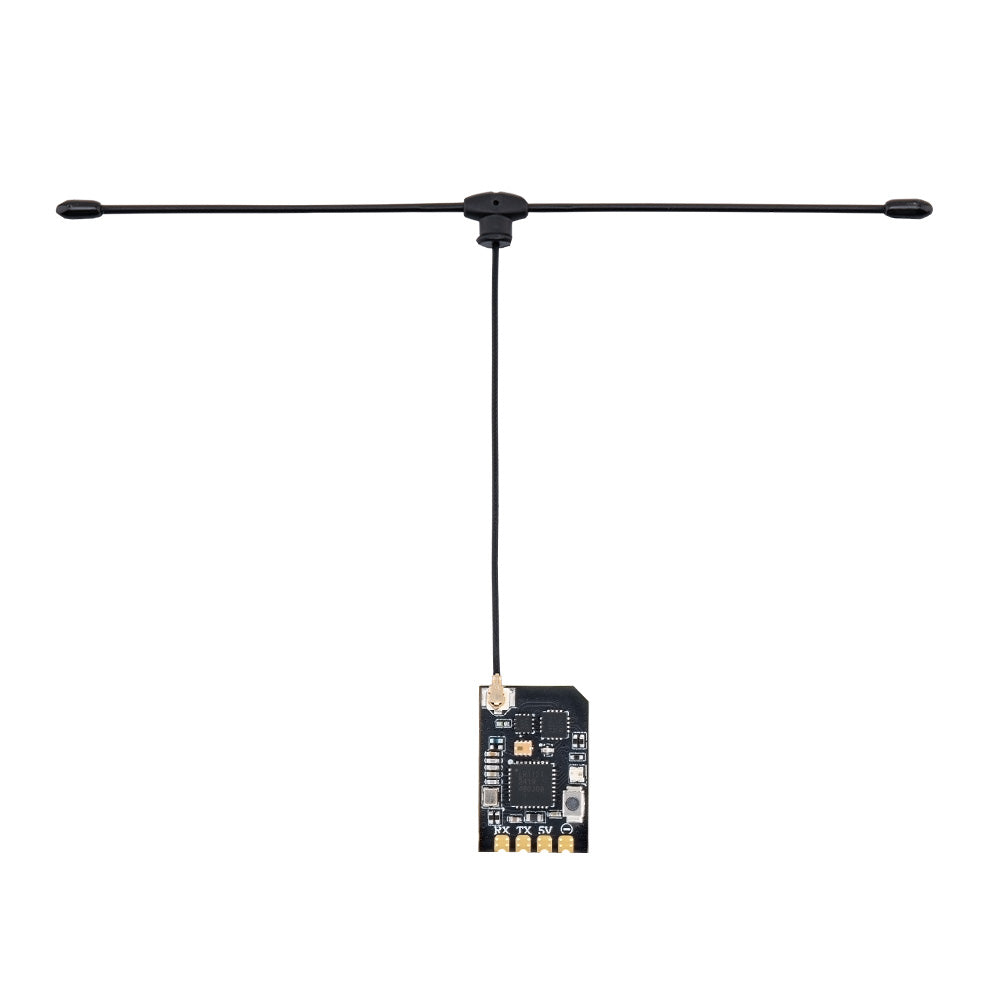

1x T Antenna 868/915MHz
1x CRSF wire
3 x Heat-Shrinkable Tube
