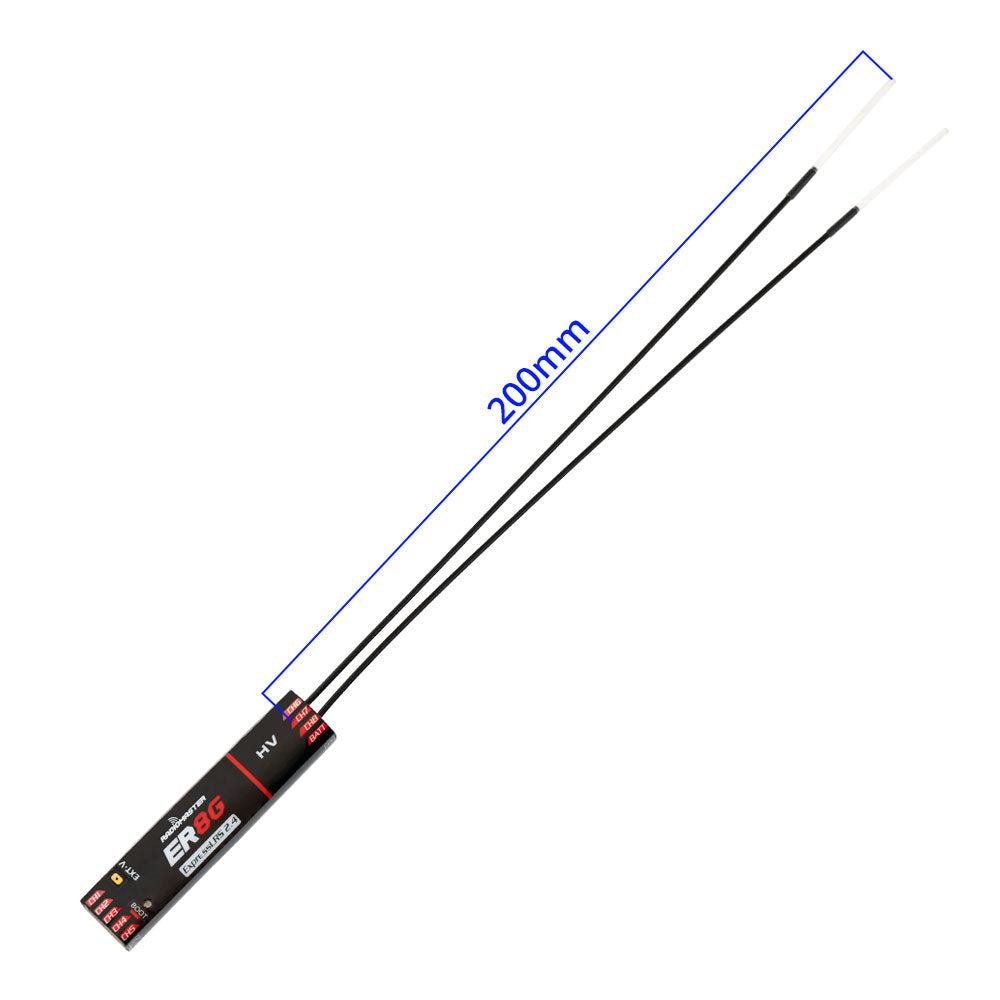

ER8G 2.4GHz ELRS PWM receiver The ER8GV receiver is specially designed for glider pilots who require a compact and slim receiver. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at a time). The ER8GV is equipped with a dual antenna with a telemetry power of up to 100mw and can be used with a 1S Lipo receiver battery. The ER8GV receiver has a built-in high-precision air pressure sensor (Vario). Specifications: Item: ER8GV 2.4GHz ELRS PWM Receiver Power supply: DC 3.5 - 8.4V Antenna type: 20cm antenna with high sensitivity Wireless protocol: ExpressLRS 3.2 pre-installed Output channel: 8CH PWM Return power: maximum 100 mw (LUA can be set) Built-in high-precision air pressure sensor (Vario) Battery voltage detection range: DC 4.0 - 35V Weight: 12 grams Dimensions: 60 x 13.5 x 13 mm Firmware: Device category: Radiomaster 2.4 GHz / Device: Radiomaster ER8GV
