ER6 2.4GHz ELRS PWM receiver

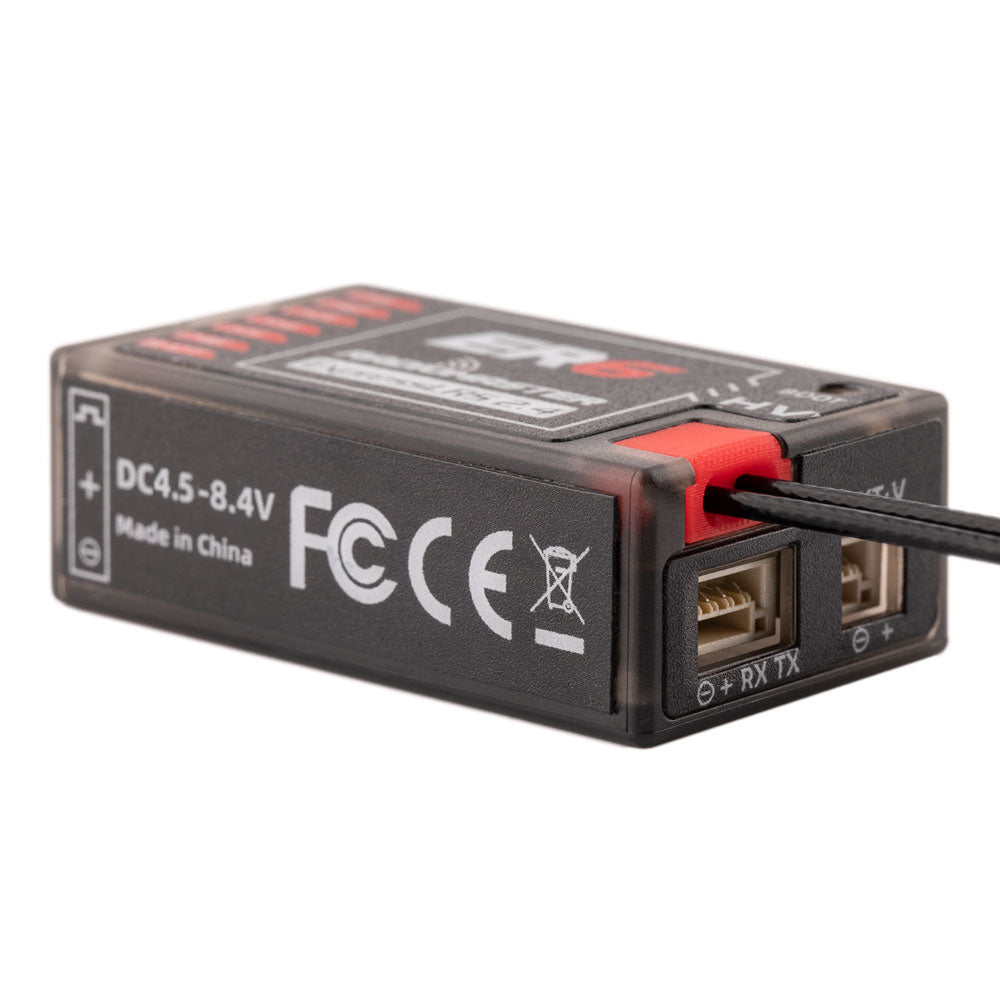

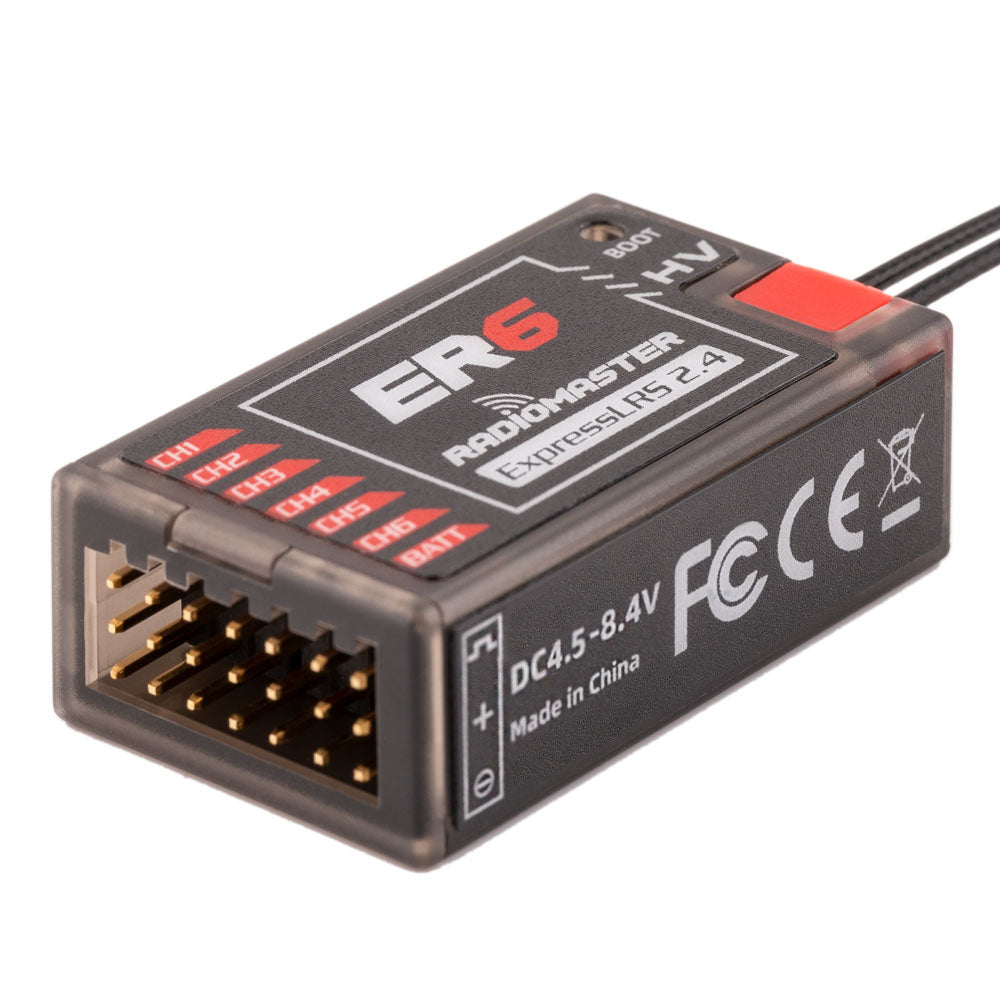

The RadioMaster ER6 ELRS receiver has been specially designed for fixed wing users. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. A 4-wire CRSF interface is available to facilitate the later expansion of telemetry sensors. The ER6 is equipped with a dual antenna with a telemetry power of up to 100 mw. The receiver shell uses a one-piece molding process with high structural strength.
Function:
- Based on the revolutionary ExpressLRS system
- High performance, high reliability, flexible configuration, fast response and ultra long range
- Support 6 PWM channels
- Optimized ground circuit board design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54mm connector
- Standard 20 cm high sensitivity antenna

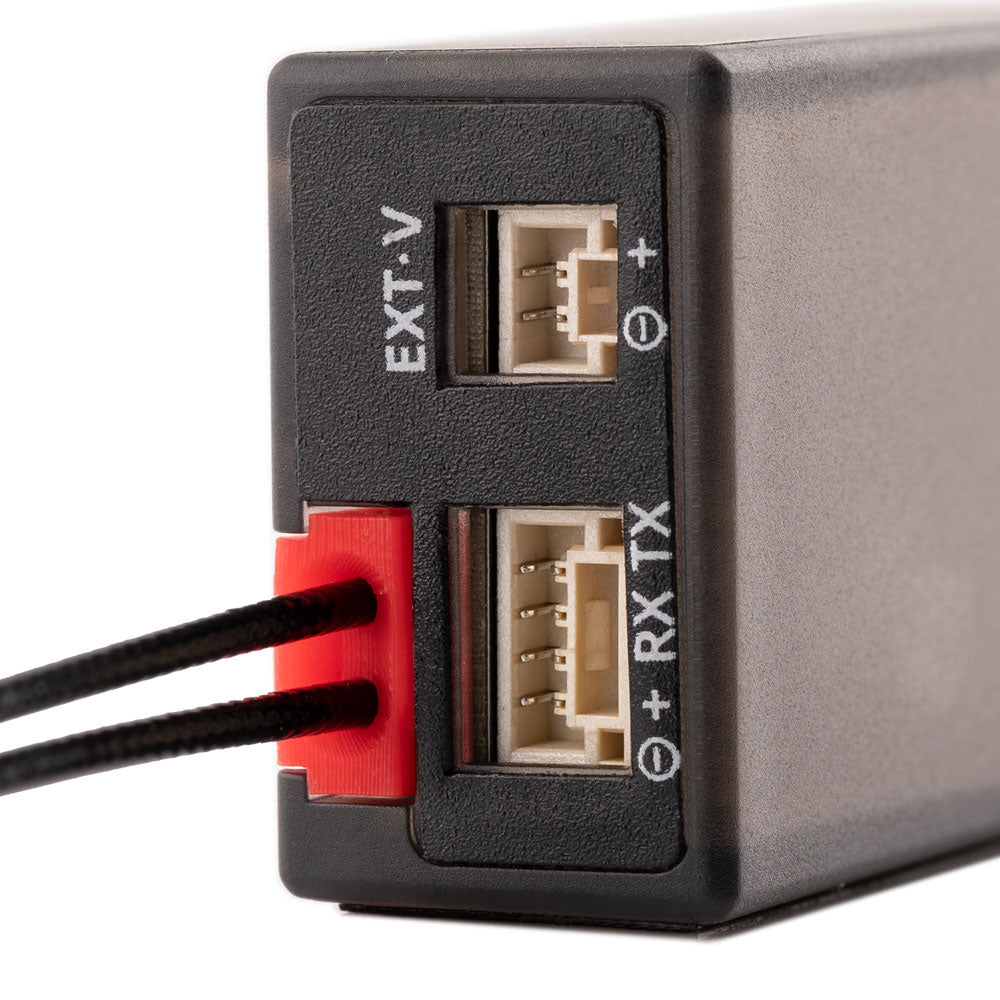

- Spare 4-pin CRSF input port
Specifications:
Item: ER6 2.4GHz ELRS PWM Receiver
Power supply: DC 4.5 - 8.4V

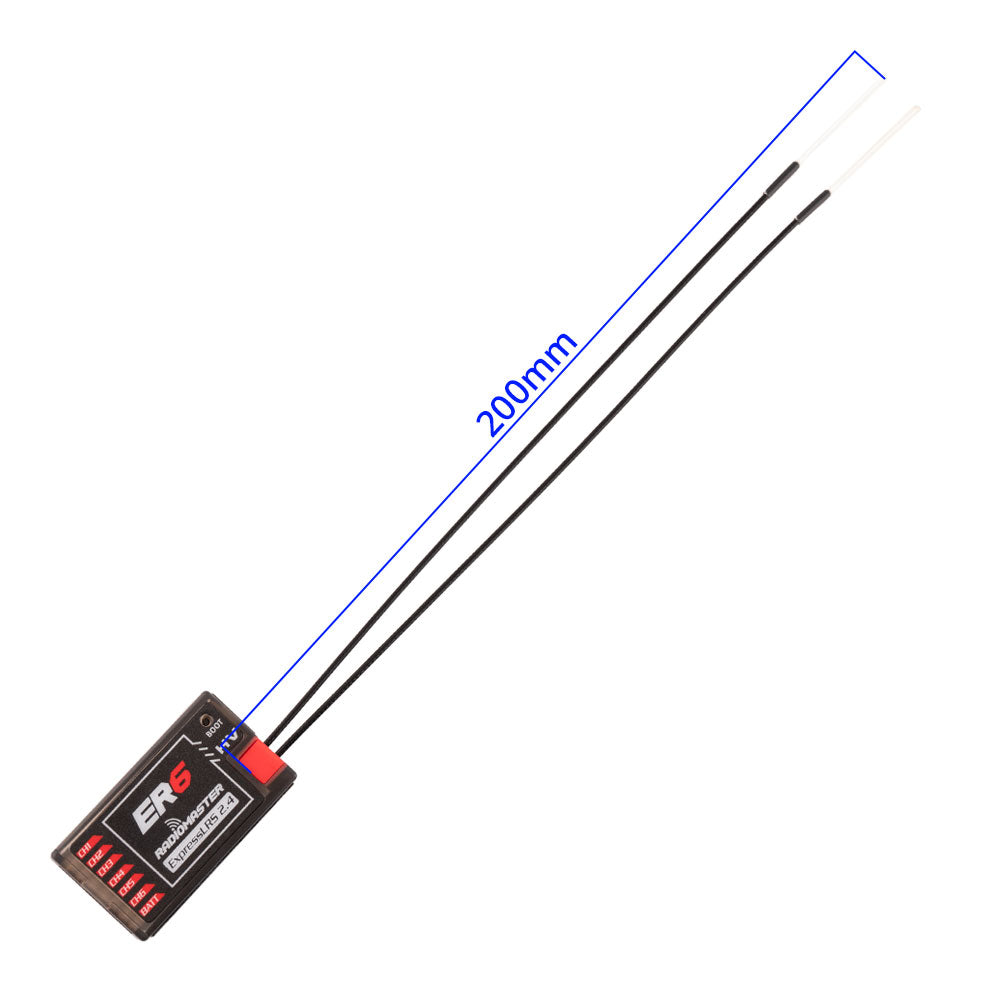

Antenna type: 20 cm high sensitivity dual antenna
Wireless protocol: ExpressLRS 3.3.0 pre-installed
Output channel: 6CH PWM
Telemetry power: 100 mw maximum (LUA Adjustable)
Telemetry Battery voltage detection range: DC 4.0 - 35V
Bus interface: CRSF
Weight: 14.5 grams
Dimensions: 43 x 25 x 15 mm
Firmware: Device Category: Radiomaster 2.4 GHz / Device: RadioMaster ER6 2400 PWM RX
