Code: SKU:HP0157.RX-ER4-LBT
Receiver RadioMaster ER4 ELRS 2.4GHz PWM
Receiver RadioMaster ER4 ELRS 2.4GHz PWM
Brand: RadioMaster
Regular price
€13,87
Regular price
€13,87
Sale price
€13,87
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

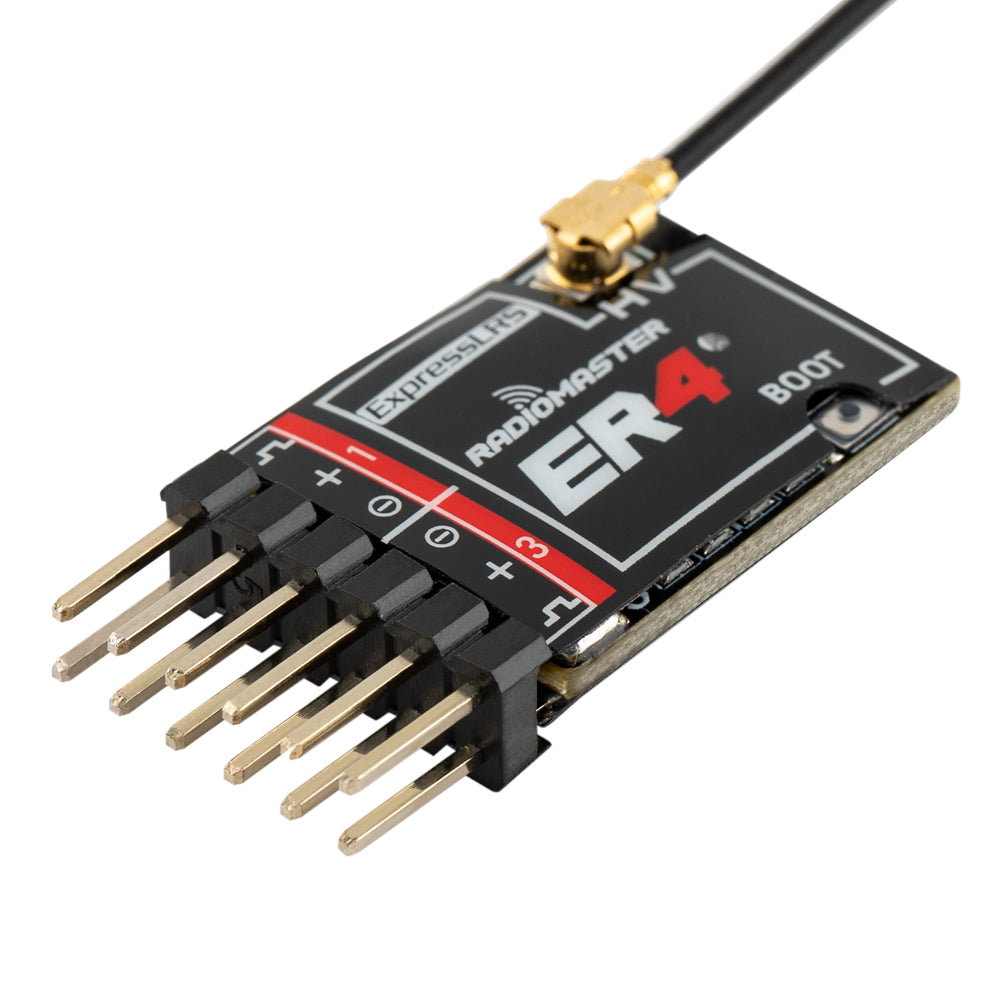

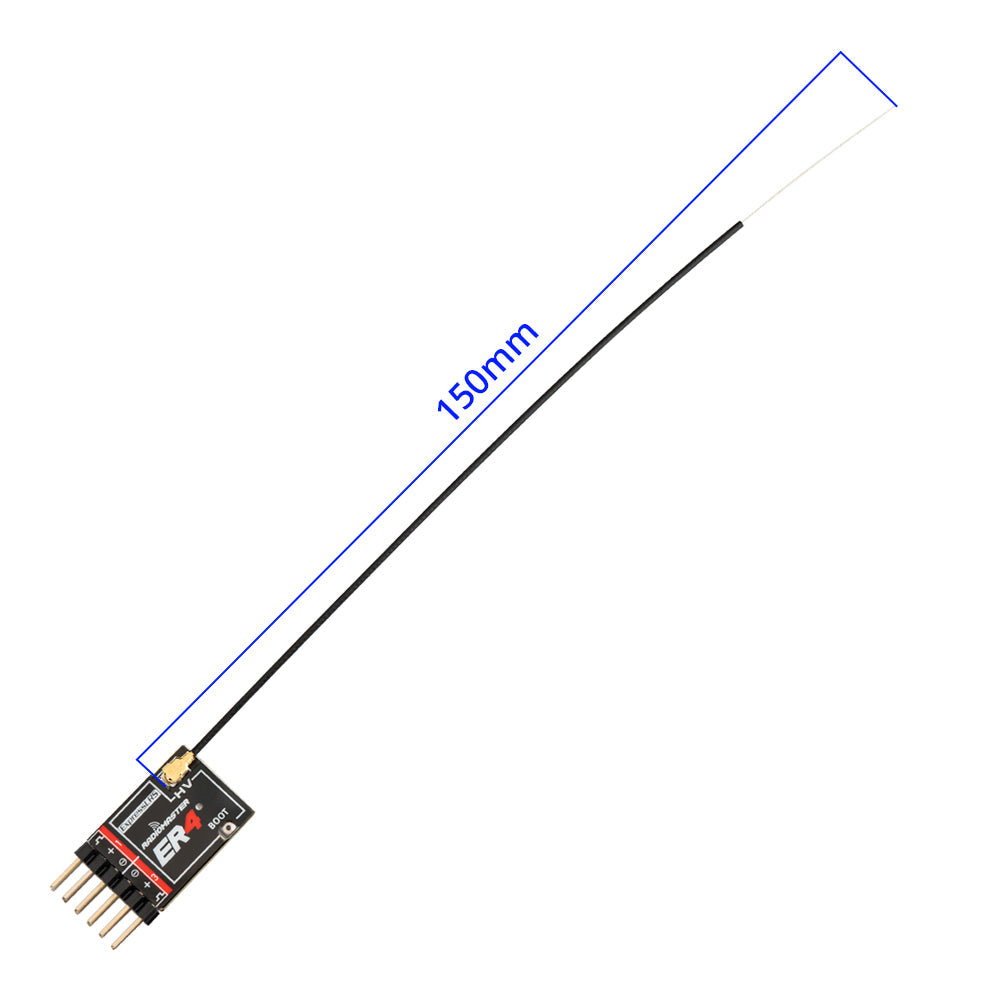

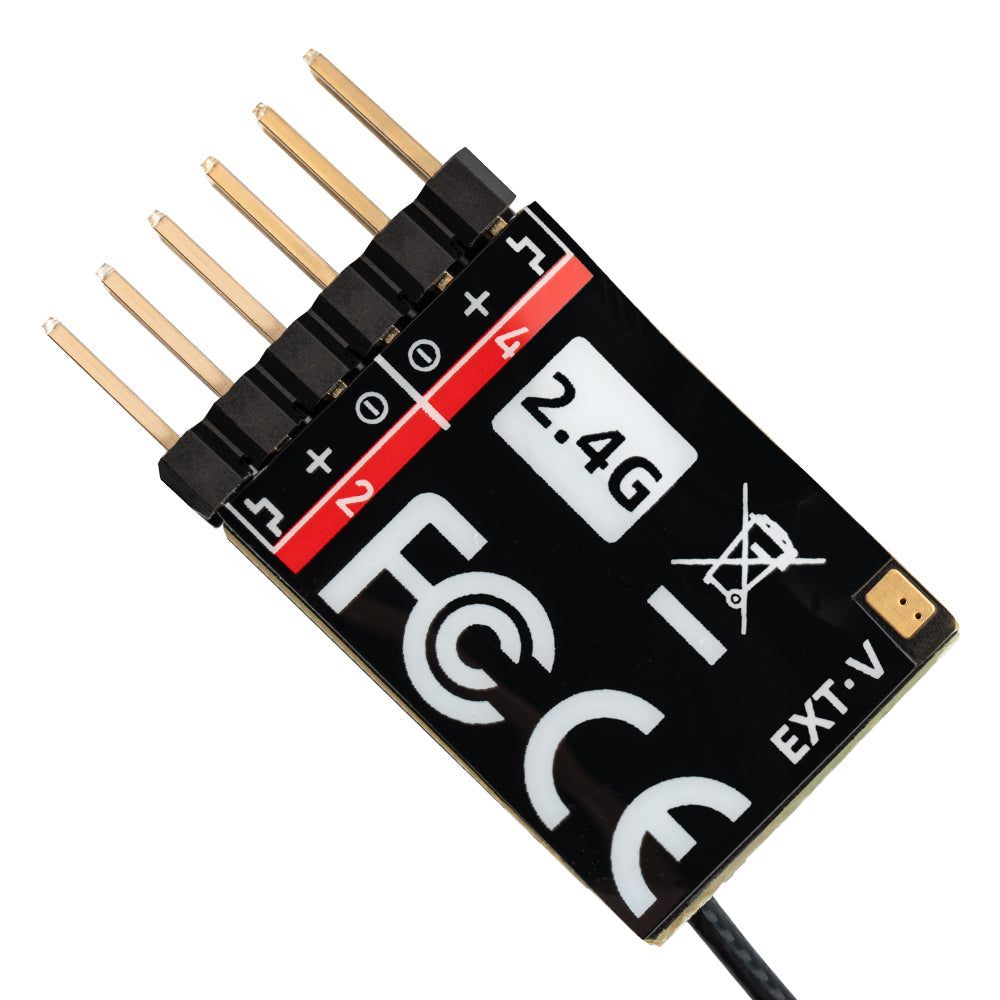

ER4 2.4GHz ELRS PWM receiver The RadioMaster ER4 PWM receiver can control 4 servos simultaneously. Designed with a very small volume, it is suitable for small model airplanes, model ships, model cars and other models that require a small or light receiver while providing full range. Function: - Based on the revolutionary ExpressLRS system - High performance, high reliability, flexible configuration, fast response and ultra long range - Support of 4 PWM channels - Optimized ground circuit board design - Automatically voltage telemetry of external battery voltage or built-in receiver voltage - Supports Wi-Fi updates and WEBUI configuration - High quality 2.54mm connector - Standard 15 cm high sensitivity antenna Specifications: Item: ER4 2.4GHz ELRS PWM Receiver Power supply: DC 4.5 - 8.4V Antenna type: 15cm antenna with high sensitivity Wireless protocol: ExpressLRS 3.3.0 pre-installed Output channel: 4CH PWM Telemetry power: 10mw Battery voltage detection range: DC 4.0- 35V Weight: 3.0 grams Dimensions: 30 x 15 x 5 mm Firmware: Device Category: Radiomaster 2.4 GHz / Device: RadioMaster ER4 2400 PWM RX
