Receiver Pilotix for Fiber module SE V2

Name: Receiver Pilotix for Fiber module SE V2
Brand: Baltic Drones
SKU: 6808
Price: 143.75 EUR
Availability: OutOfStock

Receiver Pilotix for Fiber module SE V2

Brand: Pilotix

€143,75

~~€159,72~~ €143,75

-10% View Product

Taxes included.

Upon request

Quantity

Detailed information

View full details

Description
Related Files
Discussion

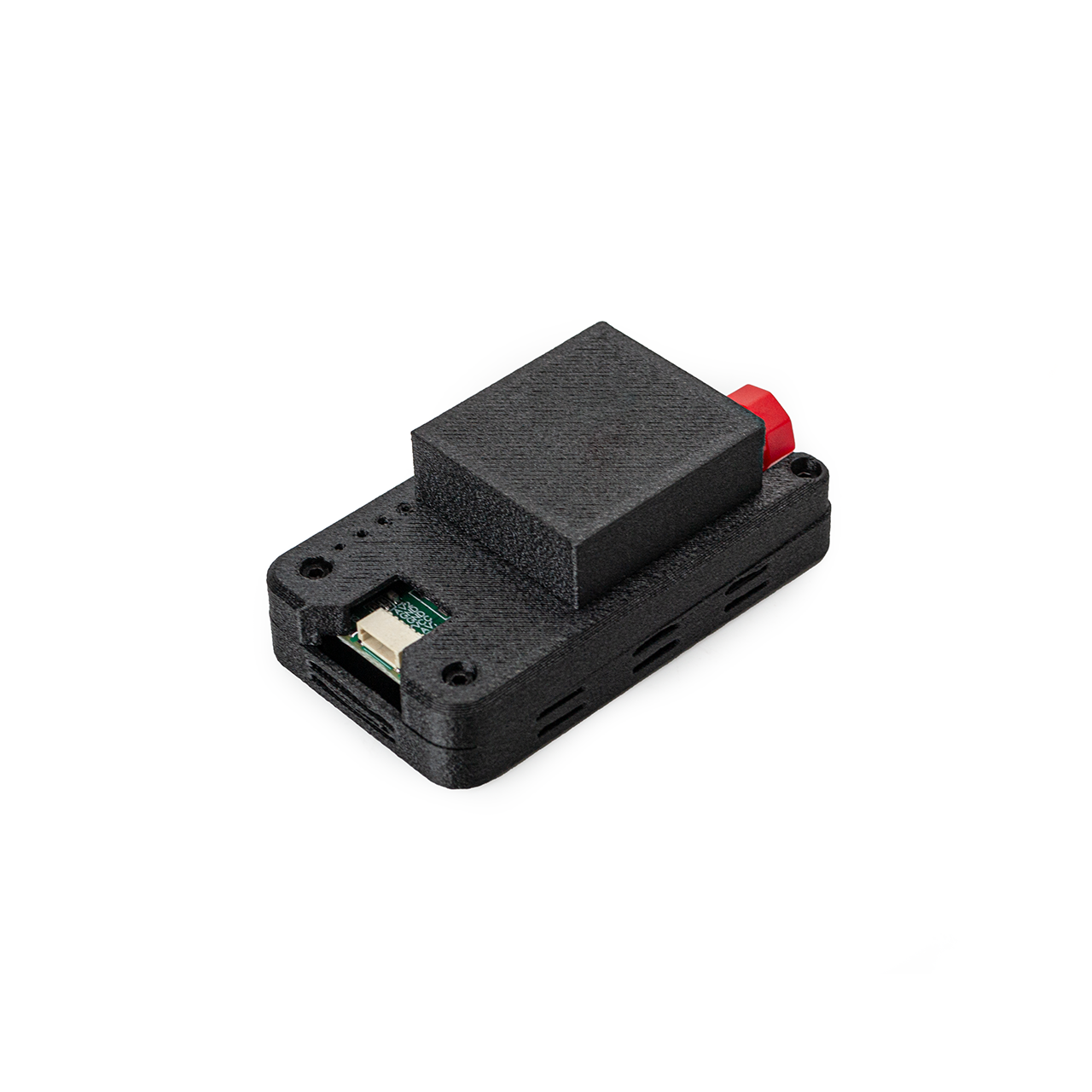

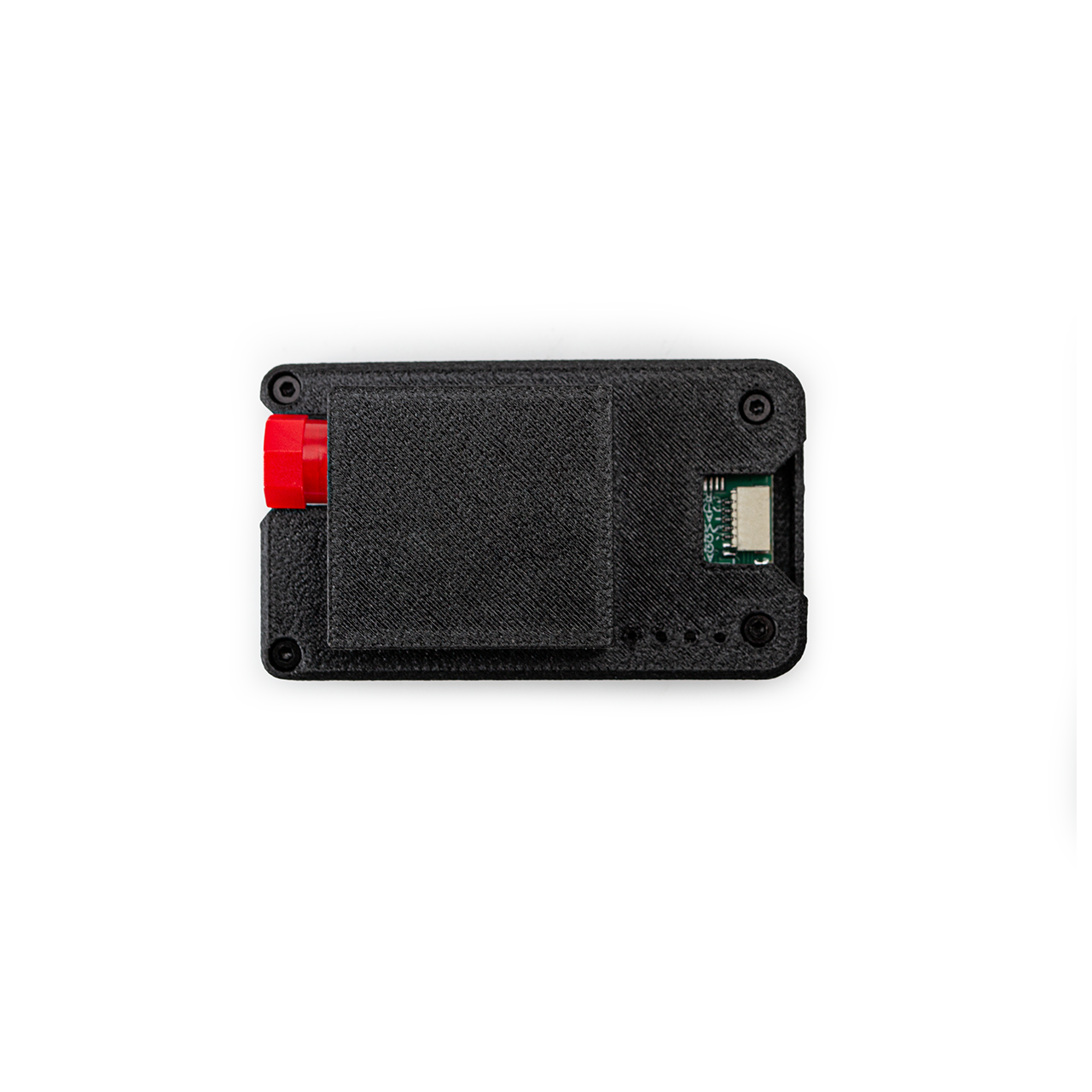

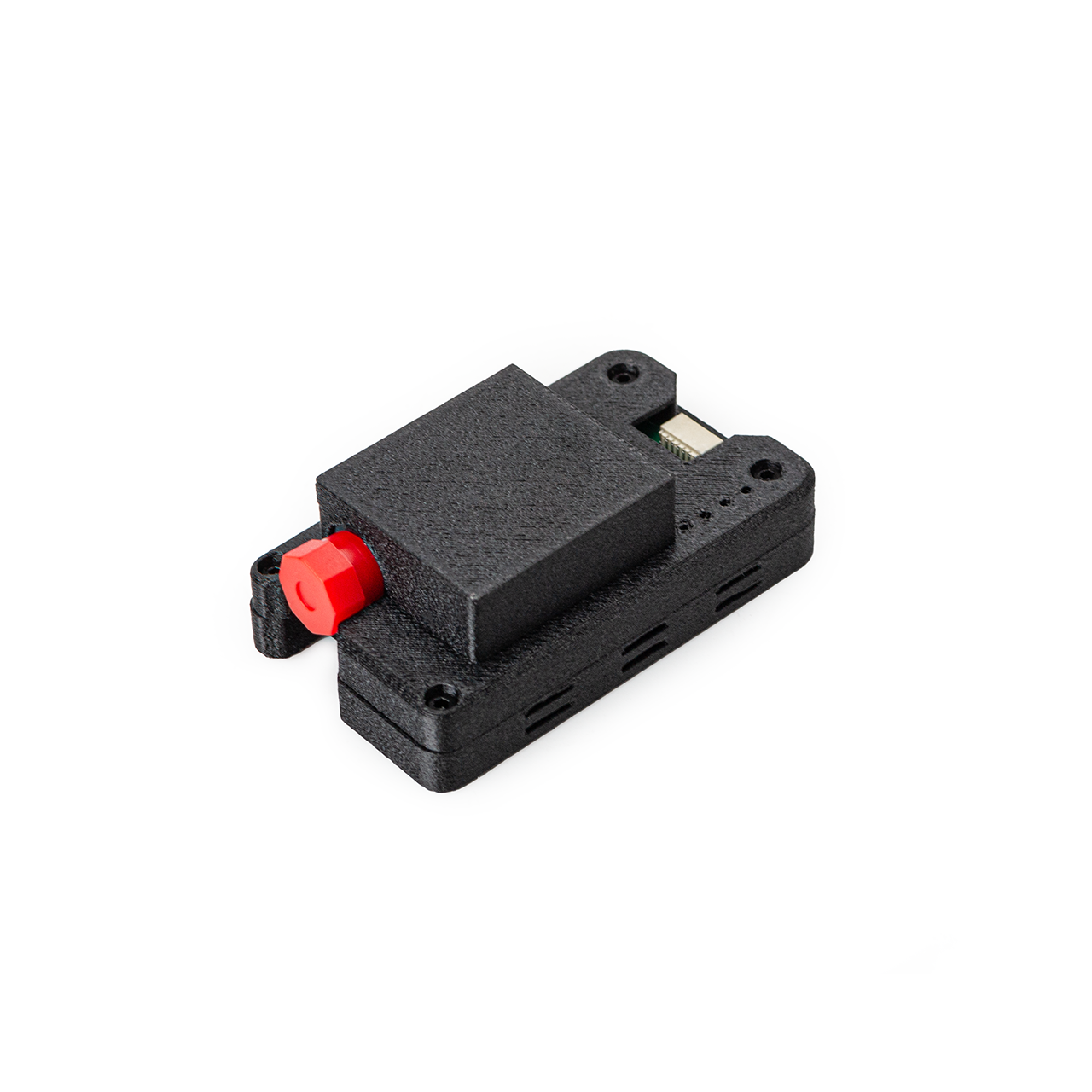

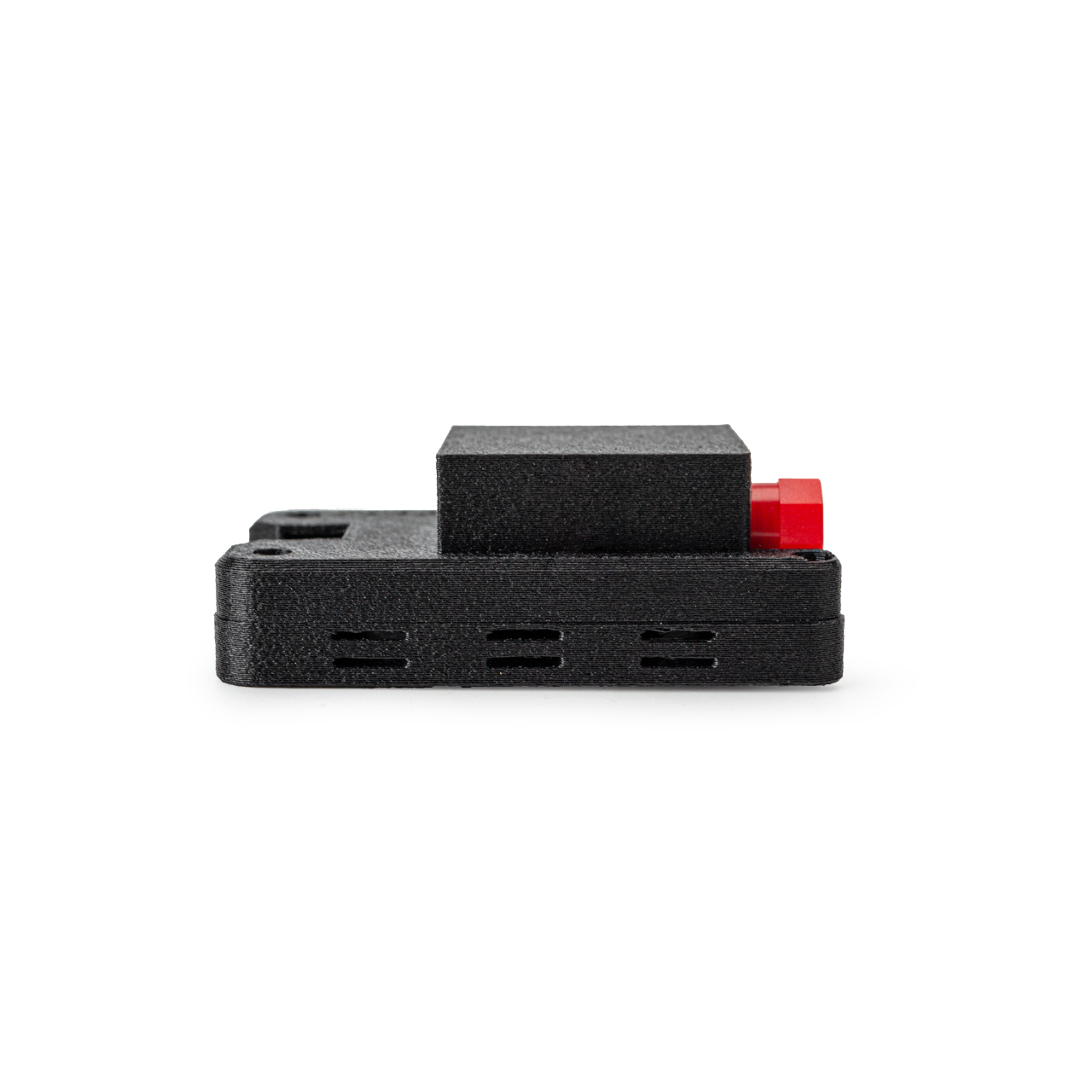

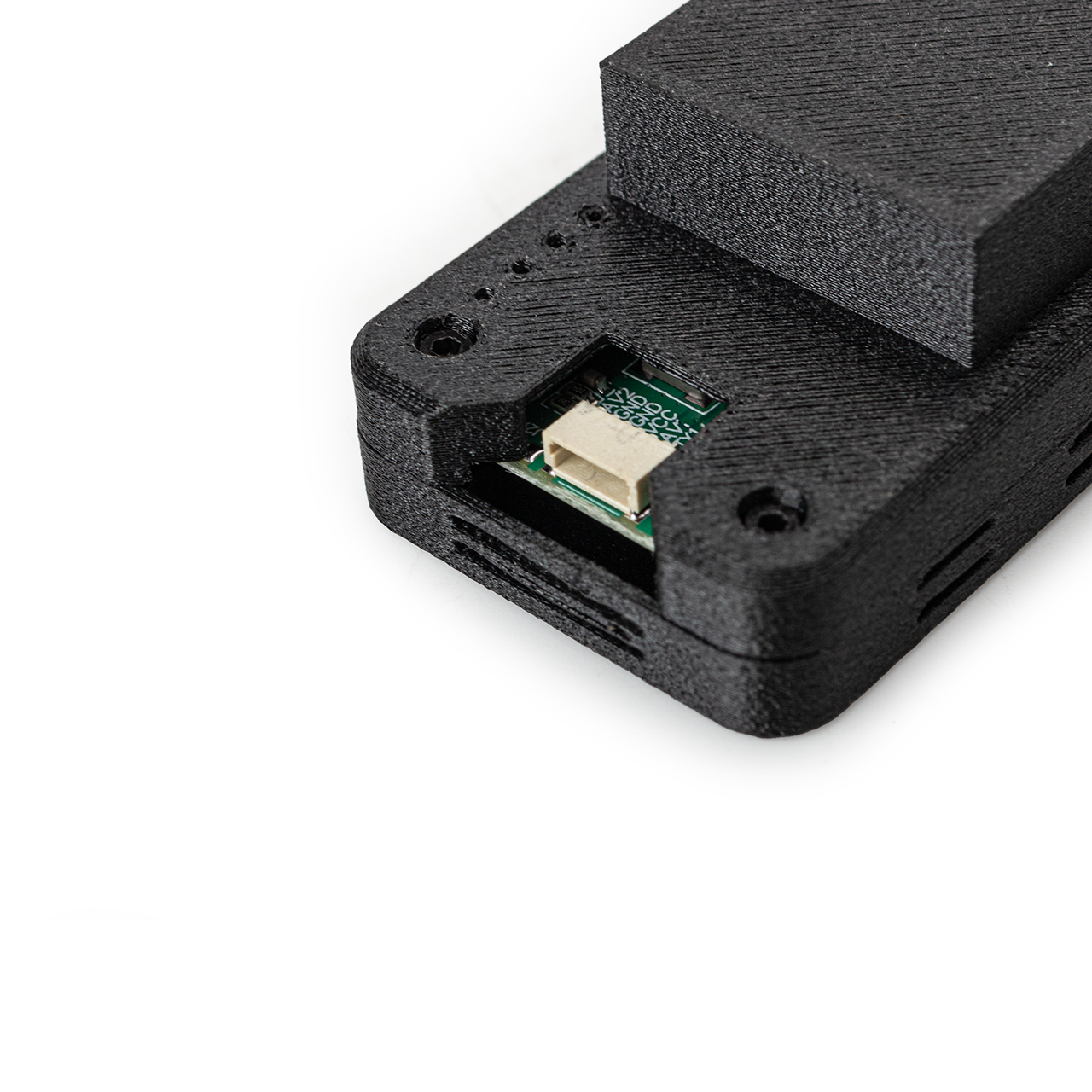

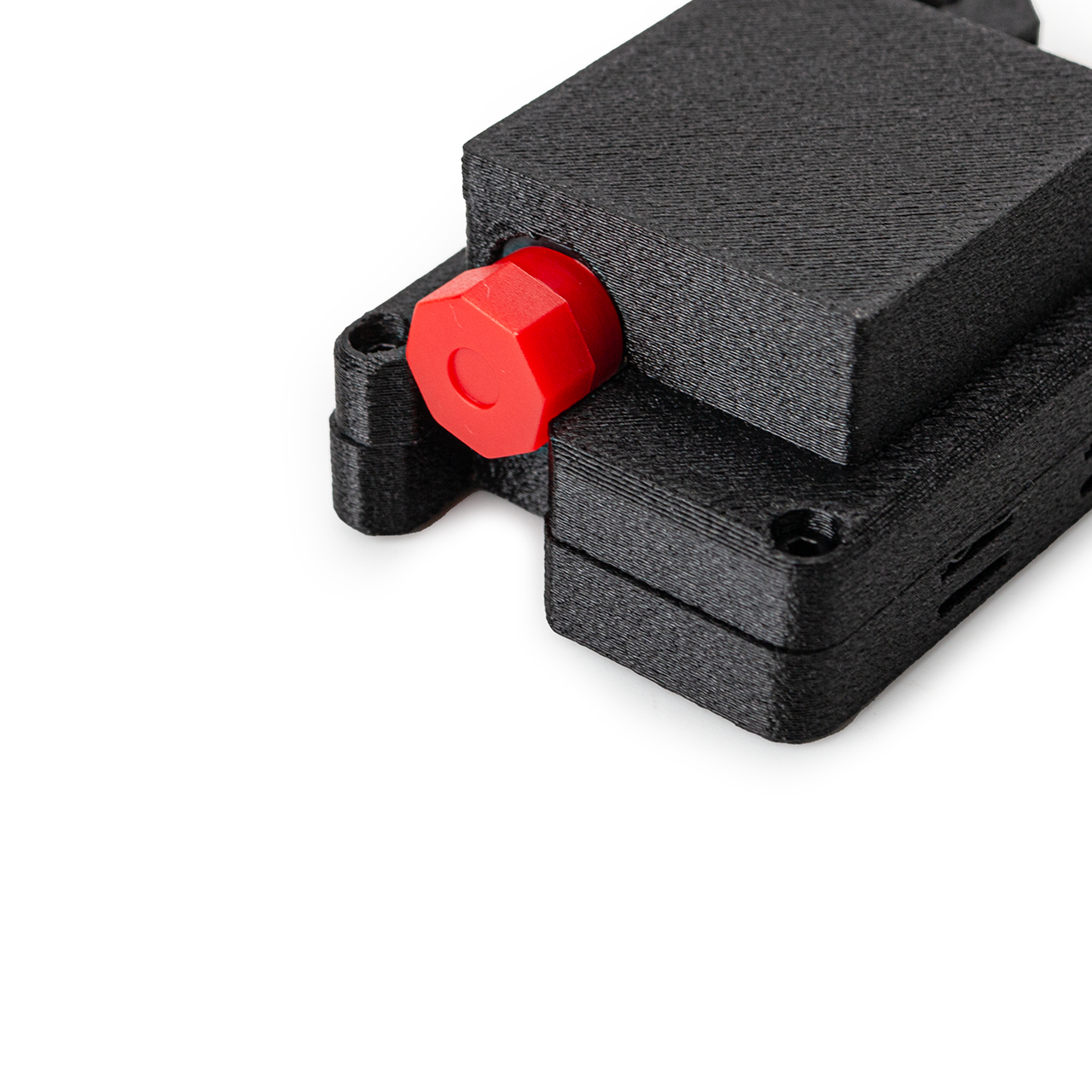

Pilotix receiver for Fiber SE V2 module

Optical communication is a reliable and efficient solution for land, underwater and aerial systems where large amounts of image data need to be transmitted with minimal loss or in the absence of radio communication. The Pilotix for Fiber Module SE V2 receiver is a specialized optical receiver designed for use with Pilotix optical communication systems. It is designed for stable high-speed data transmission over long distances and ensures reliable performance in environments where radio signals may be weak, interrupted or unavailable. It is ideal for professional drone operations, surveillance systems, and other applications requiring uninterrupted, low-latency communications.

Features:

- Compatible with Pilotix Fiber SE V2 module
- Supports data transmission over long distances up to 20 km
- Low latency signal conversion for real-time control and HD video
- FC-type optical interface with single-mode fiber support
- Robust, compact design for demanding operating environments
- Immune to radio interference, which ensures 100% uninterrupted communication quality.
- No additional drone receiver or video transmission system required.
- Secure connection that makes it difficult to intercept the signal.

Important notes:

- For reliable communication at a distance of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, a transceiver with a range of 40 km is recommended.

- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or take responsibility for correct operation when using devices from other series.

Specifications:

Optical digitizer module
Device Name: Air Unit SE V2
Power supply: 5.5V~26V
Body size: 63x37x23mm
Body weight: 31±2g

Optical interface: FC interface
Fiber type: Single mode fiber
Data interface: SH1.0
Video format: NTSC/PAL/SECAM
Data direction: Bi-directional
Data format: TTL/SBUS
Speed: 0~1Mbps
Single wavelength mode: 1310 (9/125 μm) +1550
Transmission distance: single-mode fiber up to 20 km

The package contains:
1x Pilotix receiver for optical module SE V2
