Pilotix ELRS 868-915M Nano Receiver with 700-1000M PNP Antenna

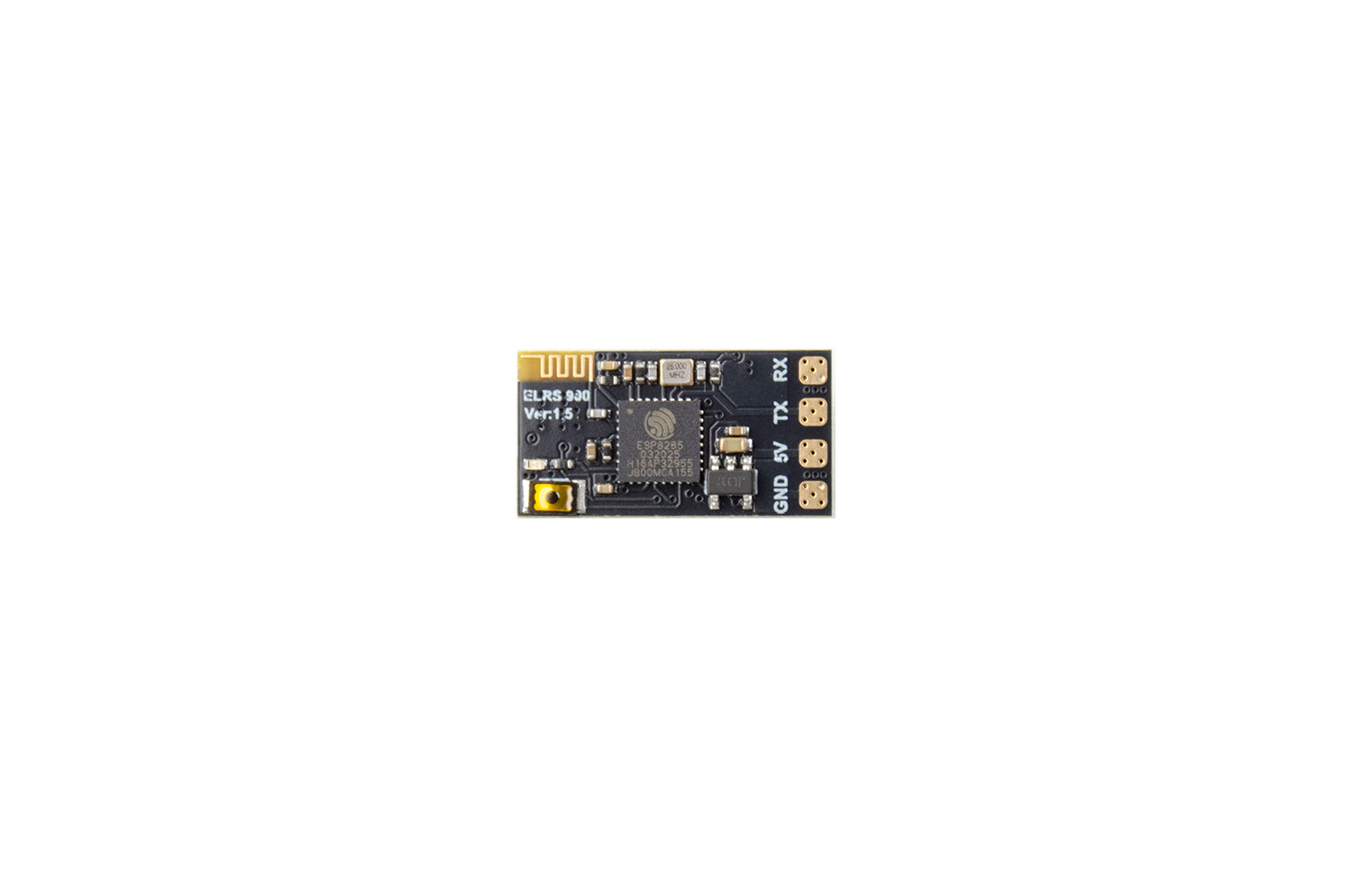

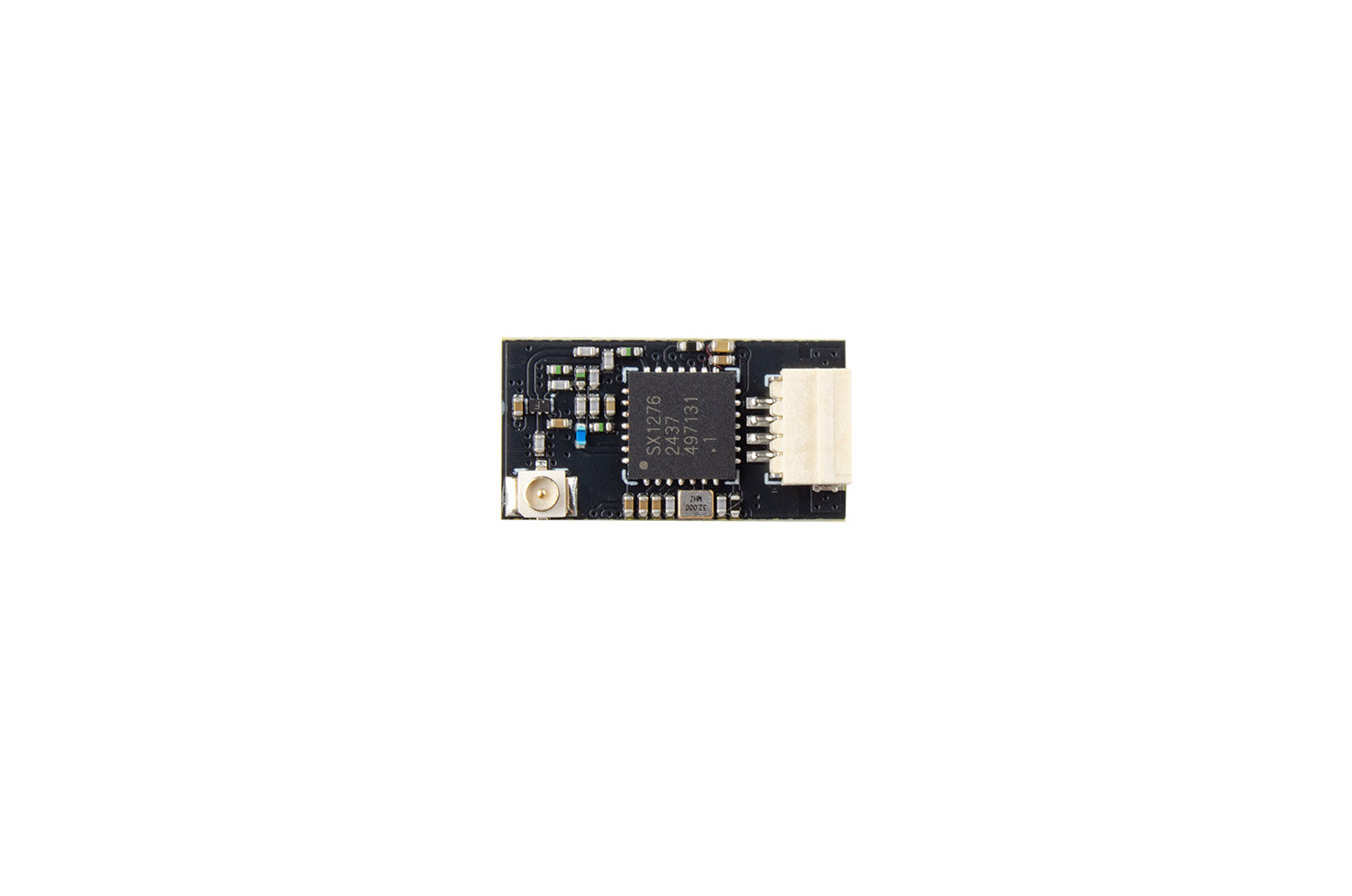

The Pilotix ELRS 868-915M Nano receiver is a compact and lightweight receiver designed for ExpressLRS systems. It operates in the 868/915 MHz frequency range and provides a stable connection with low latency for long distance control. Equipped with the ESP8285 and SX1276 chipset, this receiver provides reliable performance in a small package. The IPEX 1 connector allows easy installation of the antenna and its low power consumption makes it an excellent choice for FPV and UAV applications.

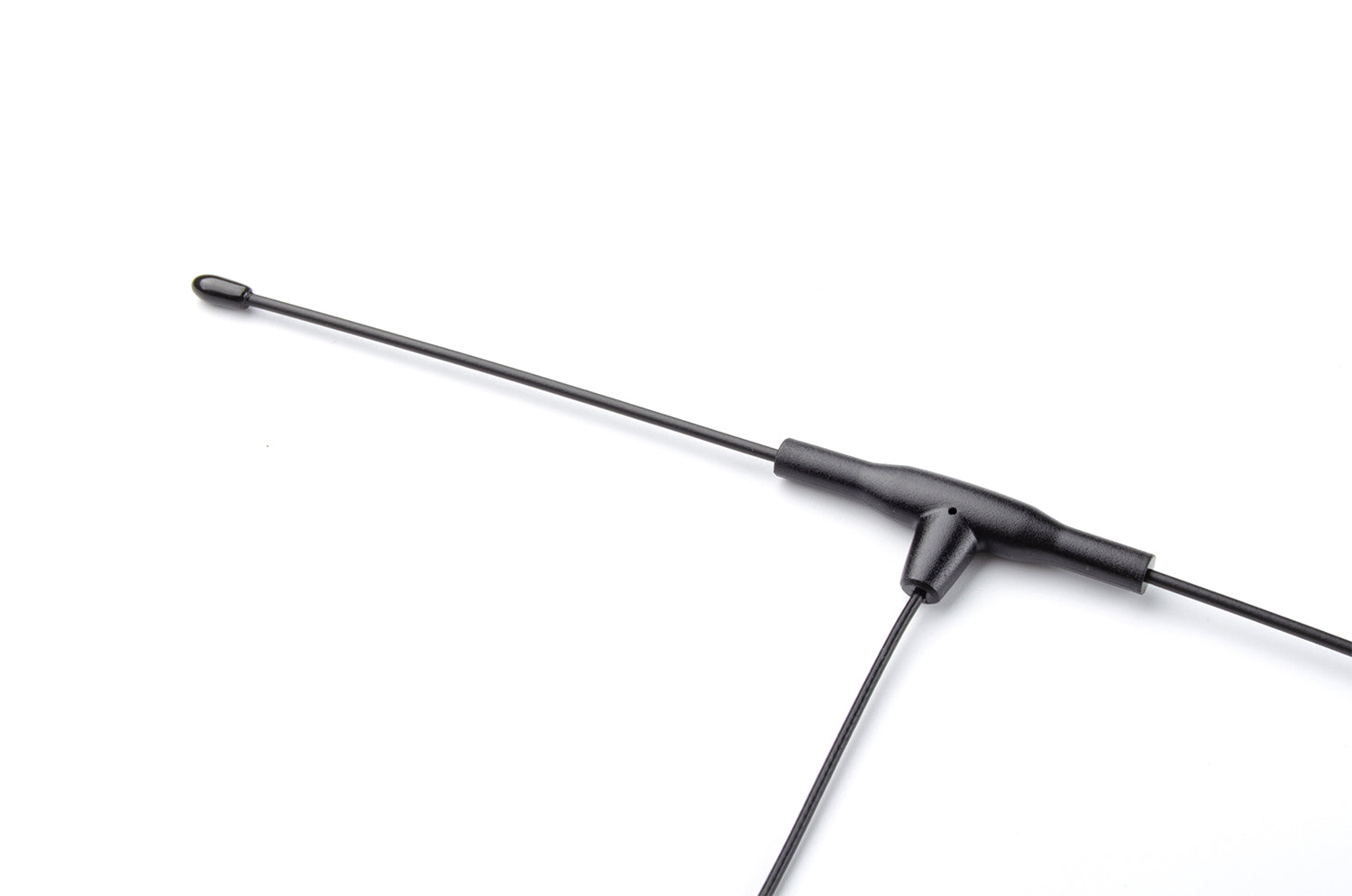

The included antenna is trimable, allowing users to adjust its length for optimal performance at a specific frequency in the 868-915 MHz range.
Specifications:
Name: ExpressLRS Receiver
RF Frequency: 868/915MHz
IC: ESP8285 + SX1276
TX Power: 50mW
Color: Black
Color: IPEX 1
Input Power: 3.6-5.5V
Weight: 0.8g
Size: 19.5× 10.5 mm

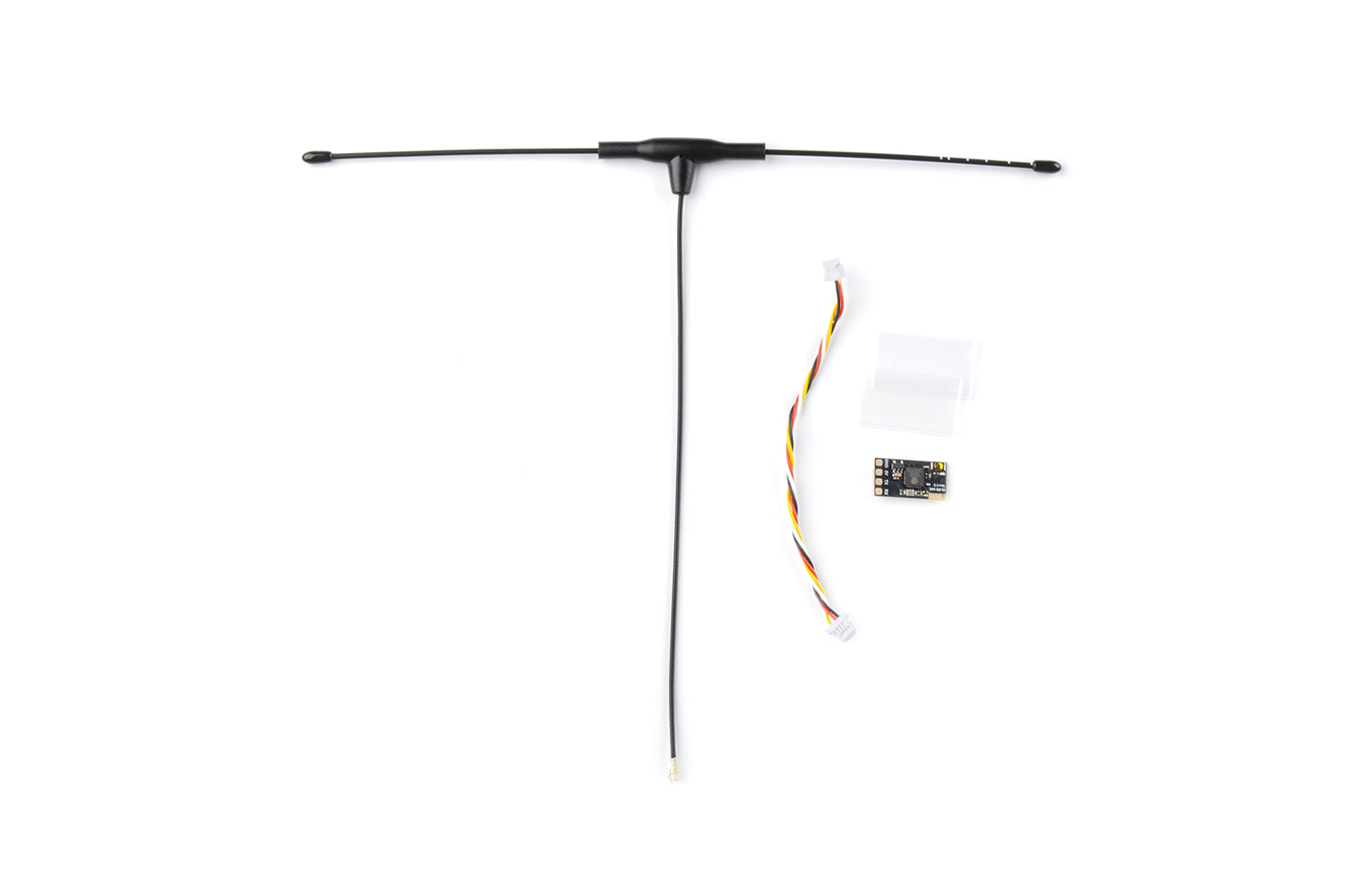

Package includes:
1 × Pilotix ELRS 868-915M Nano Receiver
1 × 700-1000M antenna
