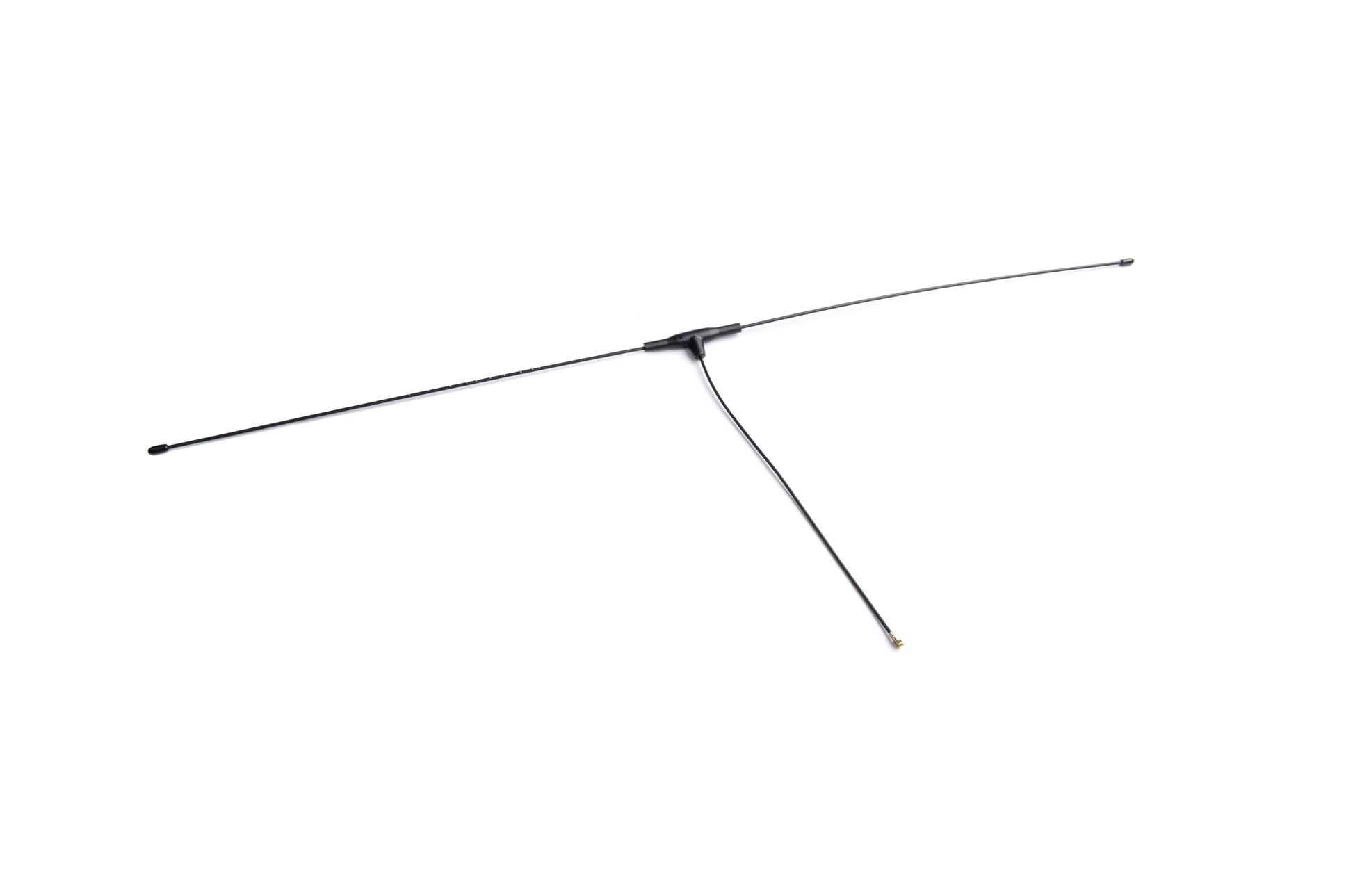

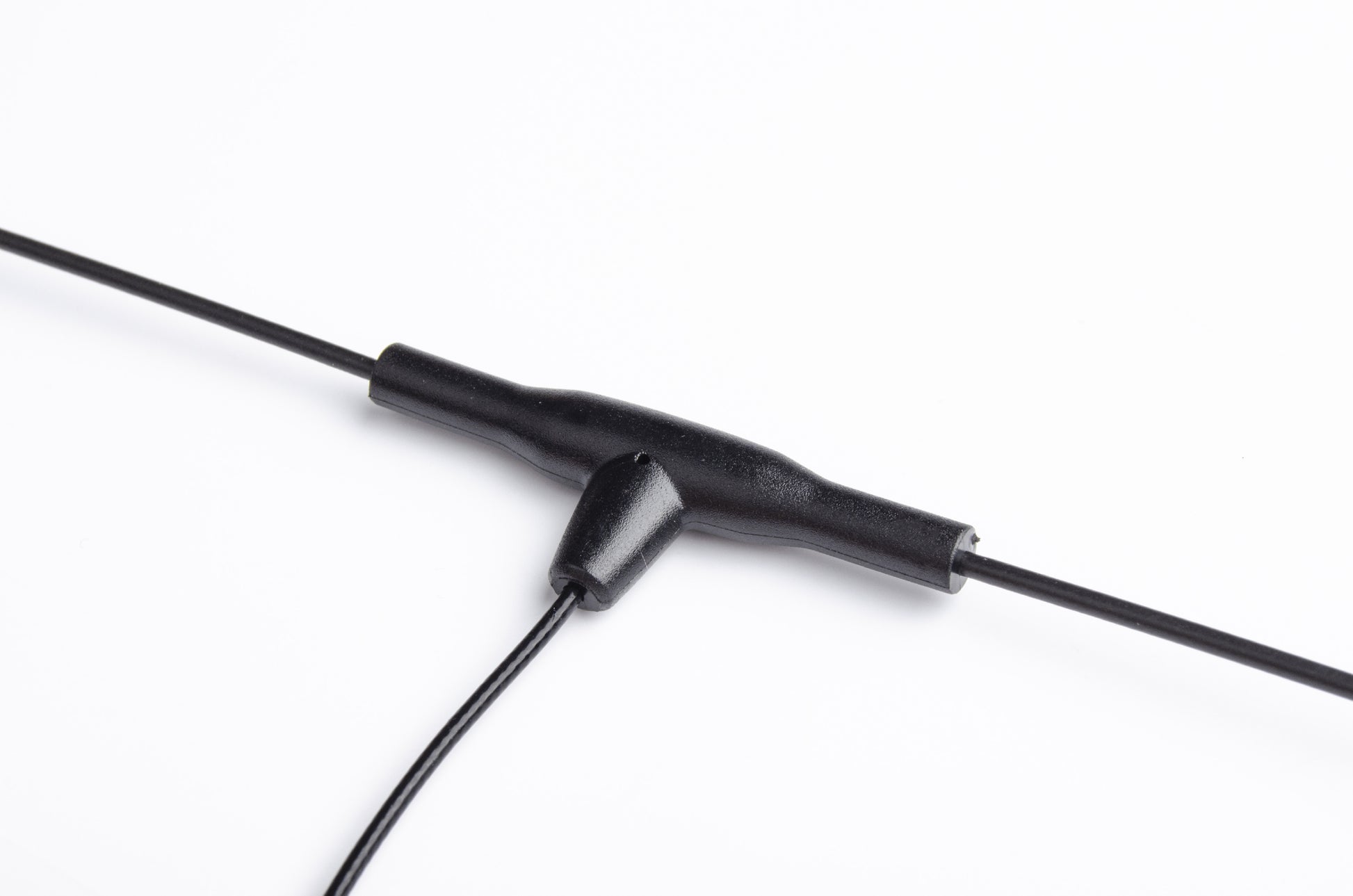

Receiver Pilotix ELRS 868/915 with antenna The Pilotix ELRS 868/915MHz receiver is equipped with a T-shaped antenna (IPEX-1 connector) and ensures optimal signal reception for uninterrupted communication between the drone and the transmitter. The antenna can be specially trimmed in the frequency range of 300MHz to 1000MHz, which ensures excellent signal quality and consistent performance, making it ideal for long-distance communication.

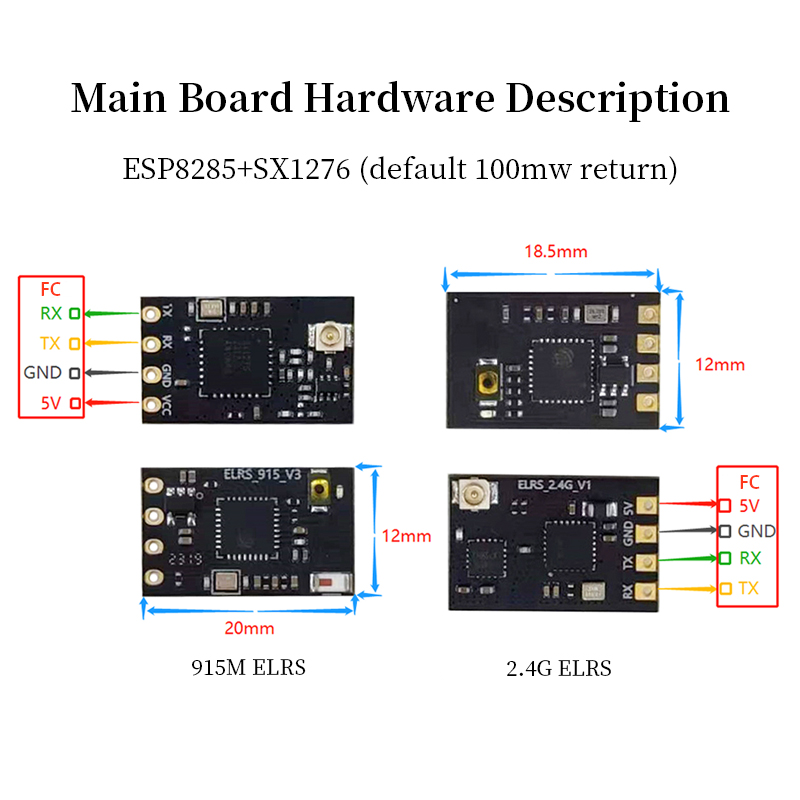

Installation is simplified with a plug-in interface, which eliminates the need for soldering and shortens installation time. This plug-and-play approach allows for quick and secure integration with the existing flight stack, making the Pilotix ELRS 868/915MHz a versatile and user-friendly choice for advanced FPV pilots. Specifications: Item: Pilotix ELRS 868/915M Nano with T-antenna Frequency band: 868/915 MHz Input voltage: 4.5V-5.5V Antenna connector: IPEX1 Type: ISM Weight: 6g Dimensions: 20x12mm Firmware: Aocoda 900 RX Receiver protocol: CRSF

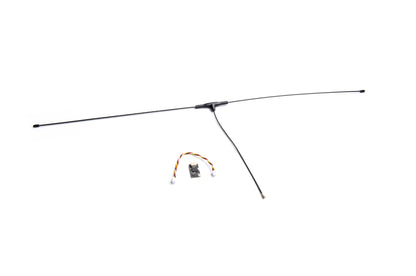

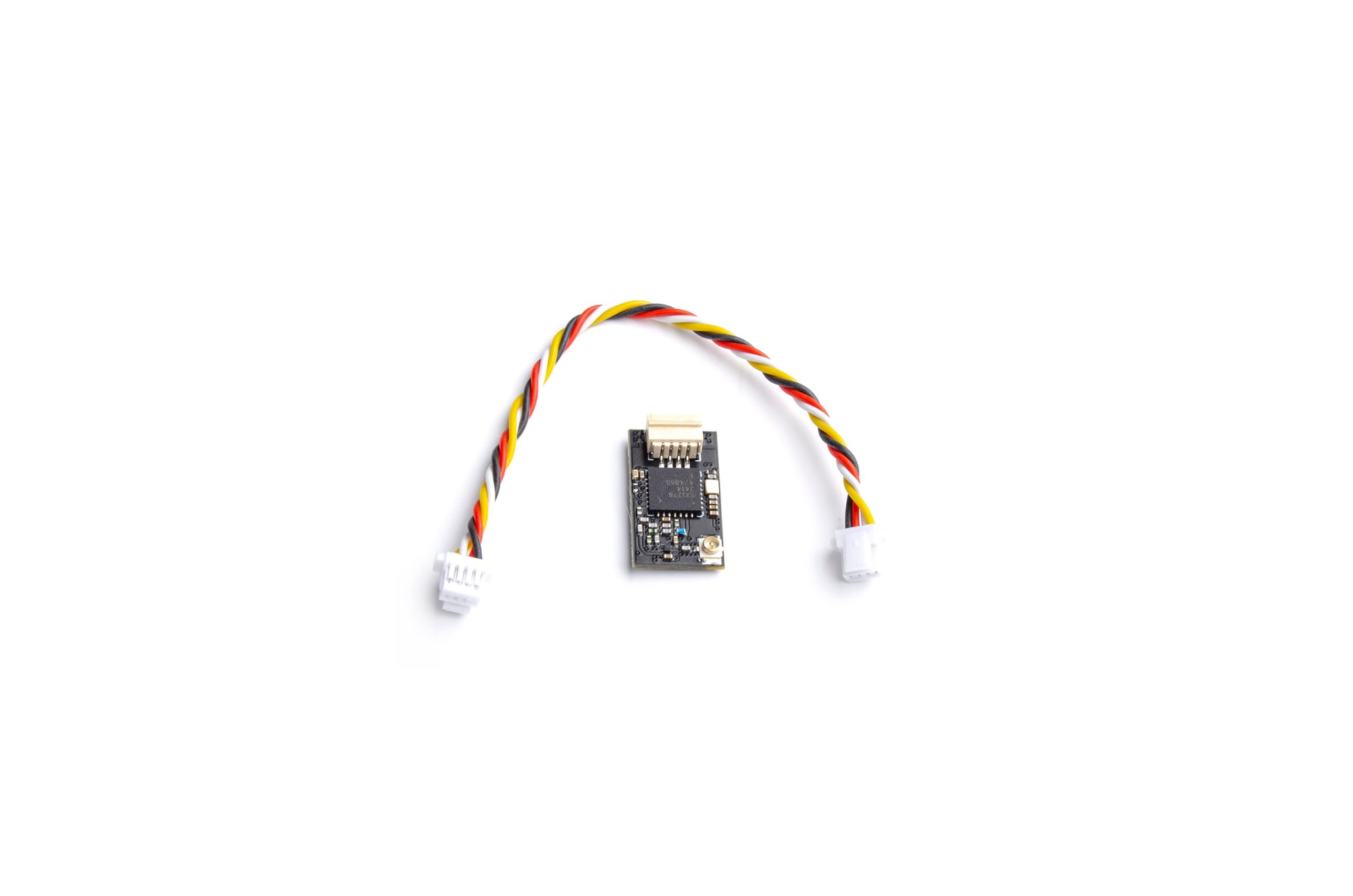

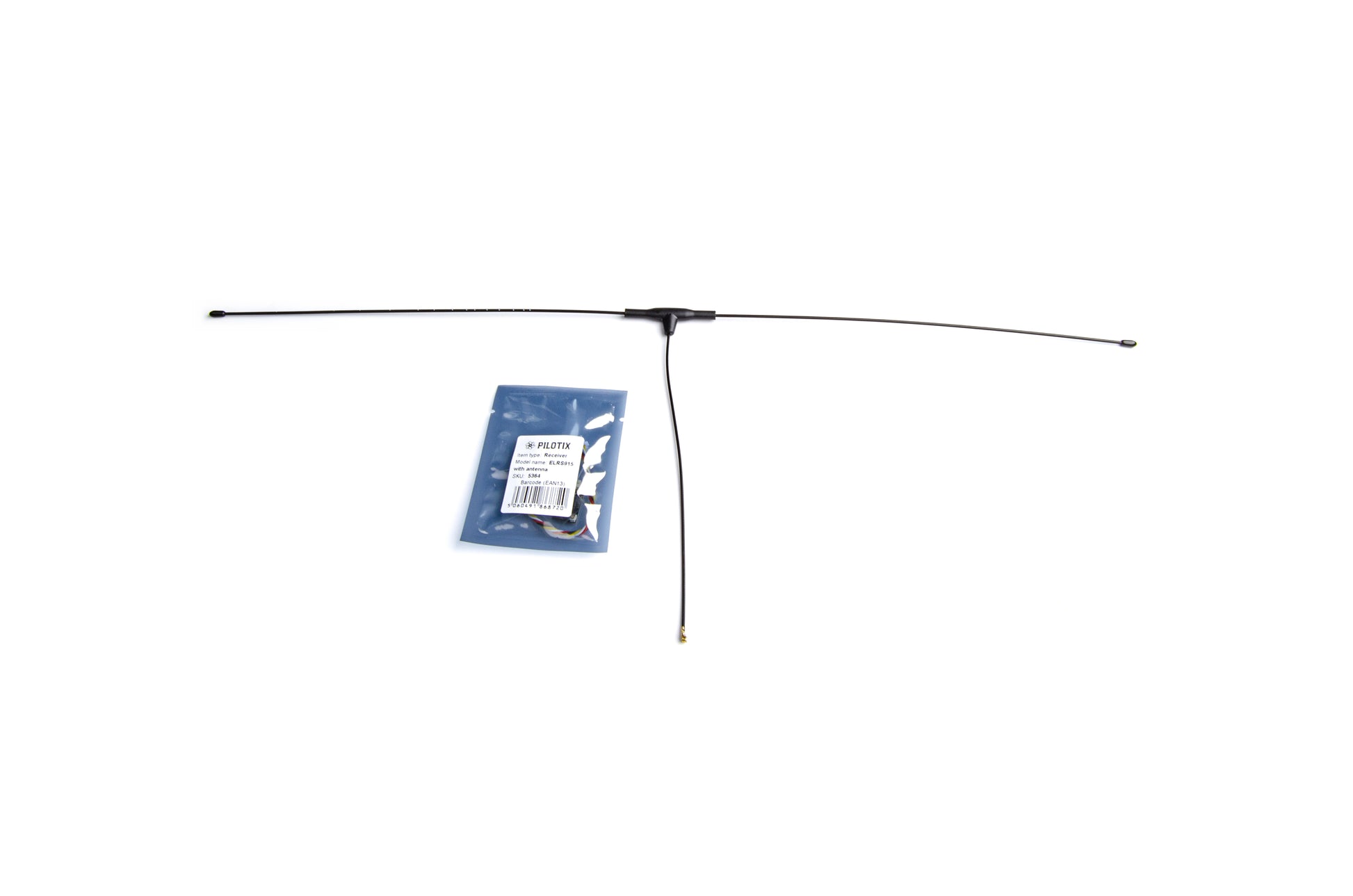

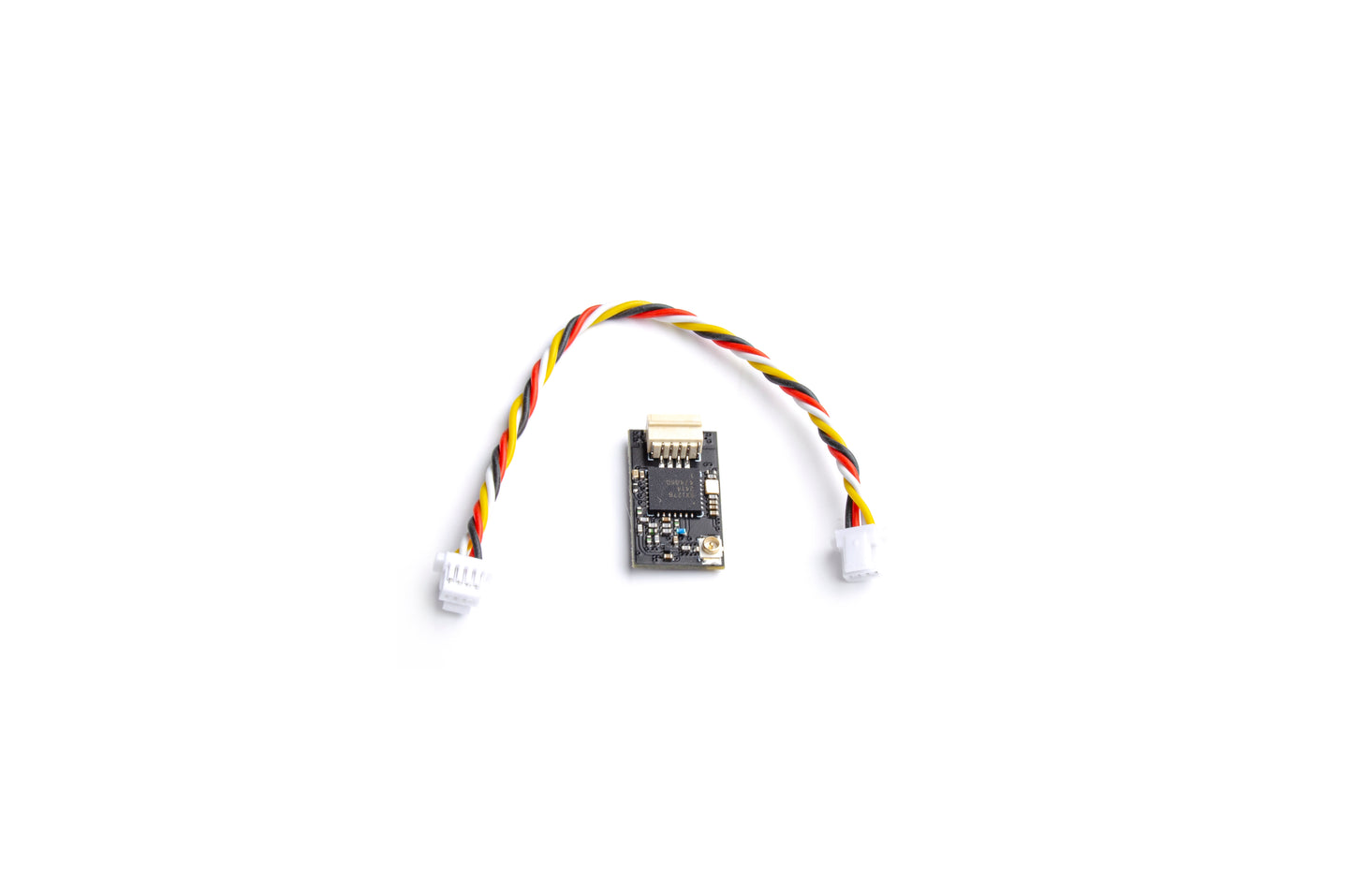

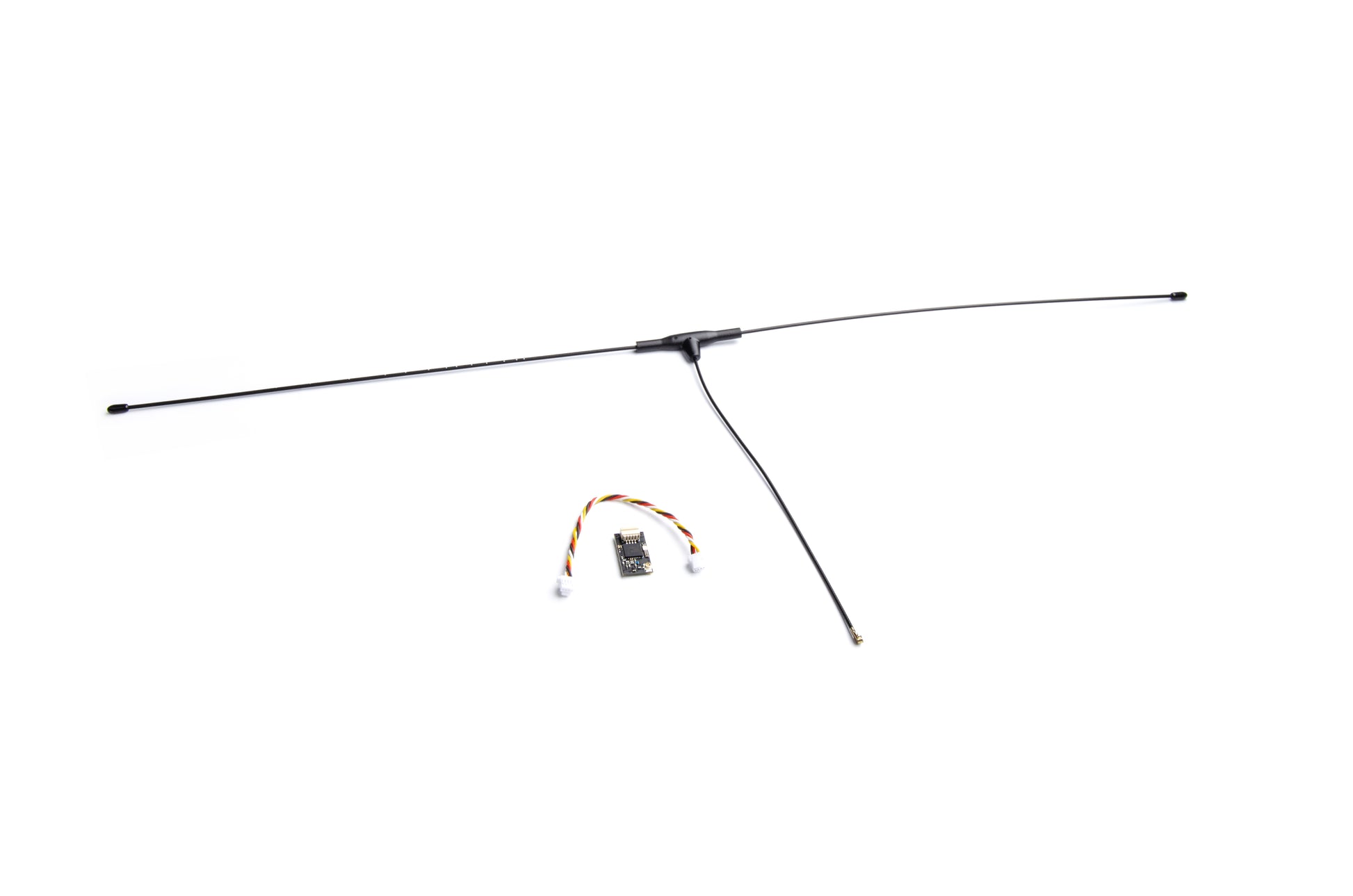

Shorten the antenna to the desired frequency:The package includes: 1x Pilotix ELRS 868/915M Nano with T-antenna
