    Receiver Jhemcu ELRS868/915 with antenna

    Receiver Jhemcu ELRS868/915 with antenna

    Brand: Jhemcu

    €14,00
    €14,00 €14,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

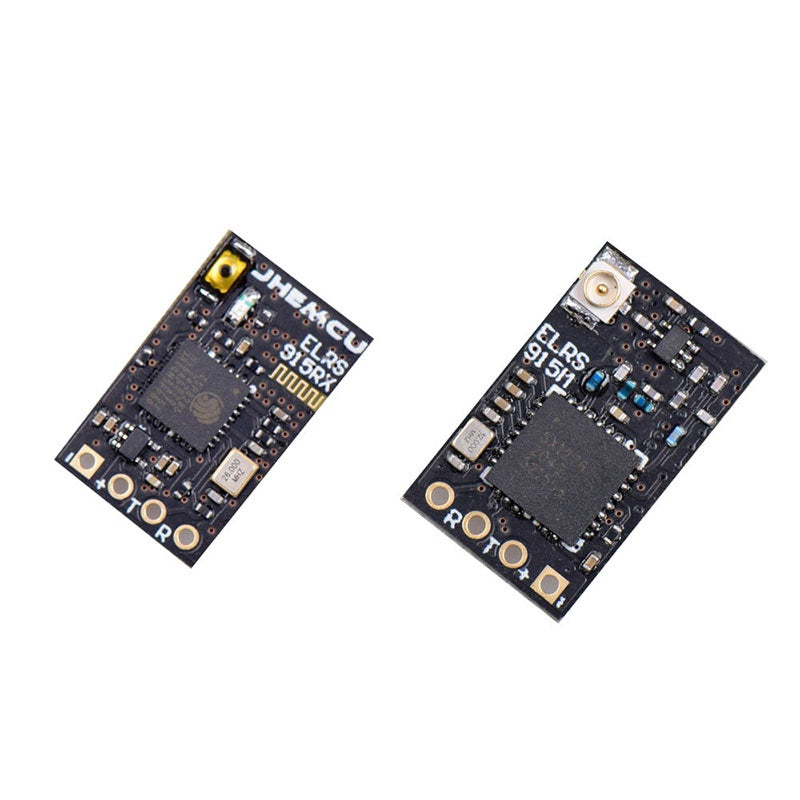

    Jhemcu ELRS915 with antenna

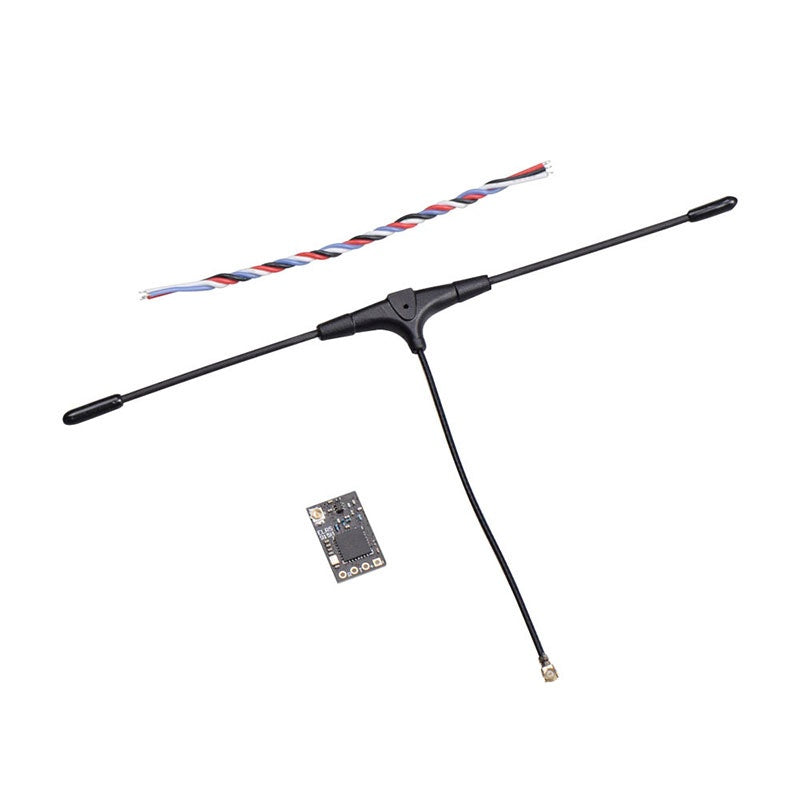

The Jhemcu ELRS915 is a high-performance receiver that offers reliable communication between the drone and the transmitter with low latency. The receiver is supplied with an antenna.

Specifications:

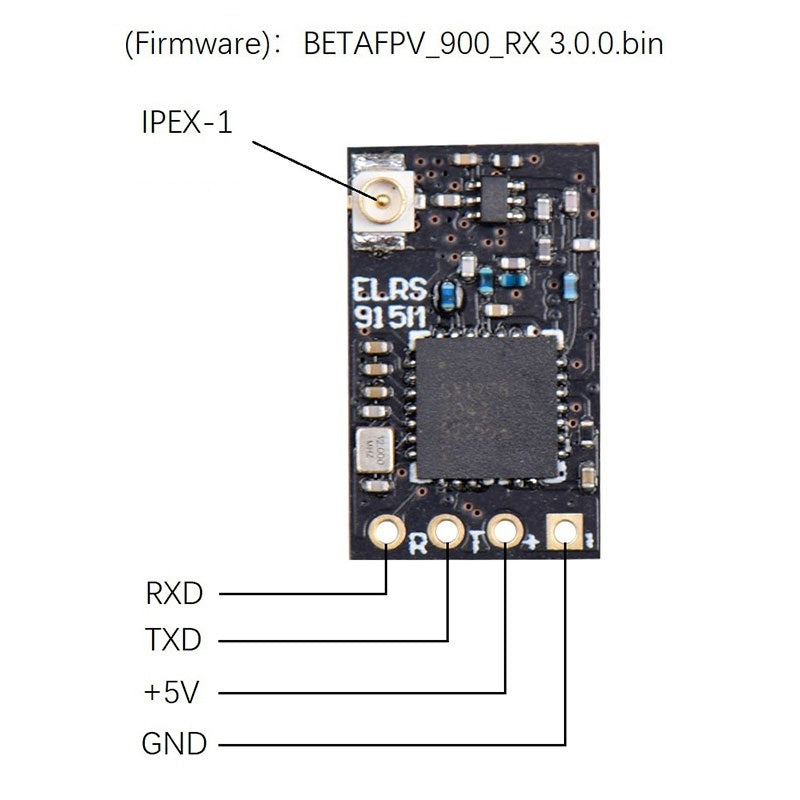

Firmware: BETAFPV_ 900_ RX 3.0.0.HEX
ESP8285 MCU (FCC)
SX1276 RF
Frequency range: 868/915MHz
Maximum reception refresh rate: 500 Hz
Minimum reception refresh rate: 25 Hz
Working voltage: 5V

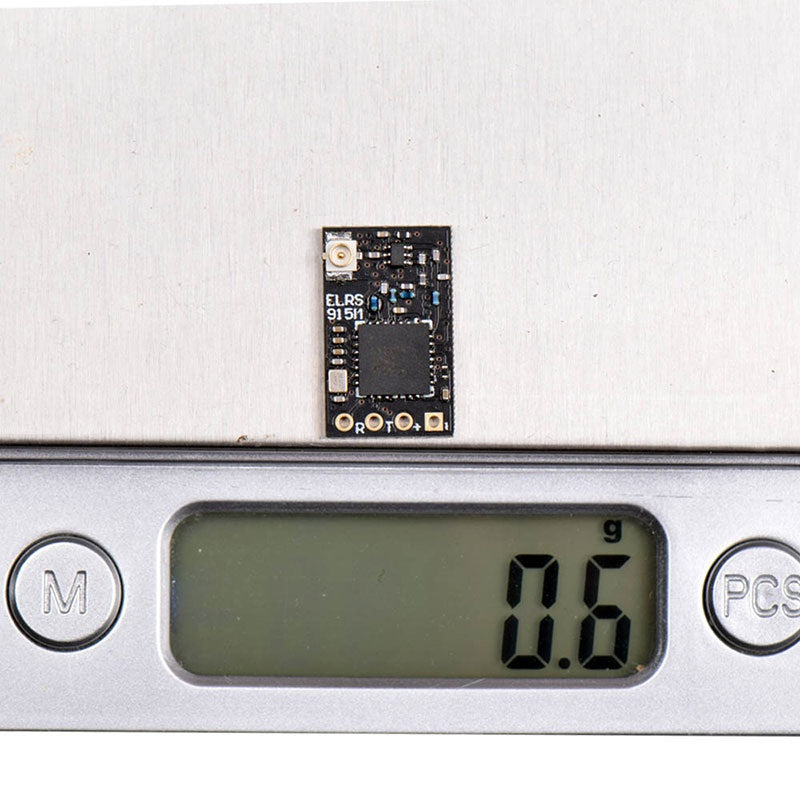

Weight: 0.6g (without antenna)
Size: 11mm * 18mm * 3mm

Indicator light status:
Double flashing: Code comparison mode
Slow flashing: no transmission signal is received
Always on: Received transmission signal
Flash: WIFI update mode

Frequency assignment steps:

1. After connecting the receiver to
