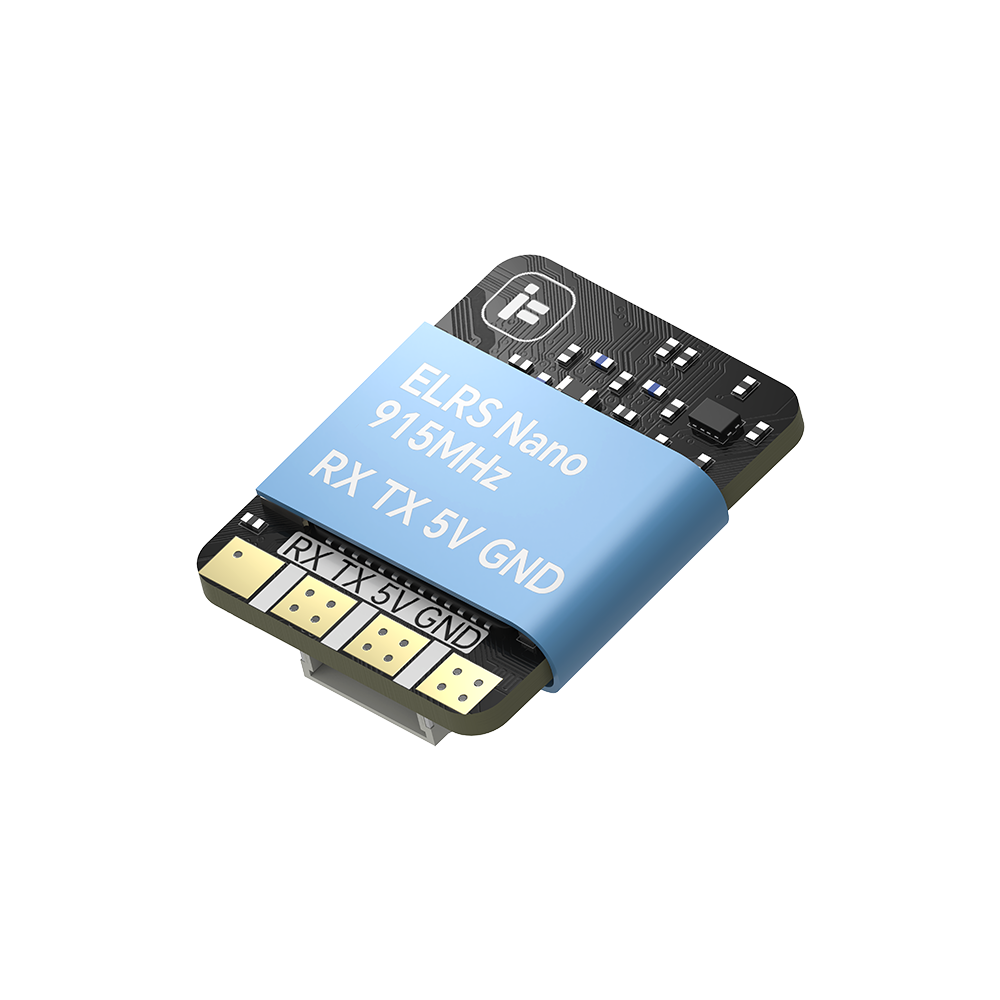

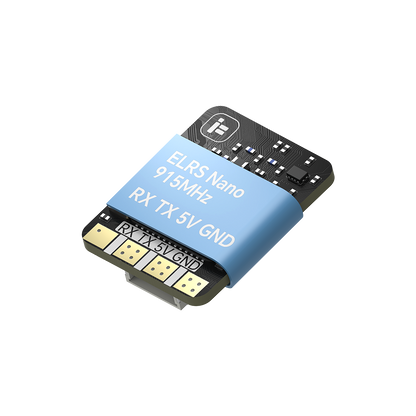

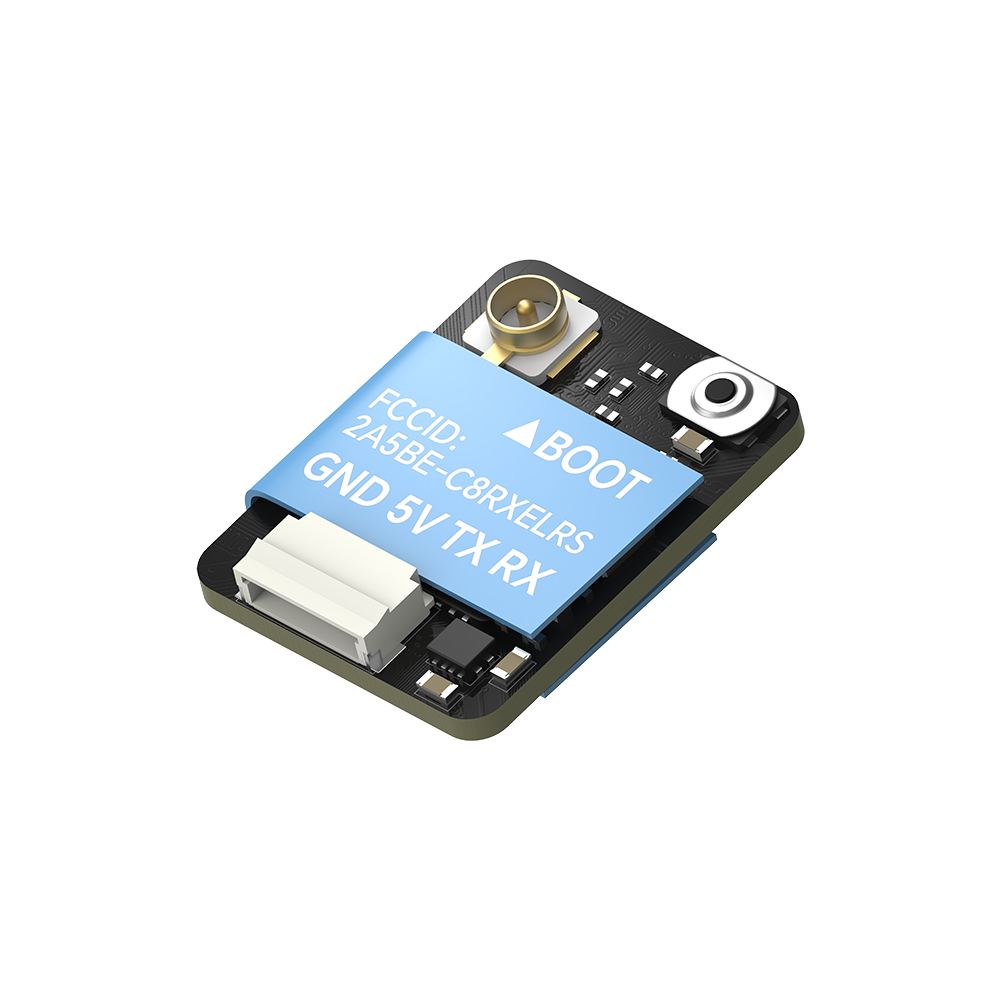

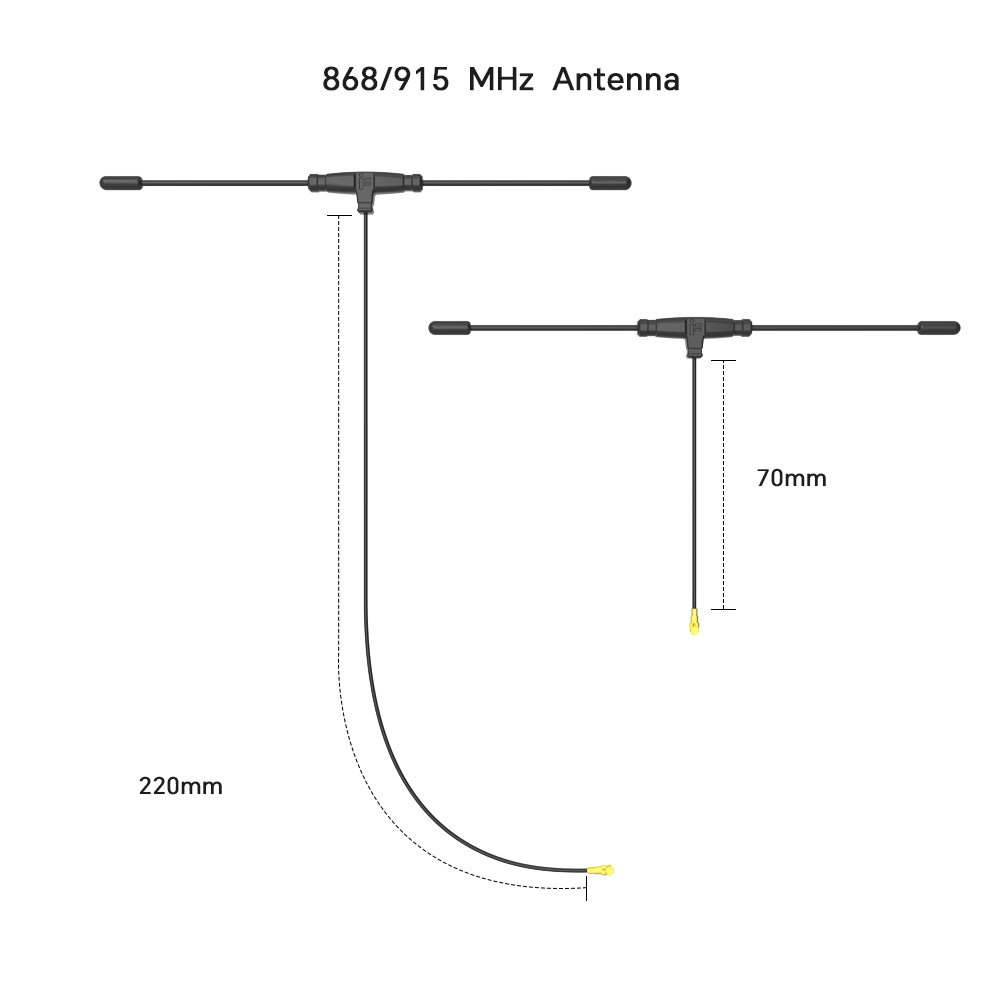

ExpressLRS ELRS Nano receiver (ELRS 868/915 RX+220mm antenna) Function: - Improved circuit design - Newly improved temperature compensated crystal oscillator (lower packet loss, high frequency stability) - High performance at 2400 MHz or 900 MHz (915/868 bands available) Performance and Compatibility: - Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors). - Flash the latest firmware and follow the ELRS community for updates, tutorials or posts. - For maximum performance, use these ELRS receivers paired with the iFlight transmitter. Specifications: Antenna connector: IPEX Length: 220 mm Firmware: ExpressLRS iFlight 900MHz Nano RX (868MHz/918MHz) Frequency bands: 868MHz EU/915MHz FCC Telemetry power: 17 dBm (50 mW 868/915 MHz) Size: 10*13mm Connector: SUR0.8 connector Interface: RX TX 5V GND Input voltage: 5V Protocol: CRSF Weight: 0.5g The package includes: 1x ExpressLRS Nano receiver 1x Antenna
