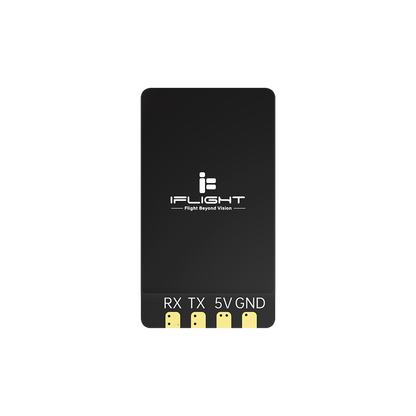

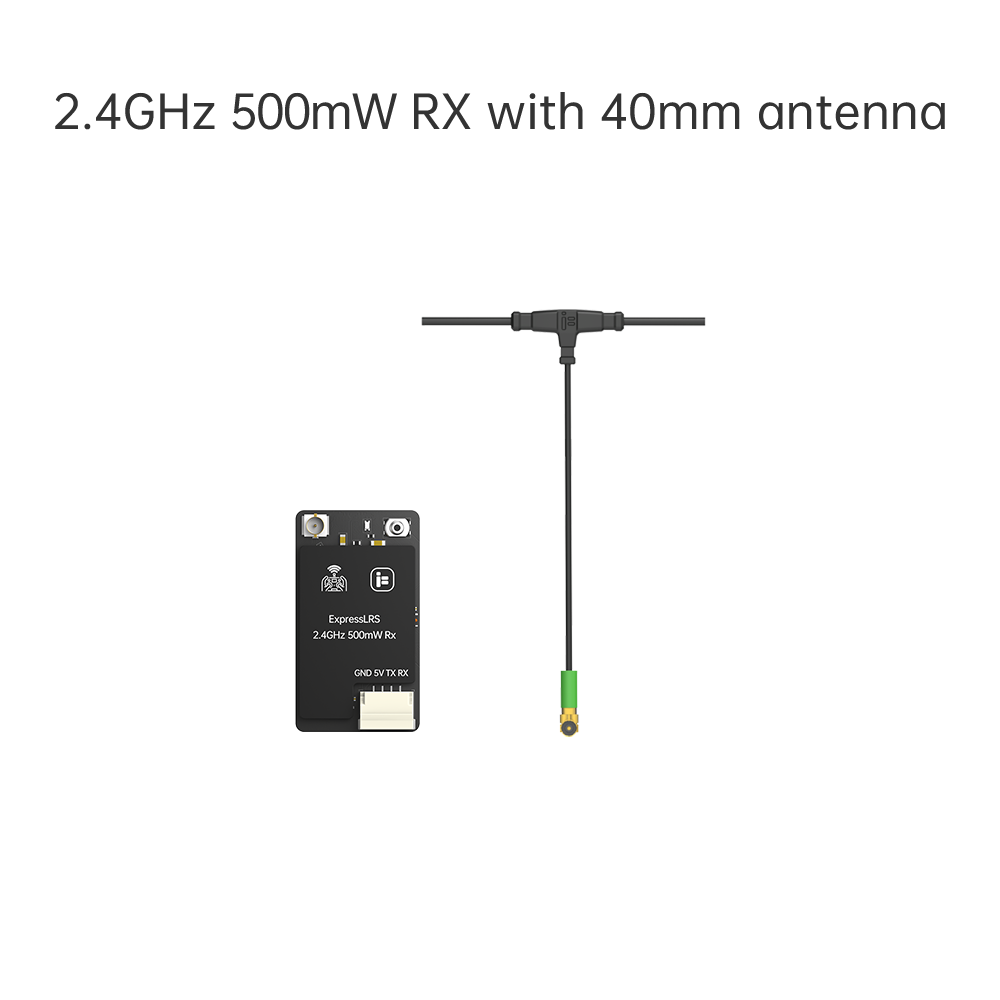

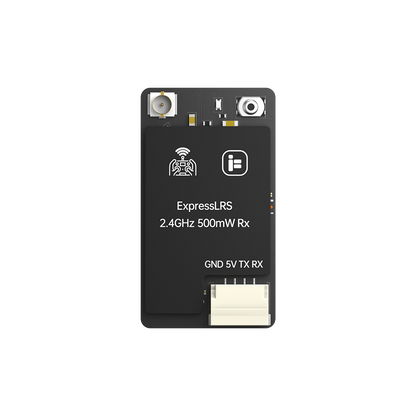

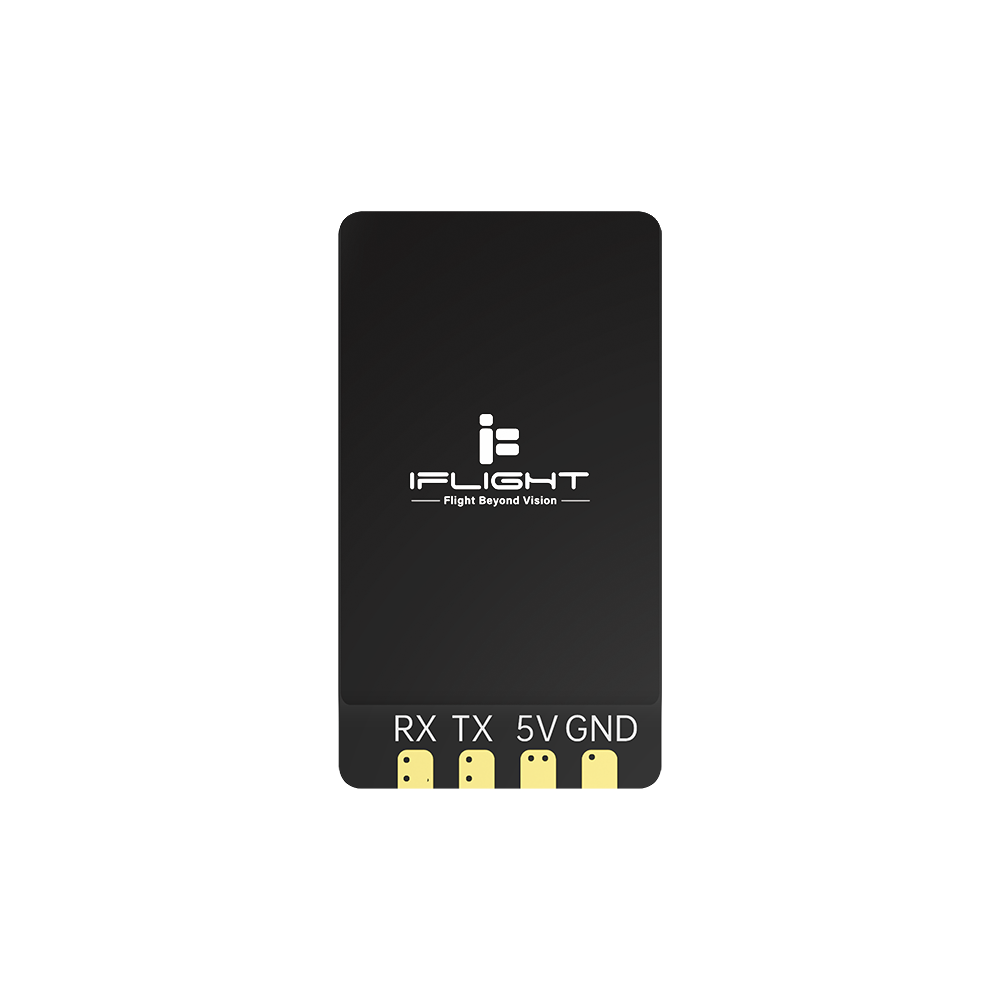

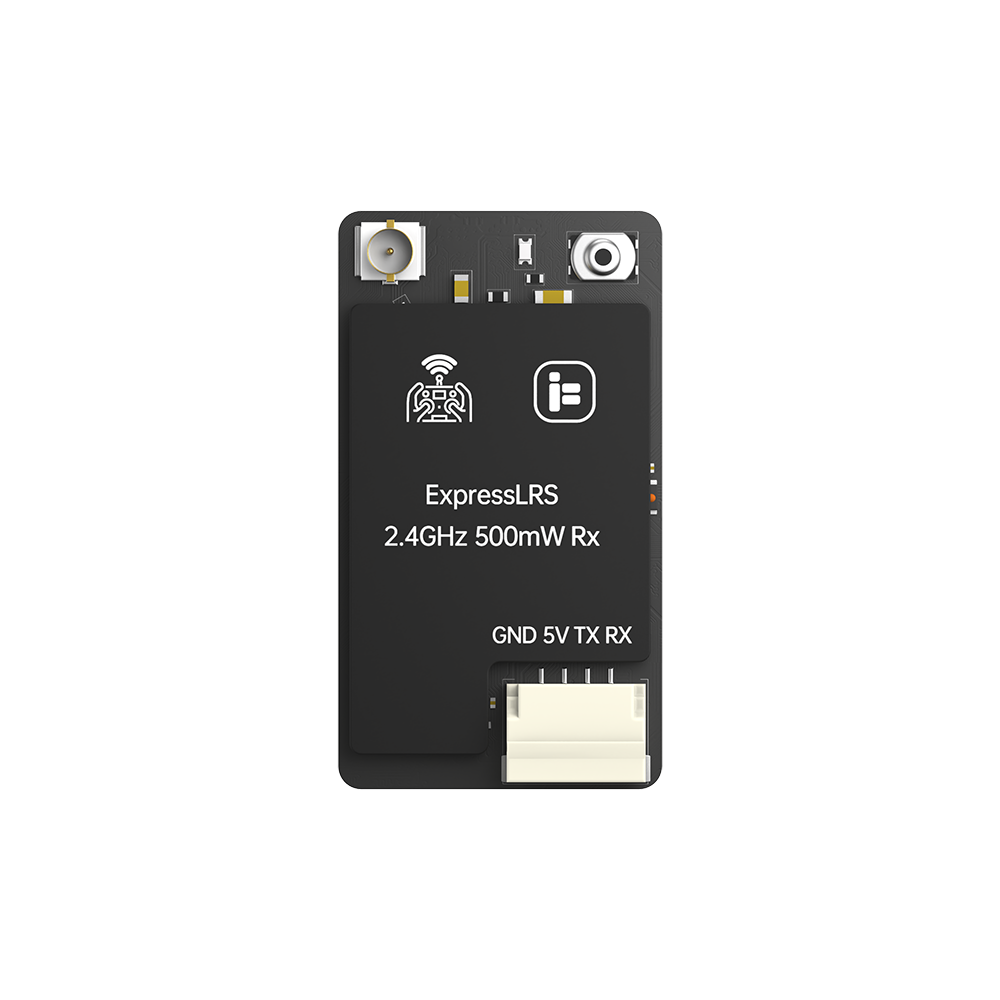

ExpressLRS ELRS 500mW receiver (ELRS 2.4G RX+40mm mini antenna)
A new version of the iFlight ELRS Receiver is available. It features a temperature-compensated crystal oscillator that prevents frequency shifts caused by temperature changes, with a telemetry output of up to 500 mW. It significantly meets the reliability requirements for long-distance flights, aerial photography, or FPV freestyle maneuvers.
Function:
- One-sided electronic components, saving mounting space.
- Aluminum heatsink plate to protect electronic components and increase resistance to interference.
- Newly improved temperature compensated crystal oscillator, lower packet loss, high frequency stability.
- Pre-soldered SH1.0 connector (Plug&Play for easy installation with iFlight FC).
- Up to 500 mW of telemetry power, resulting in stronger telemetry signals and greatly reducing the incidence of telemetry loss.
Performance and Compatibility:
- Make sure to install the antenna away from conductive or magnetic components (carbon, metal, motors).
- Flash the latest firmware and follow the ELRS community for updates, tutorials or posts.
Specifications
MCU: ESP 8285
Receiver type: Single antenna
Firmware: iFlight 2.4GHz 500mW RX
Lua Script: iF 2G4 500mW RX
Frequency bands: 2.4 GHz ISM
Telemetry power: 50-500mW (17-27dBm)
Size: 14*25*4.3mm
Protocol: CRSF
LNA: YES
Weight: 1.8g
Antenna length: 40 mm
The package includes:
1x ExpressLRS 500mW receiver
1x Antenna
