    Code: 4111

    Receiver Cyclone Diversity ELRS868/915 with 2 antennas

    Receiver Cyclone Diversity ELRS868/915 with 2 antennas

    Brand: Cyclone

    €29,28
    €29,28 €29,28
    -0% View Product
    Taxes included.
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Diversity Cyclone ELRS915 with 2 antennas

Specifications

Model: CYCLONE ELRS 915MHz/868MHz Diversity Receiver
Weight without antenna: 1.4g
Antenna: IPEX MHF1 + T antenna

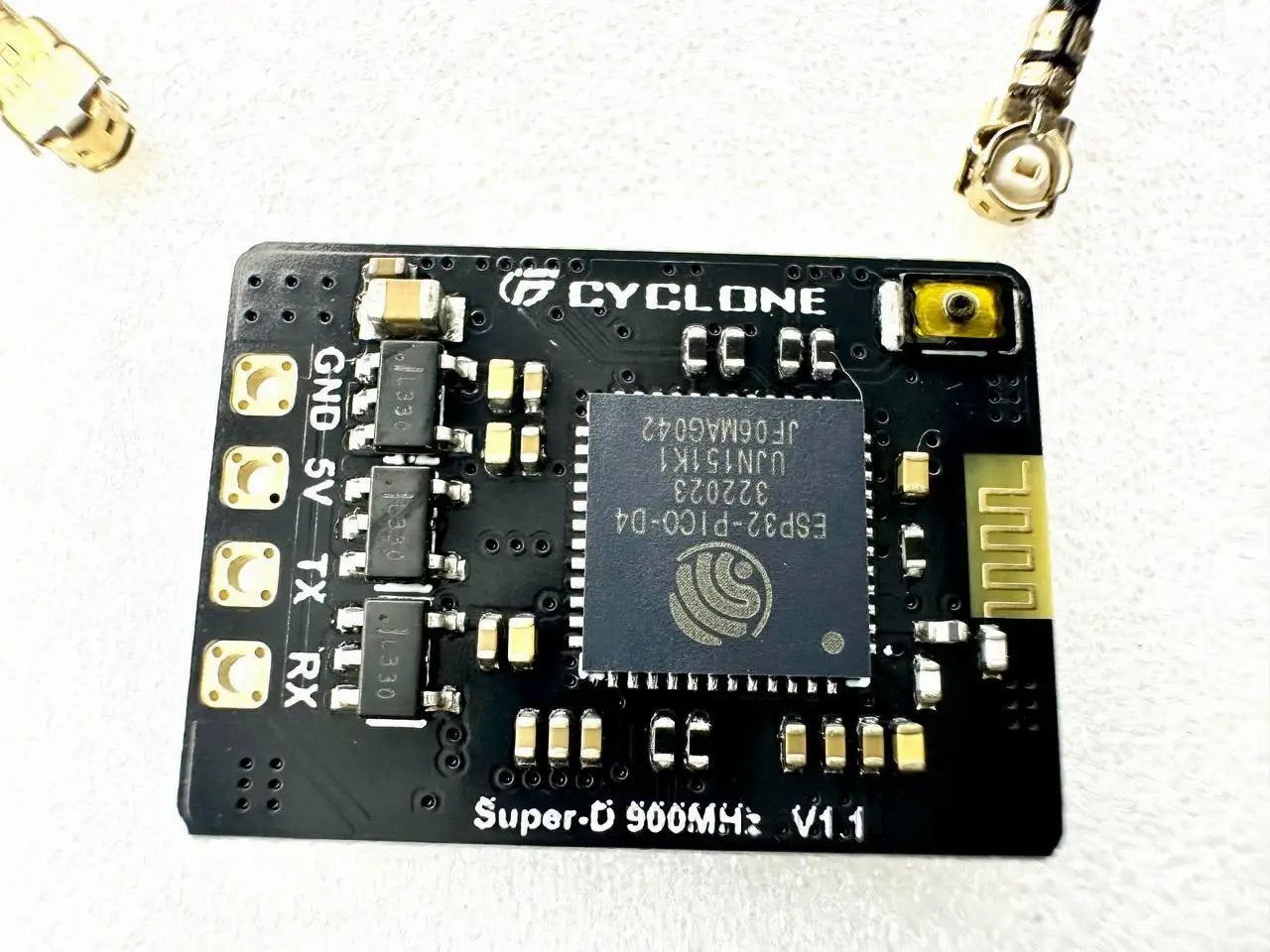

MCU: ESP32-PICO-D4

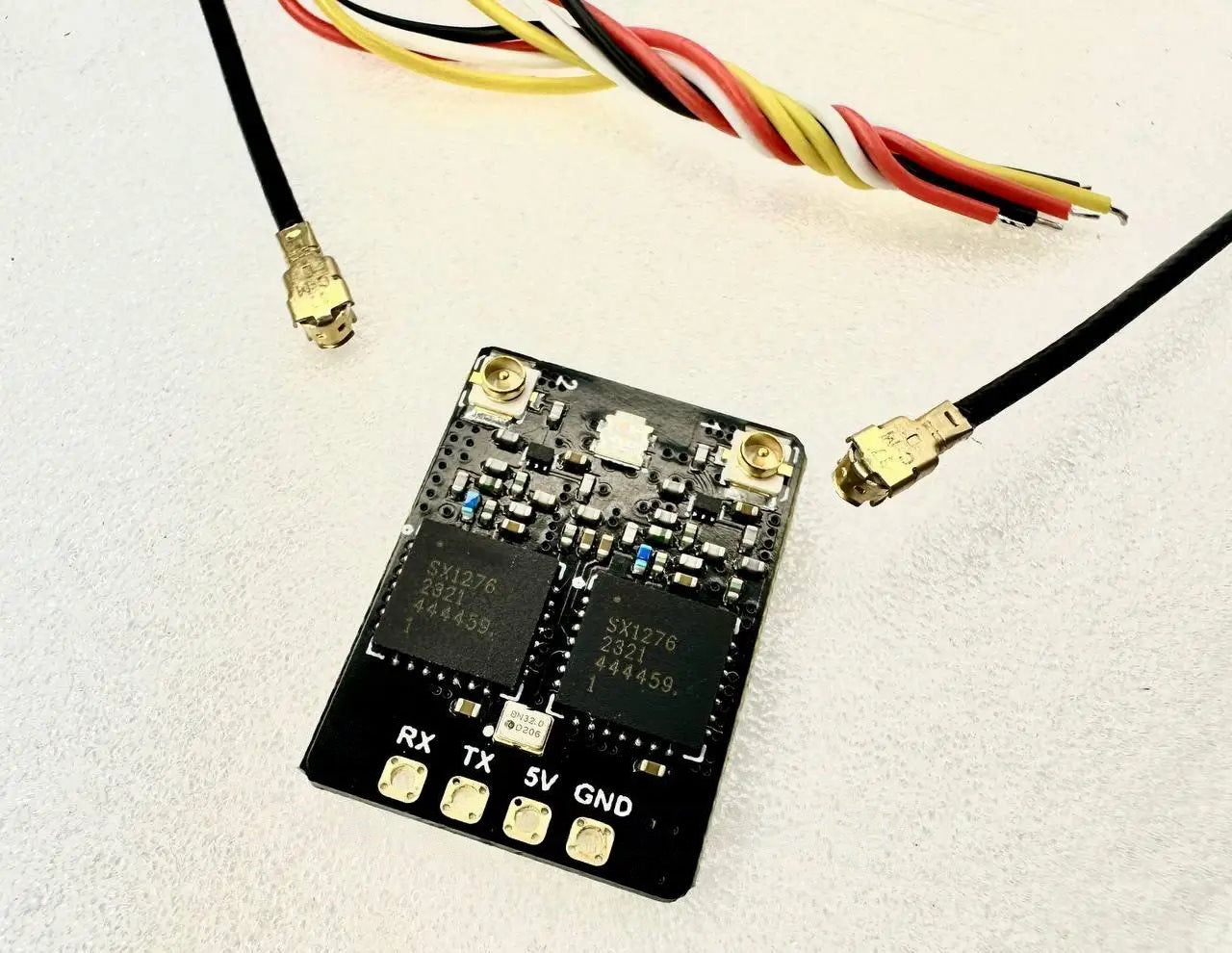

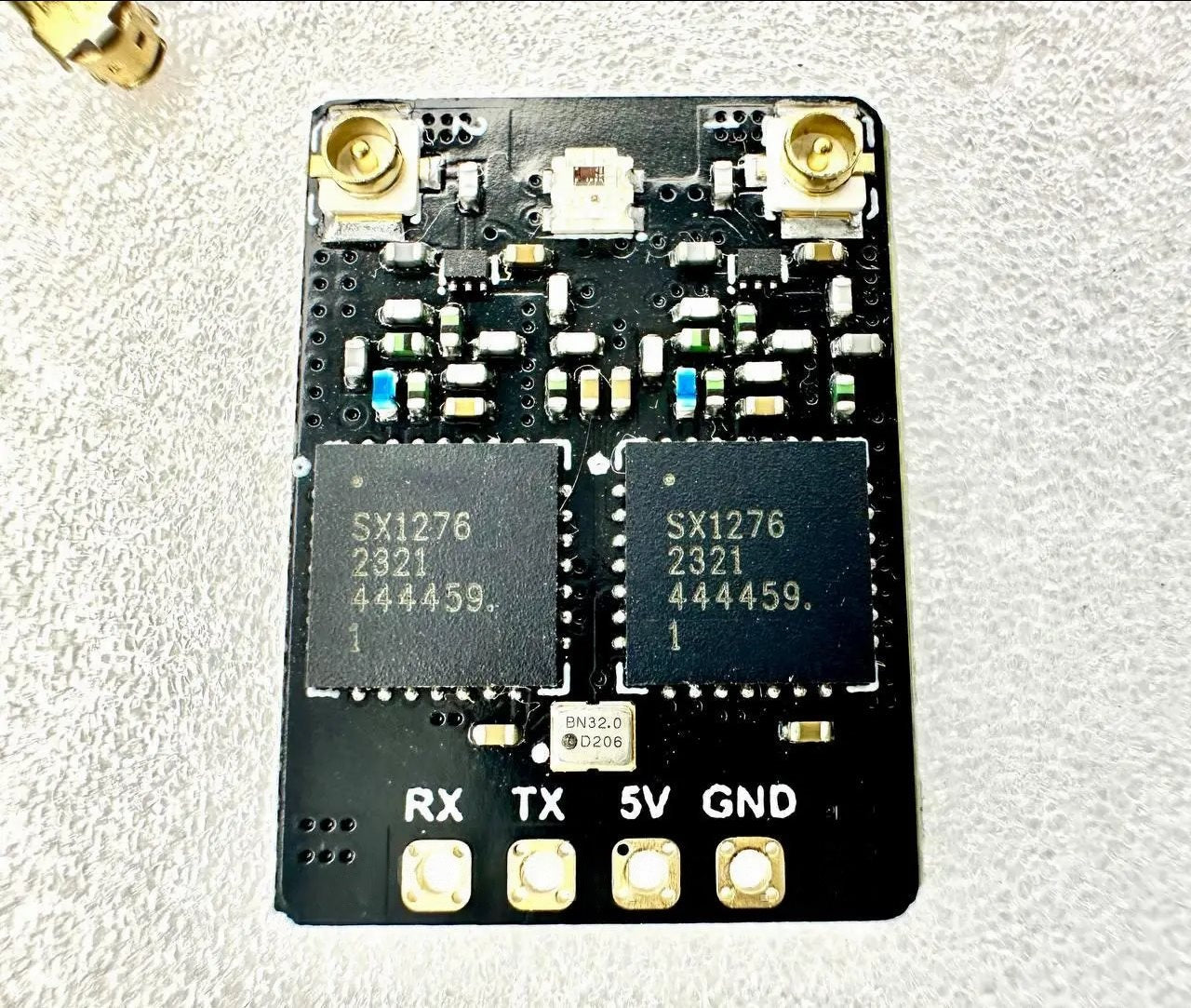

RF chip: Dual SX1276 (915/868 MHz)
RF frequency: 915MHz/868MHz
Antenna connector: IPEX MHF 1/U.FL
Input voltage: +5V DC @ “+” pad
Telemetry power: 100mW / 17dBm (915MHz/868MHz)
Serial Output Protocol: CRSF
PCB Dimension: 22mm x 16mm

The package includes:
1x Cyclone ELRS915 diversity with 2 antennas
