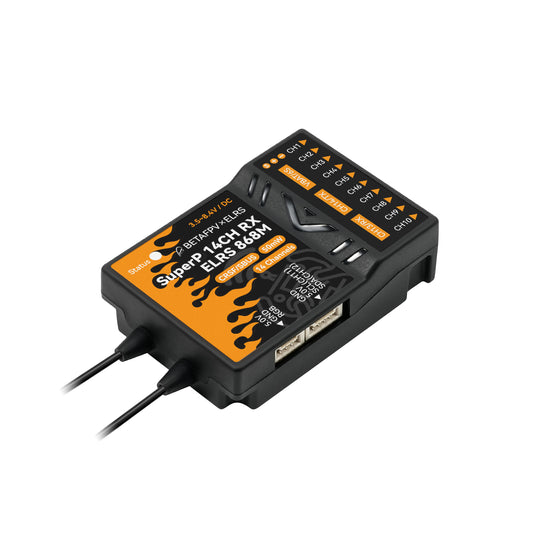

SuperP 14H Diversity Receiver ELRS 868MHz
The SuperP 14CH Diversity Receiver was designed not only for long-distance flying, but also suitable for fixed-wing applications, helicopters, RC cars, boats, etc. It has a TCXO oscillator, two antennas, dual receive chains, Plug-N-Play ports and adds additional features that support 14 channels for external barometer, RGB light strip and other external sensors currently in development. It offers 2.4GHz, 915MHz and 868MHz versions and perfectly meets the reliability requirements for long distance flying, aerial photography or FPV freestyle stunts. With this receiver, users can get a more stable and reliable RC model experience.
Specifications:
Item: BETAFPV SuperP 14CH Diversity Receiver | ELRS 868 MHz
MCU: ESP32 Pico D4 + 2*SX1276
Telemetry power: 17dBm/50mW
Frequency bands: 868 MHz

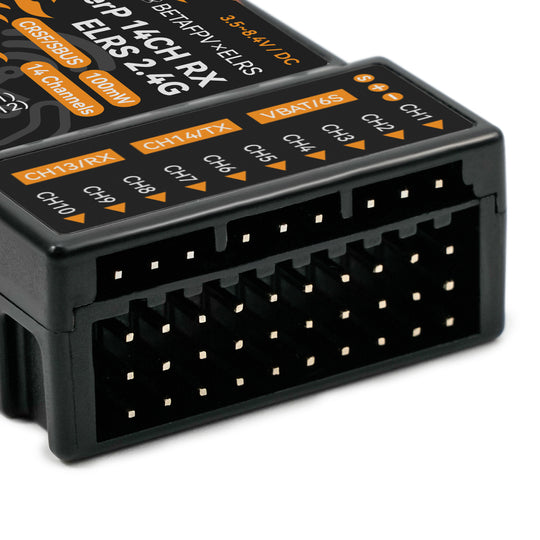

PWM channel: 14 CH
Rated current: 140mA@5V

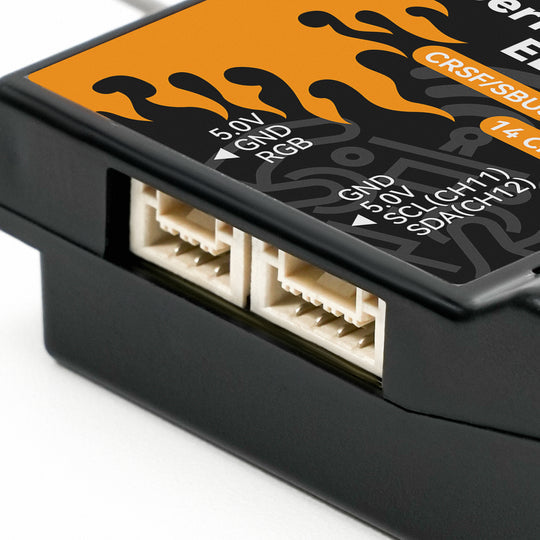

Supported Devices: Barometer (SPL06)

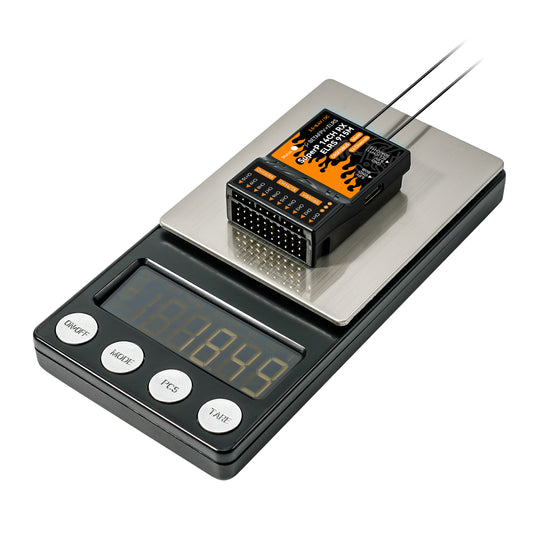

Weight: 15.8g
Default firmware version: ExpressLRS V3.3.0
Serial output protocol: PWM, CRSF or SBUS

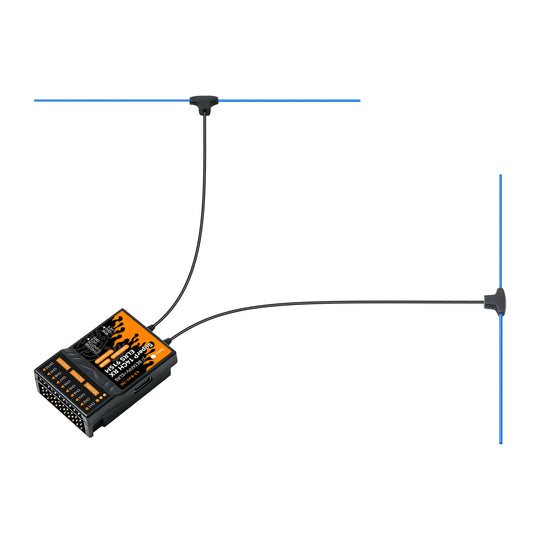

Antenna: 2* IPEX MHF 1 Antenna
Size: 46.9mm * 32.7mm * 14.6mm
Voltage detector range: 1-6S
Input voltage: 3.5V-8.4V DC
PWM channel: 14 channels
Compatible Model Type: Multirotors, Fixed Wing Aircraft, Helicopters, RC Cars, RC Boats, etc.
The package includes:
1 * SuperP 14CH Diversity Receiver (868MHz)
2 * 150mm dipole T antenna
1 * GH2.0 3-pin cable
1 * GH2.0 4 pin cable
1 * Y Splitter cable for servo
1 * Voltage test cable
1 * User manual
