SuperD diversity receiver ELRS915
BETAFPV SuperD ELRS is the first True Diversity Receiver that uses two antennas, dual receiver chain and TCXO (Temperature Compensated Crystal Oscillator) technology to achieve super accurate frequency and excellent performance in extreme temperature environments. It offers 2.4GHz and 915MHz/868MHz versions and perfectly meets the reliability requirements for long distance flying, aerial photography or FPV freestyle tricks.
Function:
- A true diversity receiver with two complete RF receiver chains (referring to dual SX1280/SX1281 or dual SX1276), based on the latest official ExprssLRS. Comes with ExpressLRS V3.0.0 firmware.

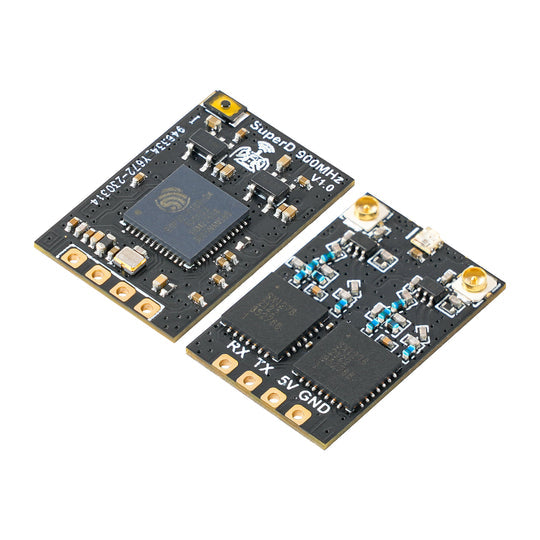

- Ultralight weight is only 1.2g without antenna. The receiver board has a sensible layout and is impeccably clean. Very easy soldering.
- Two Dipole T antennas create an omnidirectional signal for good signal transmission. To achieve a better signal, it is recommended to place the antenna separately and vertically as far apart as possible.
- Used not only for FPV drones, but also for fixed-wing FPV or other FPV aircraft. It has excellent long-distance flying performance.
- The first truly diversity receiver for the 915MHz/868MHz frequency bands with two separate receiver modules working together to improve signal reception quality and overall reliability.
- A 900MHz radio system exhibits greater diffractive power due to its lower frequency, while 2.4GHz systems tend to be directional and susceptible to attenuation by buildings, foliage or moisture.
Specifications:
Model: SuperD RX

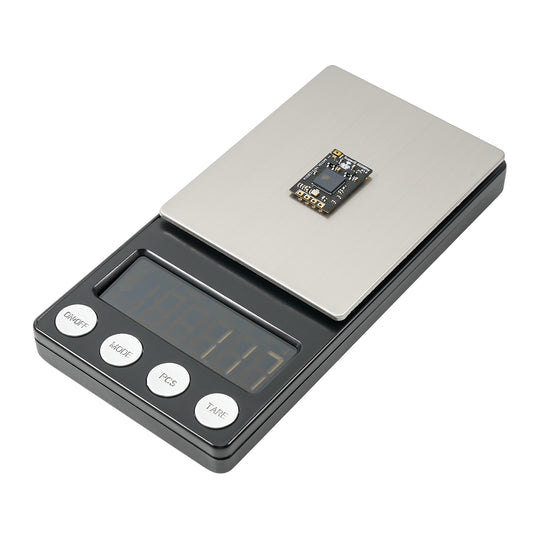

Weight: 1.2g
Antenna: IPEX MHF1 + T antenna

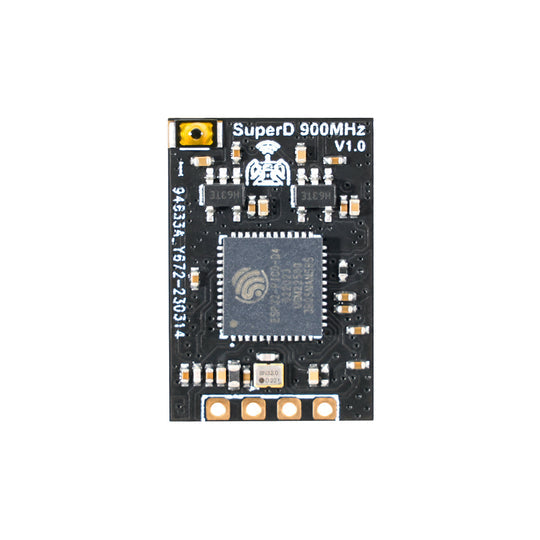

MCU: ESP32-PICO-D4
RF chip: Dual SX1276 (915/868 MHz)
RF frequency: 915MHz
Antenna connector: IPEX MHF 1/U.FL
Input voltage: +5V DC @ “+” pad
Telemetry power: 100mW / 17dBm (915MHz/868MHz)
Serial Output Protocol: CRSF
PCB Dimension: 22mm x 14mm
Model Type: FPV Drone, Fixed Wing Aircraft
The package includes:
1* Diversity receiver SuperD 915MHz
2* 915MHz T antenna
1* 4 pin header
1* 4 pin harness
1* Instructions for use
2* Shrink tubes
