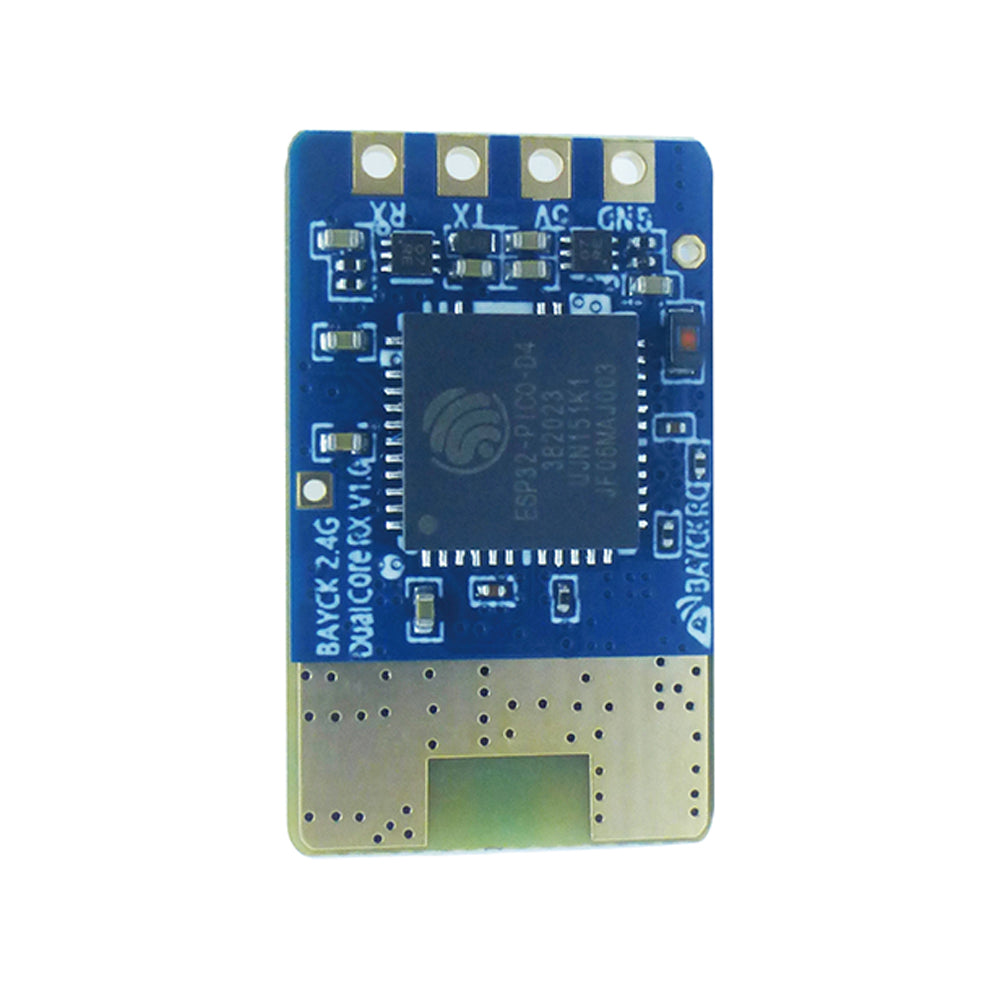

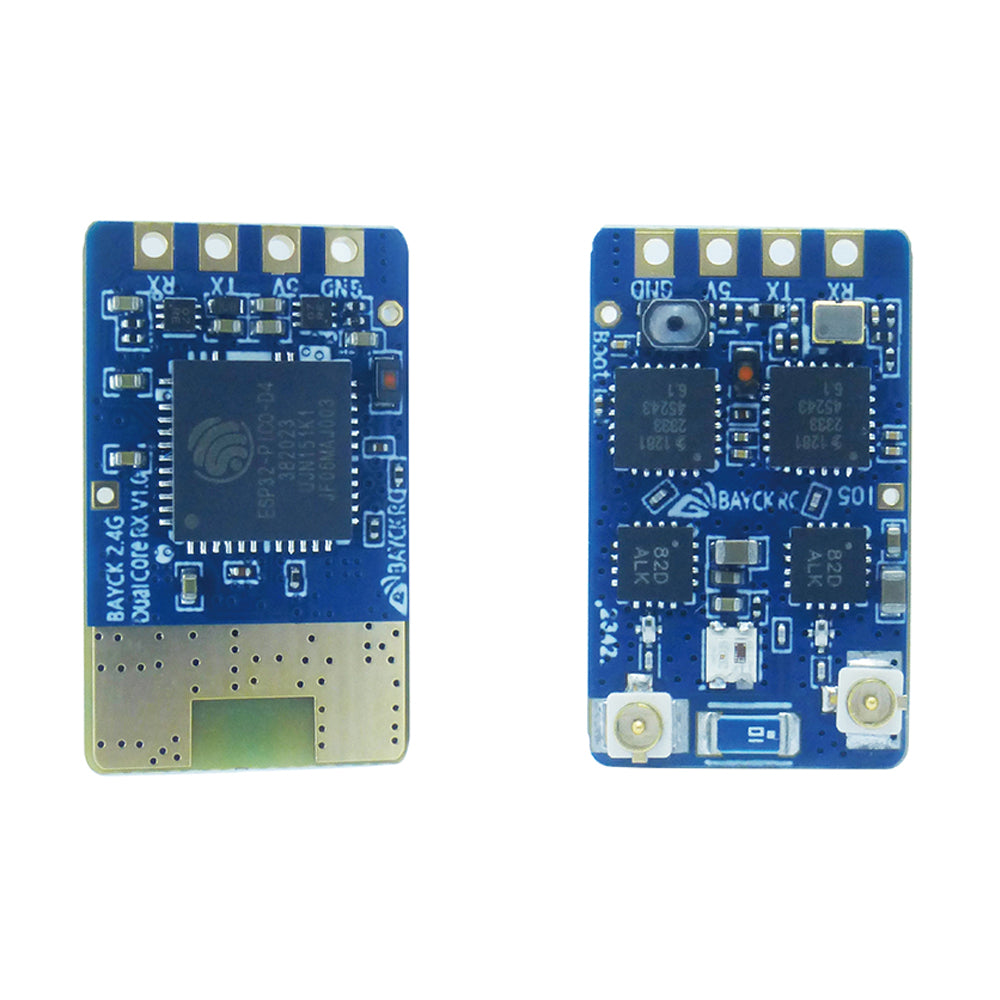

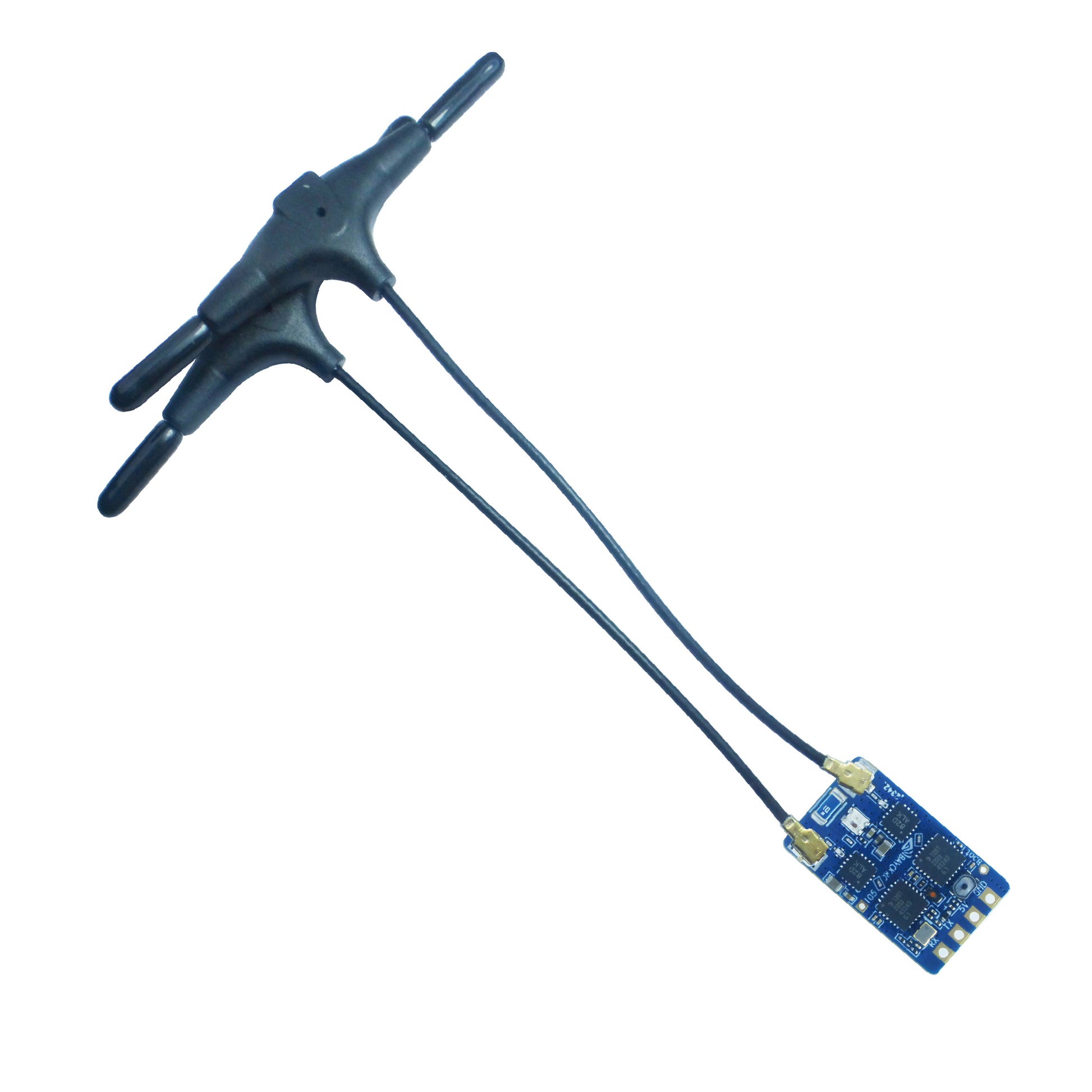

Receiver BAYCK ELRS 2.4Ghz diversity
BAYCK ELRS 2.4 Receiver is a compact and high-performance receiver designed for FPV drones. It works at a frequency of 2.4 GHz and ensures reliable signal reception with low latency. The ELRS (ExpressLRS) protocol provides robust long-range connectivity, making it ideal for both racing and freestyle applications. The nano-sized shape allows for easy installation, and its lightweight design ensures minimal impact on your drone's performance. Specifications:
Item: ELRS 2.4GHz Dual Core Rx
Frequency: 2.4G FCC(AU,EU Update Firmware)
Chip: ESP8285MCU+SX1276
Telemetry power: 200 mW
Maximum reception refresh rate: 500HZ
Minimum refresh rate of the receiver: 25Hz
Working voltage: 5V
Weight: 0.6g (receiver only)
Working protocol: CRSF

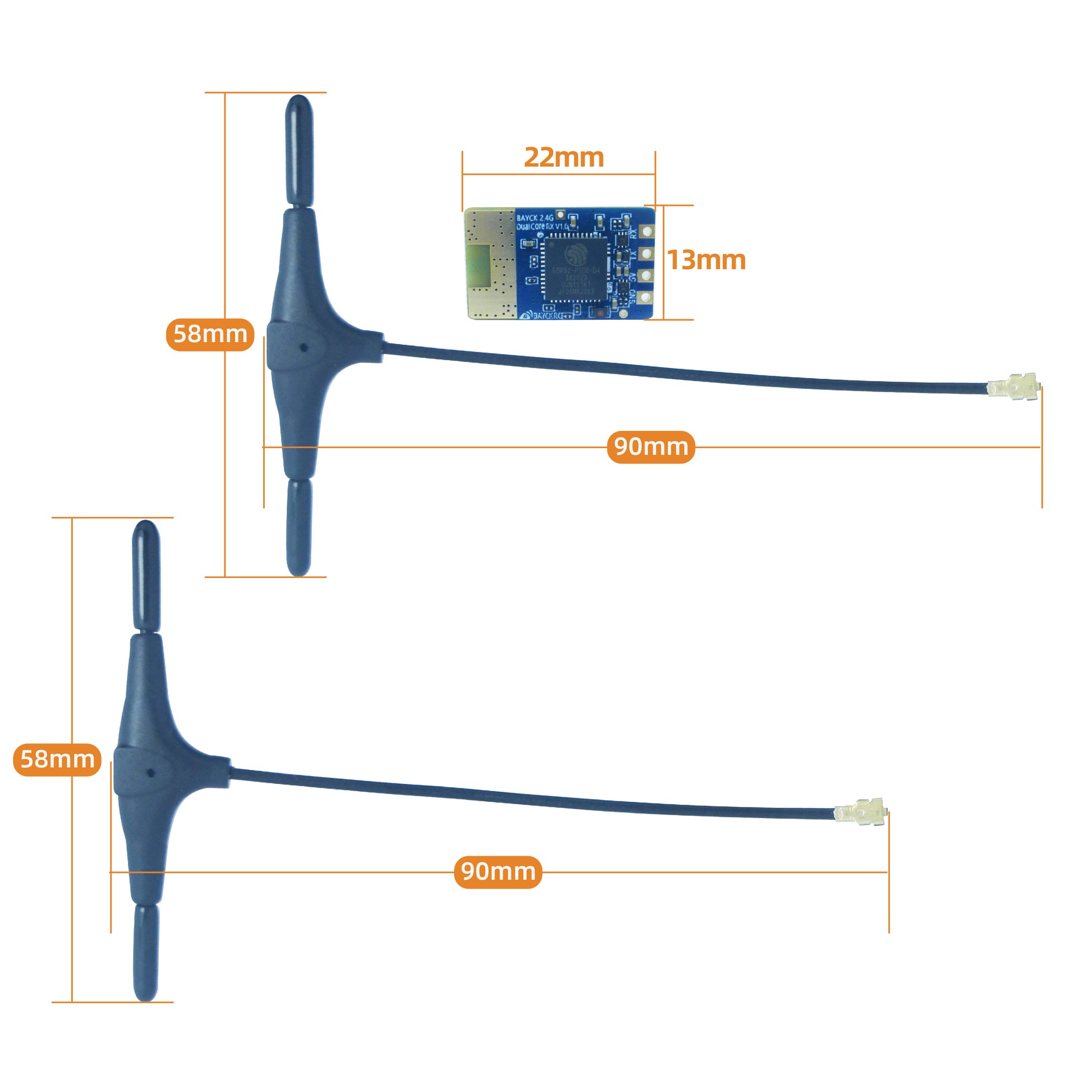

Dimensions: 13mmx14mmx3mm
Antenna connector: IPEX1
Built-in TCXO

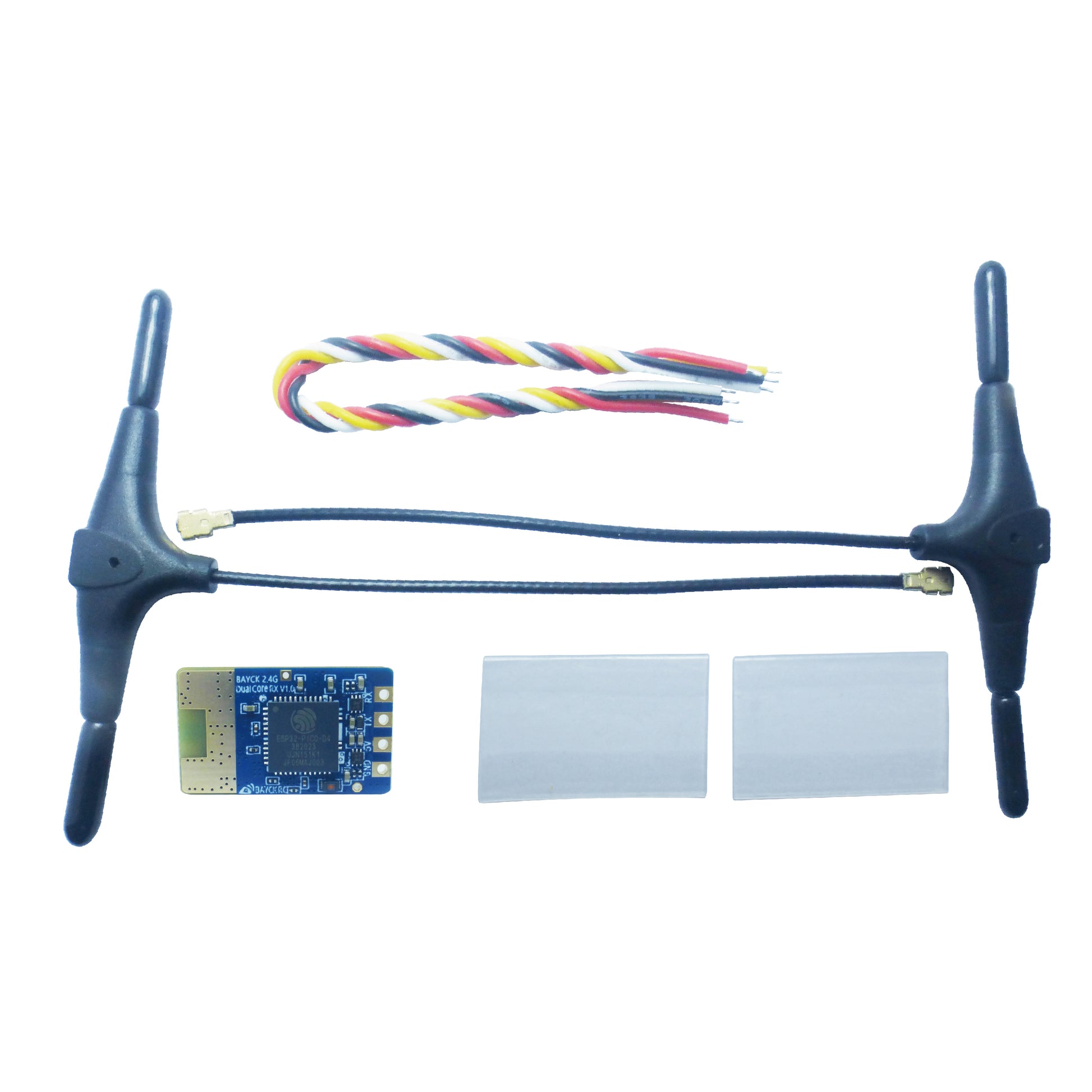

The package contains:
1x BAYCK ELRS 2.4Ghz diversity receiver
