Code: SKU:HP9915.0273
RC repeater Hobby Porter 900M/2.4G
RC repeater Hobby Porter 900M/2.4G
Brand: Hobby Porter
Couldn't load pickup availability
- Description
- Related Files
- Discussion

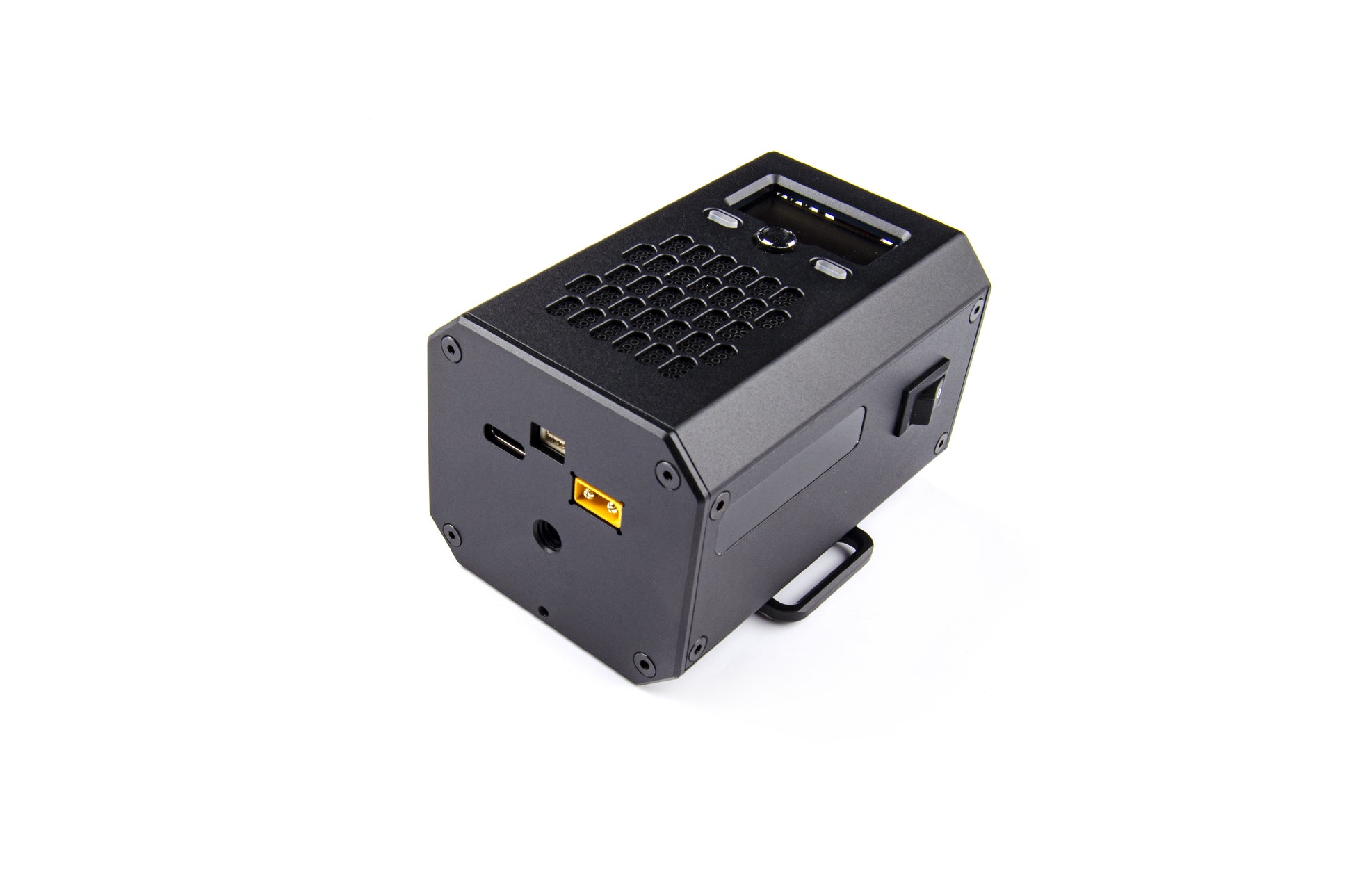

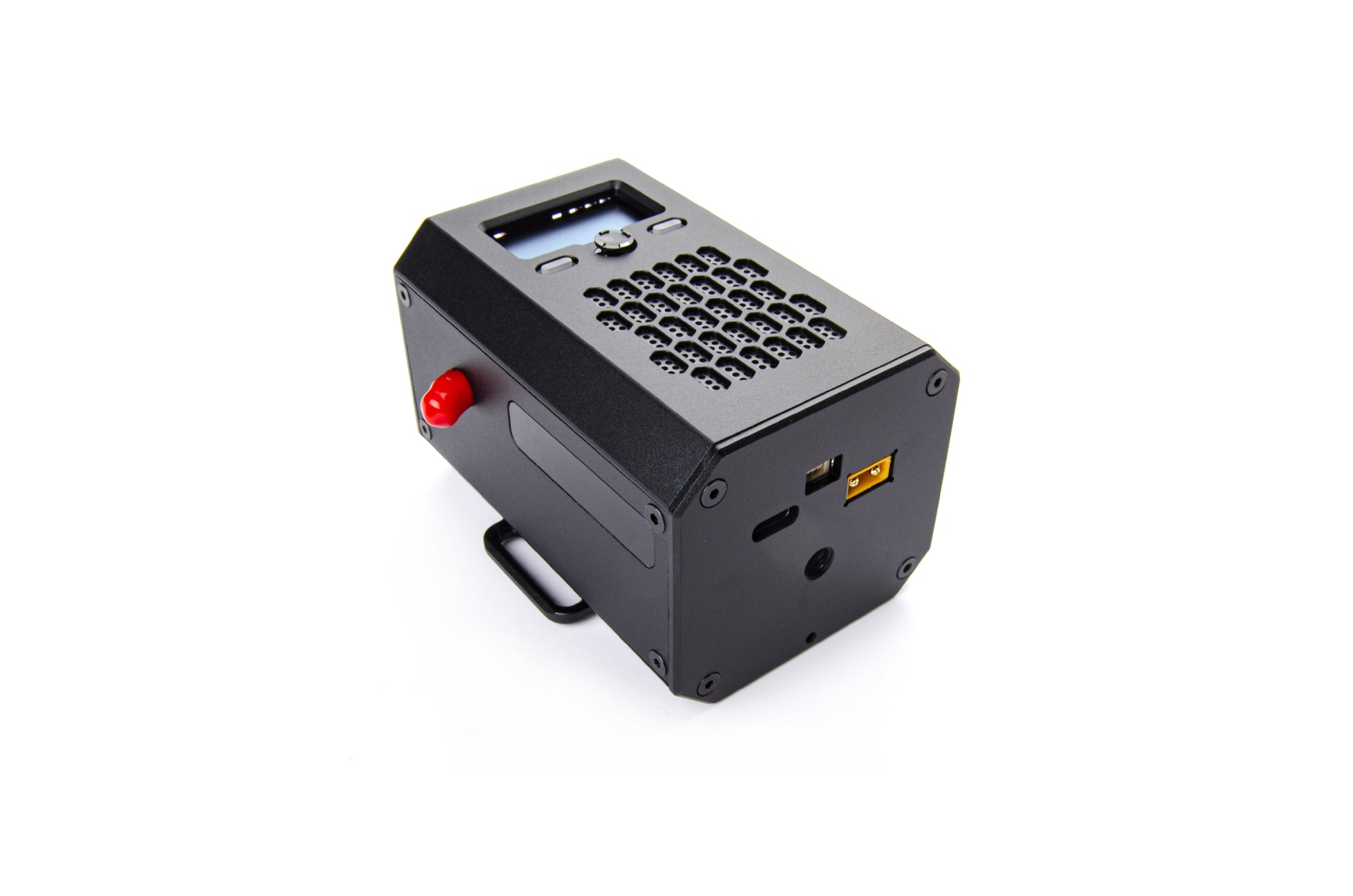

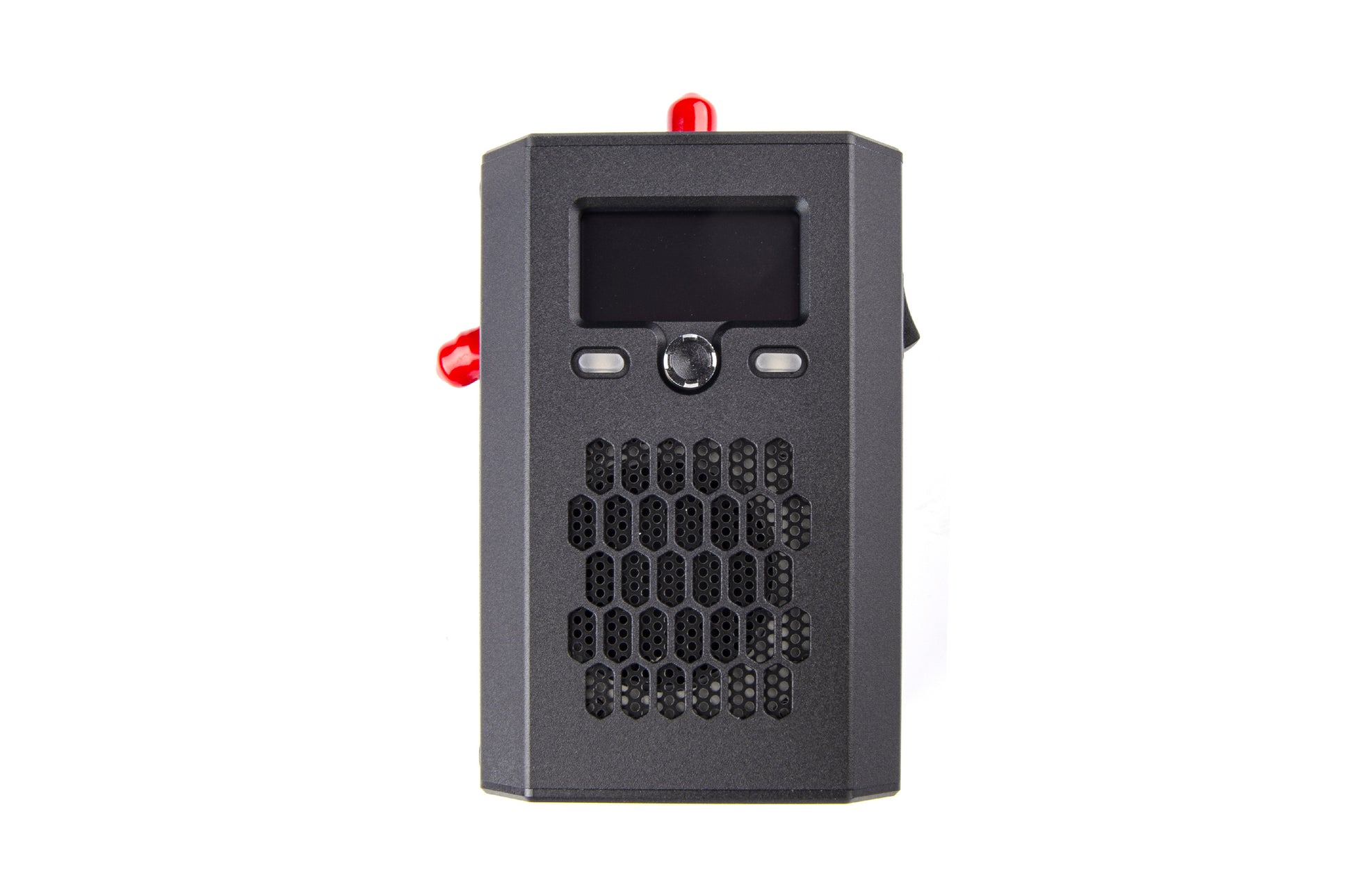

RC Repeater Hobby Porter 900M/2.4G
The Hobby Porter RC Repeater is a versatile and powerful signal amplifier designed to increase the range and reliability of your RC systems. Support for 900MHz and 2.4GHz frequencies ensures stable communication over long distances, making it ideal for drones, FPV systems and RC vehicles. Thanks to its compact and lightweight design, the repeater easily integrates into your equipment and provides a consistent and strong connection even in challenging conditions.
Specifications:
- Dimensions: 48.6 x 19.2 x 66.4 mm
- Weight: 480 grams
- Operating frequency: 2.400 GHz - 2.480 GHz
- RF power: MAX 2000 mW
- Operating current: 590 mA at max. power, 8.0 V
- Operating voltage: 6.6-16.8V DC
- Control channels: Max. 16 (depends on Rx)
- Display: 128x64 OLED
- Battery: 2x 18650 or 21700 batteries
- Firmware update method: Via USB or WiFi
Pairing the transmitter with the repeater:
- Turn the repeater on and off three times in quick succession using the power switch to put the 2.4GHz receiver inside the repeater into pairing mode.
- On the transmitter, open the ELRS LUA and press "BIND".
- After successful pairing, a signal message will be displayed on the transmitter.
-
Pairing the repeater with the drone receiver:
- Turn the drone on and off three times in quick succession to put the 915MHz receiver into pairing mode.
- On the repeater, long press the Ranger 5-way button, then press up/down to select the “BIND” menu, then press right to enter.
- Restart the drone and repeater and check the connection between the transmitter and the drone.
-

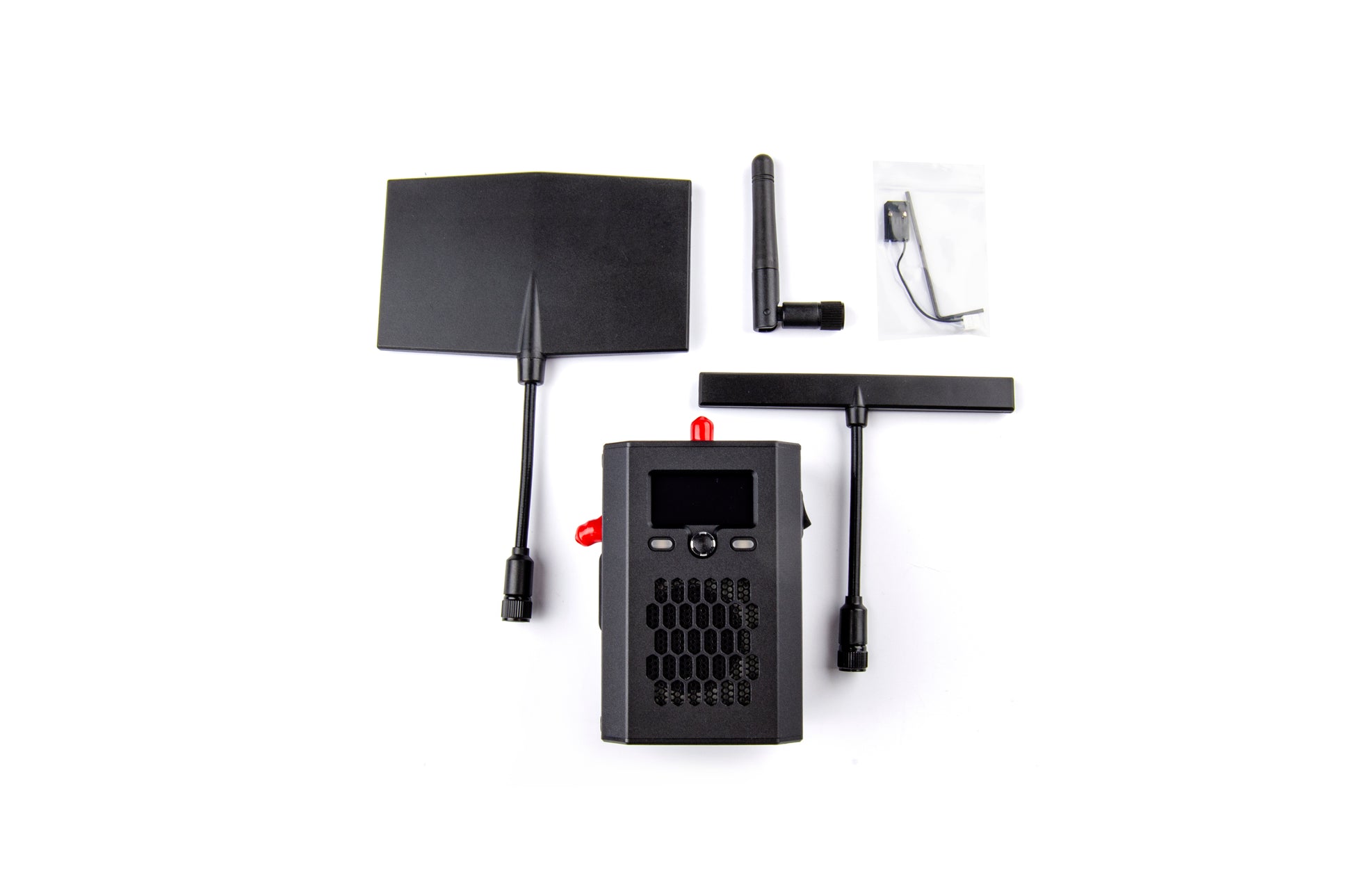

Package contents:
- 1x RC Repeater Hobby Porter 900M/2.4G
Note: Batteries are not included.
