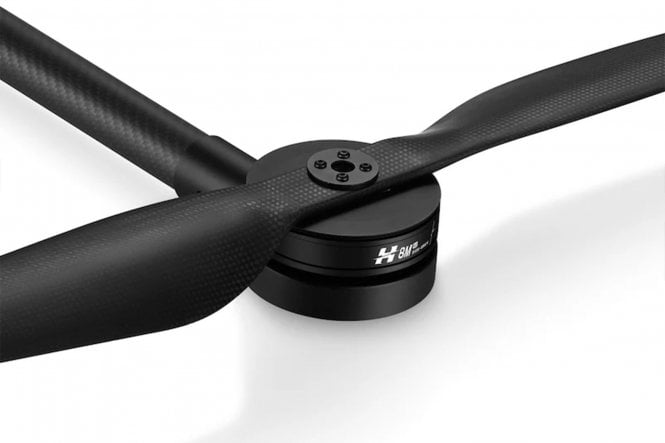

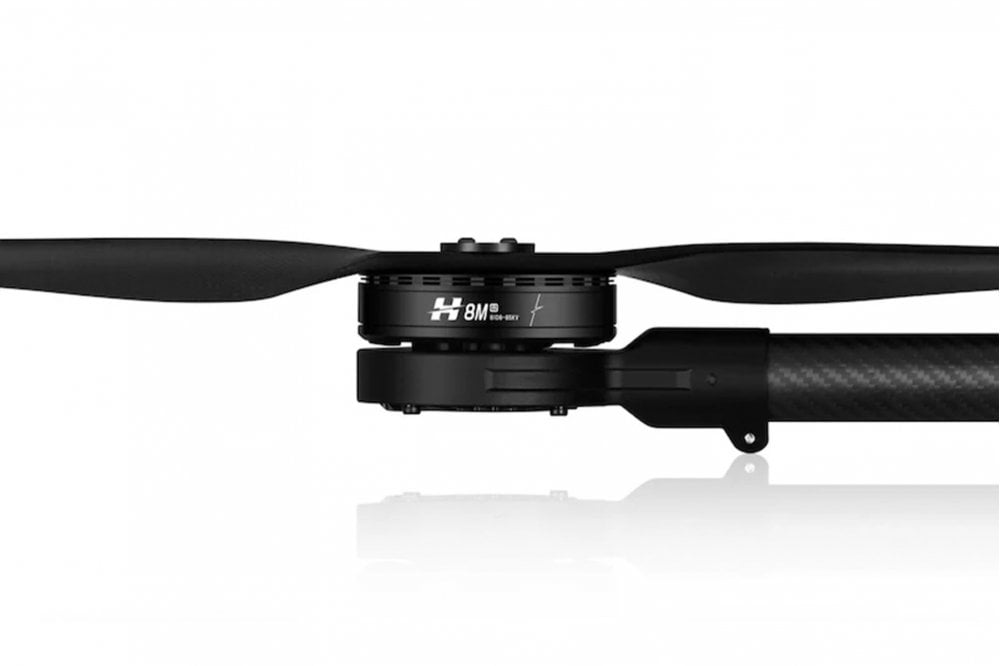

Propulsion system Hobbywing CM-H8M-8108-85KV-D30-CW
Propulsion system Hobbywing CM-H8M-8108-85KV-D30-CW
Brand: Hobbywing
Regular price
€222,00
Regular price
€222,00
Sale price
€222,00
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Hobbywing drive CM-H8M-8108-85KV-D30-CW The Hobbywing AC drive system CM-H8M-8108-85KV-D30-CCW is an industrial solution designed for a maximum thrust of 7.4 kg per axis and a recommended load of 2.5-3.5 kg. Featuring an IP45 waterproof rating, it is ideal for professional aerial photography, police operations, rescue missions and other demanding applications. Features: - Rotates clockwise (CW). - Direct drive motor and FOC ESC. - Supports CAN communication. - Double redundancy with digital throttle and PWM control. - Built-in protections against overload, overheating and rotor blocking. - Easy installation and reliable connection.
*Note, accessories sold separately. Specifications: - Recommended load: 2.5-3.5 kg - Maximum pull: 7.4 kg - Motor KV: 85 KV - Permanent ESC current: 20 A - ESC instantaneous current: 60 A (within 3 seconds) - Power supply: 12-14S LiPo (max. 63V) - Protection Level: IP45 - Operating temperature: -20°C to +50°C - Throttle range: 1100-1940 μs - Motor dimensions: Φ87 × 34.7 mm - Propeller dimensions: 30 x 9.8 inches The package contains: 1x Hobbywing propulsion system CM-H8M-8108-85KV-D30-CW.
