Propulsion system Hobbywing CM-H8M-8108-85KV-D30-CCW

Name: Propulsion system Hobbywing CM-H8M-8108-85KV-D30-CCW
Brand: Baltic Drones
SKU: 6098
Price: 295.48 EUR
Availability: InStock

Propulsion system Hobbywing CM-H8M-8108-85KV-D30-CCW

Brand: Hobbywing

€295,48

~~€295,48~~ €295,48

-0% View Product

Taxes included.

In stock

Quantity

Detailed information

View full details

Description
Related Files
Discussion

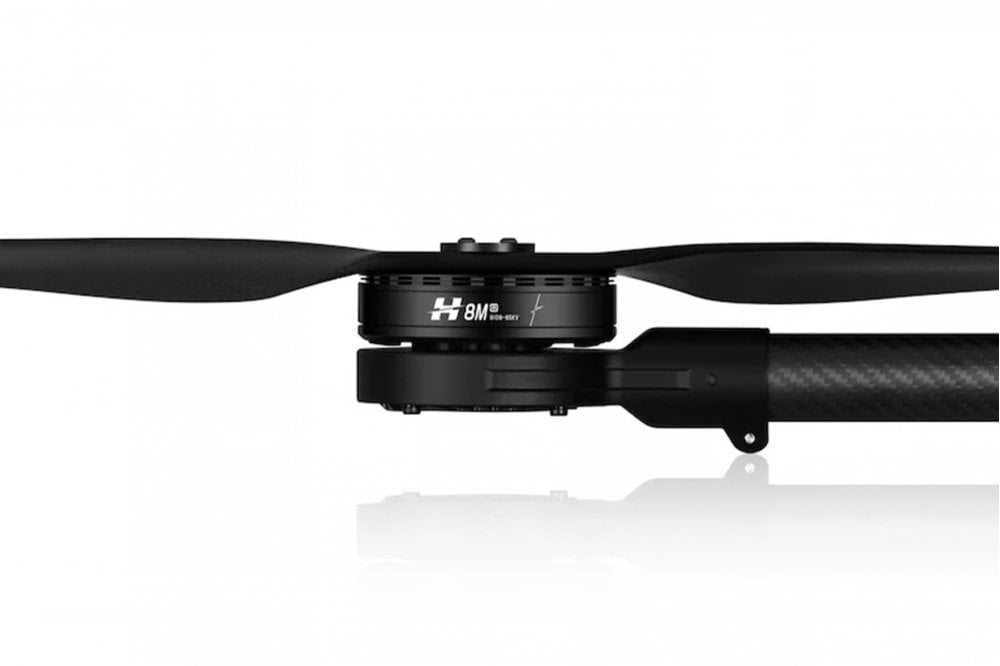

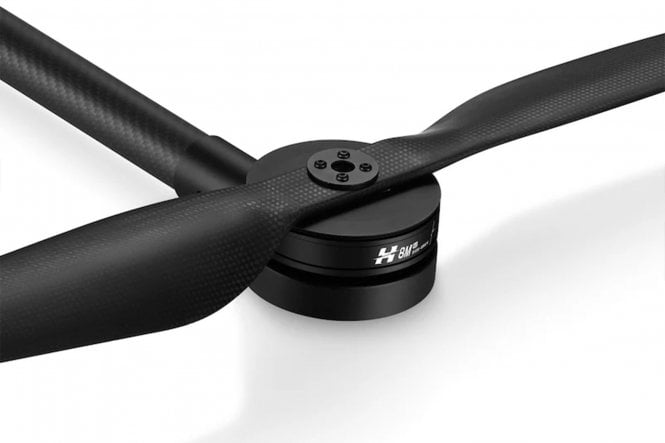

Hobbywing drive CM-H8M-8108-85KV-D30-CCW

The Hobbywing AC drive system CM-H8M-8108-85KV-D30-CCW is an industrial solution designed for a maximum thrust of 7.4 kg per axis and a recommended load of 2.5-3.5 kg. Featuring an IP45 waterproof rating, it is ideal for professional aerial photography, police operations, rescue missions and other demanding applications.

Features:

- Rotates counterclockwise (CCW).
- Direct drive motor and FOC ESC.
- Supports CAN communication.
- Dual redundancy with digital throttle and PWM control.
- Built-in protections against overload, overheating and rotor blocking.
- Easy installation and reliable connection.
*Note: supports are sold separately.

Specifications:

- Recommended load: 2.5-3.5 kg
- Maximum pull: 7.4 kg
- Motor KV: 85 KV
- Permanent ESC current: 20 A
- ESC instantaneous current: 60 A (within 3 seconds)
- Power supply: 12-14S LiPo (max. 63V)
- Protection Level: IP45
- Operating temperature: -20°C to +50°C
- Throttle range: 1100-1940 μs
- Motor dimensions: Φ87 × 34.7 mm
- Propeller dimensions: 30 x 9.8 inches

The package contains:
1x Hobbywing propulsion system CM-H8M-8108-85KV-D30-CCW.
