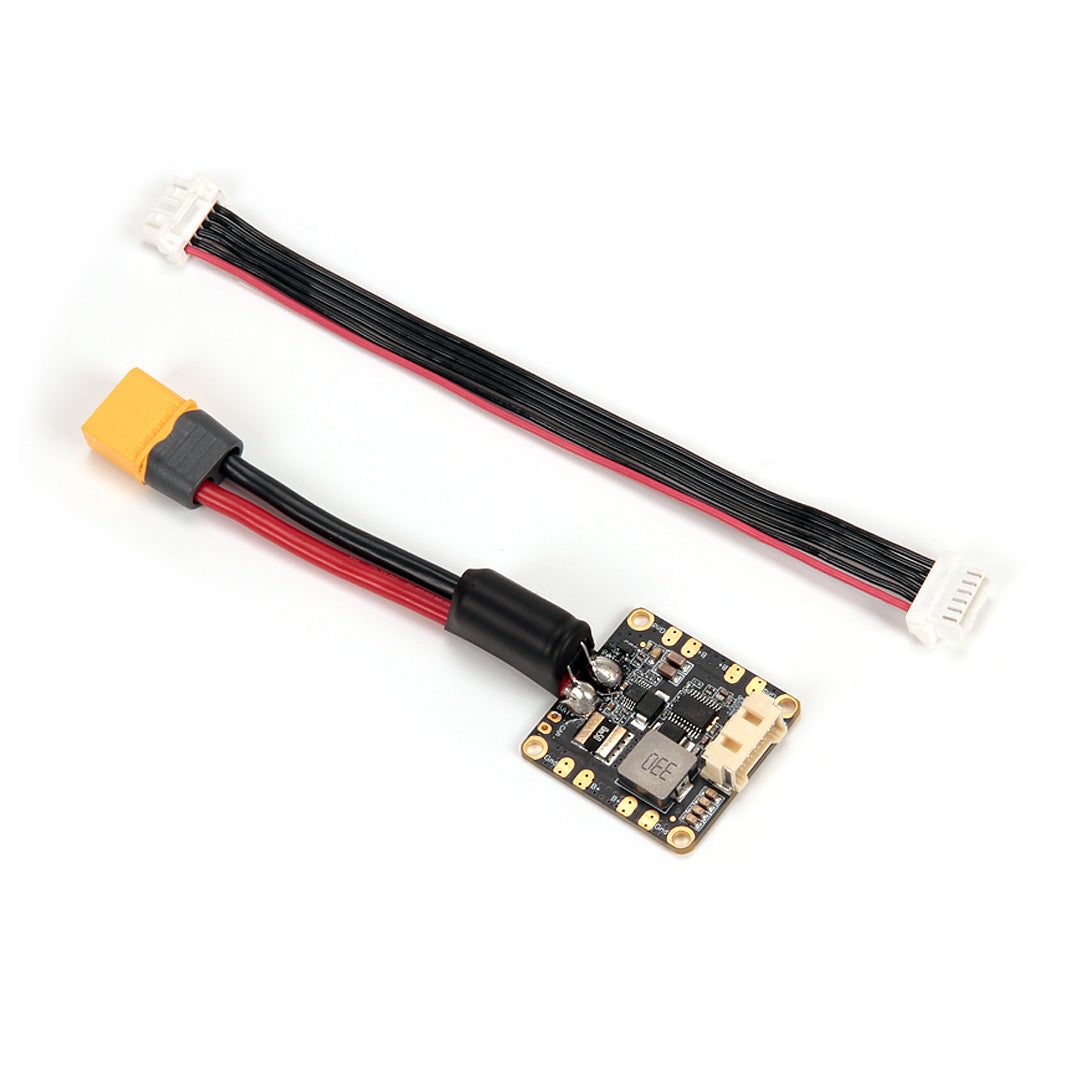

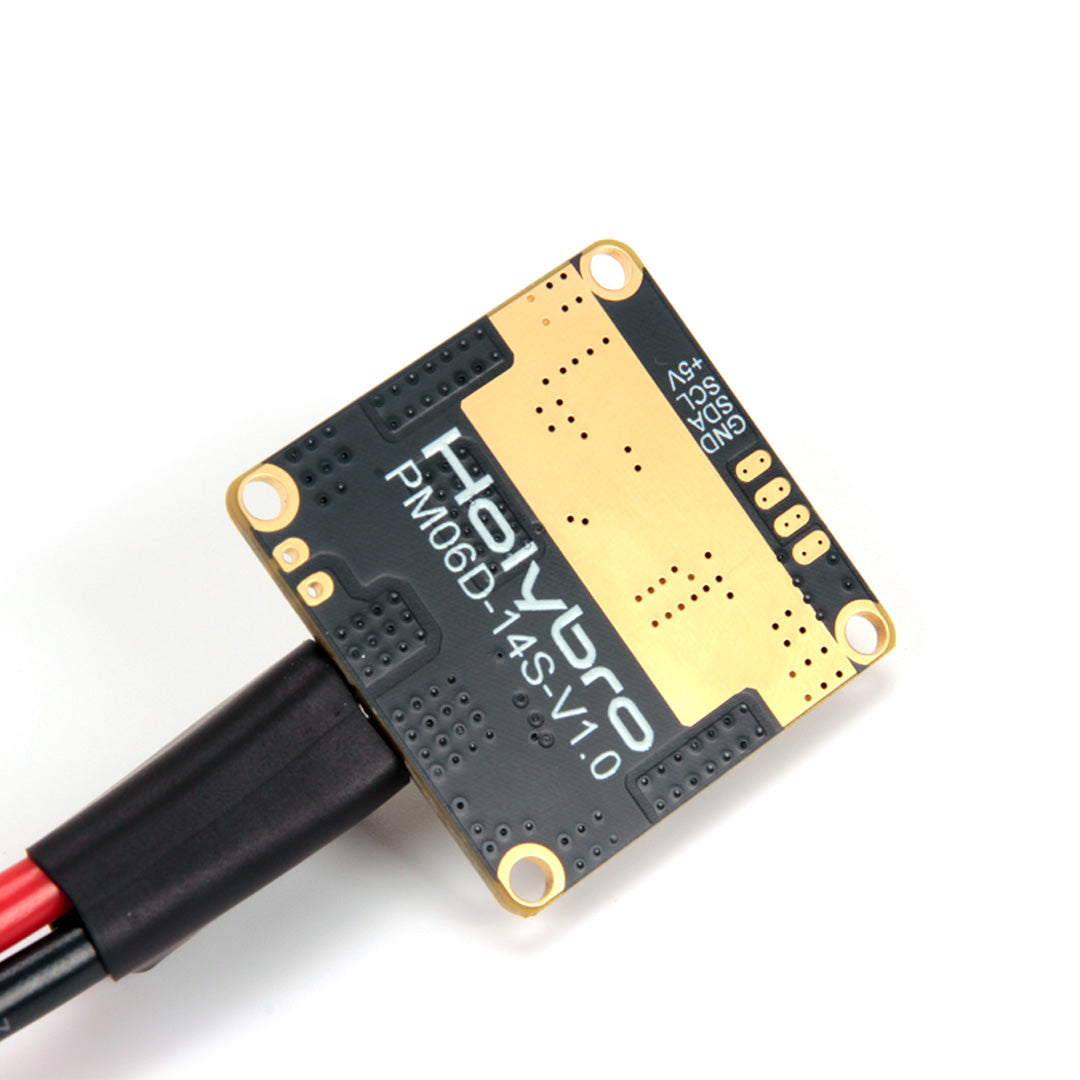

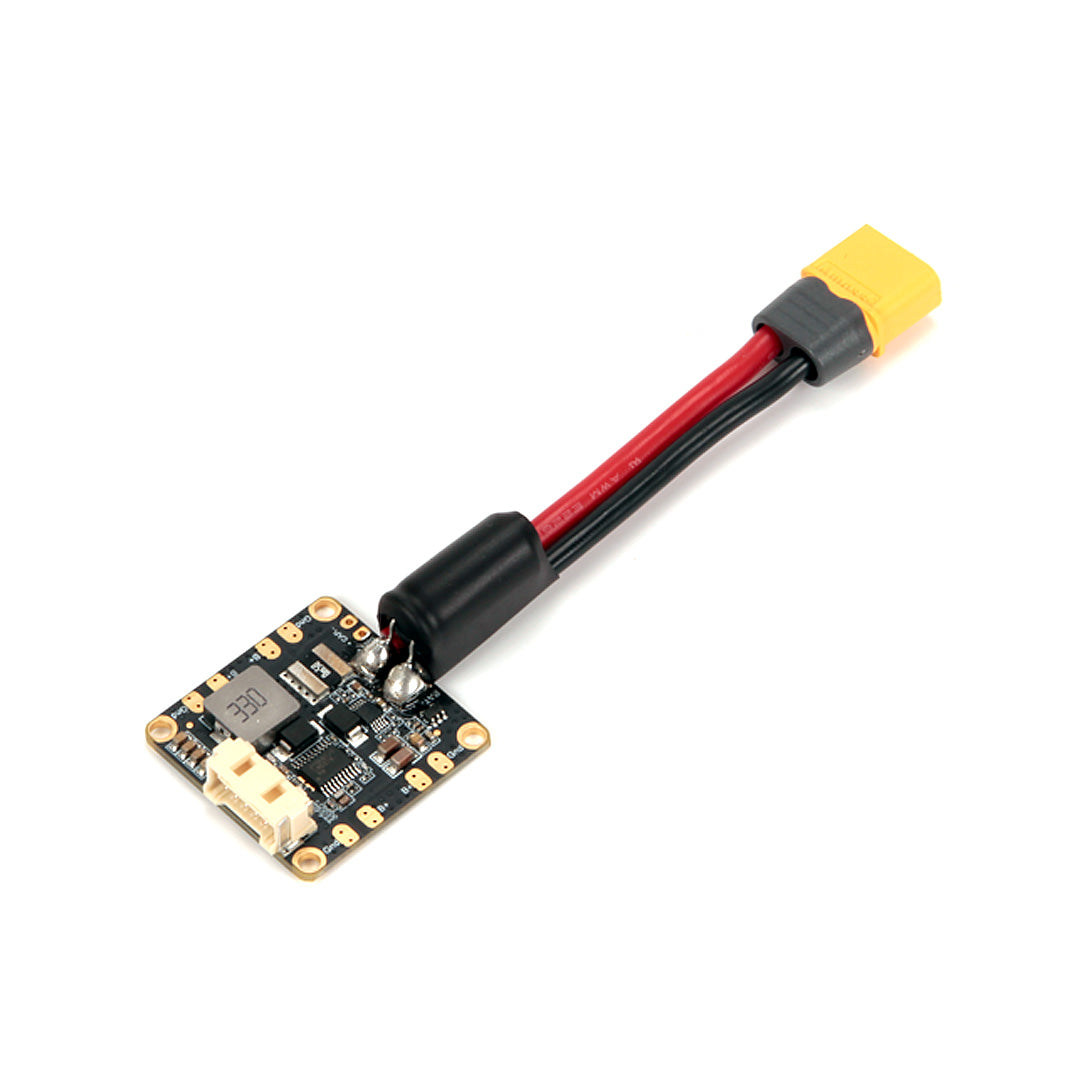

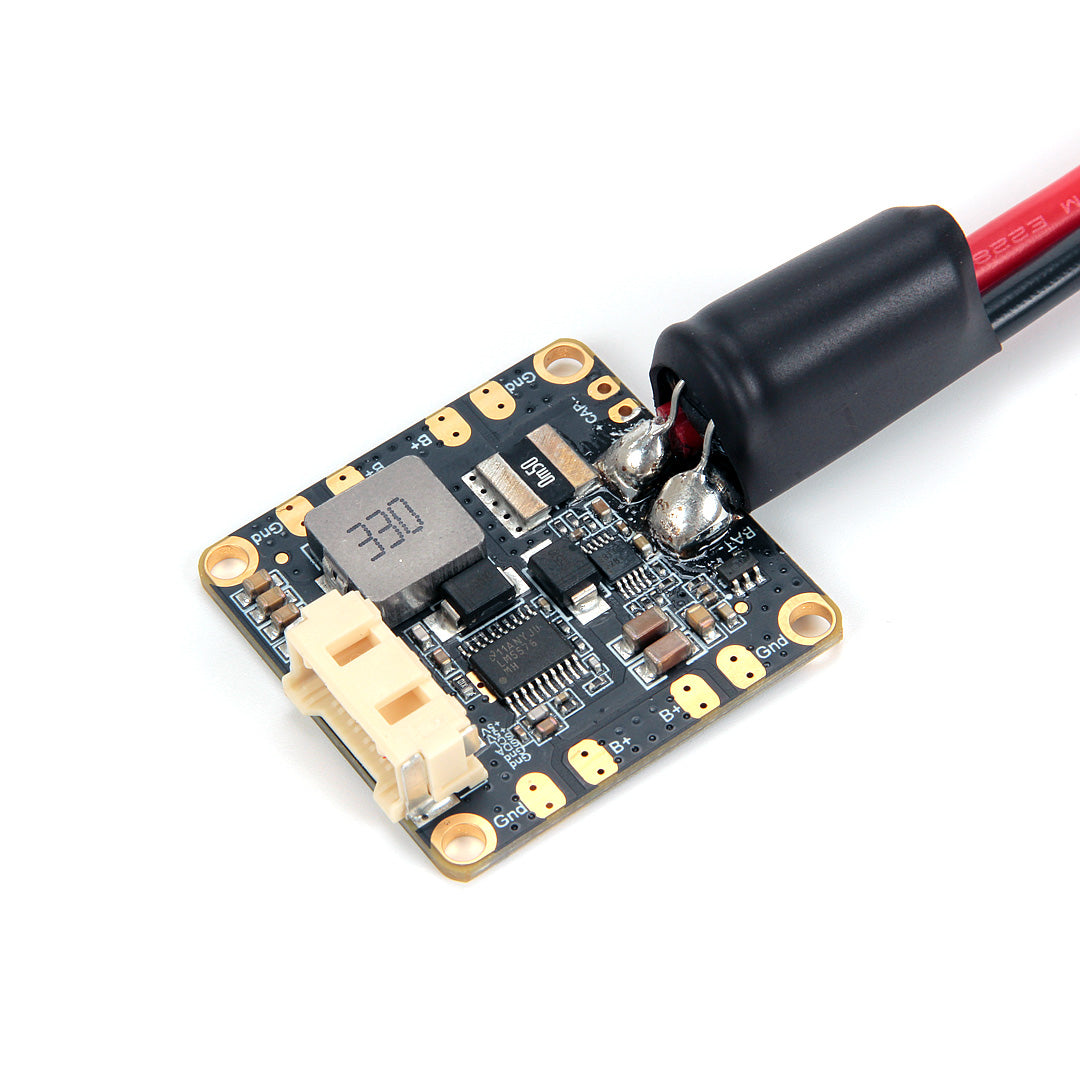

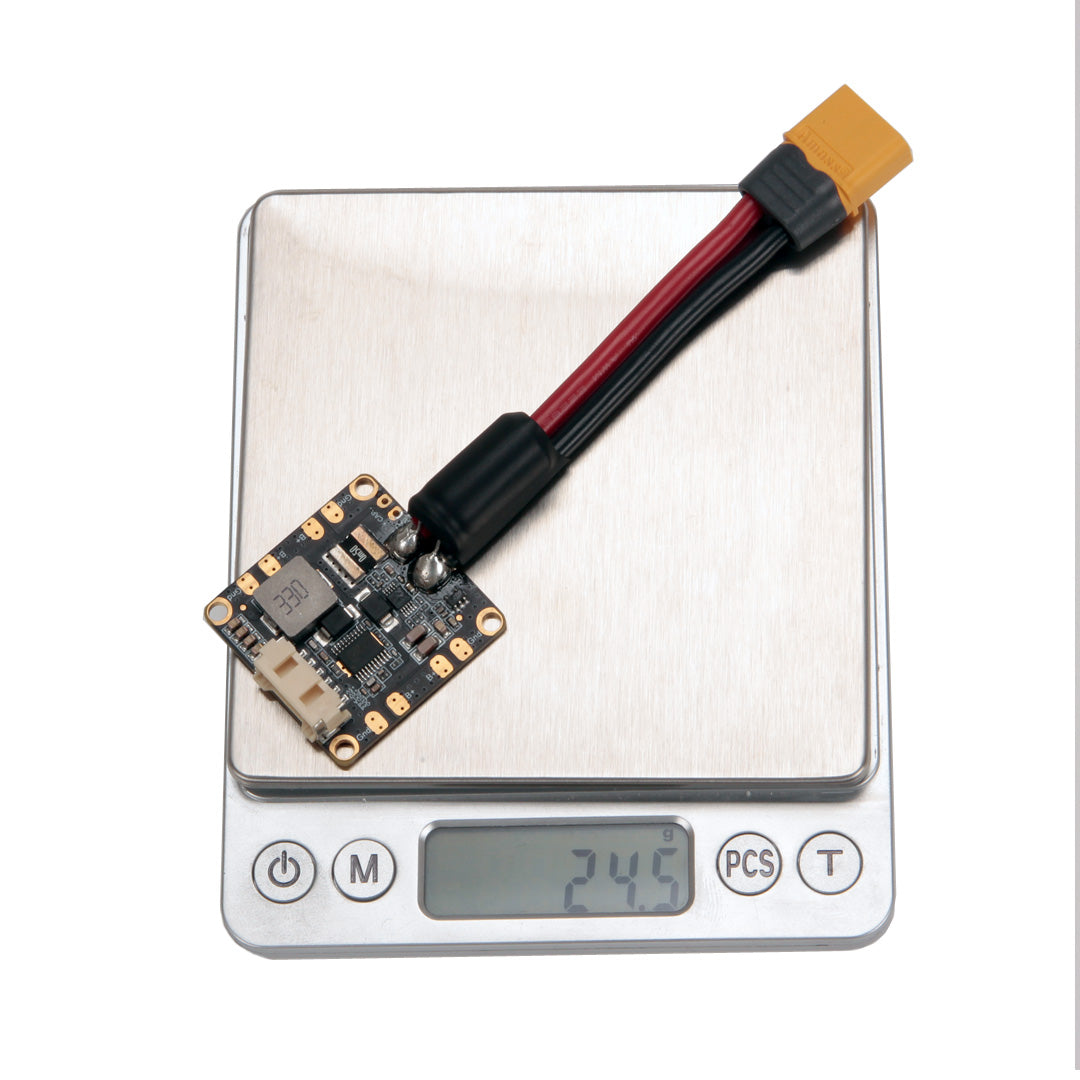

Power module Holybro PM06D-14S The PM06D provides regulated battery power for your Pixhawk® 5X and 6X, as well as battery current and voltage measurement, all via a 6-pin cable. It has a built-in power distributor that allows the ESC and FC to be powered using the same board. The built-in switching regulator supplies 5.2V and a maximum of 3A from LiPo batteries up to 14S. The power supply module is supplied fully assembled with the XT60 connector and capacitor. The 2.00 mm pitch Molex CLIK-Mate Wire-to-Board connector is rated for 3.0 A per contact. - PM06D is supported by PX4 system. It is supported for Ardupilot version 4.4 and later. - This PM uses I2C digital data signal output and is not compatible with flight controllers that use analog PM such as Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5 or Durandal flight controllers. Specifications: - Input voltage: 2S- 14S - PCB Cont. Current load: 1.5 W: 70A - PCB Burst Current Rating: 70A (<60s) - Maximum current sensing: 327A - Voltage and current monitor with I2C compatible interface - Connector outputs: 1: 5.2 V and max. 3 A - Weight: 24.5 g The package contains: - 1x power supply module PM06D - 1x 6-pin cable with a pitch of 2.00 mm
