RUSH BLADE power filter board
RUSHFPV's RUSH BLADE Power Filter Board was created to help RUSH BLADES ESC achieve full filtering with its compact structure and high performance. Excessive voltage spikes can cause interference to other components. Current surges generated during crashes can also have a strong impact on the MOSFET and power supply and can cause damage.

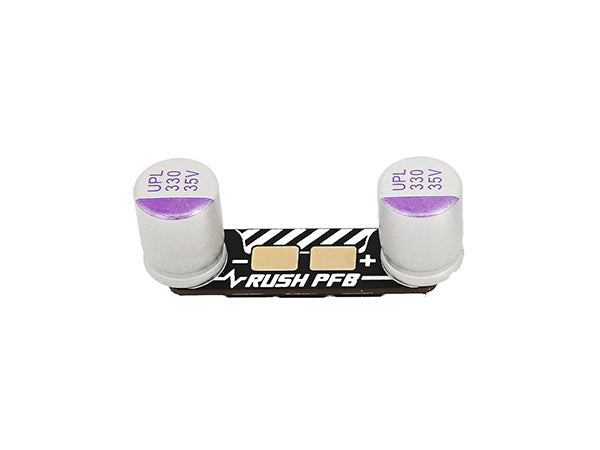

The RUSH PFB is small in size and can be installed on the back of the ESC as an add-on device to the filter. It is equipped with two 35V 330uF high speed fixed capacitors and the parallel ESR is very low 5m0 (TEST FREQ @10KHz)! It has a good filtering effect on high-frequency interference generated by the ESC.

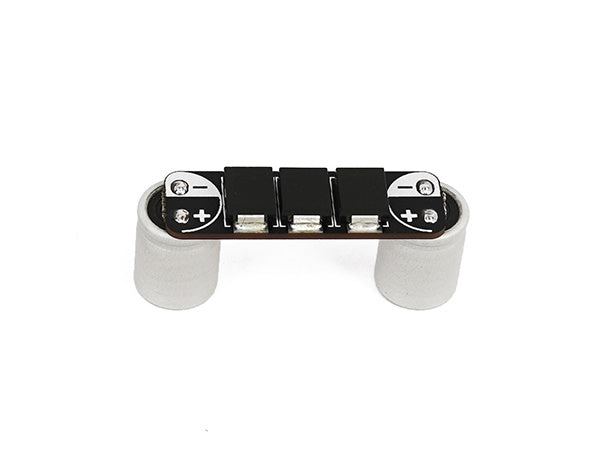

There are 3 high power TVS diodes on board which can reduce voltage spikes at ns speeds and absorb high voltage surges caused by propeller collisions during crash in time to protect field effect tube and other components from shocks. . We recommend installing it in a high-performance 6S brushless system.
The package contains
1 x TVS board
2 x Ultra Low ESR fixed capacitor
3 x high power TVS diode
