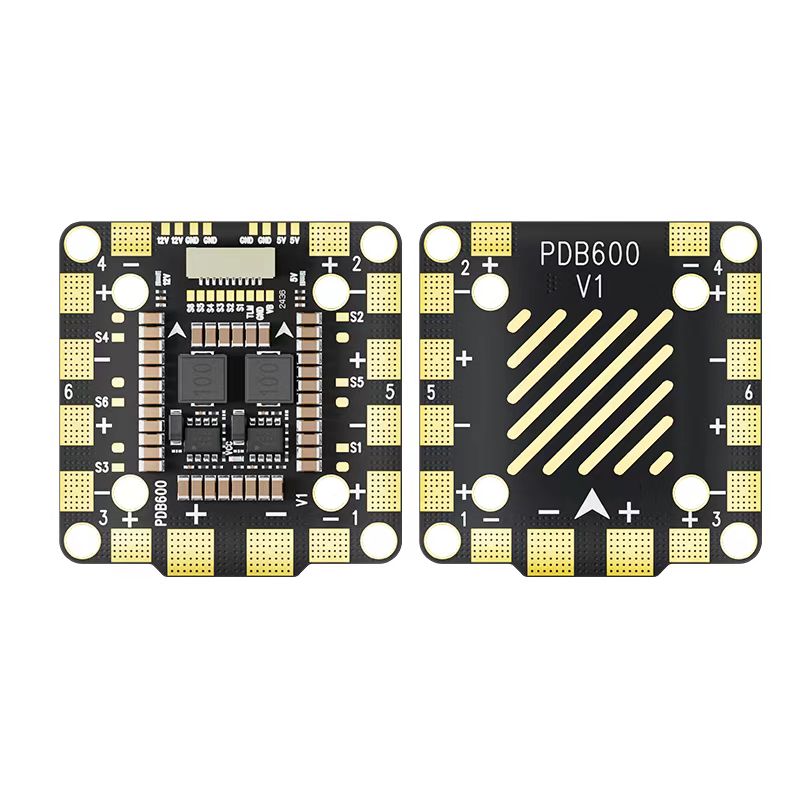

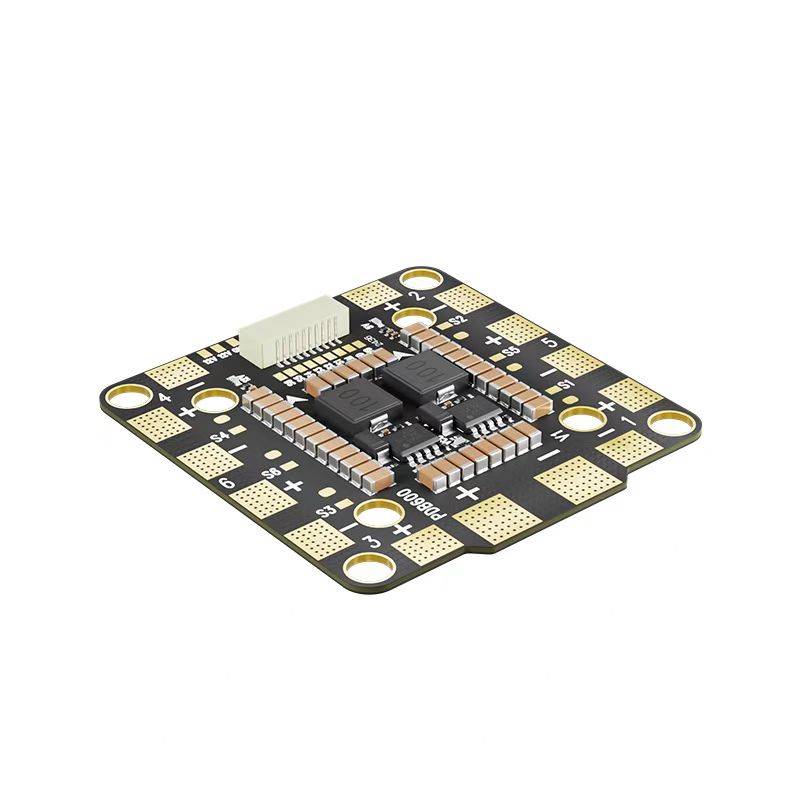

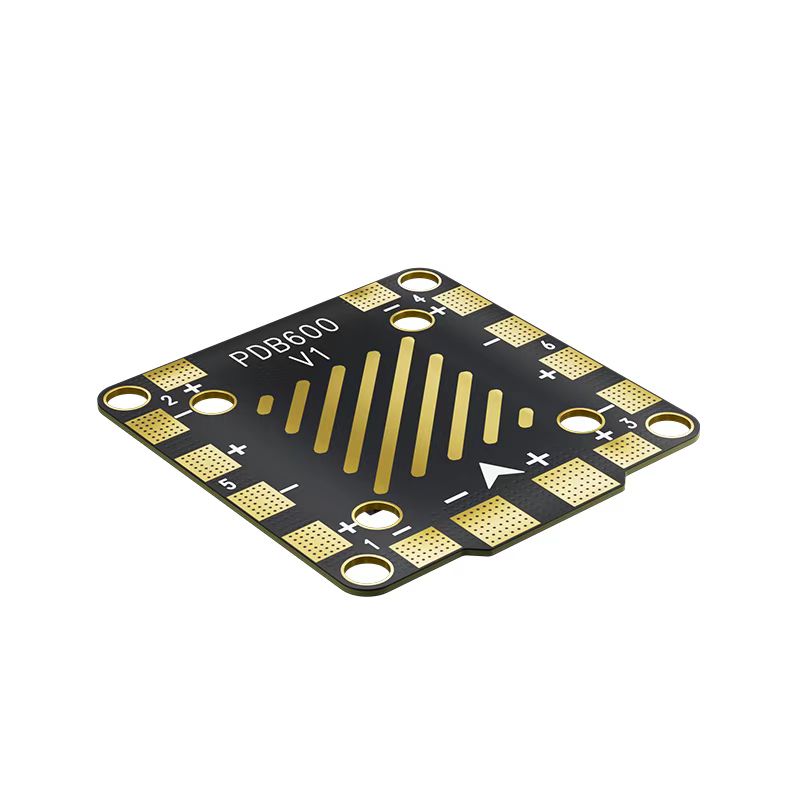

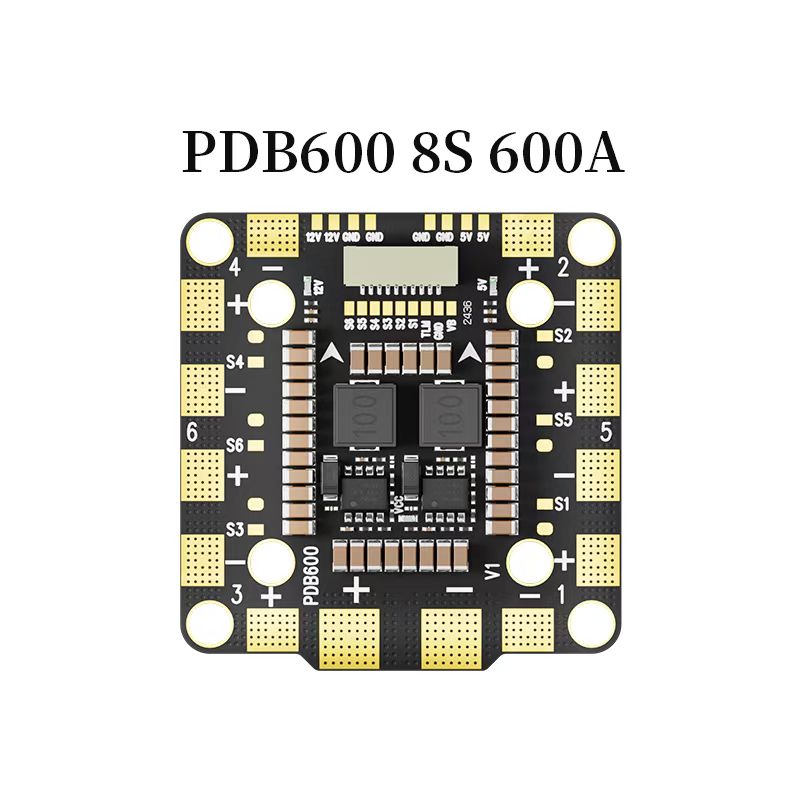

PILOTIX PDB600 8S 600A power distribution board
High performance power distribution board designed for high current applications. The PILOTIX PDB600 supports up to 8S LiPo input and provides efficient power distribution with a maximum continuous current of 600A. Thanks to the compact dimensions and durable construction of the printed circuit board, it ensures reliable performance even in demanding conditions.
Specifications:
Input Voltage: 4-8S LiPo
Maximum Continuous Current: 100A × 6
Current Scaling: 110A × 6
Built-in Ammeter: Supported
Telemetry: Supported
Working Temperature: -20°C to +55°C
Storage Temperature: -20°C to +70°C
Working Humidity: 20-95%
Mounting hole: M3 30.5 × 30.5mm / M3 45 × 45mm

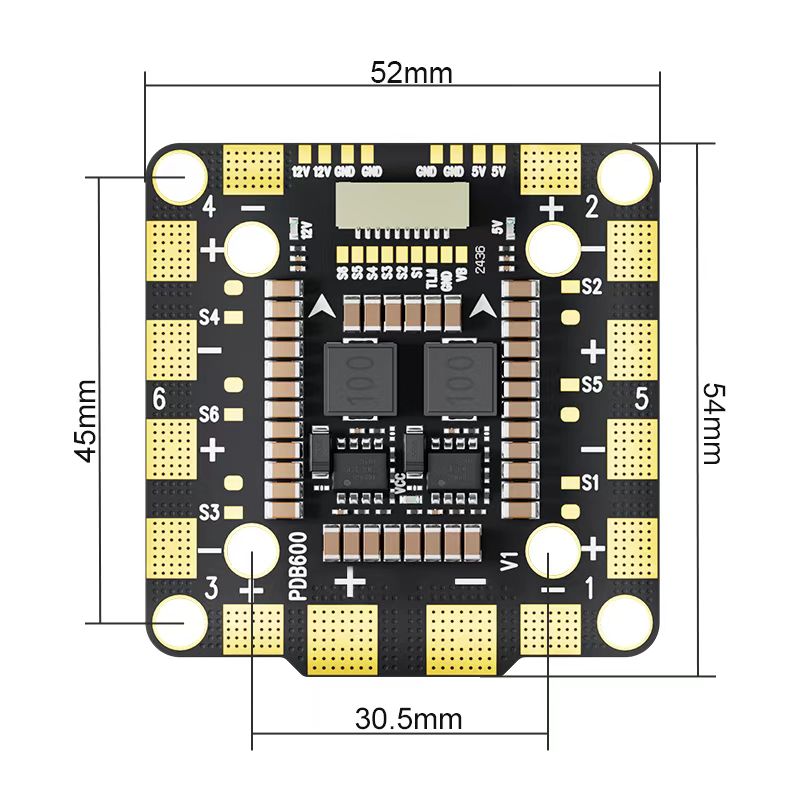

Dimensions: 52mm × 54mm
Weight: 23.5g
Package includes:
1x power distribution board PILOTIX PDB600 8S 600A
