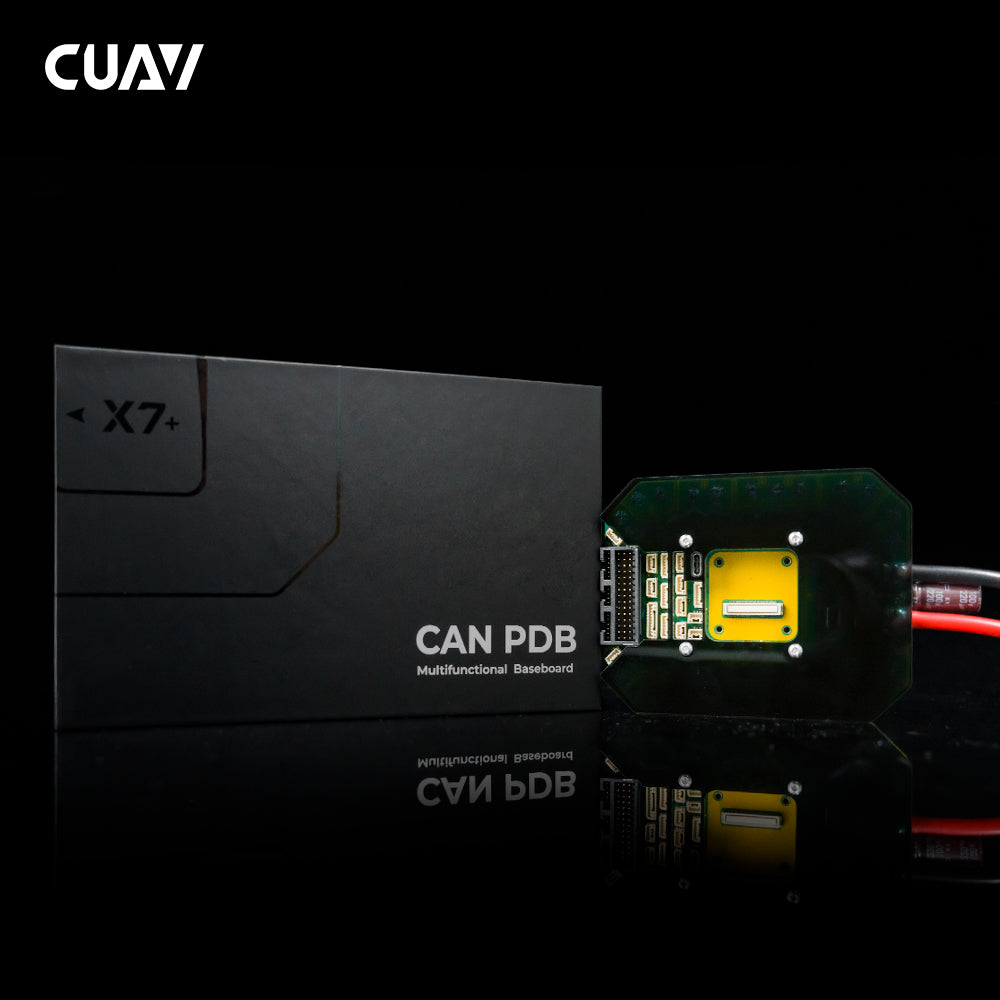

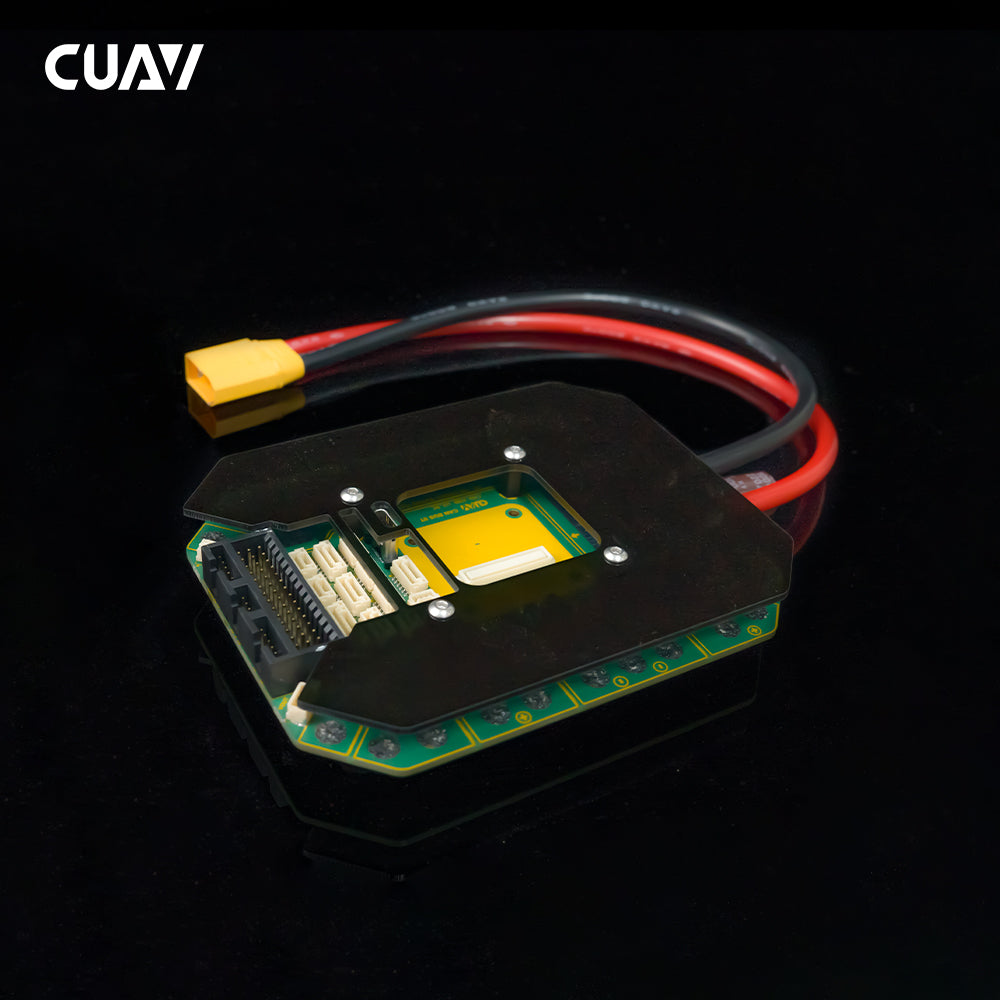

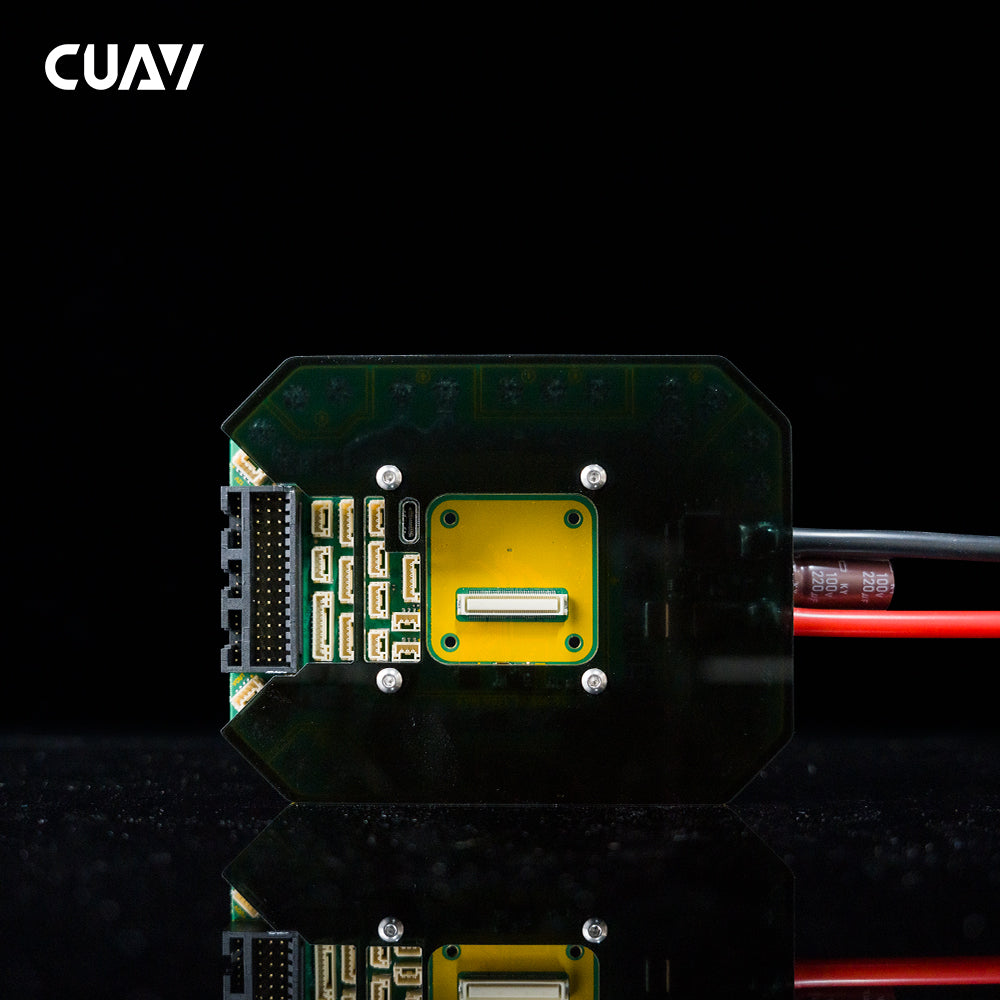

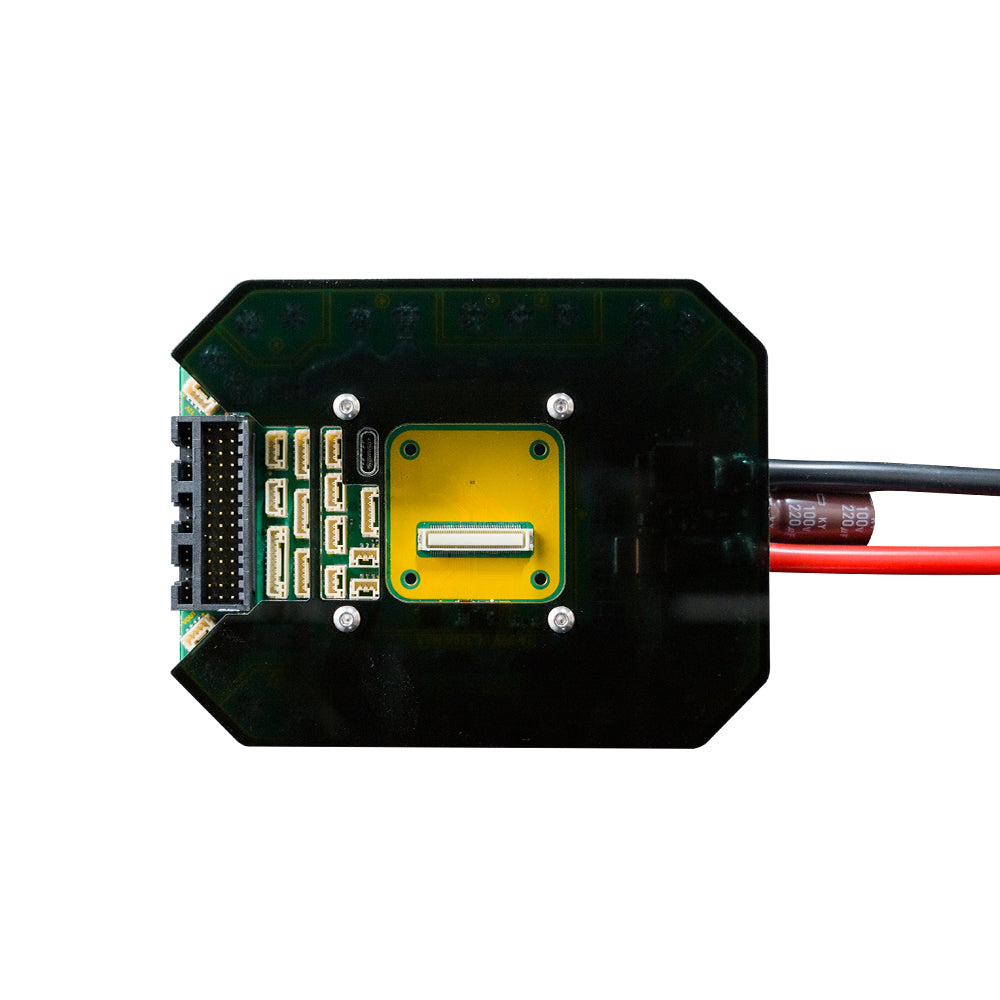

Power distribution board CUAV CAN PDB
Features:
- Support ultra-wide input voltage 10~62V
- Continuous current: 180A
- Precise voltage and current measurement, current measurement accuracy up to 110A is 0.1A, voltage measurement accuracy is 0.05V

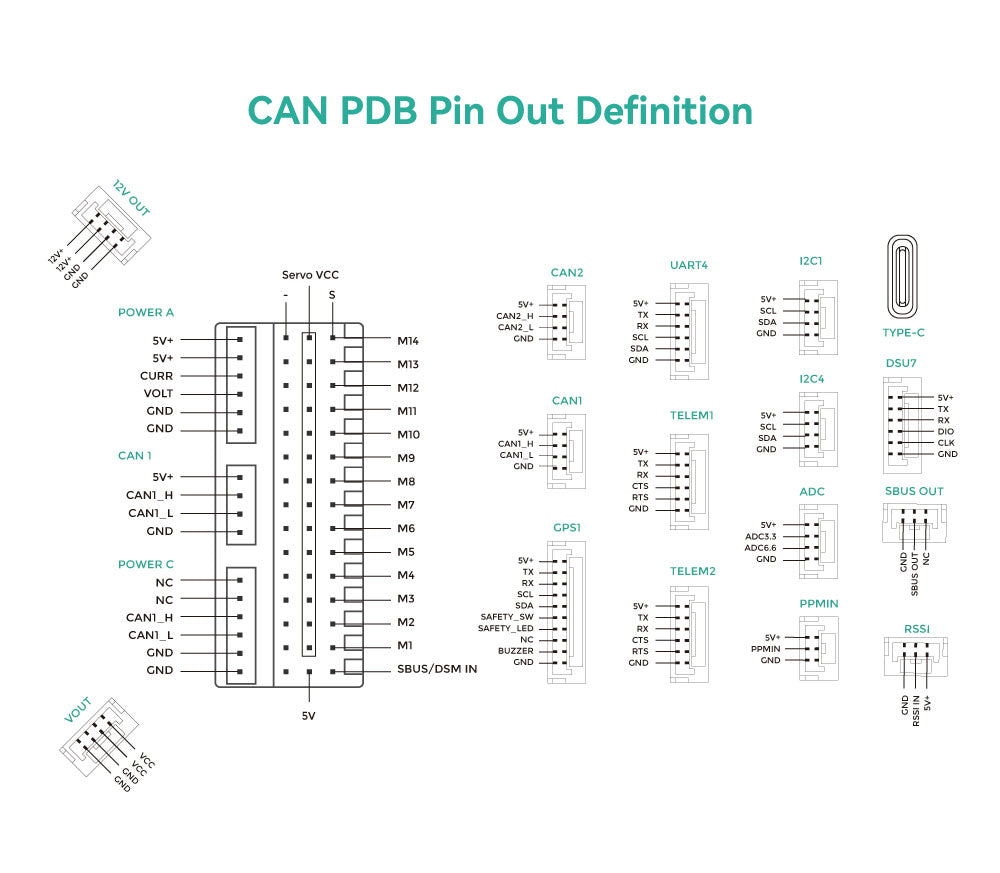

- 14 output channels for servos
- Dual regulated output interface: provides power output up to 5V/6A and 12V/4A for peripheral devices

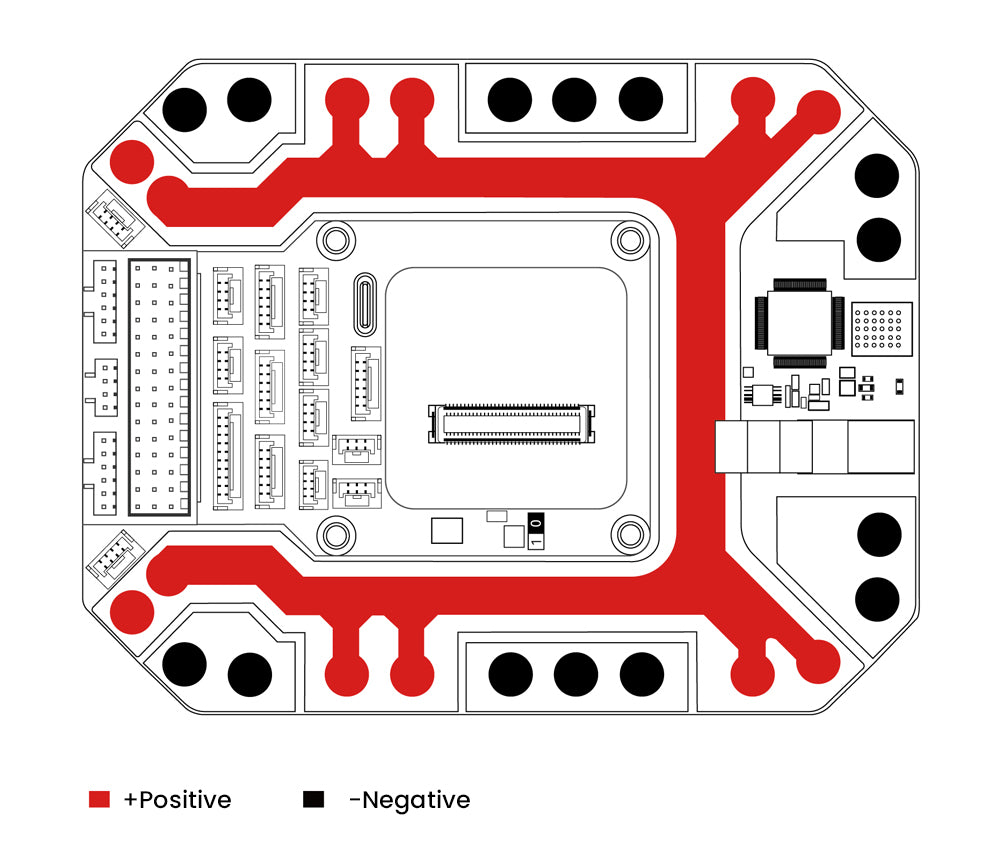

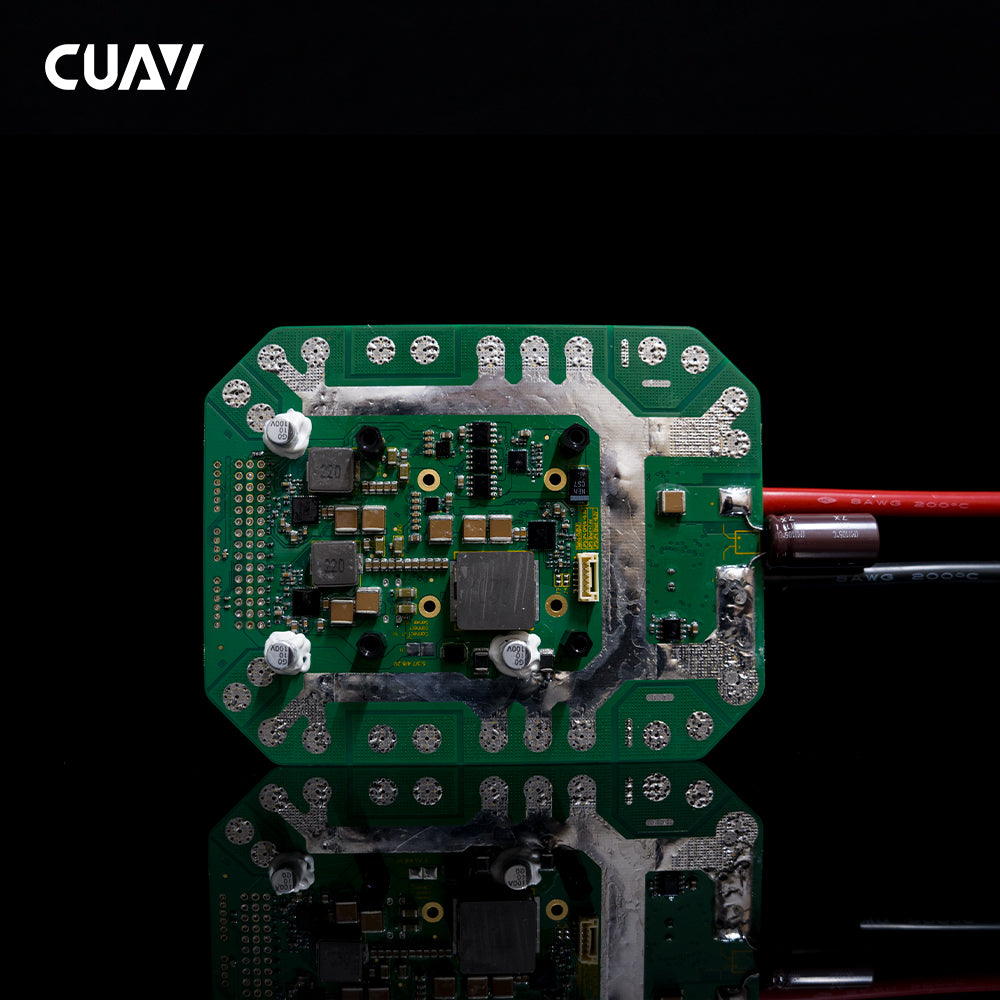

- Ultra-thick copper and tin-plated PCB board effectively reduces heating caused by internal circuit resistance at high current
- LED power indicator, visually displays LiPo voltage status

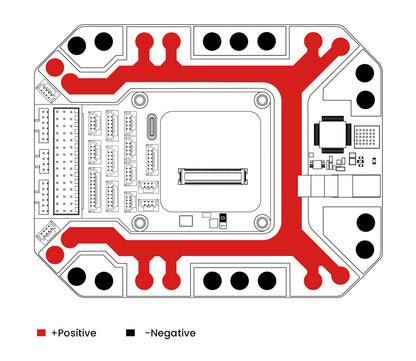

- Ultra low voltage drop with 10 main power outputs
- Future updates will support more features such as highly accurate power consumption statistics and temporary consumption transfer
- Excellent heat dissipation and current transfer ability: the ultra-thick PCB copper layer provides excellent current transfer ability, and tinted windows reduce internal resistance and improve heat dissipation ability
- 78W UBEC Regulated Output: Usually the UBEC of the distribution board has a regulated output of only 1-2A, but the CAN PDB can provide up to 5V/6A and 12V/4A regulated output
