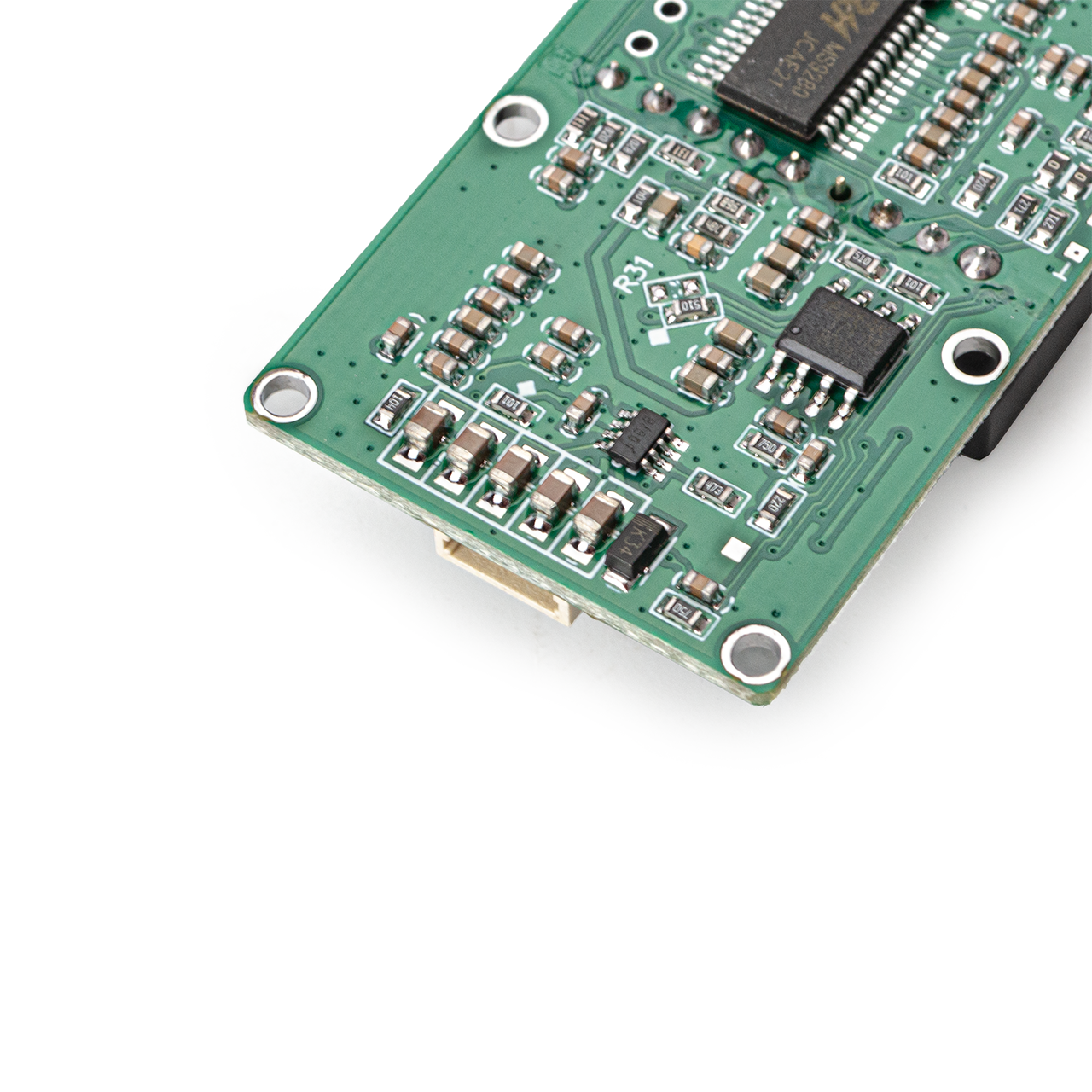

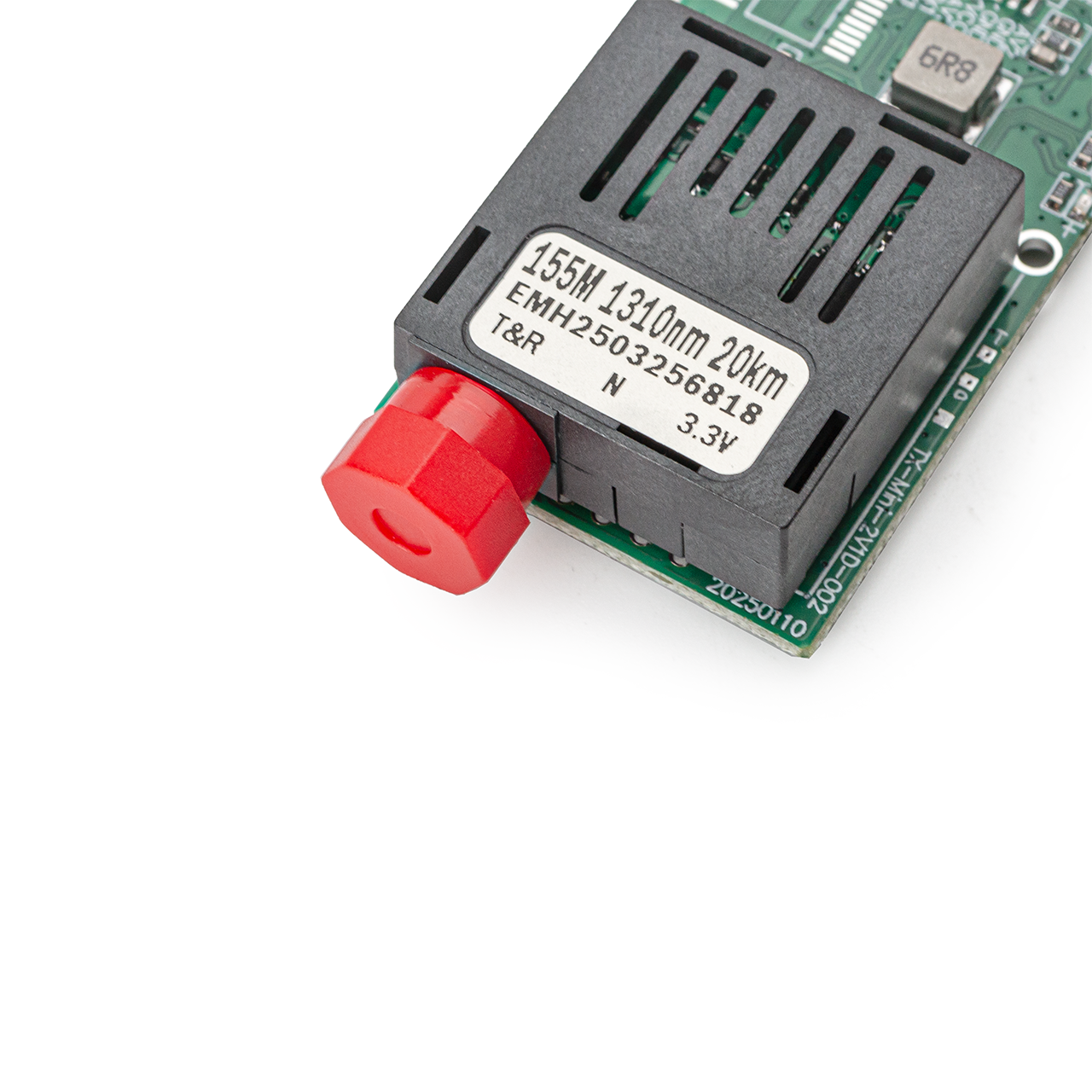

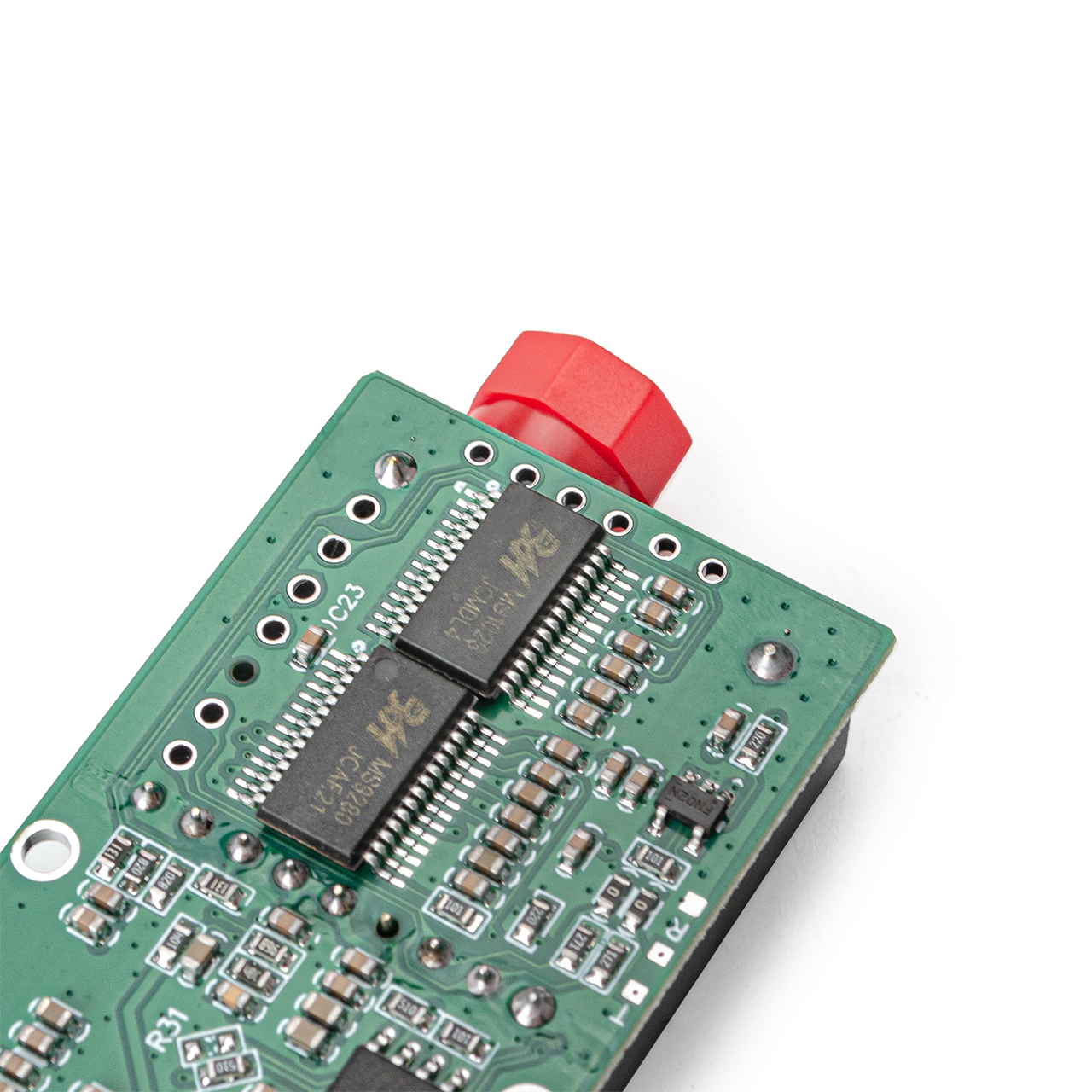

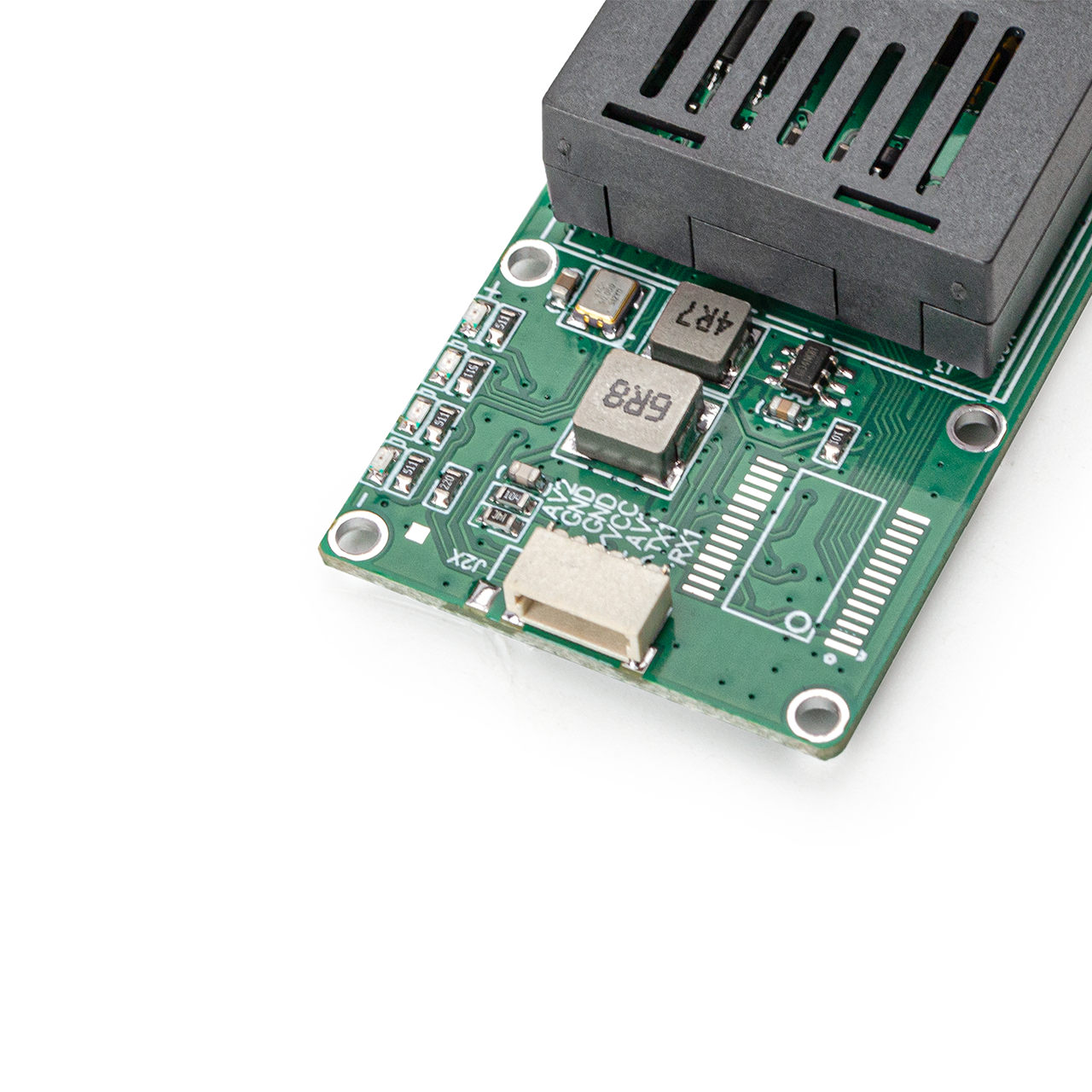

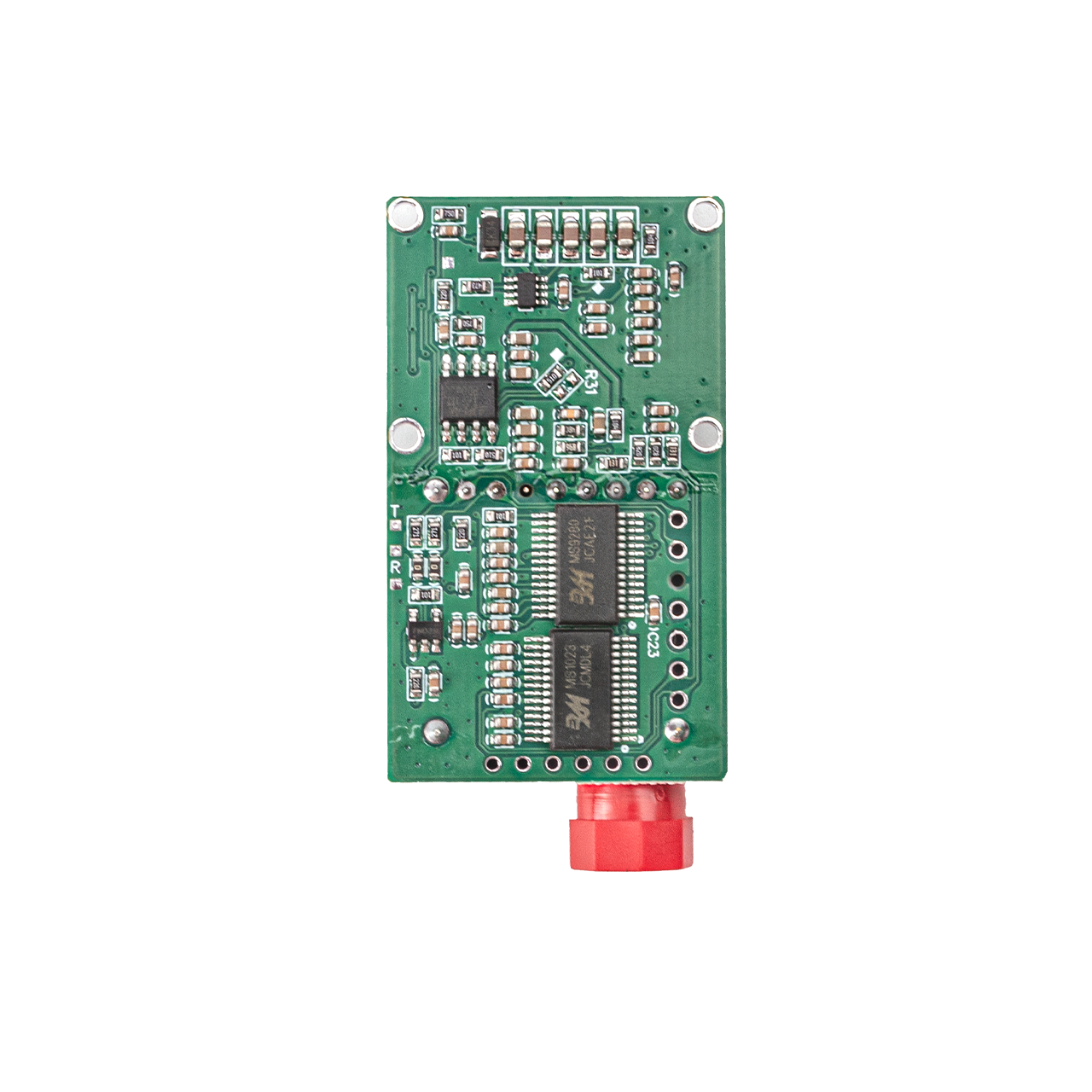

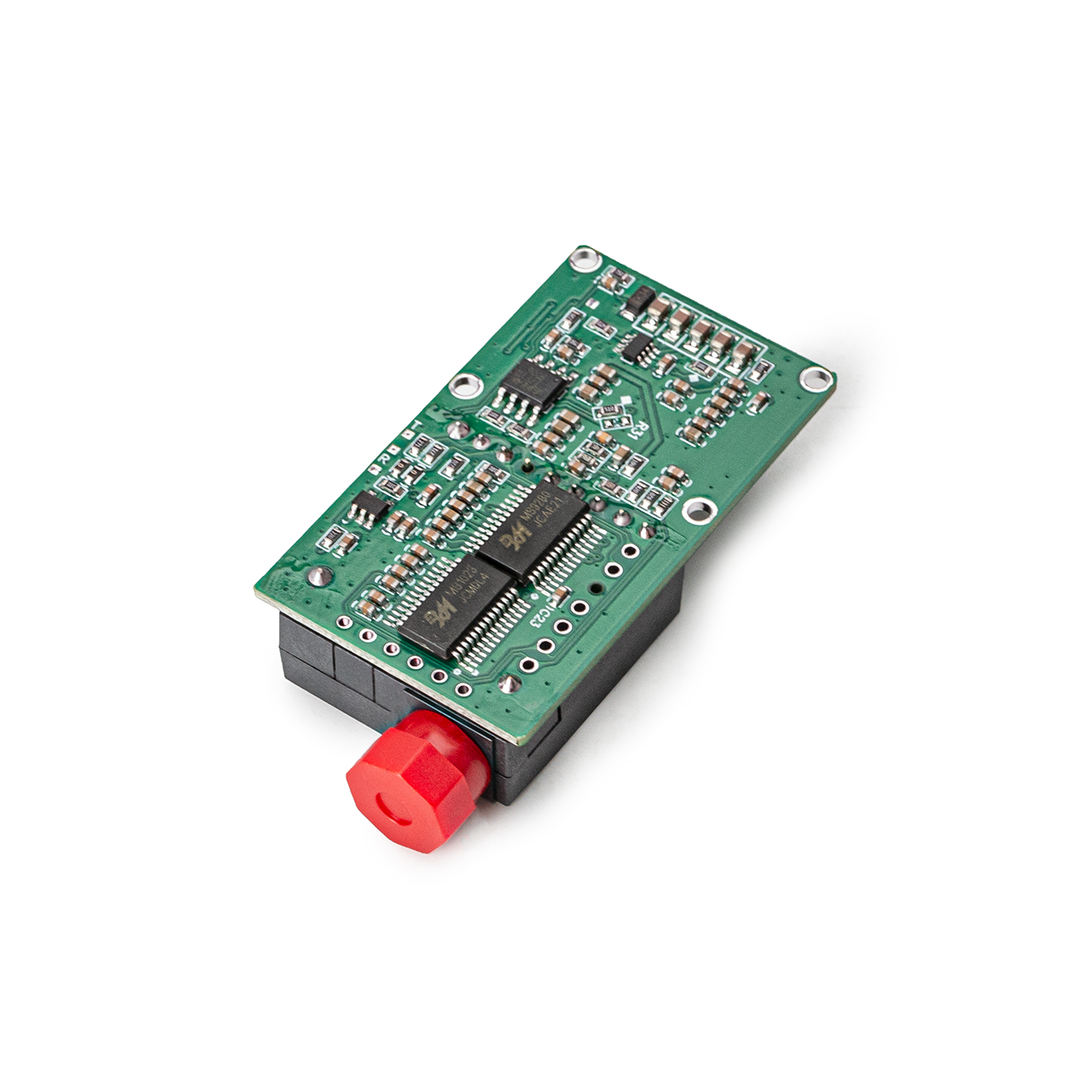

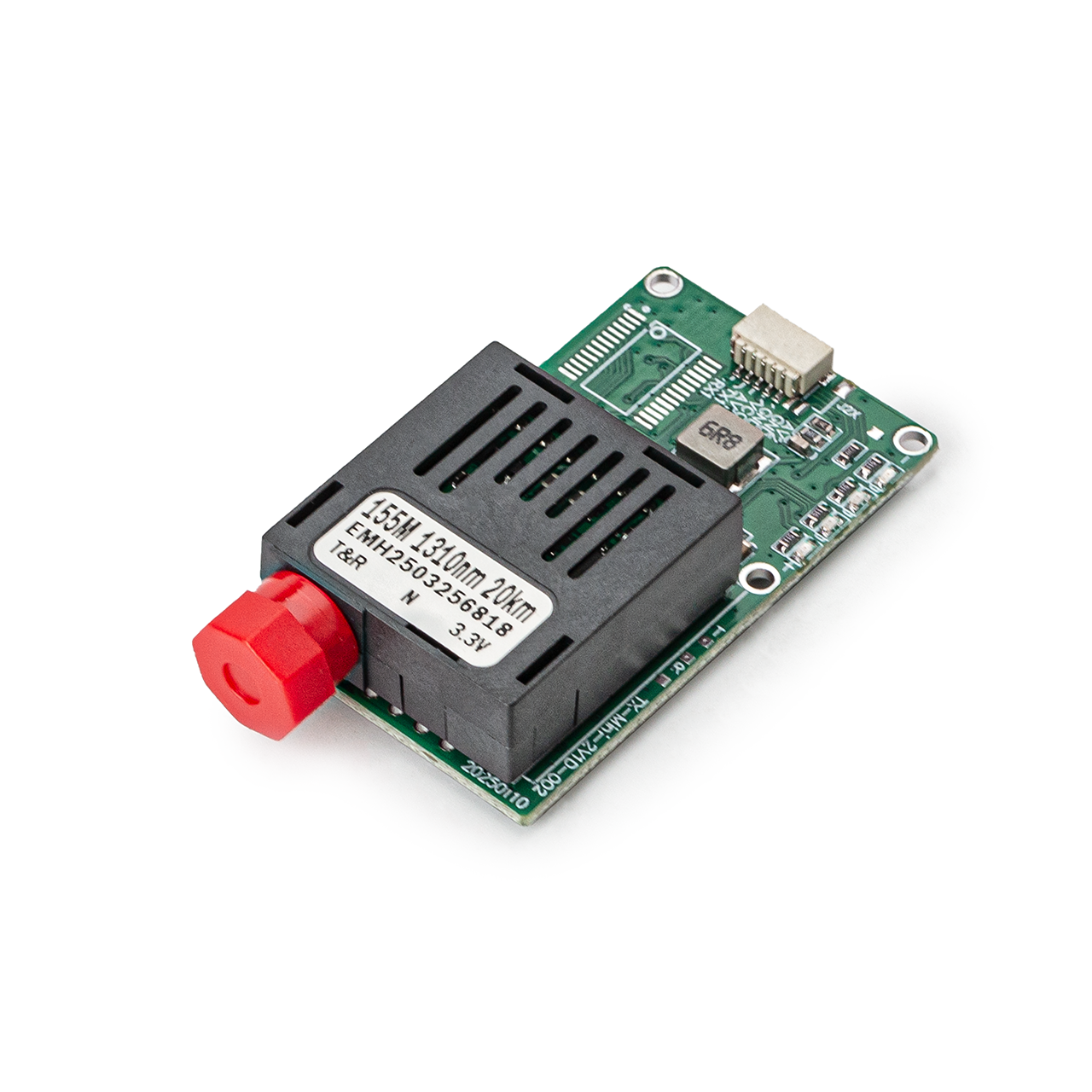

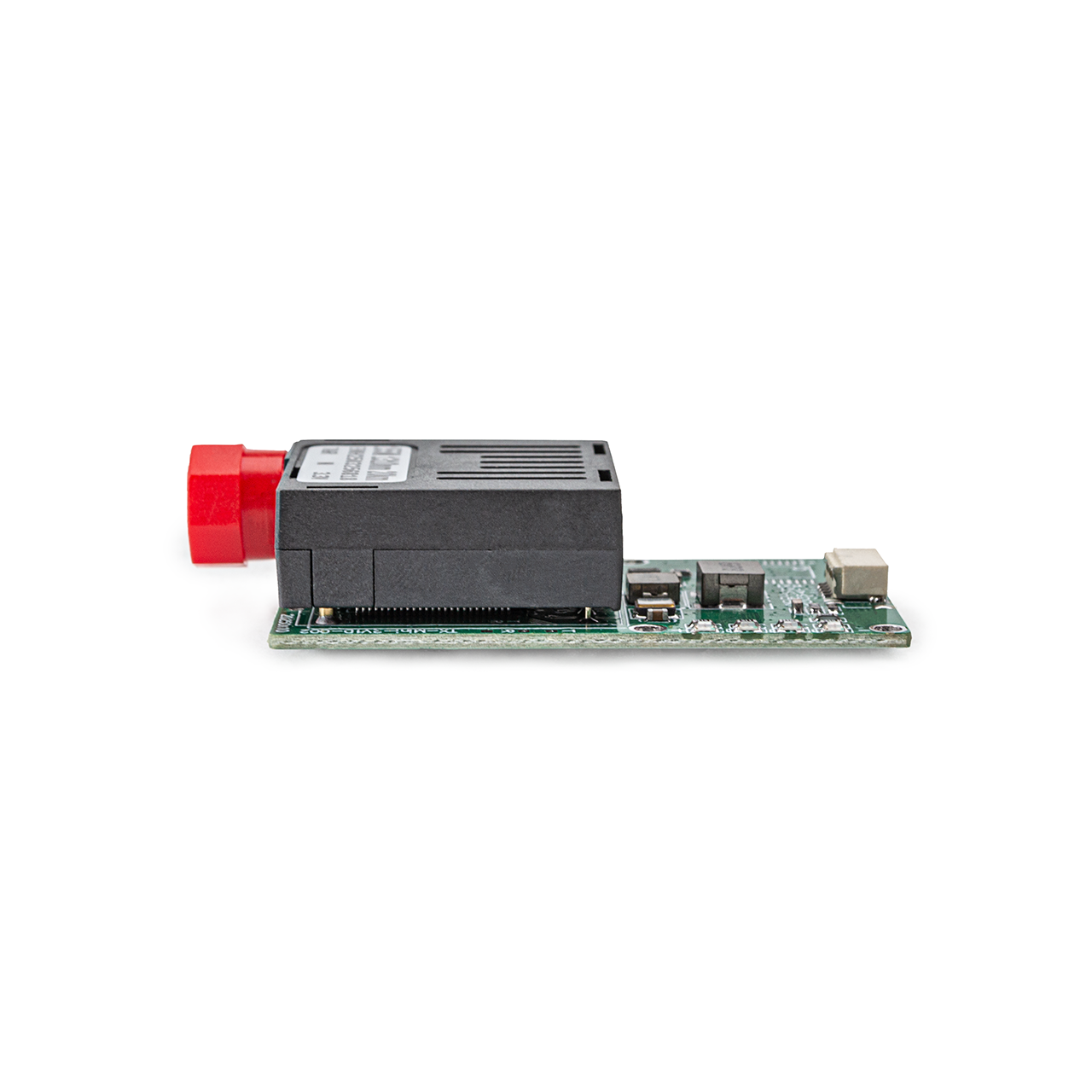

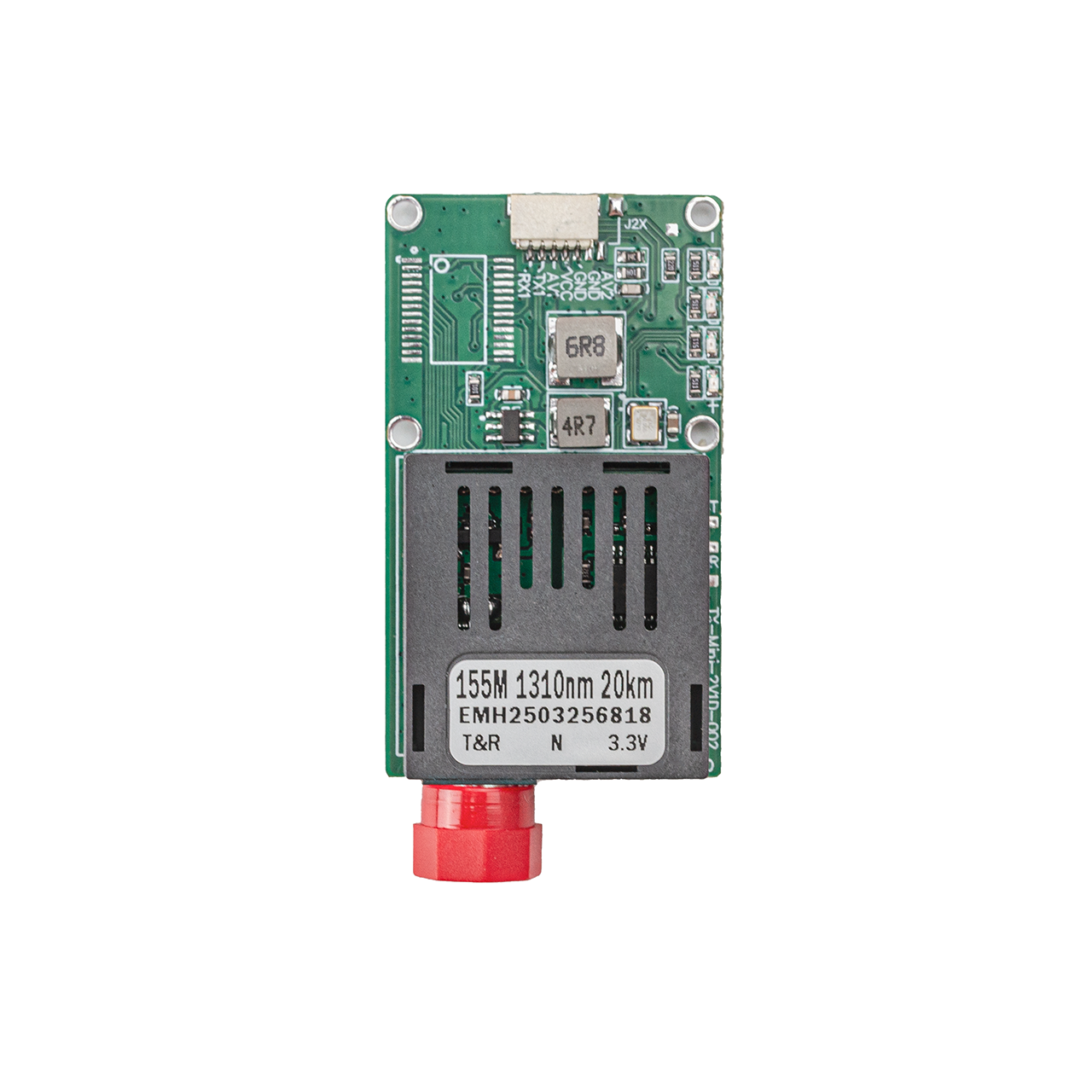

    PCB board Pilotix Air unit without cover

Optical communication is a reliable and efficient solution for terrestrial, underwater and aerial systems where large amounts of video data need to be transmitted with minimal loss or no radio communication. The Pilotix Air Unit PCB (non-enclosed version) is a specialized optical receiver designed for use with Pilotix optical communication systems. It is designed for stable, high-speed data transmission over long distances and ensures reliable performance in environments where radio signals may be weak, interrupted or unavailable. It is ideal for professional drone operations, surveillance systems, and other applications requiring uninterrupted, low-latency communications. This version comes without a cover and is ideal for developers and integrators who need maximum mounting flexibility.

Important notes:

- For reliable communication at distances of 5 km, 10 km or 15 km, we recommend choosing a transceiver with a range of up to 20 km. For communication systems with a range of 20 km and more, we recommend a transceiver with a range of 40 km.

- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility nor are we responsible for correct operation when using devices from other series.

Specifications:

Optical interface: FC interface
Optical fiber type: Singlemode-Single Fiber
Data interface: SH1.0
Video format: NTSC/PAL/SECAM

Data direction: bidirectional
Data format: TTL/SBUS
Speed: 0~1Mbps
Wavelength single-mode: 1310 (9/125μm)
Transmission distance: single-mode fiber 0~20km

The package contains:
1x Pilotix Air PCB without cover
