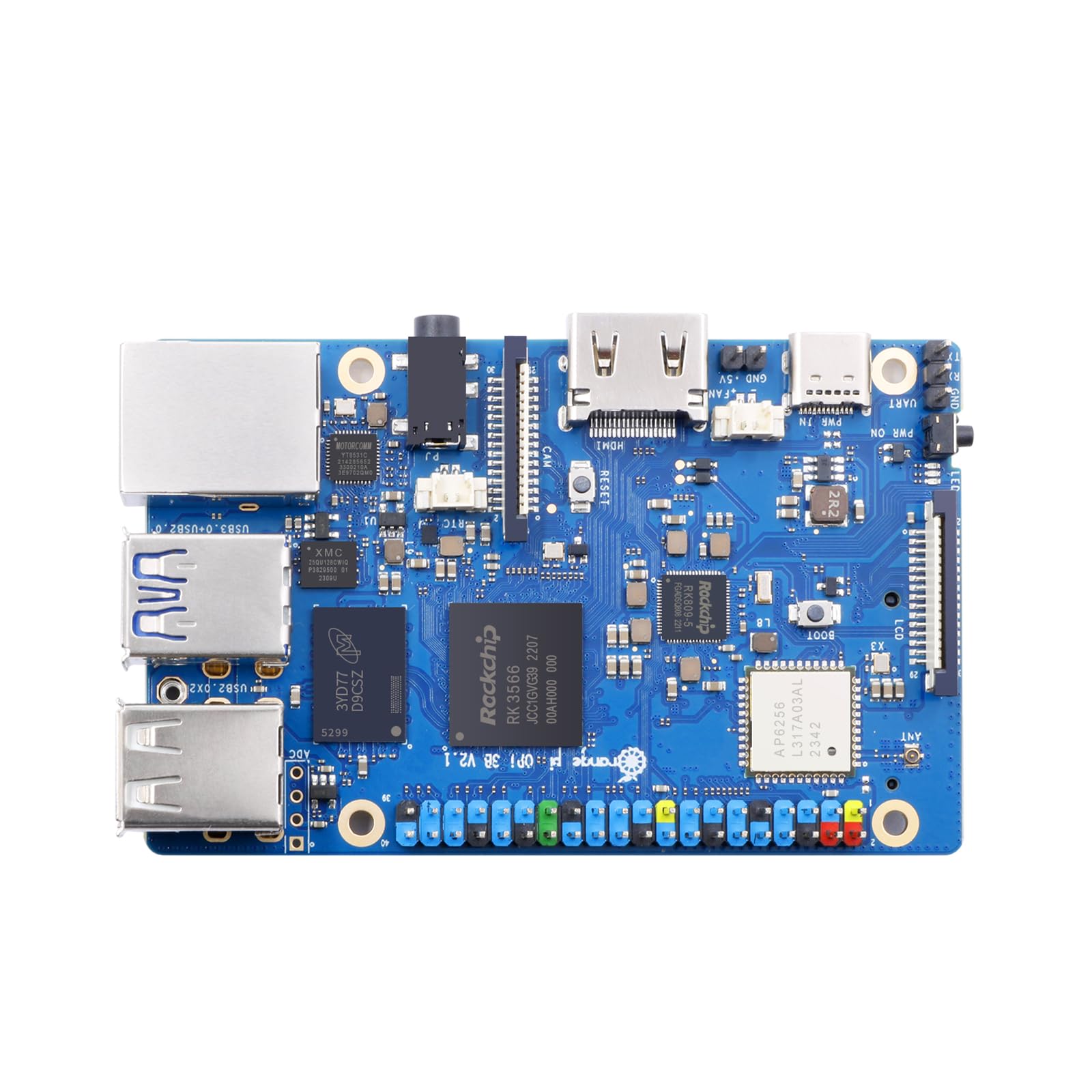

Orange Pi 3B 2GB
The Orange Pi 3B 2GB is a general-purpose single-chip computer (SBC) designed for a wide range of applications, including media centers, edge computing, artificial intelligence projects and DIY electronics. It is equipped with a Rockchip RK3566 SoC, which offers robust performance thanks to its Cortex-A55 quad-core processor and integrated Mali-G52 GPU. The integrated AI accelerator (NPU) provides a computing power of 0.8 TOPS, which enables efficient processing of machine learning tasks.
With 2GB of LPDDR4/4X RAM, the board supports various storage options including eMMC modules, SPI flash, microSD cards and an M.2 M-Key slot for SSD, offering flexibility for different project needs. Networking options are enhanced with Gigabit Ethernet, Wi-Fi 5 and Bluetooth 5.0 to ensure a reliable connection.
The Orange Pi 3B 2GB also boasts multiple display outputs, including HDMI 2.0 supporting resolutions up to 4K, MIPI DSI and eDP 1.3, making it suitable for high-definition multimedia applications. Its 40-pin GPIO connector ensures compatibility with a wide range of peripherals and accessories.
cnx-software.com
This SBC is ideal for developers, hobbyists, and educators who want to explore computing, robotics, and IoT projects. Its open nature and support for multiple operating systems provide a flexible platform for innovation and experimentation.

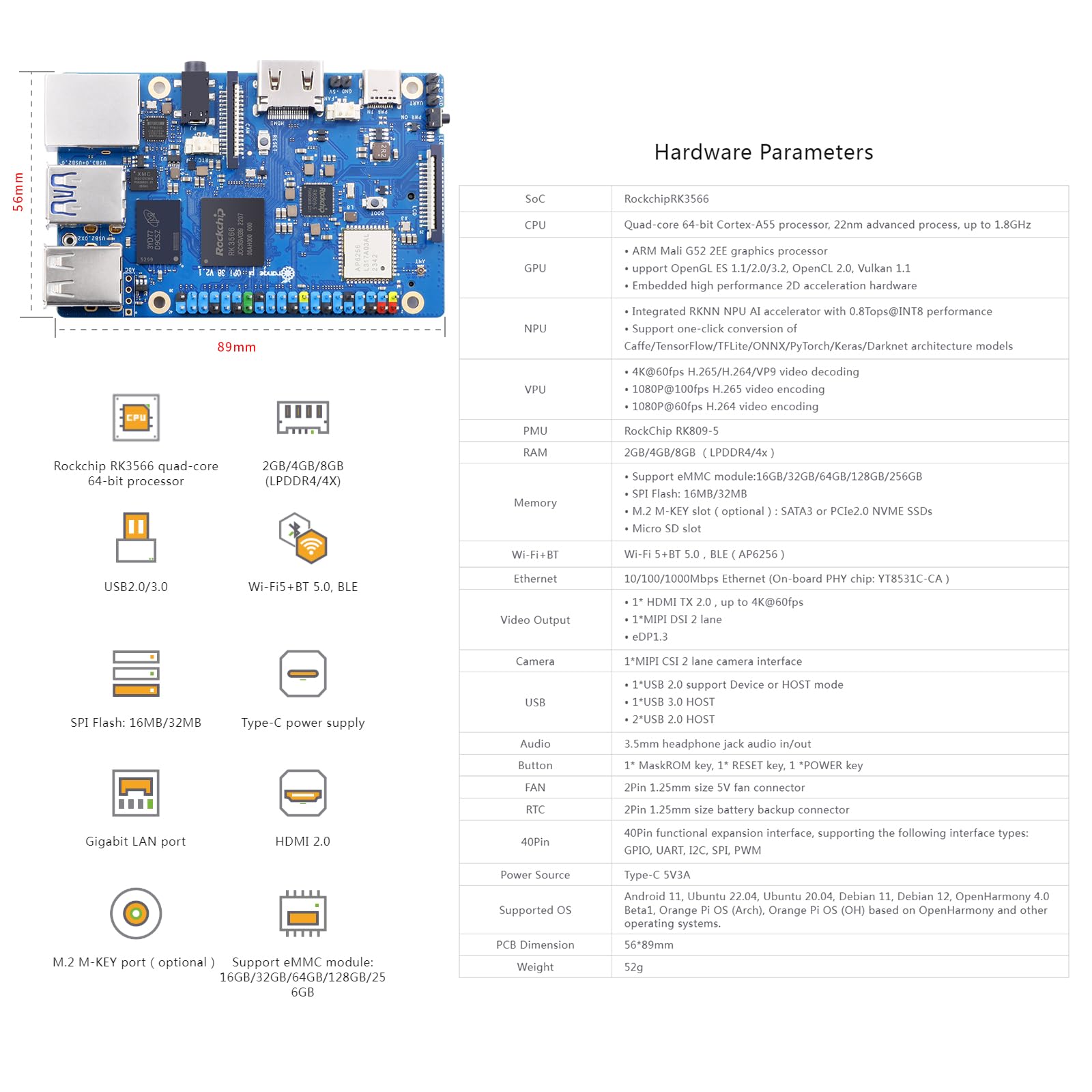

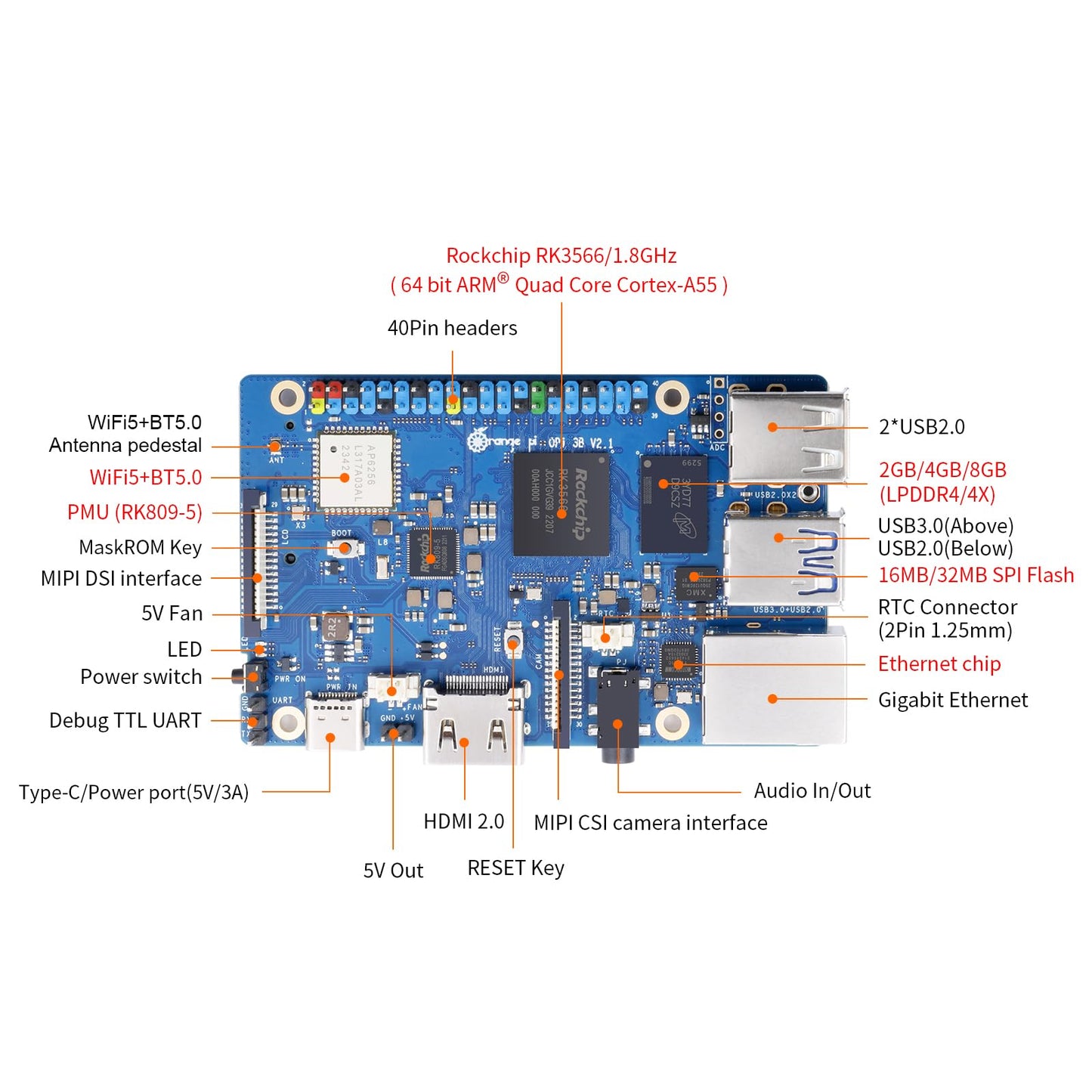

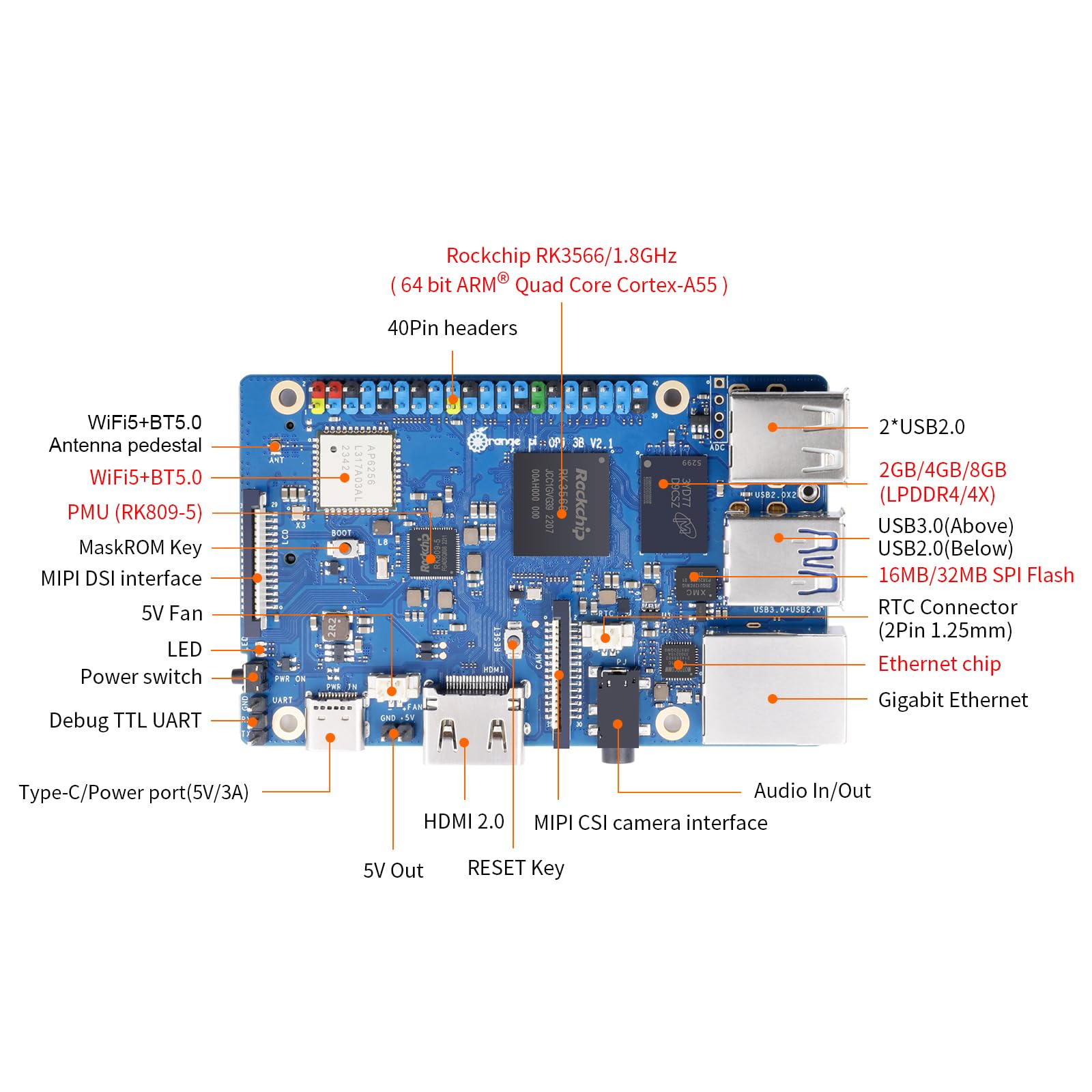

Specifications:
Processor (SoC): Rockchip RK3566, quad-core Cortex-A55, up to 1.8 GHz
Graphics (GPU): ARM Mali-G52 2EE
AI accelerator (NPU): 0.8 TOPS
Video processor (VPU):
- 4K @ 60 fps decoding H.265/H.264/VP9
- 1080p @ 100 fps encoding H.265
- 1080p @ 60 fps encoding H.264
Memory (RAM): 2 GB LPDDR4/4X

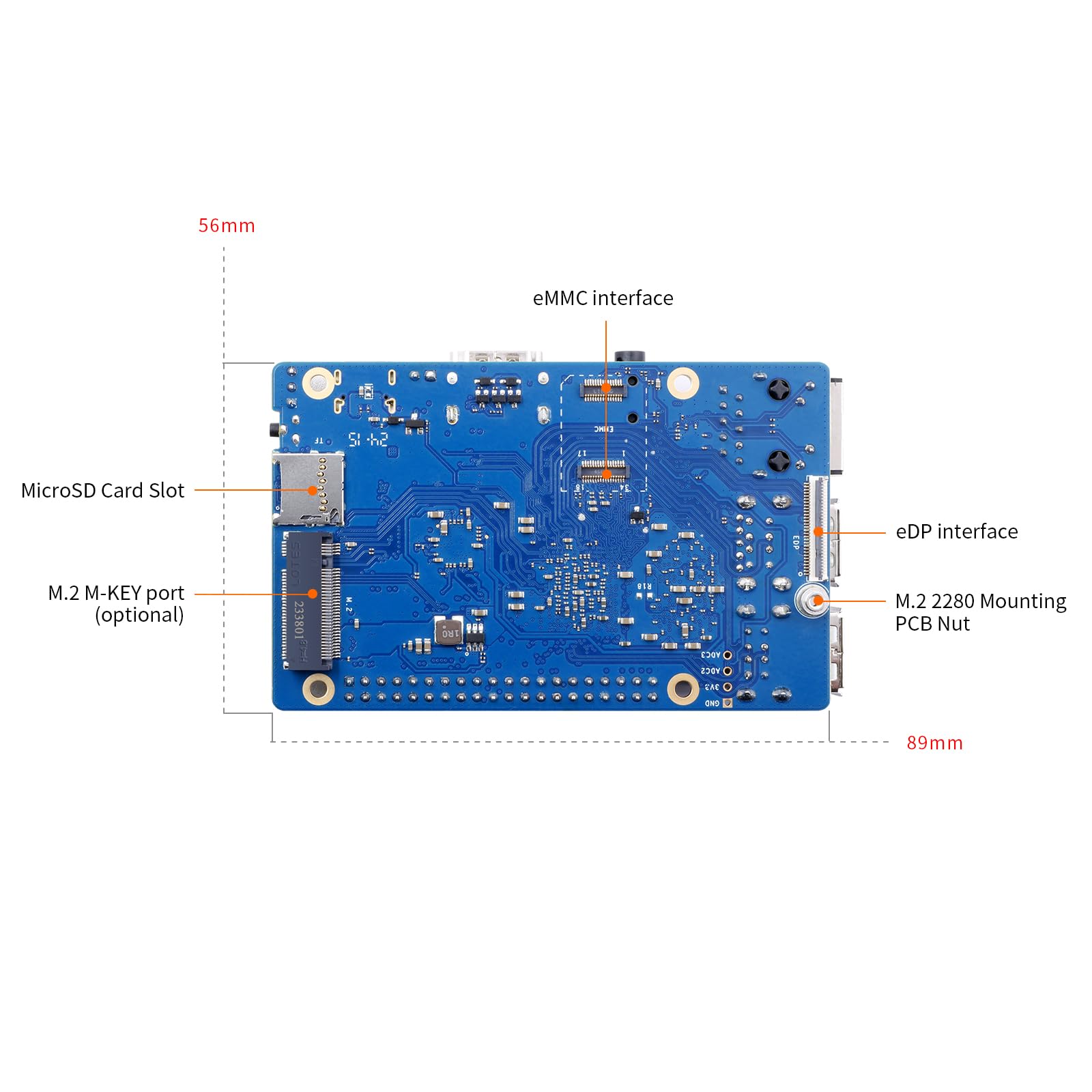

Storage options:
- eMMC module: 16 GB, 32 GB, 64 GB, 128 GB, 256 GB
- SPI Flash: 16 MB, 32 MB
- MicroSD card slot
- M.2 M-Key slot (supports SSD SATA3 or PCIe 2.0 NVMe)
Network connection:
- Gigabit Ethernet (RJ45)
- Wi-Fi 5 (802.11ac)
- Bluetooth 5.0 with BLE support
USB ports:
- 1 × USB 3.0
- 2 × USB 2.0
Outputs displays:
- 1 × HDMI 2.0 (up to 4K @ 60Hz)
- 1 × MIPI DSI
- 1 × eDP 1.3
Camera interface: 1 × MIPI CSI
Audio:
- 3.5mm headphone jack
- Digital audio via HDMI

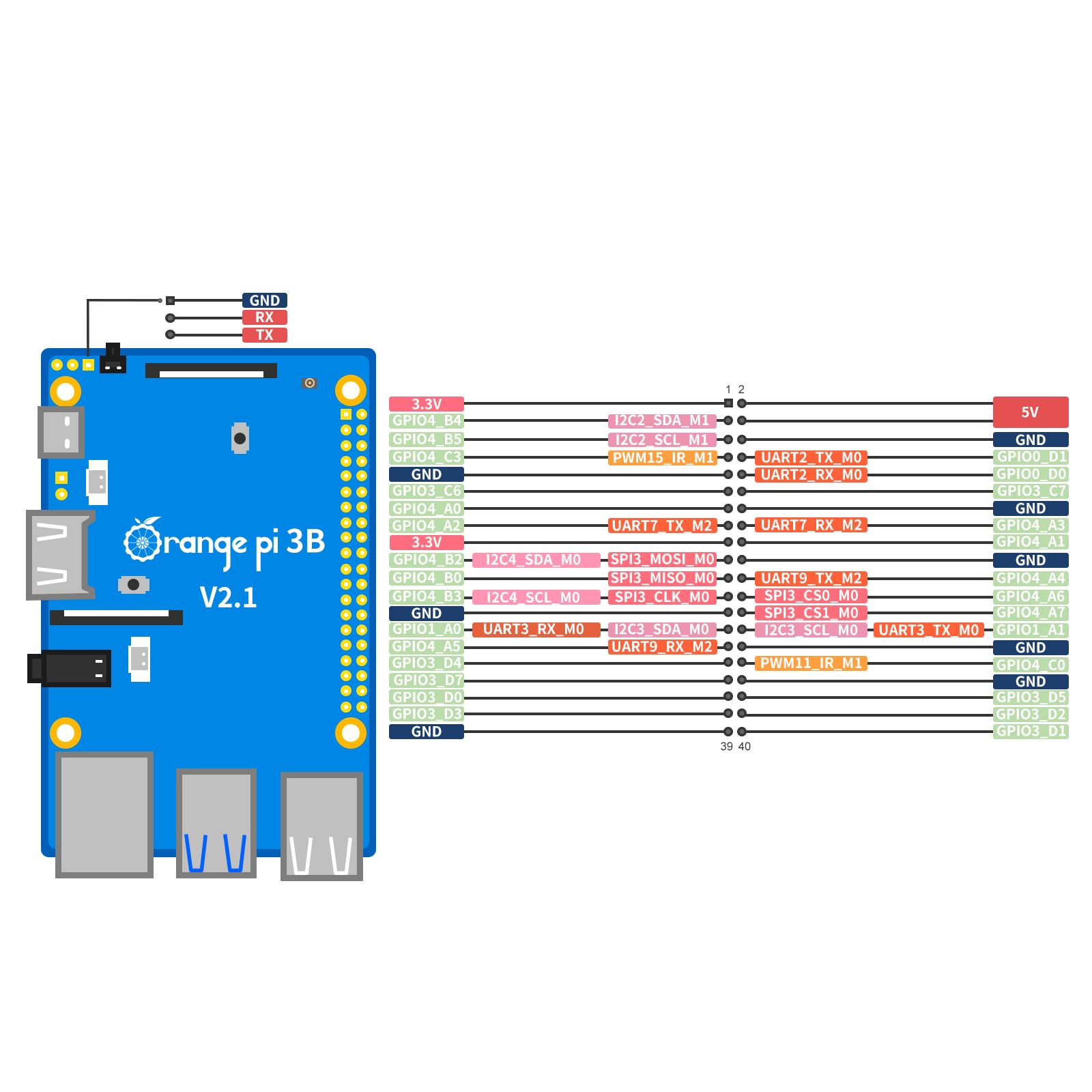

GPIO: 40-pin connector (compatible with Raspberry Pi HAT)
Power: 5V via USB Type-C
Supported operating systems:
- Android 11
- Ubuntu 20.04/22.04
- Debian 11/12
- OpenHarmony 4.0 Beta1
- Orange Pi OS (Arch)
- Orange Pi OS (OH) based on OpenHarmony
The package contains:
1x Orange Pi 3B 2Gb
