Code: SKU:6809

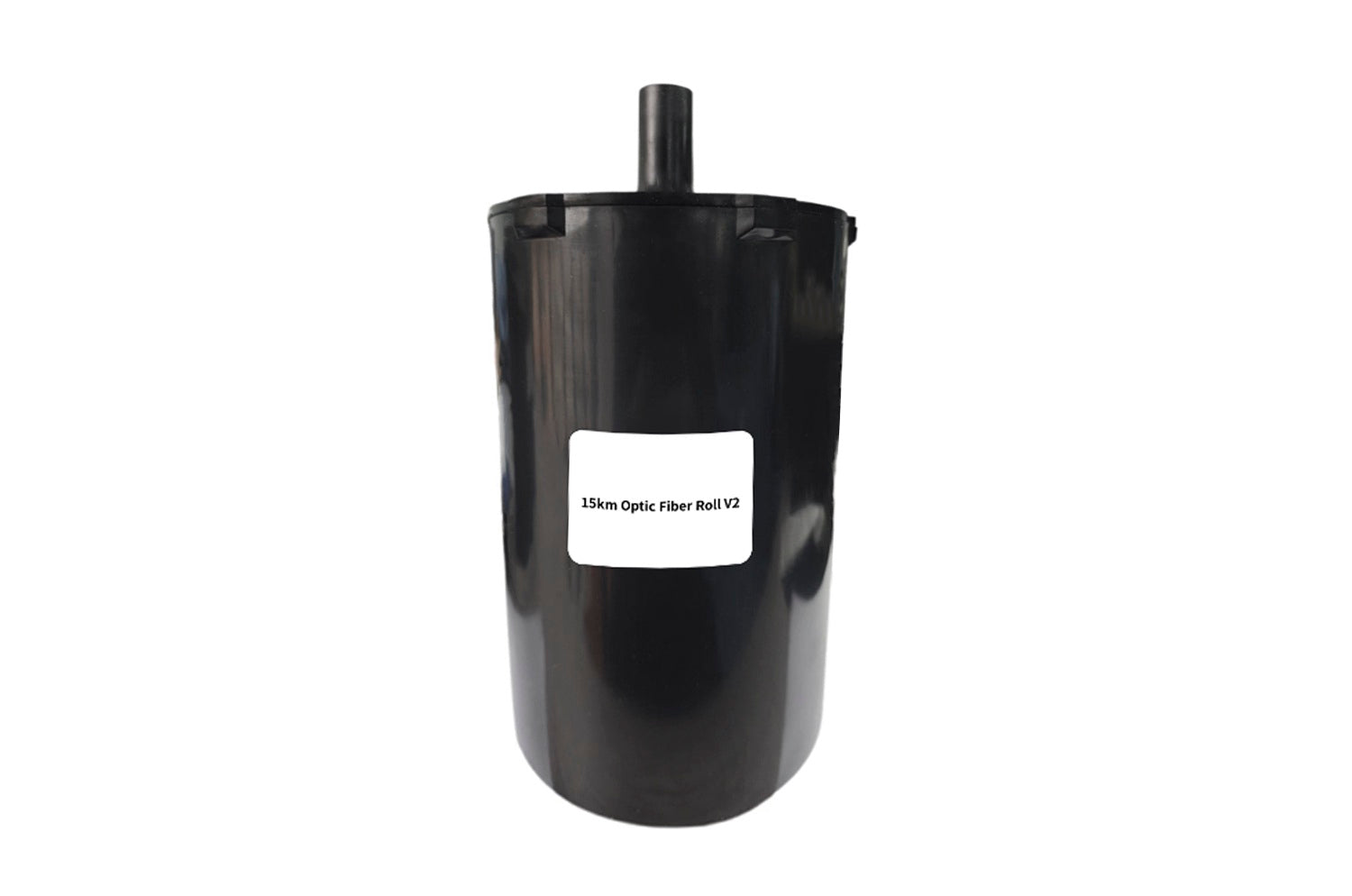

Optic Fiber Roll Pilotix 15km SE V2
Optic Fiber Roll Pilotix 15km SE V2
Brand: Pilotix
Regular price
€370,00
Regular price
€370,00
Sale price
€370,00
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Optic Fiber Roll Pilotix 15km SE V2 The Pilotix 15km SE V2 optical roll is designed for long-distance, high-bandwidth communications where radio transmission is limited or unavailable. Ideal for professional drone systems, underwater or terrestrial robotics, this fiber ensures low latency data transmission with minimal signal loss. Important notes: - For reliable communication at a distance of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, a transceiver with a range of 40 km is recommended. - Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility or take responsibility for correct operation when using devices from other series. Specifications: Model: 15km Optic Fiber Roll SE V2 Thread Type: G657A2 Fiber diameter: 0.28 mm ±0.01 Fiber length: 15 km Fiber weight: 80 g/km Optical attenuation: - 1310 nm: ≤0.35 dB/km, WT 0.329 - 1550 nm: ≤0.25 dB/km, WT 0.185 Optical interface: FC Shell Material: Resin Working temperature: -40 ~ +85 °C Material: ABS Color: black Size: 147 x 276 mm Weight: 1500 g The package contains: 1x optical fiber Pilotix Roll 15km SE V2
