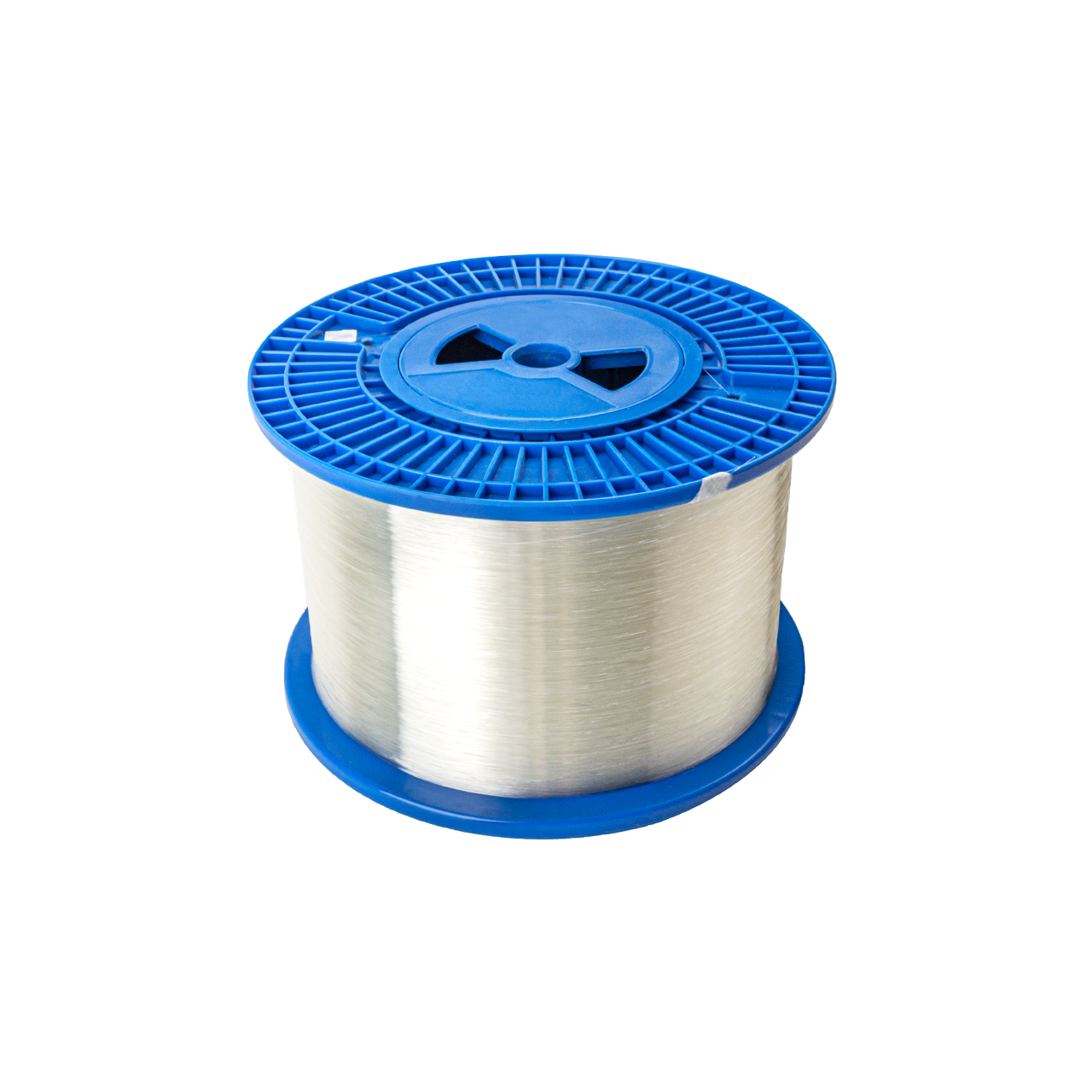

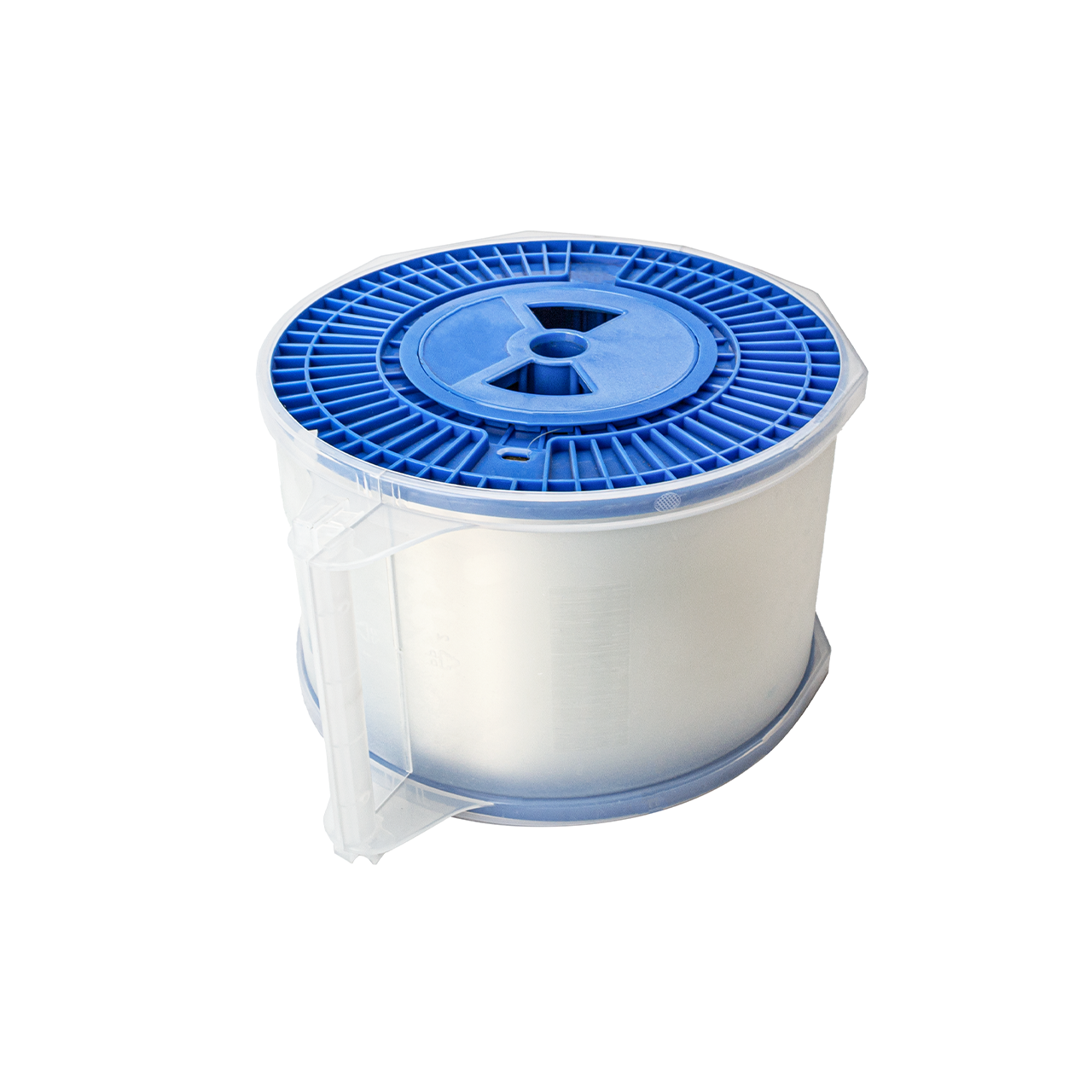

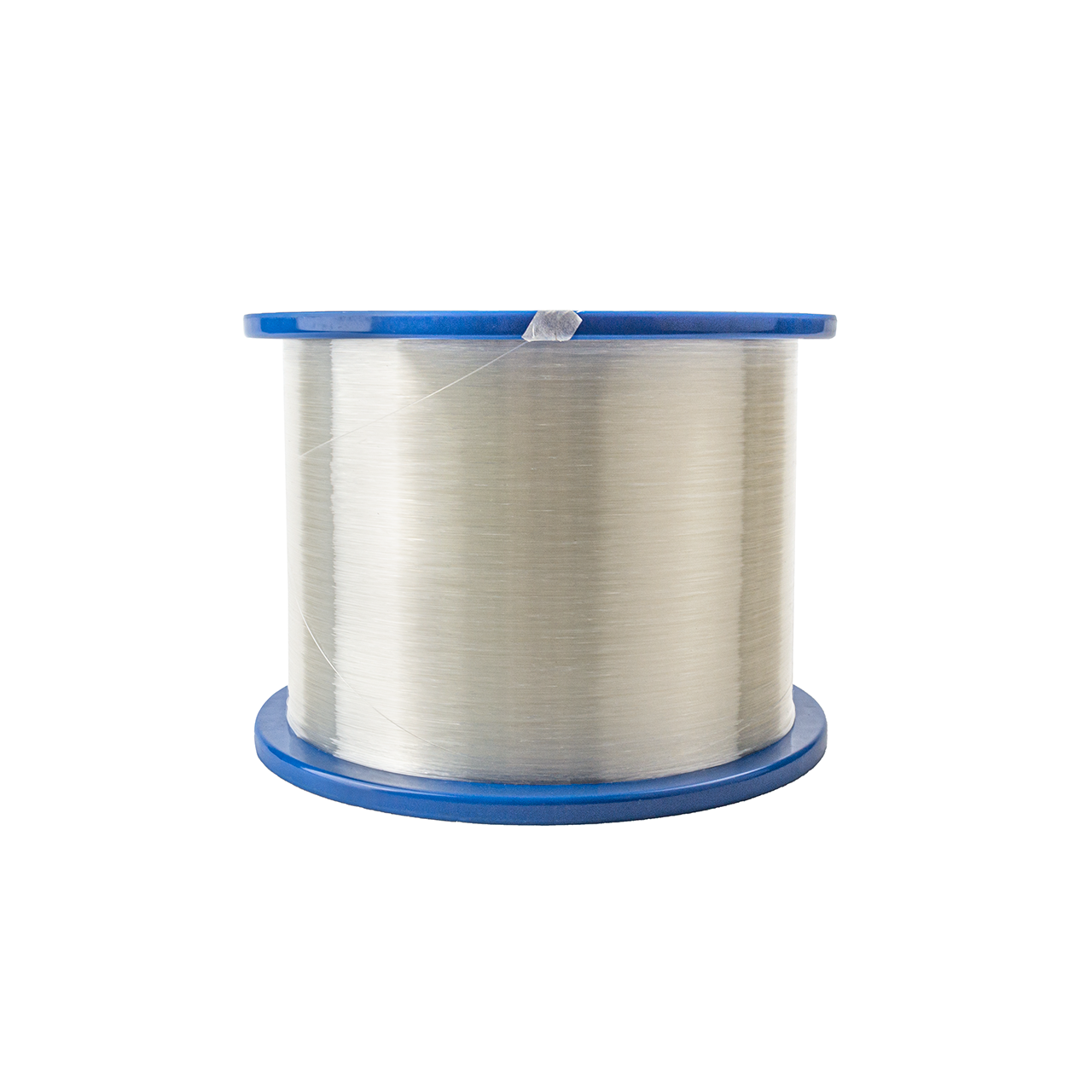

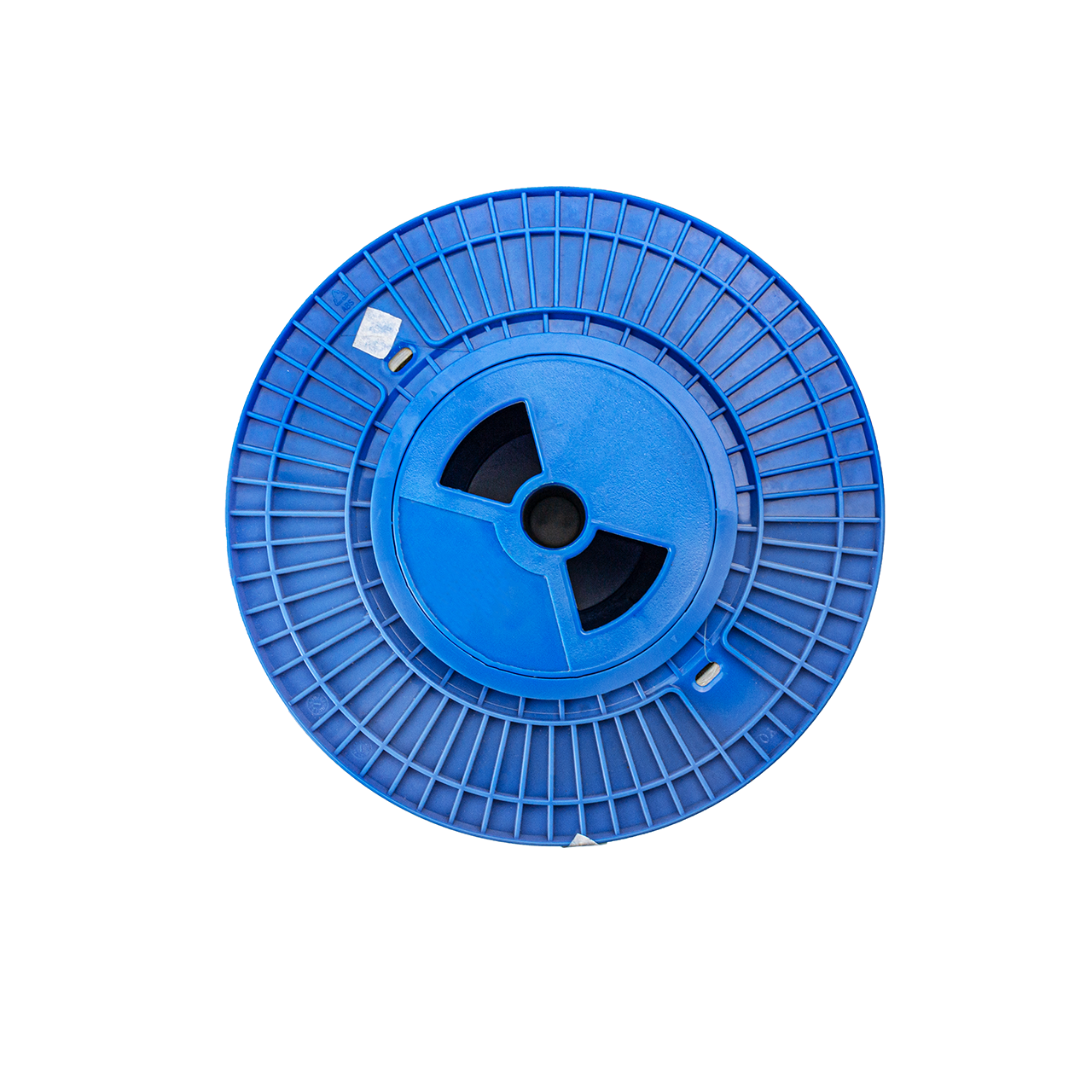

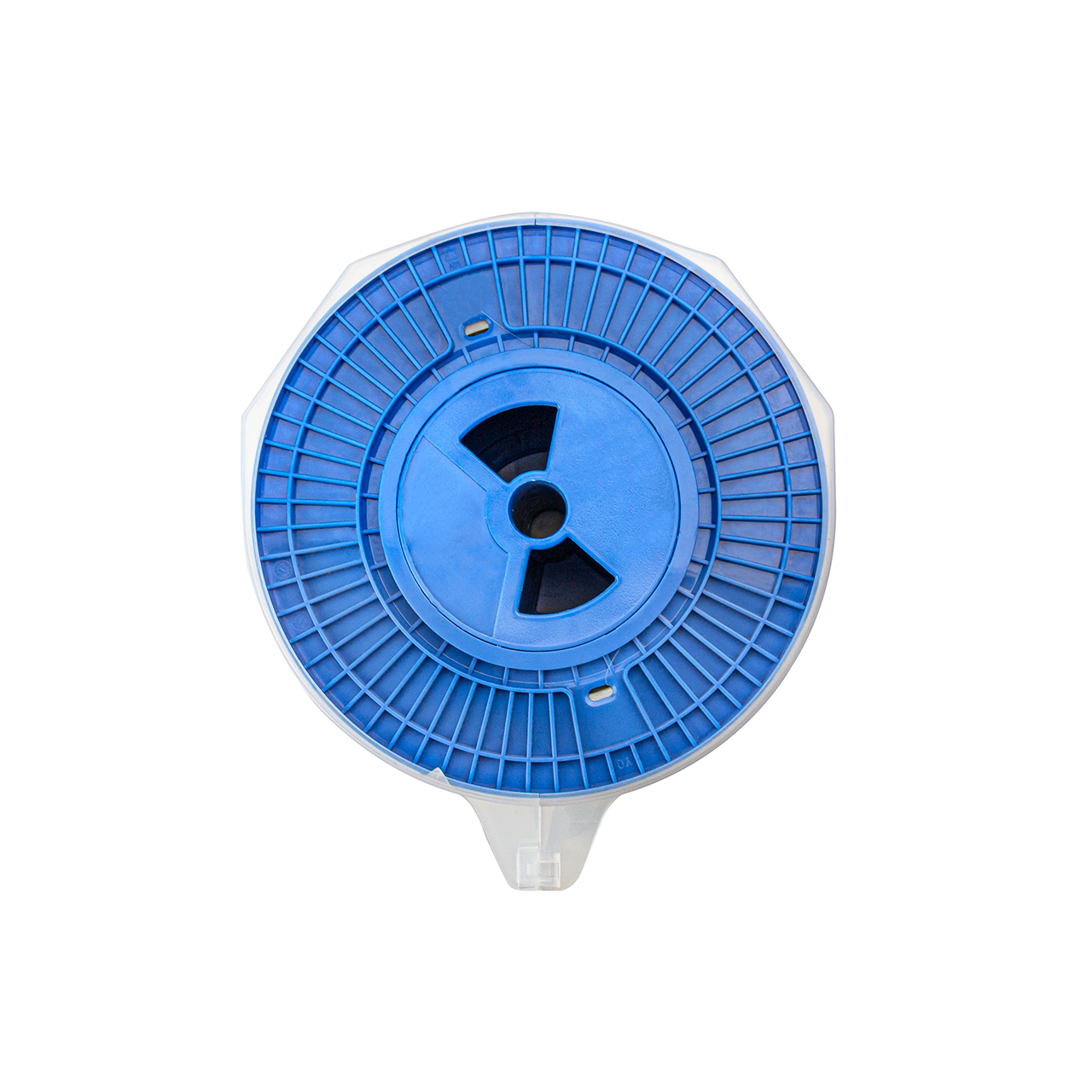

Optic Fiber cable Pilotix 0.25mm, 50km/roll
Optic Fiber cable Pilotix 0.25mm, 50km/roll
Brand: Pilotix
Couldn't load pickup availability
- Description
- Related Files
- Discussion
Pilotix 0.25mm fiber optic cable, 50km/roll
The Pilotix 0.25mm fiber optic cable is designed for long-distance, high-bandwidth communications where radio transmission is limited or unavailable. Ideal for professional drone systems, underwater or terrestrial robotics, this cable ensures low latency data transmission with minimal signal loss.
Important notes:
- For reliable communication at distances of 5 km, 10 km or 15 km, we recommend choosing a transmitter with a range of up to 20 km. For communication systems with a range of 20 km and more, we recommend a transmitter with a range of 40 km.
- Pilotix optical communication modules are only compatible with transceivers of the same series. We do not guarantee compatibility nor are we responsible for correct operation when using devices from other series.
Specifications:
Sheath diameter: 125.0 ± 0.7μm
Sheath twist: ≤ 0.7%
Coating diameter: 242 ± 7μm
Coating/sheath concentricity error: ≤12μm
Core/sheath concentricity error: ≤0.5μm
Deformation (radius of curvature): ≥4m
Supplied Length: 2.05-50.4 (km/disc)
Mode Field Diameter (MFD):
- @1310 nm 8.6 ± 0.4 μm
- @1550 nm 9.8 ± 0.6 μm
Attenuation:
- @1310 nm ≤0.35 dB/km
- @1383 nm ≤0.35 dB/km
- @1550 nm ≤0.21 dB/km
- @1625 nm ≤0.23 dB/km
Change of attenuation with respect to wavelength:
- @1285-1310 nm, with respect to 1310 nm ≤0.03 dB/km
- @1525-1575 nm, with respect to 1550 nm ≤0.02 dB/km
Attenuation discontinuity:
- @1310 nm ≤0.05 dB
- @1550 nm ≤0.05 dB
Polarization mode dispersion coefficient:
- Single fiber maximum value ≤0.2 ps/(km^v2)
- Fiber splice value ≤0.1 ps/(km^v2)
- Typical value 0.04 ps/(km^v2)
Wavelength with zero dispersion: 1312±12 nm
Slope of zero dispersion: ≤0.092 ps/(nm^2 .km)
Dispersion:
- 1550 nm ≤18 ps/(nm .km)
- 1625 nm ≤22 ps/(nm .km)
Optical cutoff wavelength of cable: ≤1260 nm
Shield tension: ≥9.0 N, ≥1.0%, ≥100 Kps
Dynamic fatigue parameters: ≥20
Coating tear-off force:
- average value 1.5 N
- peak value 1.3-8.9 N
Coating tear-off force:
- 1 turn, 15 mm at 1550 nm diameter ≤0.50 dB
- 1 turn, 15 mm diameter at 1625 nm ≤1.00 dB
- 1 turn, 15 mm diameter at 1550 nm ≤0.10 dB
- 1 turn, 15 mm diameter at 1625 nm ≤0.20 dB
- 10 turns, 15 mm diameter at 1550 nm ≤0.03 dB
- 10 turns, 15 mm diameter at 1625 nm ≤0.10 dB
Additional immersion attenuation (23 ± 2 °C, 30 days at 1550 nm and 1625 nm): ≤0.05 dB/km
Additional immersion attenuation (23 ± 2 °C, 30 days at 1550 nm and 1625 nm) 1625 nm): ≤0.05 dB/km
Dry heat aging (85 ± 2 °C, 30 days at 1550 nm and 625 nm): ≤0.05 dB/km
Wet heat aging (85 ± 2 °C, 85 °C relative humidity, 30 days at 1550 nm and 1625 nm): ≤0.05 dB/km
Weight: 4.4 kg
Package includes:
1x optical cable 0.25 mm, 50 km/roll
