Network card HobbyDrone High-power AC180 RTL8812AU 2W + 2 Antenna 7.5db
High-performance network card AC180 RTL8812AU 2W ensures reliable high-speed data transmission for FPV systems. This module based on the RTL8812AU chip and equipped with a powerful amplifier ensures stable and fast wireless communication. It is fully compatible with RubyFPV, OpenHD and OpenIPC FPV systems. Perfect for adding wireless to your lineup.

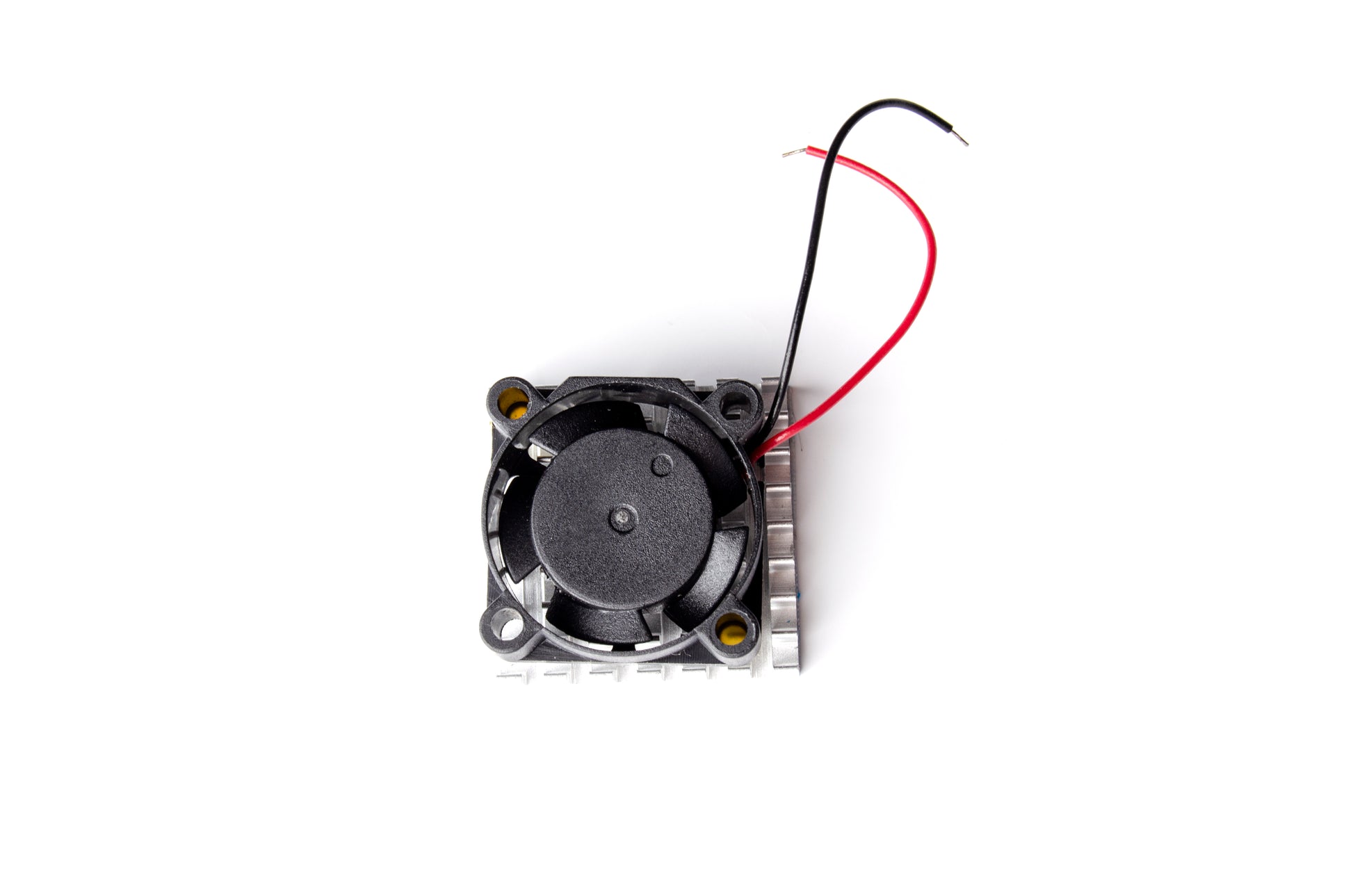

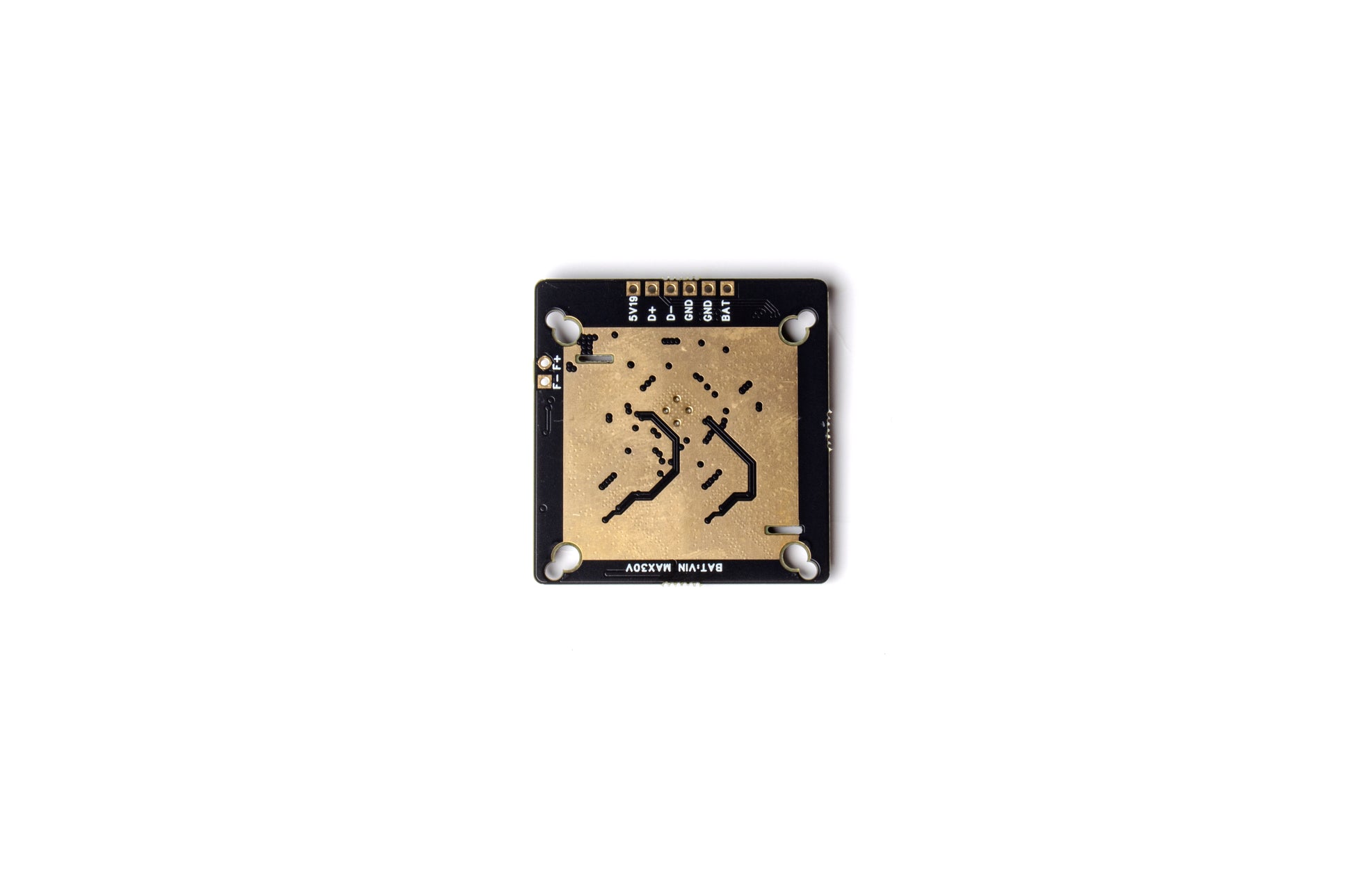

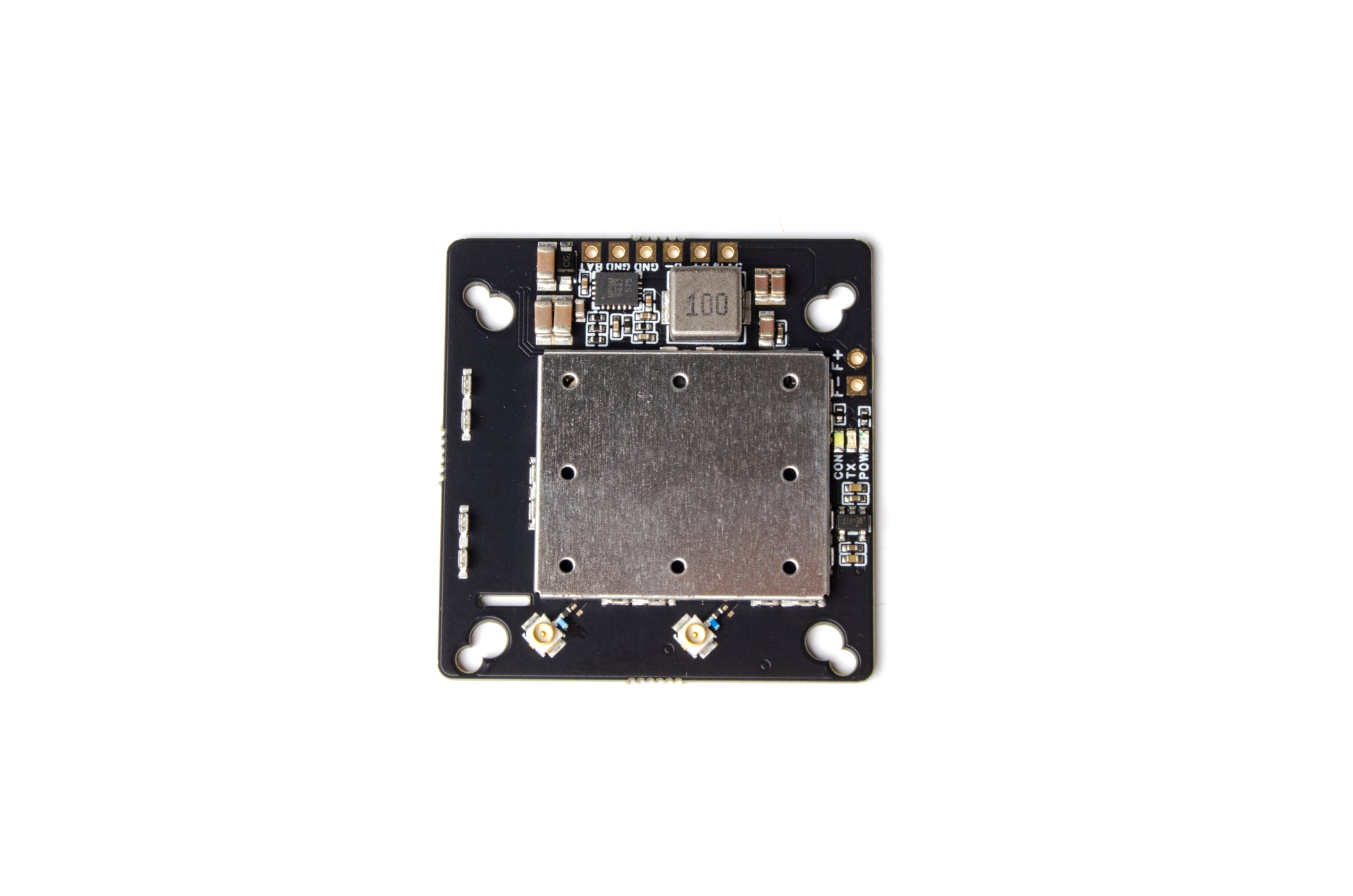

The module can be powered from the [BAT] power connector with a voltage range of 8 V to 30 V, allowing flexibility in power options. It also has an integrated MP9447 switching power supply that provides a voltage of 5.19V/1A to power cooling fans, cameras and other devices. Alternatively, it can be powered from the [5V19] connector with a voltage range of 5V to 5.5V, providing additional convenience for various configurations.
Compatibility:
The AC180 RTL8812AU 2W network card is fully compatible with the AIO Pilotix with camera system.
Specifications:
Power: 2W
Connector: mmcx connector
Maximum current: 1.8A
Distance: > 93.7 km
TXpower setting: 0 - 30 (recommended 20 - 28)
STBC - LDPC = Y Dual antenna setting

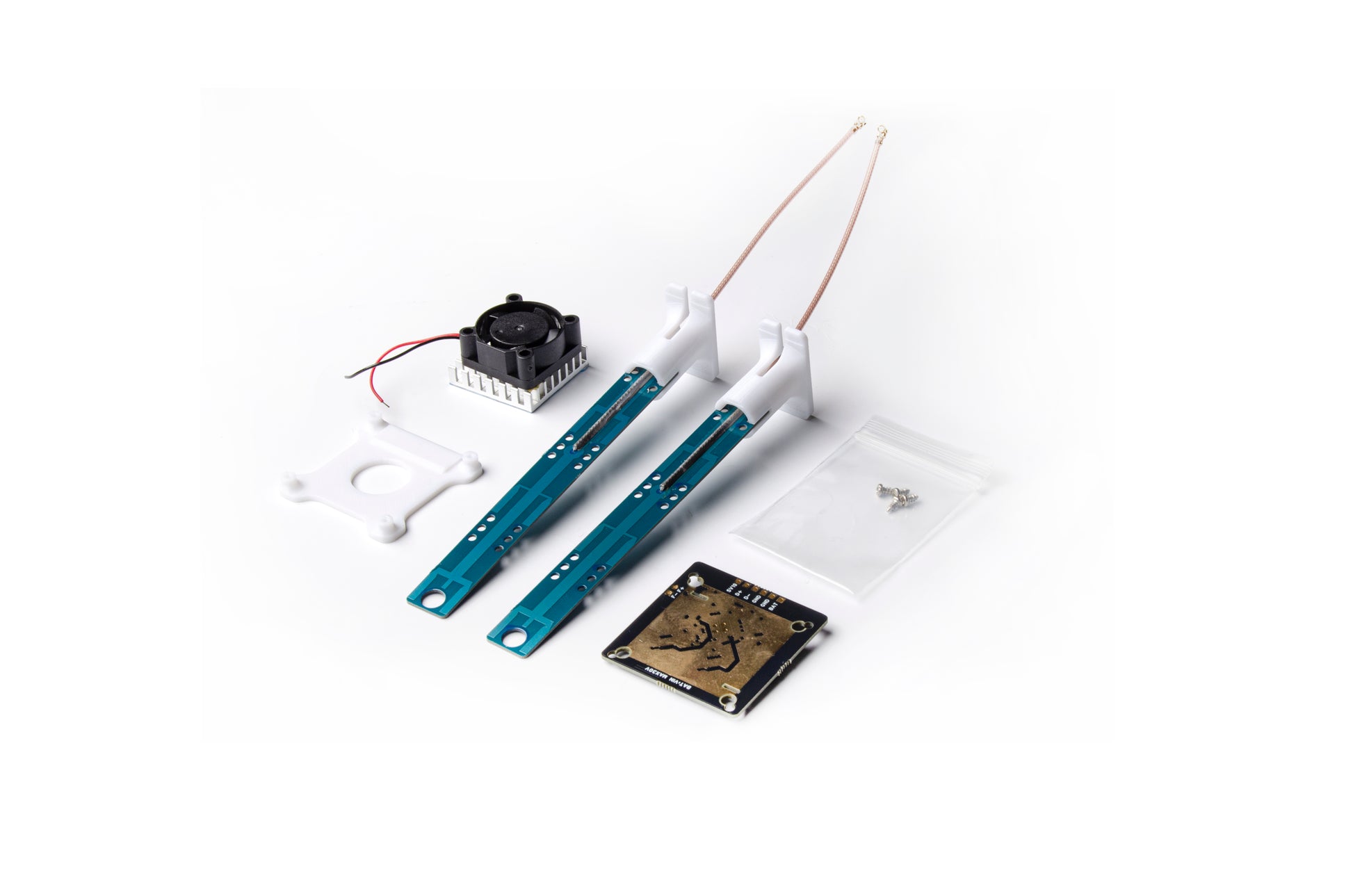

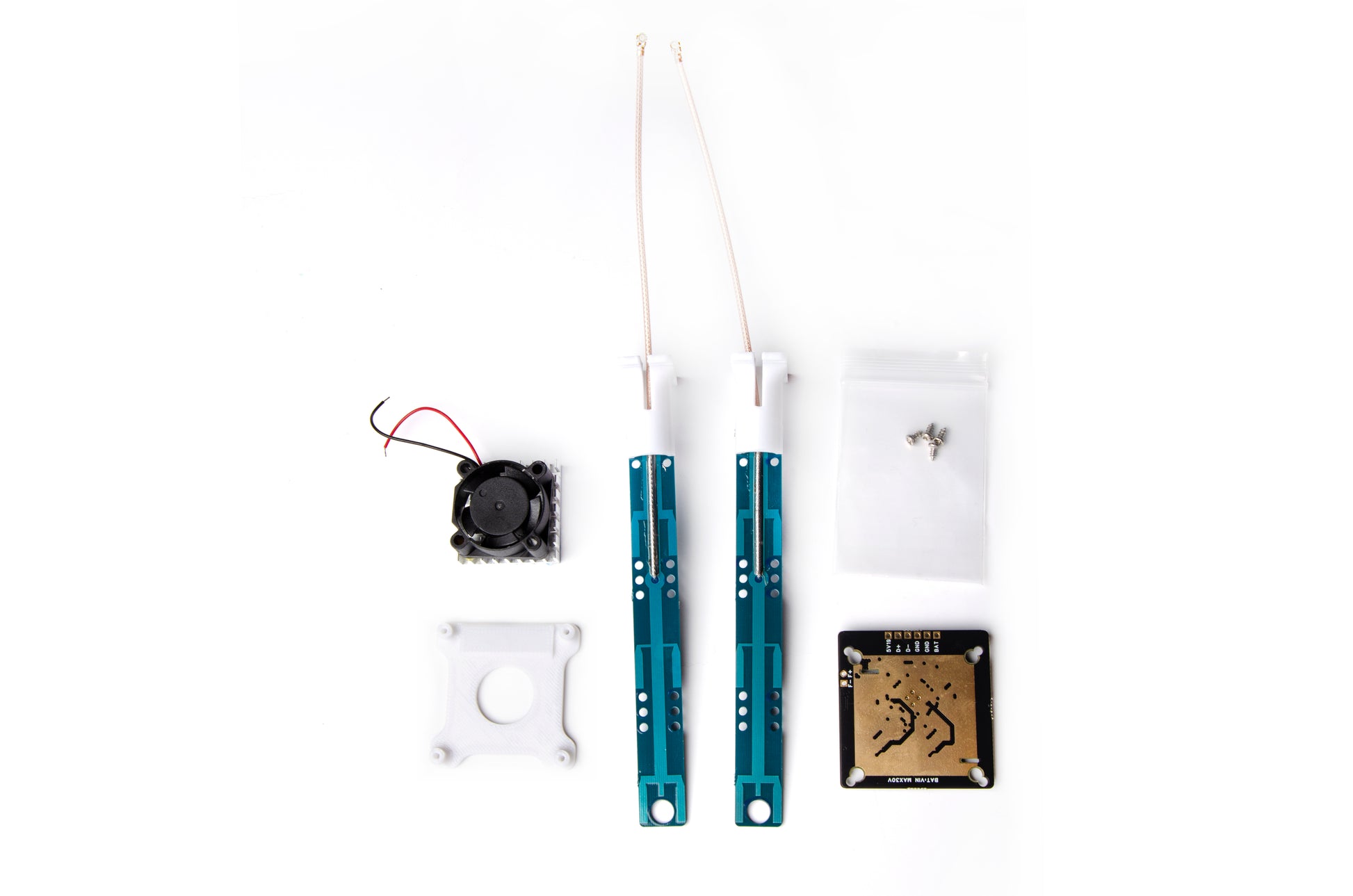

Package includes:
1 x network card AC180 RTL8812AU 2W

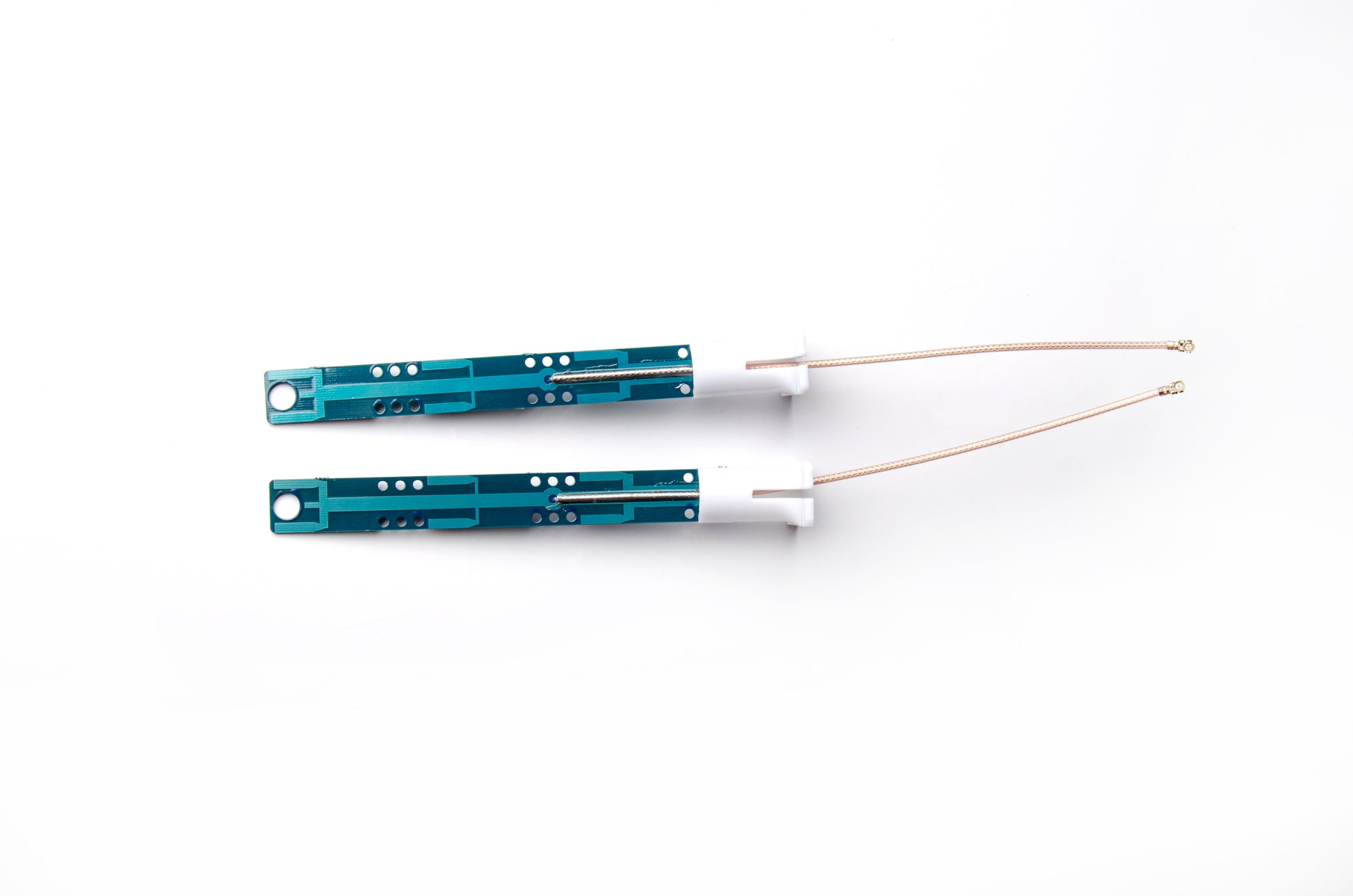

2 x antenna 7.5 dB
