    Multifunction Smart Battery Checker ISDT BG-8S

    Multifunction Smart Battery Checker ISDT BG-8S

    Brand: ISDT

    €39,90
    €39,90 €39,90
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    ISDT BG-8S Battery Tester is an advanced device designed to optimize battery performance, improve user experience and provide comprehensive monitoring for various battery types. Here is a detailed overview of its features and specifications:

    Key features:

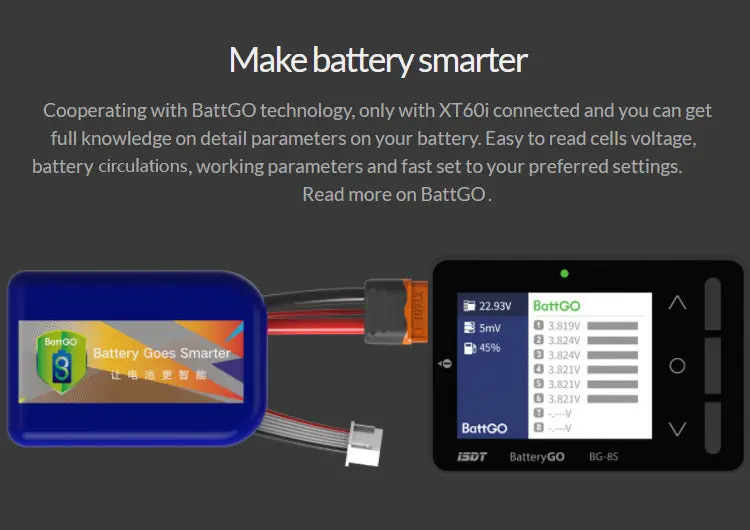

    Smart battery management with BattGO technology:

    • When connected via the XT60i connector, the BG-8S provides full information on your battery parameters such as cell voltage, battery cycles, operating conditions and allows quick adjustments to your preferred settings. This feature simplifies battery management and increases security.

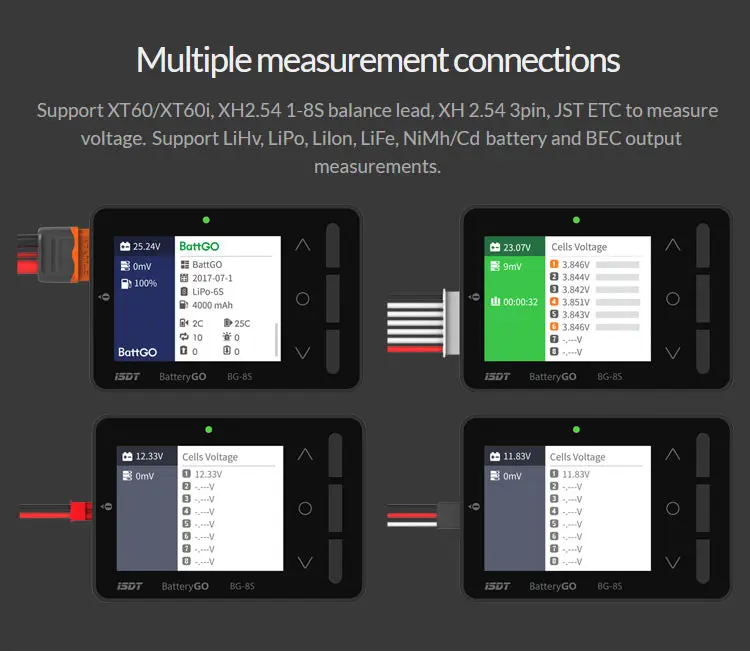

    More measuring connectors:

    • Supports various connectors, including XT60 / XT60i, XH2.54 1-8S balance wires, XH 2.54 3-pin and JST connectors to measure the voltage of various types of batteries. This versatility makes it compatible with a wide range of battery chemistries, including:
      • LiHv, LiPo, Lilon, LiFe, NiMH/Cd

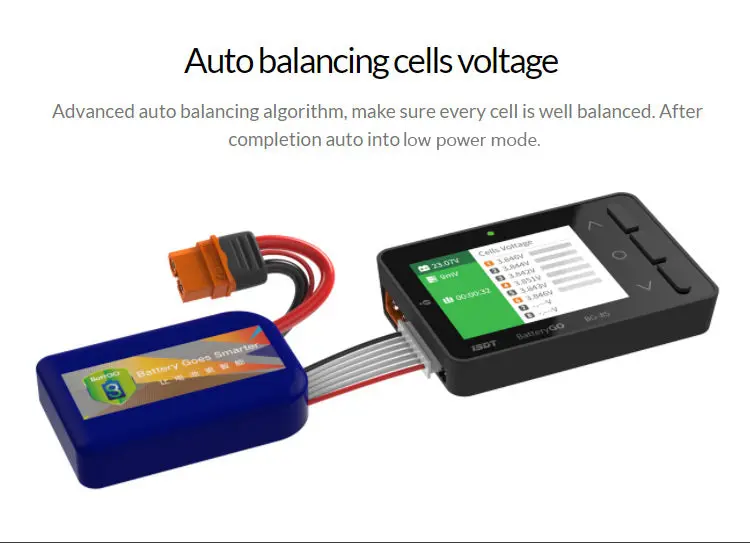

    Auto balance function:

    • The BG-8S features a cell balancing function that optimizes battery performance by ensuring that all cells are balanced. It uses an advanced automatic balancing algorithm to achieve this. After balancing, it automatically switches to energy-saving mode.

    Portable charging function:

    • BG-8S can work as a power bank for mobile devices. It supports Qualcomm Quick Charge 2.0/3.0, which is also compatible with BC1.2 and Apple devices, and provides a maximum output of 12V/2A for charging.

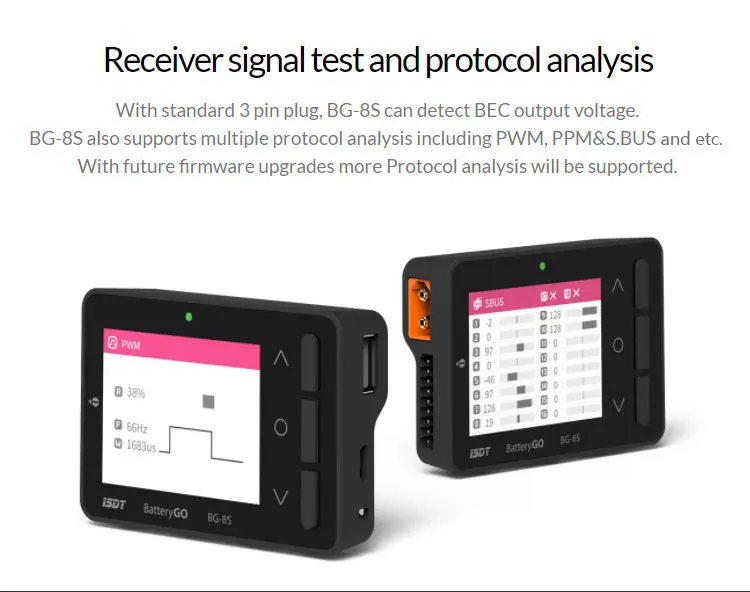

    Receiver signal testing and log analysis:

    • Equipped with a standard 3-pin connector, the BG-8S can detect BEC output voltage and supports multi-protocol analysis including PWM, PPM and S.BUS. Additional log analysis capabilities may be added with future firmware updates.

    Specifications:

    • Working voltage: 5.0V - 36V
    • Input voltage:
      • 1S: 0.8V - 15V
      • 2-8S: 0.8V - 4.8V
    • Supported battery cells: 1 - 8S
    • Voltage measurement accuracy: 0.005V @ 4.2V
    • Cell balancing accuracy: High accuracy for efficient balancing
    • Support USB charging: QC 2.0 / 3.0, BC1.2
    • Maximum output: 12V / 2A
    • Supported battery types:
      • LiHv (1-8S) / LiPo (1-8S) / LiFe (1-8S) / Lilon (1-8S) / NiMH/Cd (1-10S)
    • Display: 2.4-inch IPS LCD, 260,000 colors
    • Dimensions: 80 x 55 x 19 mm
    • Weight: 59 g
    • Working temperature: 0 - 40°C
    • Working humidity: 10% - 90% RH (non-corrosive)
    • Temperature for storage: -20 - 60°C
    • Humidity for storage: 5% - 90% RH (non-corrosive)

    The package contains:

    • 1 x ISDT BG-8S battery tester
