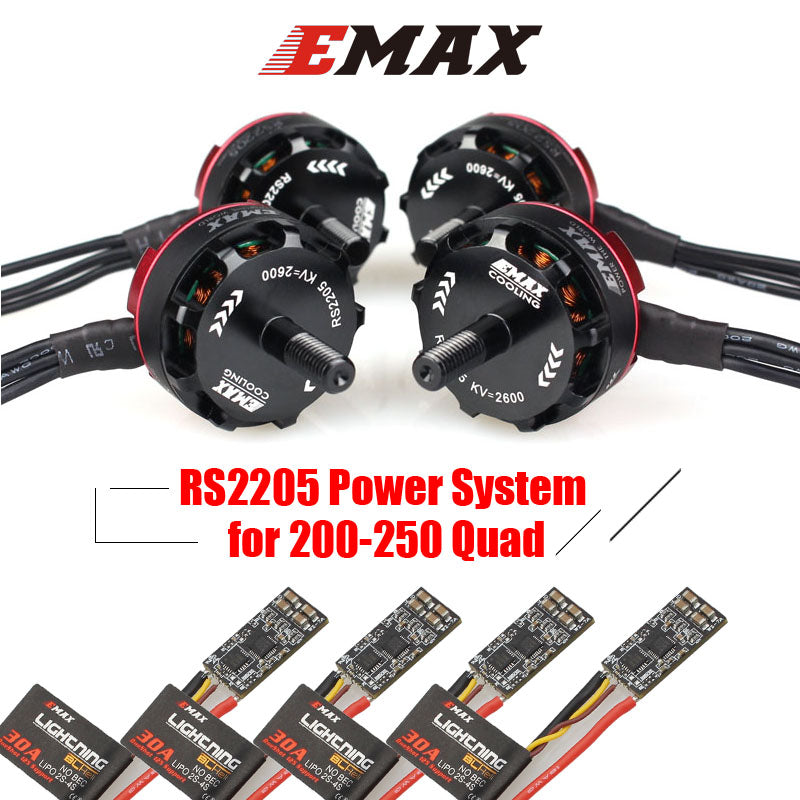

RS2205 Motor + 30A BLHeli lightning ESC Combo (2300KV)
Complete combo pack of RS2205 and Lightning 30Amp ESC motors. The set also includes extra parts for maintenance-free operation.
Features of Emax RS2205 Race Spec Motors:
- 1K+ thrust with 4s battery and recommended combo propeller
- Cooling Bell series design reduces engine temperature by at least 30%
- Neodymium magnets of the highest class N52
- Original Japanese NMB bearings
- Each engine is dynamically balanced at the factory.
- 15mm extended support allows virtually any support with a 5mm hole.
- 3 lock nuts and 2 sets of motor screws for 3 mm and 4 mm thick frames.
- Winding made of high purity copper
Features of Emax Lightning 30A ESC:
1. The first BLHeli ESC with Synchronous Rectification hardware design in the market
2. Uses high performance MCU F396
3. Light weight: 5.5g including power wires and signal wires / Small footprint: 24.5 * 12.5 * 5.0 (mm)
4. Supports active braking
5. FW upgradeable via signal cable
6. Code of authenticity against forgeries
7. Supports up to 4S of high voltage (4.35V max per cell)
8. The smallest F396 powered 30A ESC in its class
9. Oneshot Enabled / Multishot Ready
10. Degree of high current rupture
Specifications:
Motor model: RS2205
KV: 2300 sq.m
Weight: Approx. 30g with wires
Wire AWG: 20AWG
Stator diameter: 22 mm
Stator height: 5 mm
Shaft diameter: 3 mm
Configuration: 12N14P
Motor diameter: 27.9 mm
Motor height: 31.7 mm
Propeller adapter shaft thread: M5
Input voltage: 3S-4S (12.6 - 16.8V)
KV2300 S HQ5045 BN Max. pull: 1024g

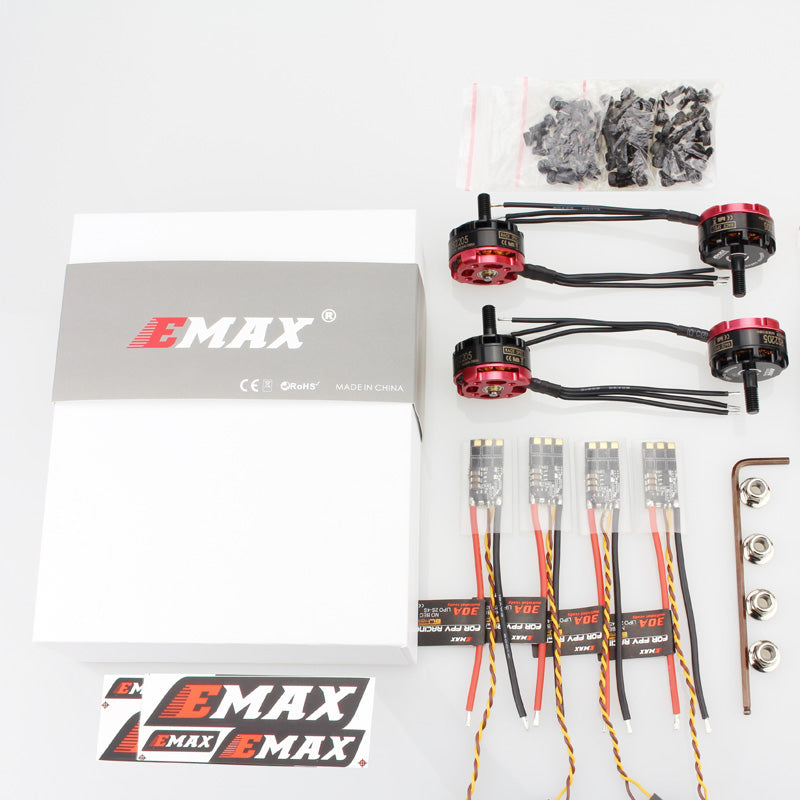

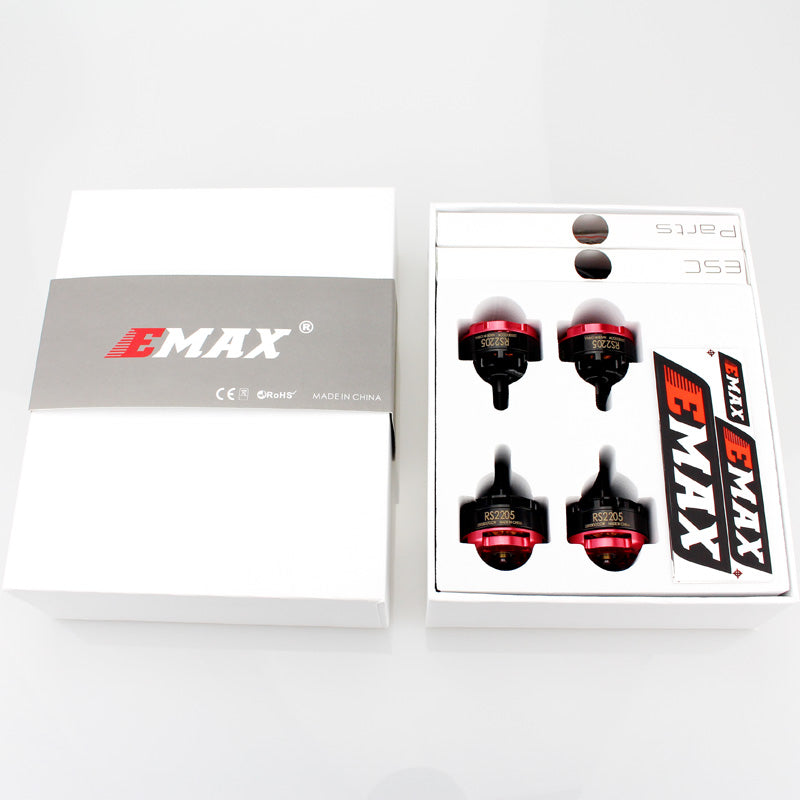

The package includes:
4x RS2205-2300KV CW
4x Lightning 30A
1x L-wrench
20x screw
20x screw
20x screw
4x Nuts
