    Code: V3120-500

    Motor T-Motor VELOX V3120 500KV

    Motor T-Motor VELOX V3120 500KV

    Brand: T-Motor

    €56,90
    €56,90 €56,90
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

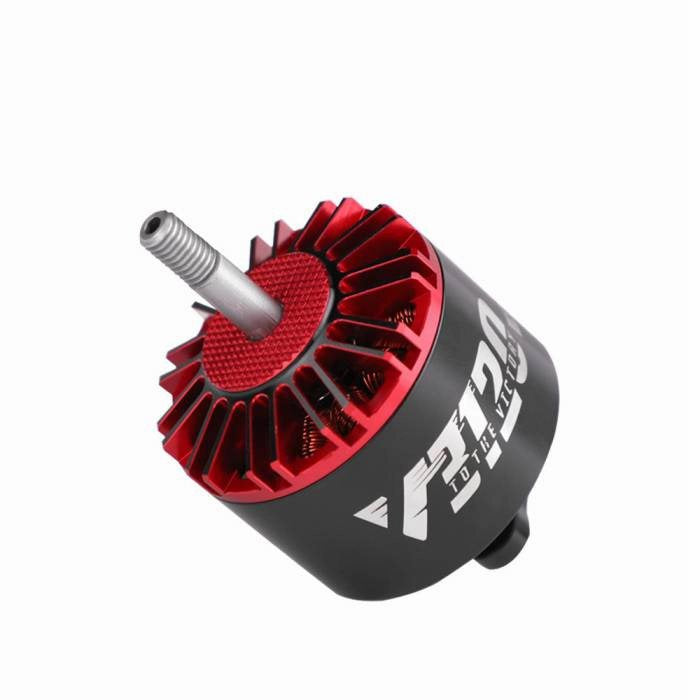

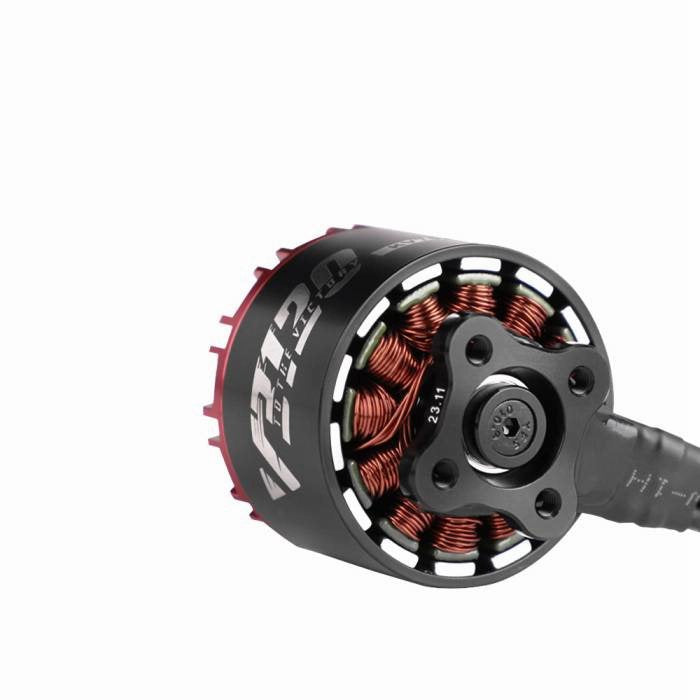

    T-Motor VELOX V3120 Motor - 500KV

The T-Motor VELOX V3120 motors come in a new and elegant design and are made of premium components. Great for freestyle and long distance racing!

Function

- Proactive heat dissipation design for safe film flights.
- The first ever iron core design for electrophoresis is better for corrosion resistance and stability.
- Imported NMB bearings and high temperature resistant coils.
- Provides robust performance for 6-12S, 9-11 inch film drones with large payloads.

Specifications

T-Motor VELOX V3120 - 500KV

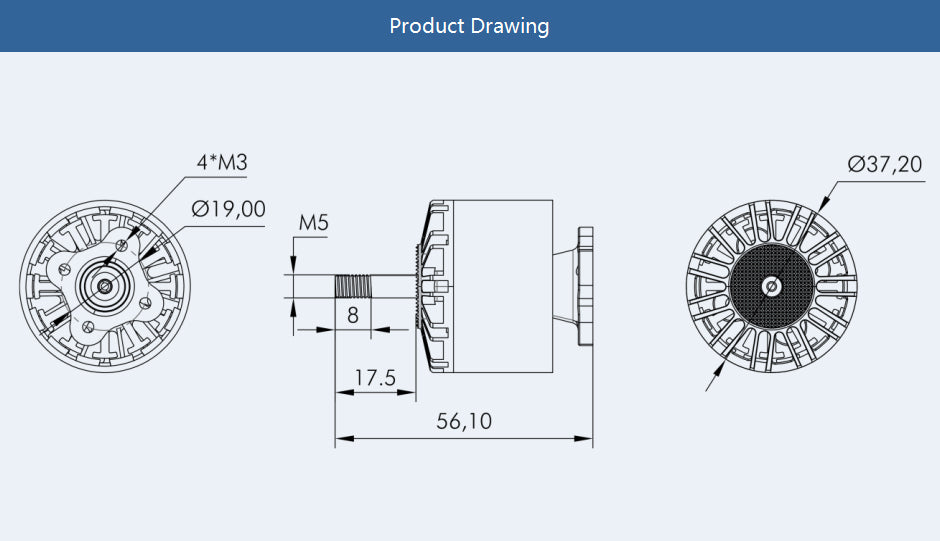

Engine dimensions: 37.2 x 56.1 mm
Weight (including cable): 146.7 g
Internal resistance: 76.35m
Shaft diameter: IN5 OUT5
No load current (10V): 0.95A
Peak current (10s): 68.9A
Configuration: 12N14P
Lead: 16AWG 250mm
Max. Power: 3242W

The package includes:
1x T-Motor VELOX V3120 - 500KV
1x Hardware set
