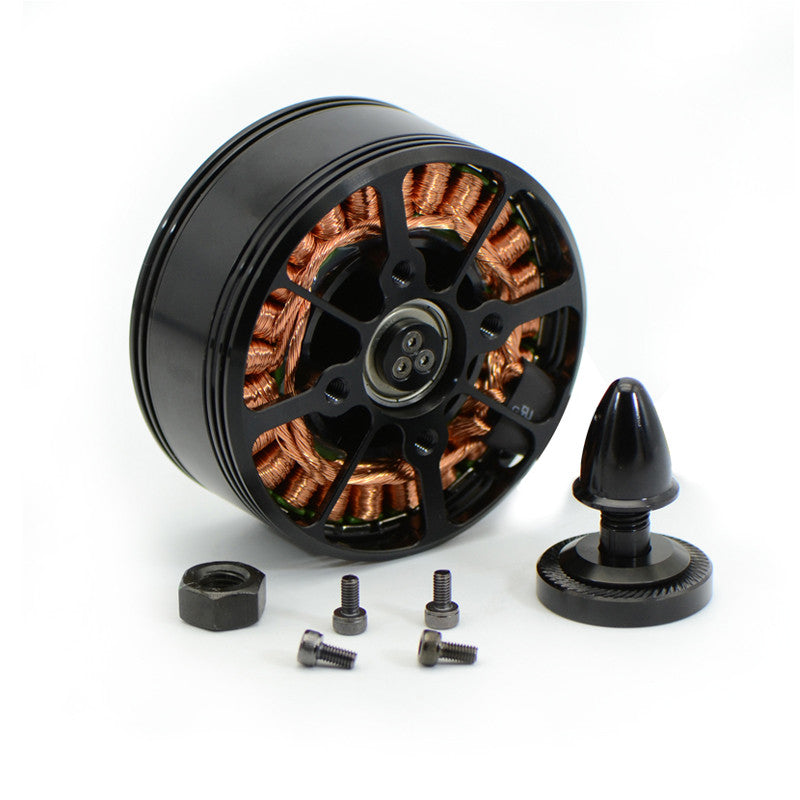

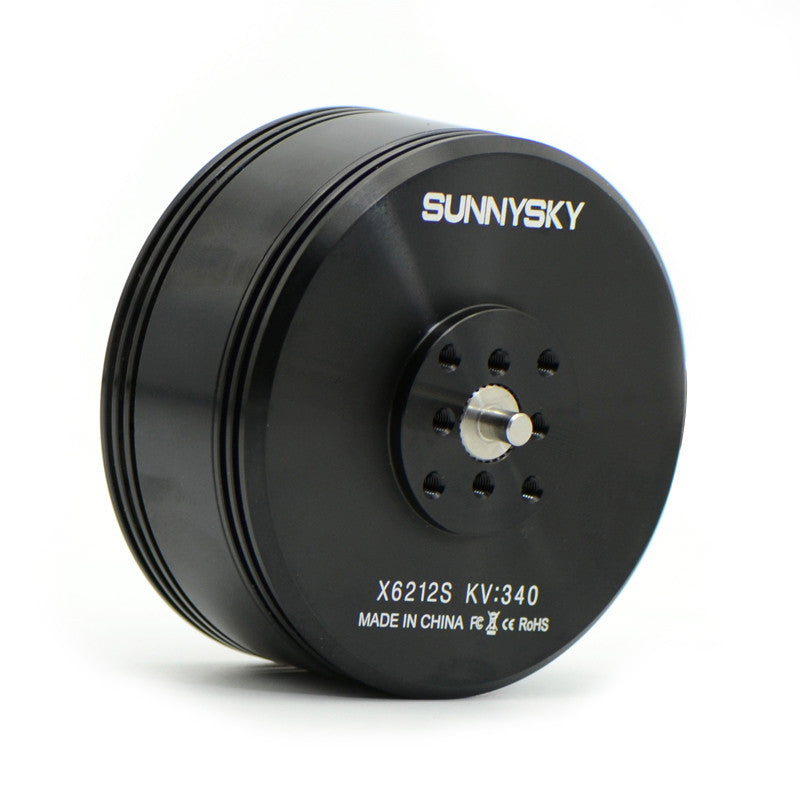

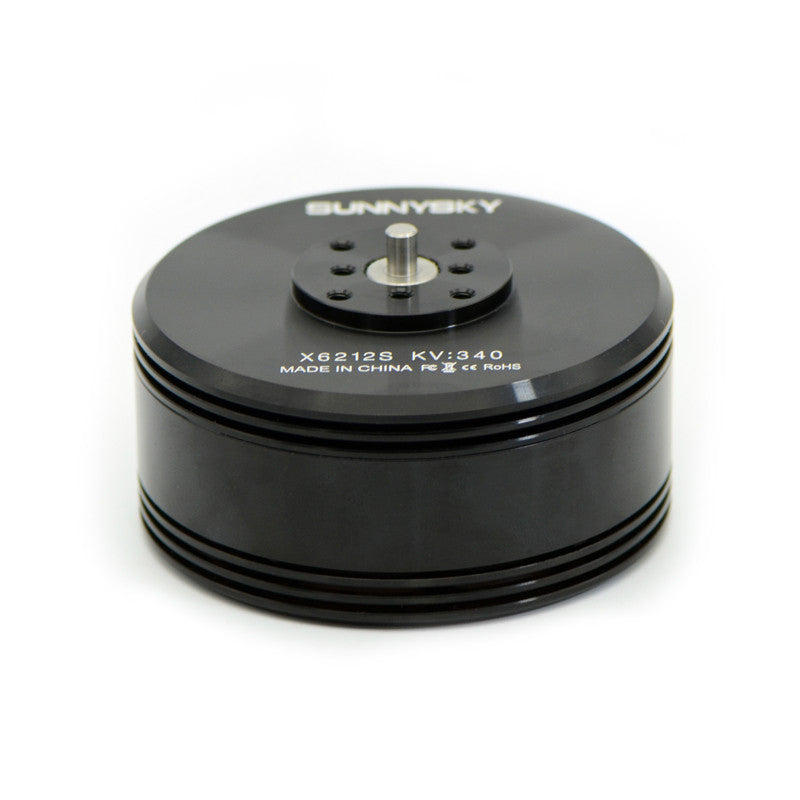

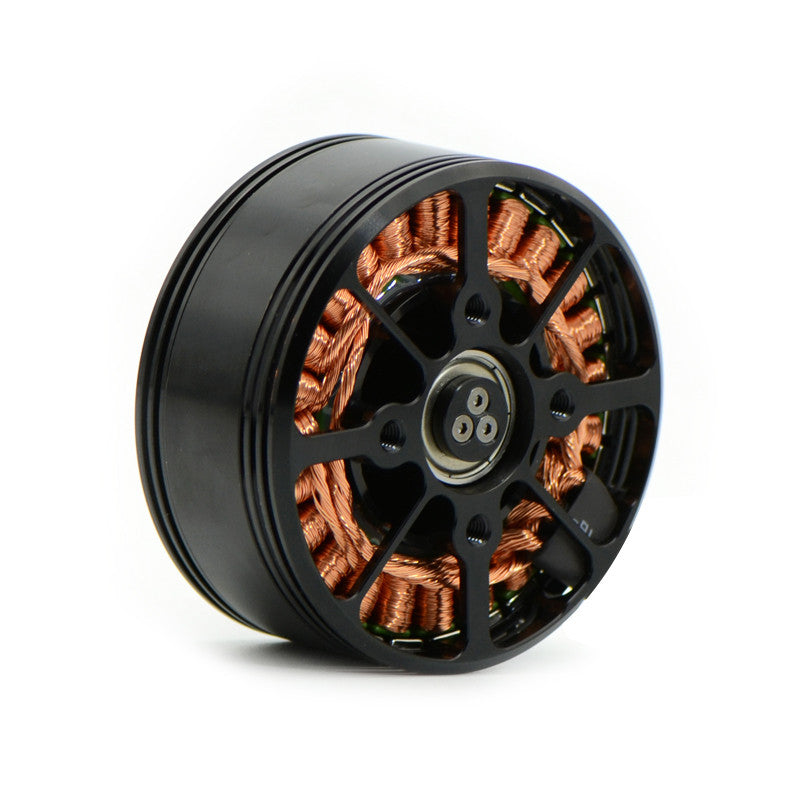

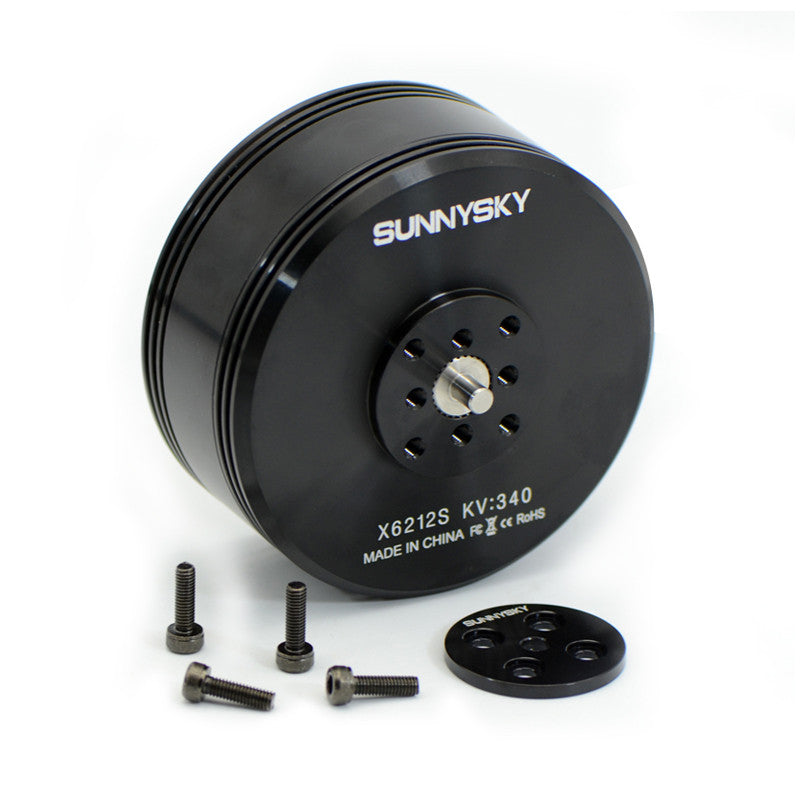

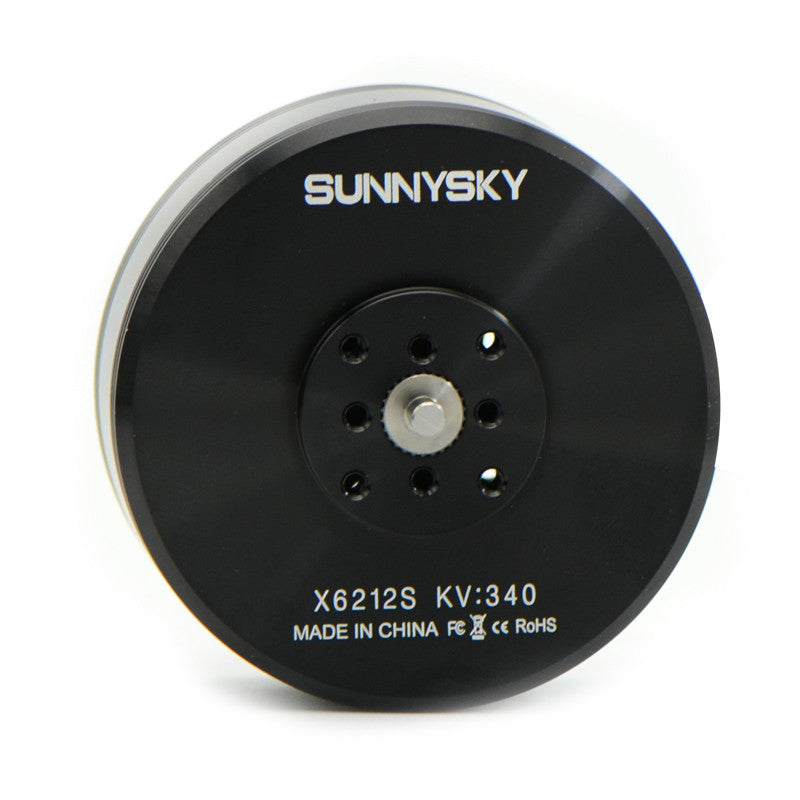

Motor SunnySky X6212S 340KV
XS series motors for multi-rotors are equipped with a patented design with a semi-enclosed construction for better ventilation and protection from dirt. Japanese EZO bearings ensure stable and quiet operation with a long service life. Hand-wound coils offer low resistance, high efficiency and increased performance. Precision manufacturing from SunnySky guarantees smooth and reliable performance with minimal vibration.
Specifications:
- Engine model: X6212S
- KV: 340KV
- Number of stator/rotor poles: 24N28P
- Internal resistance: 18mΩ

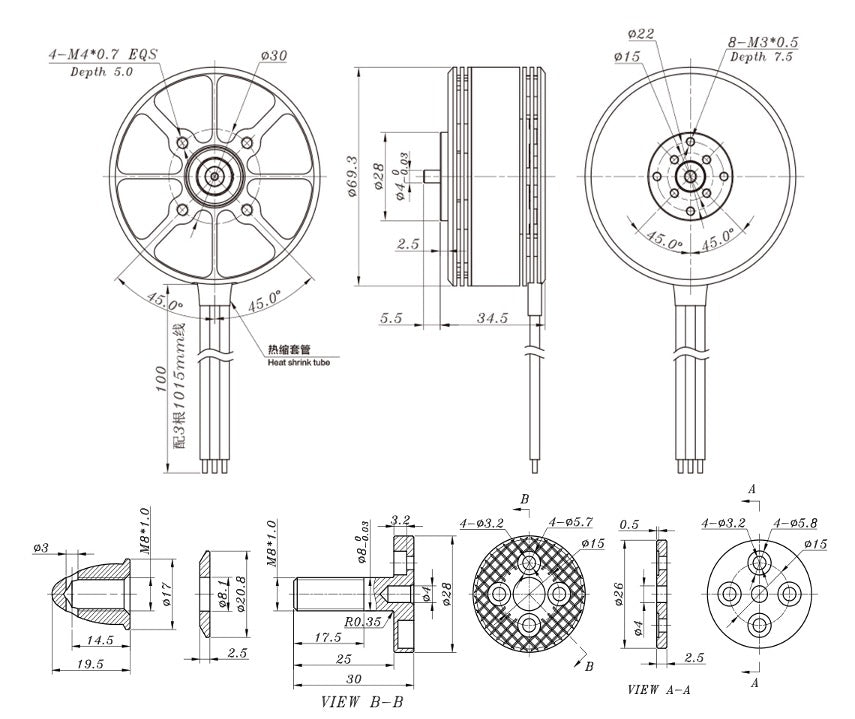

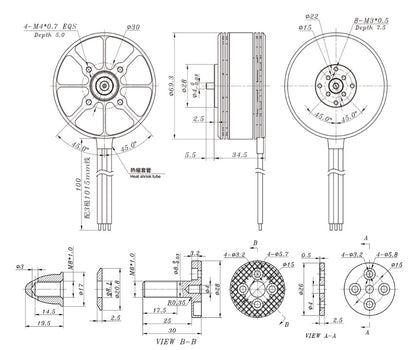

- Motor size: φ69.3*40.0mm
- Shaft diameter: 4.0mm
- Cable: 20AWG 100mm
- Motor weight (including cable): 310g
- Operating voltage: 6S
- No load current: 1.5A/10V
- Maximum continuous power: 2025W
- Maximum continuous current: 81A/30s
- Recommended controller (ESC): 80A
- Recommended propeller sizes: EOLO C20x6.2, CN22x6.5
The package contains:
- 1x Motor SunnySky X6212S 340KV
