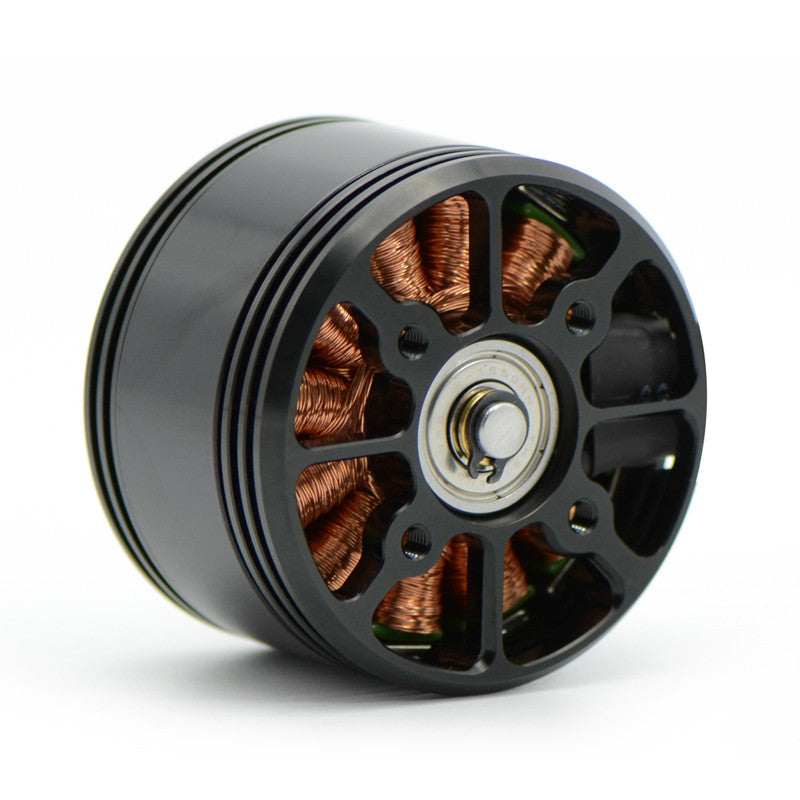

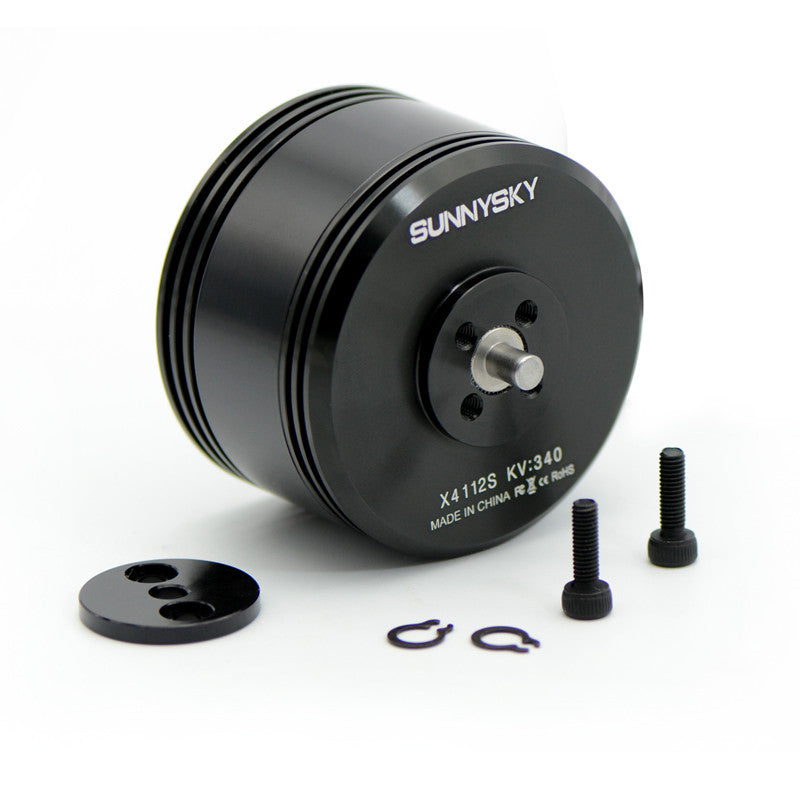

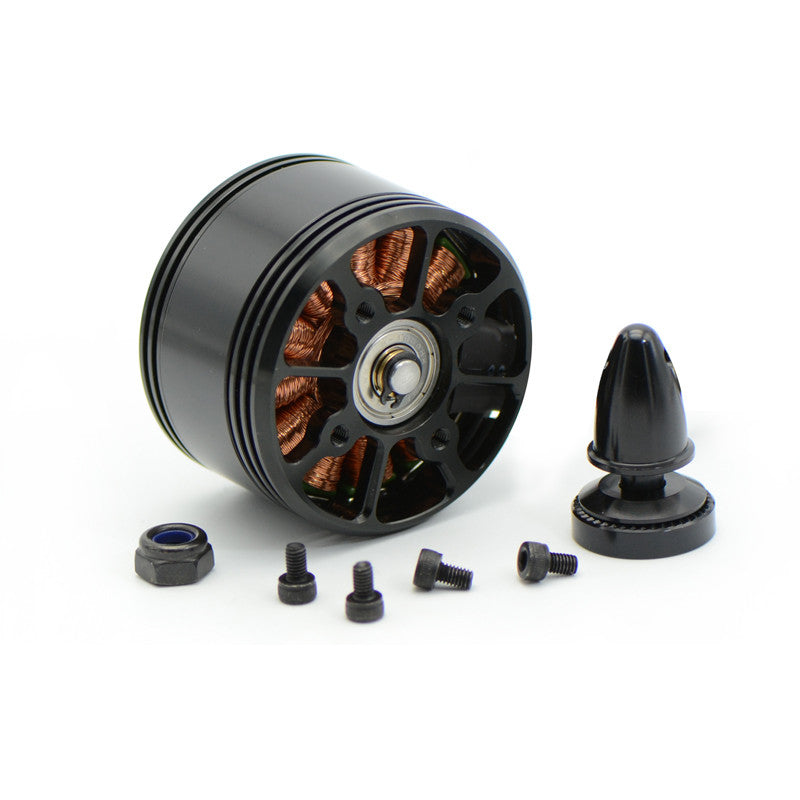

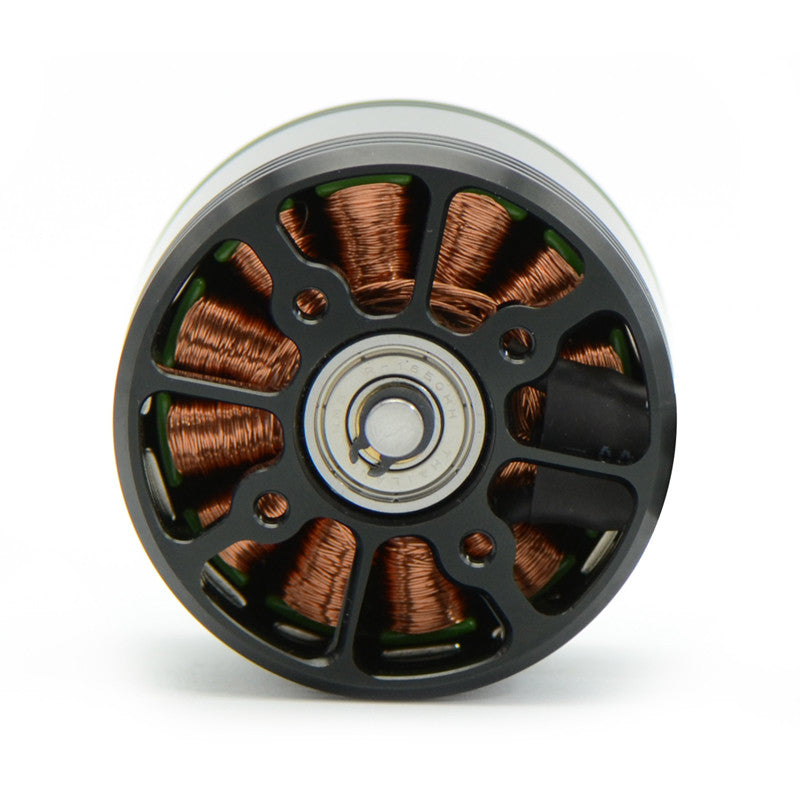

SunnySky X4112S 400KV motor
XS series motors for multi-rotors are equipped with a patented design with a semi-enclosed construction for better ventilation and protection from dirt. Japanese EZO bearings ensure stable and quiet operation with a long service life. Hand-wound coils offer low resistance, high efficiency and increased performance. Precision manufacturing from SunnySky guarantees smooth and reliable performance with minimal vibration.
Specifications:
- Engine model / KV: X4112S / KV400
- Number of stator/rotor poles: 12N14P
- Internal resistance: 60mΩ
- Motor size: φ47.5*33.5mm
- Shaft diameter: 4.0mm
- Cable: 20AWG 600mm
- Motor weight (including cable): 169g
- Operating voltage: 6S
- No load current: 0.6A/10V
- Maximum continuous power: 1225W
- Maximum continuous current: 49A/30s
- Recommended controller (ESC): 50A
- Recommended propeller sizes: EOLO CN13x5, 15x5.5, 16x6
The package contains:
- 1x Motor SunnySky X4112S 400KV
