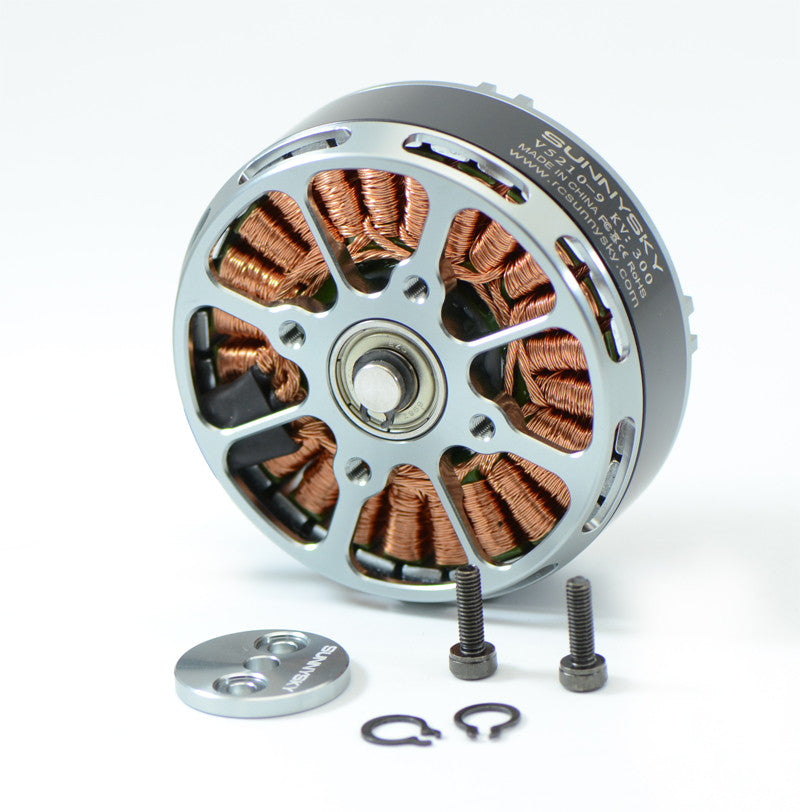

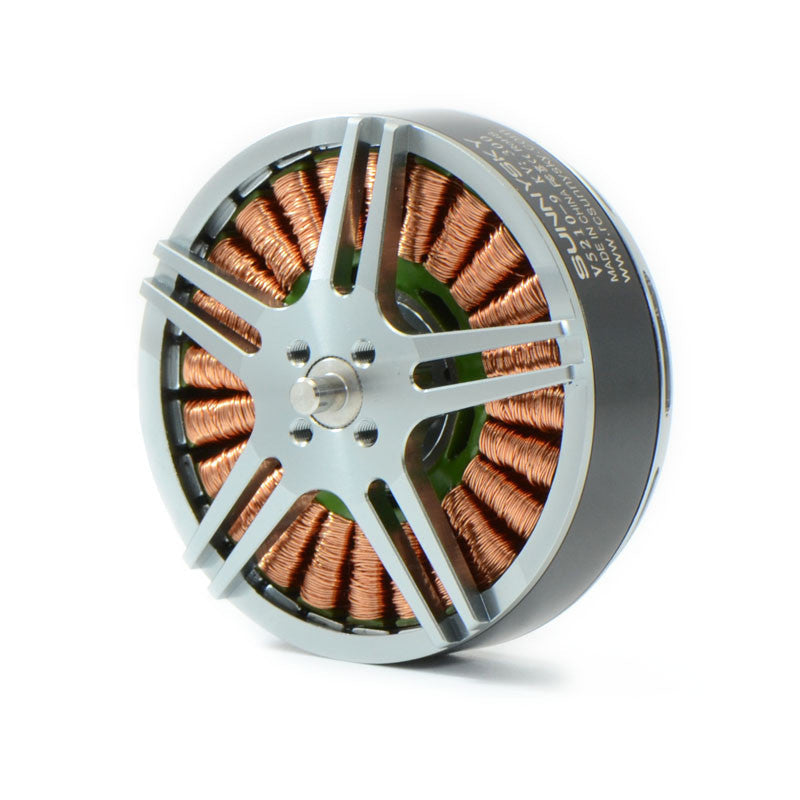

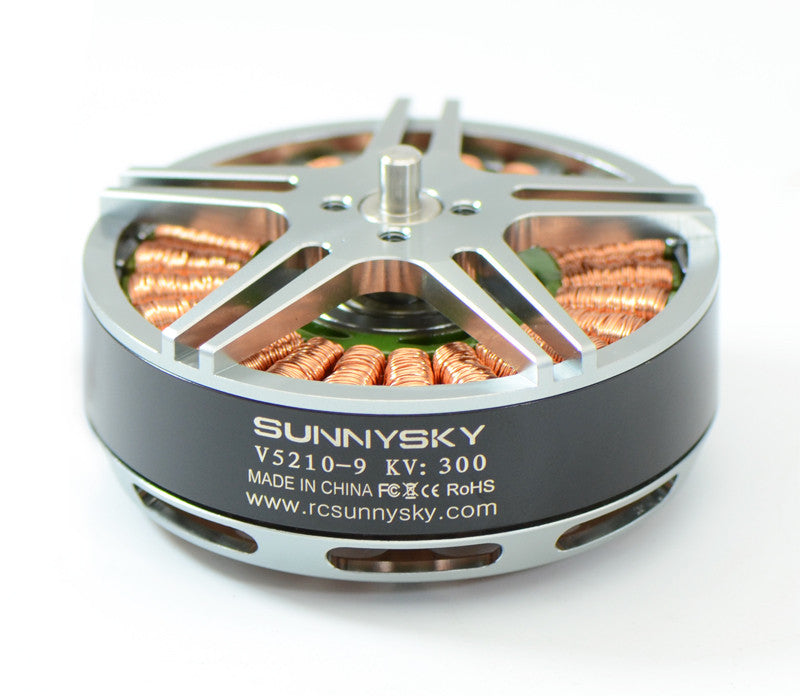

SunnySky V5210 300KV motor
The SunnySky V5210 300KV motor is designed for long drone flights and offers high efficiency and smooth operation. With low torque at low rpm, it provides optimal performance with maximum efficiency during flight. The motor features SunnySky's patented stepped and serrated design to prevent loosening and reduce the risk of power instability.
With Japanese EZO bearings, the V5210 ensures quiet and stable performance in the air. The motor caps are precision cut to reduce weight, maximizing thrust-to-weight ratio for longer flight times. Each motor undergoes rigorous quality control, including dynamic balancing and thorough control of axial and radial runout, ensuring peak performance for multi-rotor applications.
Specifications:
- Engine model: V5210
- KV: 300KV
- Number of stator/rotor poles: 24N28P
- Internal resistance: 76mΩ

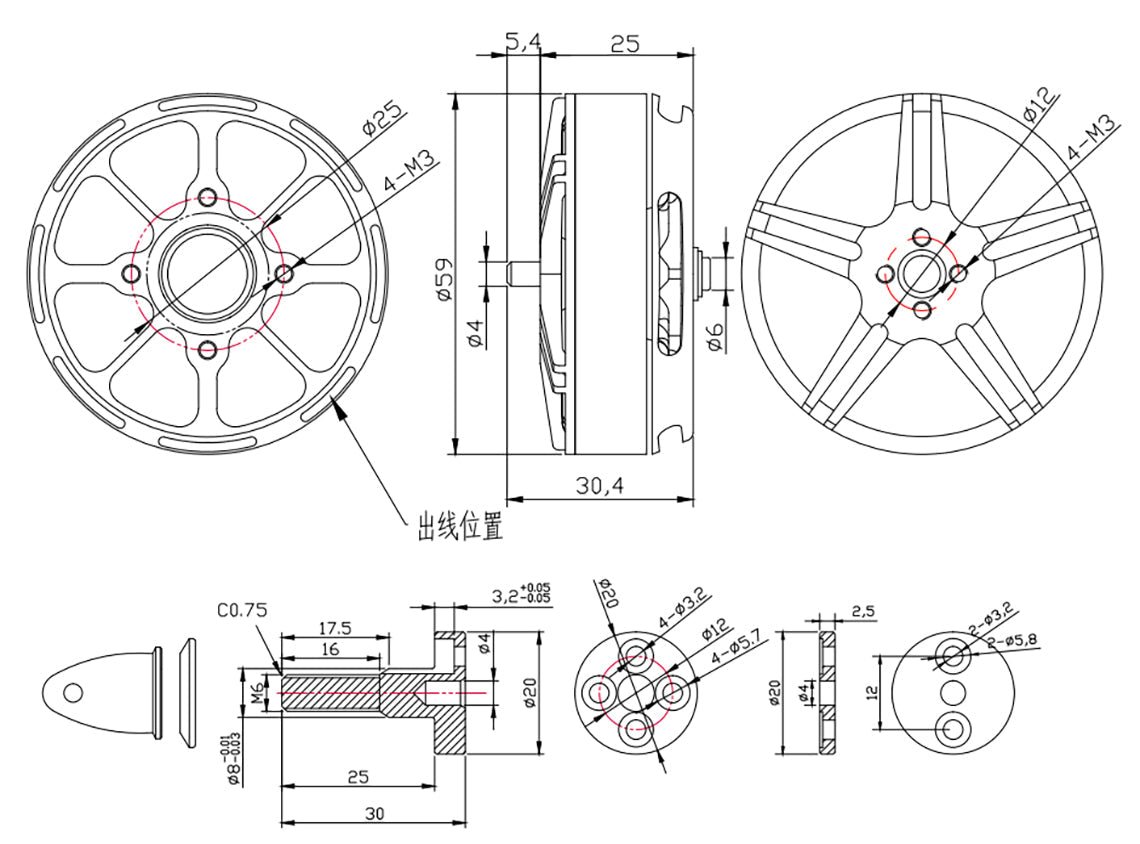

- Motor size: φ59*25mm
- Shaft diameter: 4.0mm
- Cable: 20AWG 600mm
- Motor weight (including cable): 200g
- Operating voltage: 4-6S
- No load current: 0.9A/10V
- Maximum continuous power: 1100W
- Maximum continuous current: 44A/30s
- Recommended controller (ESC): EOLO 50A
- Recommended propeller sizes: EOLO CN176.2/C186.5/C206.2/CN226.5

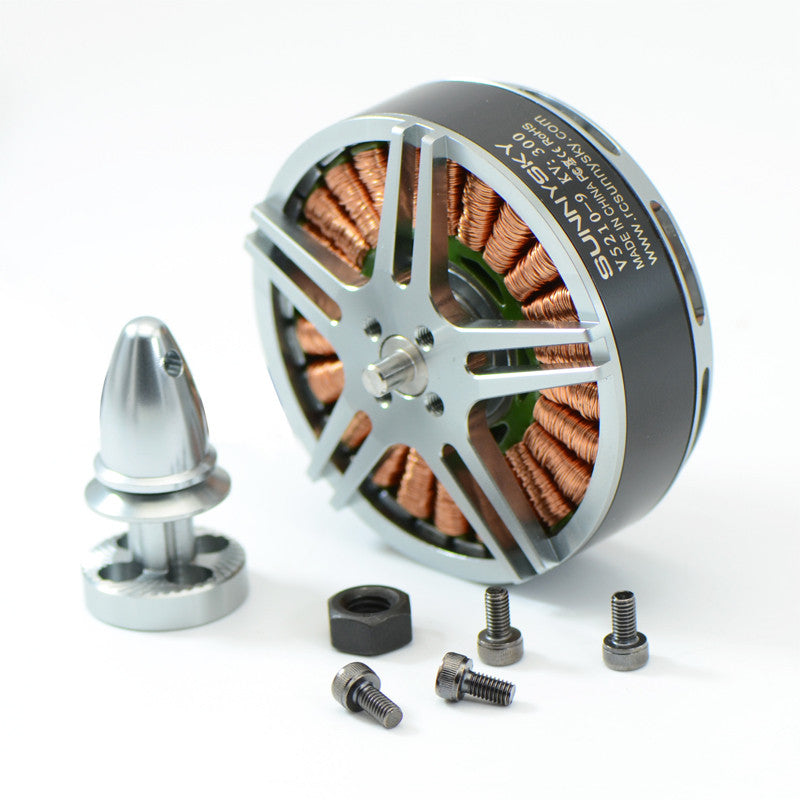

The package contains:
- 1x Motor SunnySky V5210 300KV
